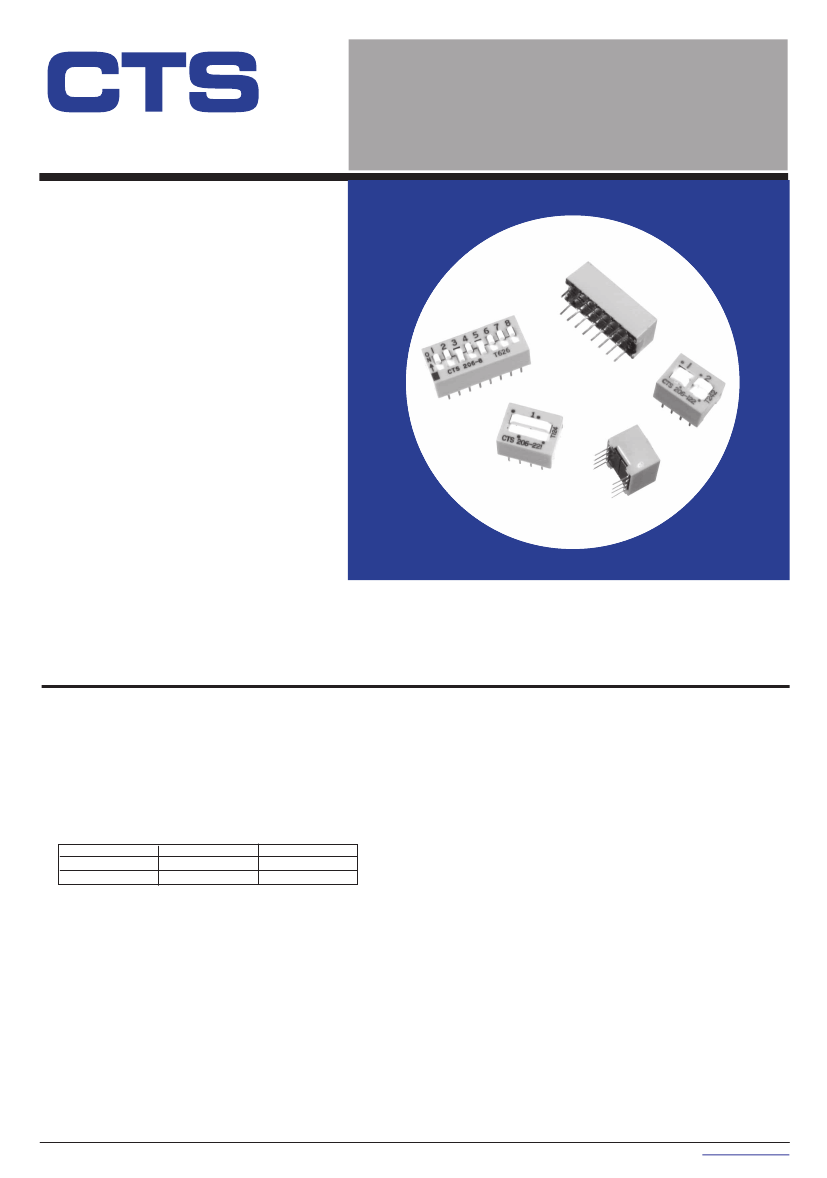

Electrocomponents
®
Series 206/208
Data Sheet
Through Hole DIP Switch
Multifunctional
Through Hole
DIP Switches
Features
Optimized Mechanical Features
• Standard 2.54mm (.100") x 7.62mm (.300") DIP
centers
• Sealed version optional; assures
contaminant-free switch operation after
wave soldering and cleaning
• Available with low profile, standard, or extended
actuators for SPST circuitry.
• Switch contacts elevated above
switch base provides dust proof feature.
• Available with SPST,SPDT DPST,DPDT,
3PST,4PST circuitry choices.
• Contact wiping action on make and break
• Integral terminal and contact locked into
thermoset base
• Electrostatic discharge shield rated to 22 KV
• Series 206, gold plated contacts for long-term
contact corrosion resistance.
• Series 208, tin plated contacts
• UL 94V-0 plastics
• RoHS compliant
Optimized Contact System
Materials
Series 206 – Premium Programmable DIP Switch
Series 208 – Economical Programmable DIP Switch
Electrical and Mechanical Specifications
Switch Function
SPST - 1 through 10 and 12 positions
SPDT&DPST- 1 through 6 positions
DPDT&4PST - 1 through 3 positions
3PST - 1 through 4 positions
Switch Contact Resistance
Switch Series
206
208
Initial, max.
50 milliohms
100 milliohms
End of life , max.
100 milliohms
500 milliohms
Insulation Resistance
1,000 megohms minimum between insulated
terminals
Dielectric Strength
500 VAC for 1 minute between adjacent
switches
Nonswitching Rating
100 mA or 50 VDC maximum
Switch Capacitance
5.0 pF maximum between adjacent closed switches
Operating Temperature
- 55°C to +85°C
Actuation Life
Series 206: 10,000 cycles switching 50 mA @ 24 VDC
Series 208: 2,000 cycles switching 50 mA @ 24 VDC
Allowable Solder Time
Wave soldering up to 5 seconds at 260°C
Vibration
Per MIL-STD-202F, method 204D, condition B(.06'' or
15G's between 10HZ to 2 KHZ) with no contact
inconsistencies greater than 1 microsecond
Shock
Per MIL-STD-202F, method 213B, condition A(50G's)
with no contact inconsistencies greater than
1 microsecond
Sealing
Bottom epoxy seal optional
Top tape seal optional
Marking
Special side or top marking available-consult CTS
Packaging
Standard : Anti-Static tube packaging
1-4
CTS Electrocomponents
© 2008 CTS Corporation. All rights reserved. Information subject to change.
www.ctscorp.com
12/25/08
