DRC5114-2659S datasheet, PDF - EEWORLD Datasheet

DRC5114-2659S: DescriptionDigital to Synchro or Resolver, Hybrid, 3.120 X 2.620 INCH, 0.820 INCH HEIGHT, PACKAGE-28/21; CategoryAnalog mixed-signal IC converter; File Size168KB，4 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric View All

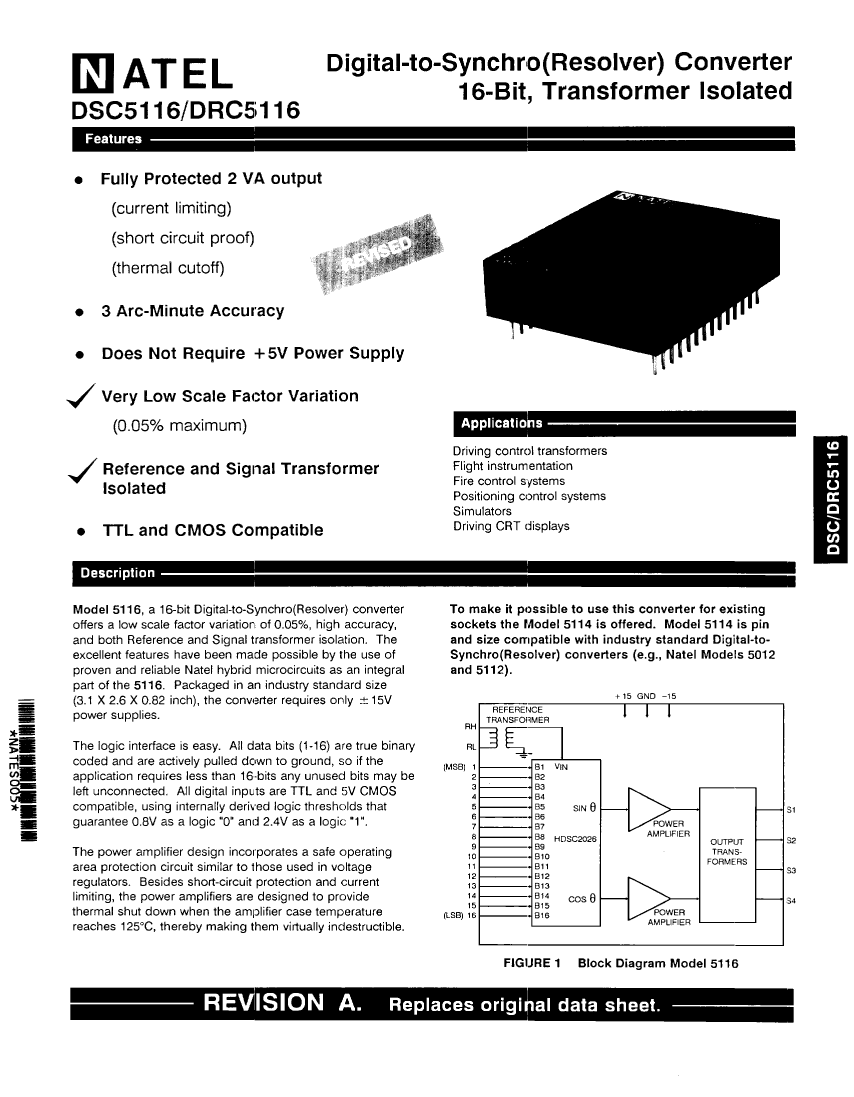

DRC5114-2659S Overview

Digital to Synchro or Resolver, Hybrid, 3.120 X 2.620 INCH, 0.820 INCH HEIGHT, PACKAGE-28/21

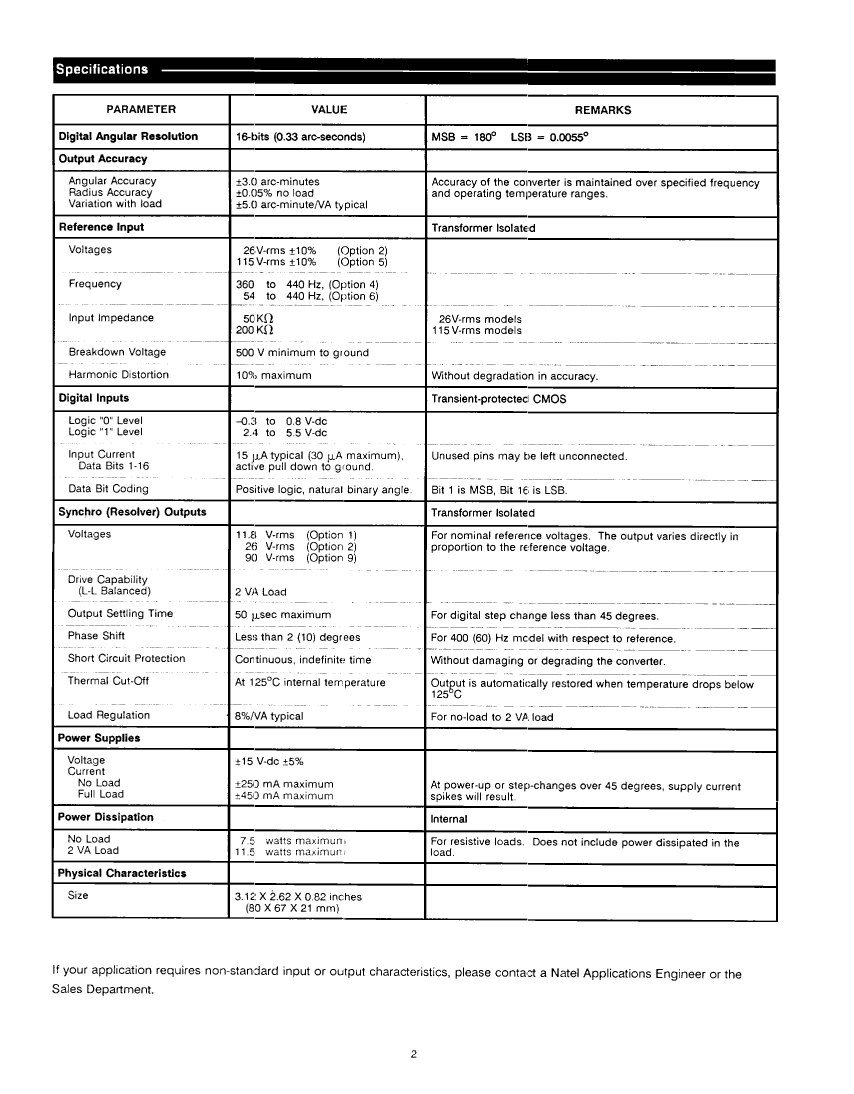

Parameter Name	Attribute value
Maker	Natel Engineering Company
Parts packaging code	DIP
package instruction	DIP,

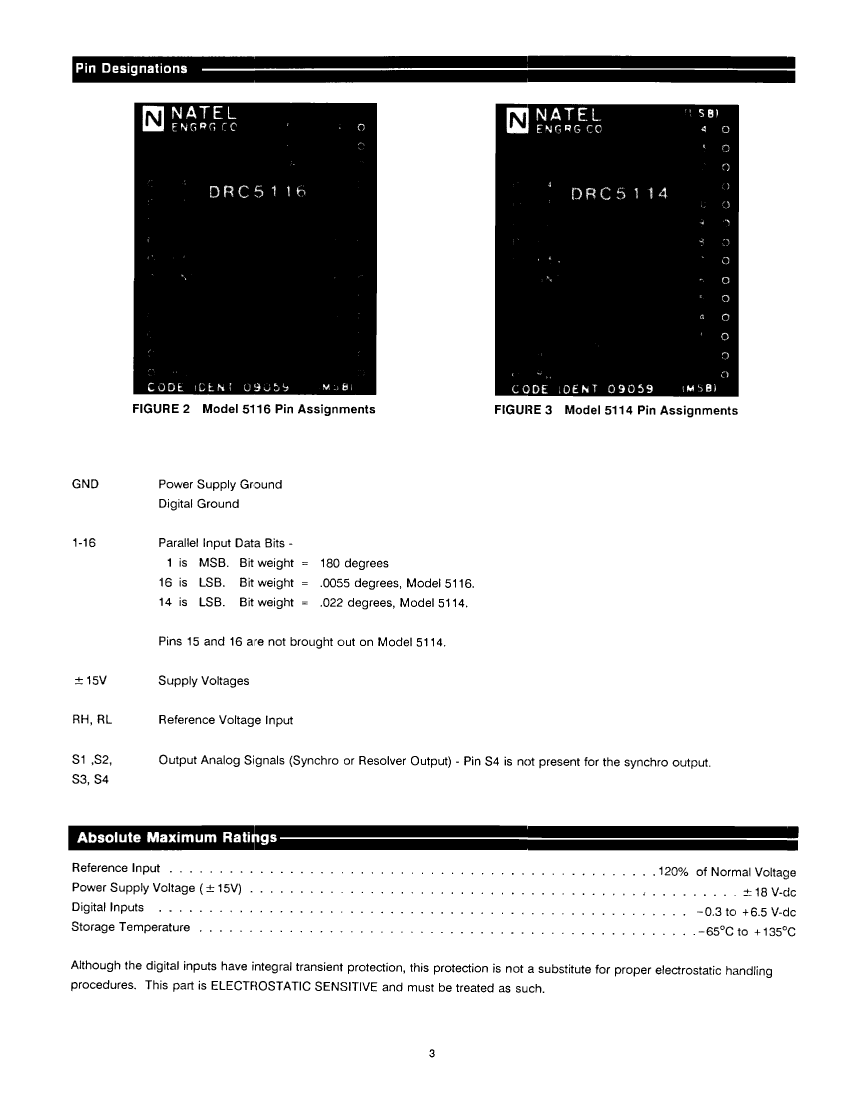

Contacts	21
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	115V REFERENCE INPUT
Maximum analog output voltage	90 V
Converter type	DIGITAL TO SYNCHRO OR RESOLVER
JESD-30 code	R-XDIP-P21

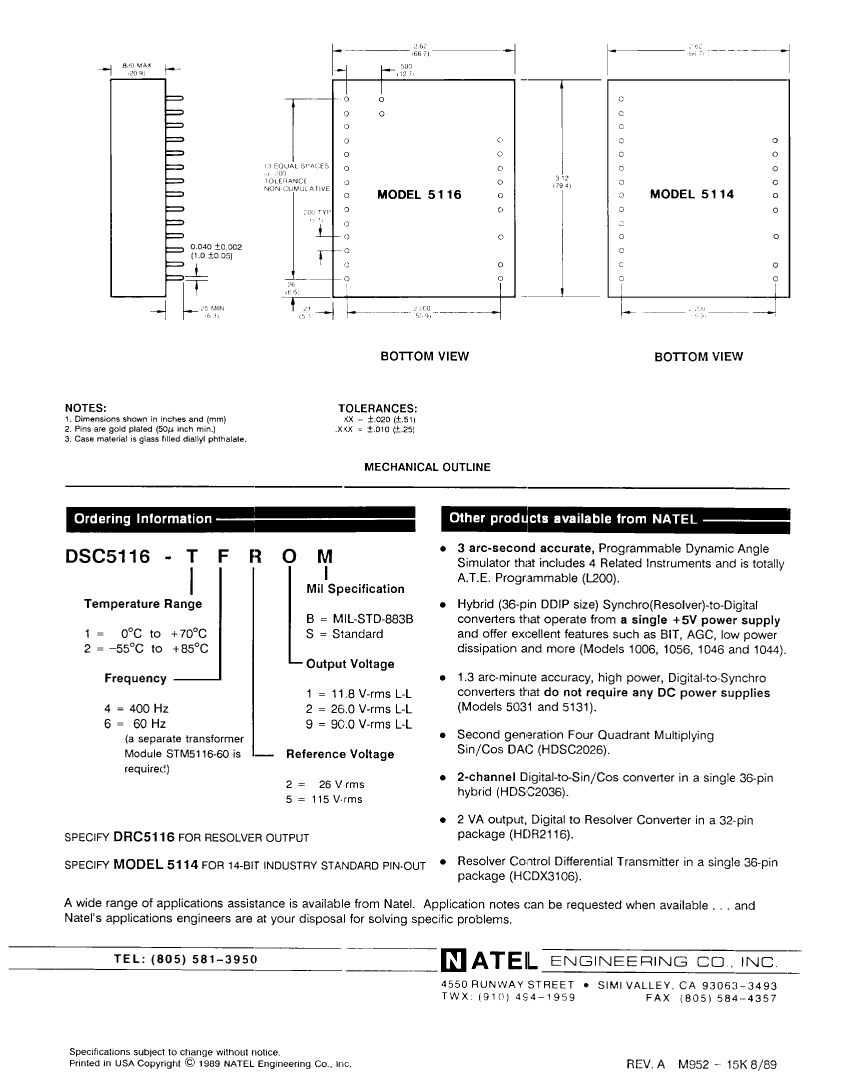

length	79.248 mm
Maximum negative supply voltage	-15.75 V
Minimum negative supply voltage	-14.25 V
Nominal negative supply voltage	-15 V
Number of digits	14
Number of functions	1
Number of terminals	21
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	20.828 mm
Signal/output frequency	440 Hz
Maximum slew rate	250 mA
Maximum supply voltage	15.75 V
Minimum supply voltage	14.25 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
width	55.88 mm
