EPC1025PN1: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid, 1.300 X 0.585 INCH, 0.375 INCH HEIGHT, PACKAGE-8; CategoryPower/power management The power supply circuit; File Size38KB，2 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EPC1025PN1 Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid, 1.300 X 0.585 INCH, 0.375 INCH HEIGHT, PACKAGE-8

EPC1025PN1 Parametric

Parameter Name	Attribute value
Maker	PCA Electronics Inc.
Parts packaging code	MODULE
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-XDIP-T8
Number of functions	1
Output times	1
Number of terminals	8
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	9.525 mm
surface mount	NO
technology	HYBRID
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
width	15.24 mm

Preview

Download Datasheet

View All

Ethernet DC/DC Converter EPC1025P & EPC1025H

Features

65 % Typical efficiency at full load

@ nominial input voltage

Regulated Output

Input / Output Isolation

Input filter to reduce input ripple current

Designed for low common mode noise

Electrical Specifications

PCA P/N

EPC1025P

EPC1025H

STD

PKG

E

E1

Optional

Packages

E-G*, F2,N1,††

E1-G*,F2,N1,Q1

*Note : Package with G = Surface Mount Device, †† : E1,E1-G,E4,E4-G,E11,Q,Q1, N4-G

Input

Voltage V

12 ± 10%

Output

Output Current

Voltage V

mA Max.

5 ± 5%

330 Max.

Output Ripple & Noise

@ 20 MHz BW mV p-p

100 Max.

Isolation

Vrms

500

2000

Pin Connections for E**

V in+

24

V o-

15

V o+

14

V in-

13

Pin Connections for E1

V in-

24

23

N/C

13 to 16

Pin Connections for E4

V in+

24

N/C

23 & 22

V o- V o+

15

14

V in-

13

Pin Connections for F2

1

V in+

1

V in+

10

V o-

11

V o+

12

V in-

1

V in+

2

9

10

V o-

11

V o+

12

1

V in+

2&3

N/C

10

11

12

V in-

2

3

9

10

11

12

N/C

V o- V o+

V in-

V o- V o+

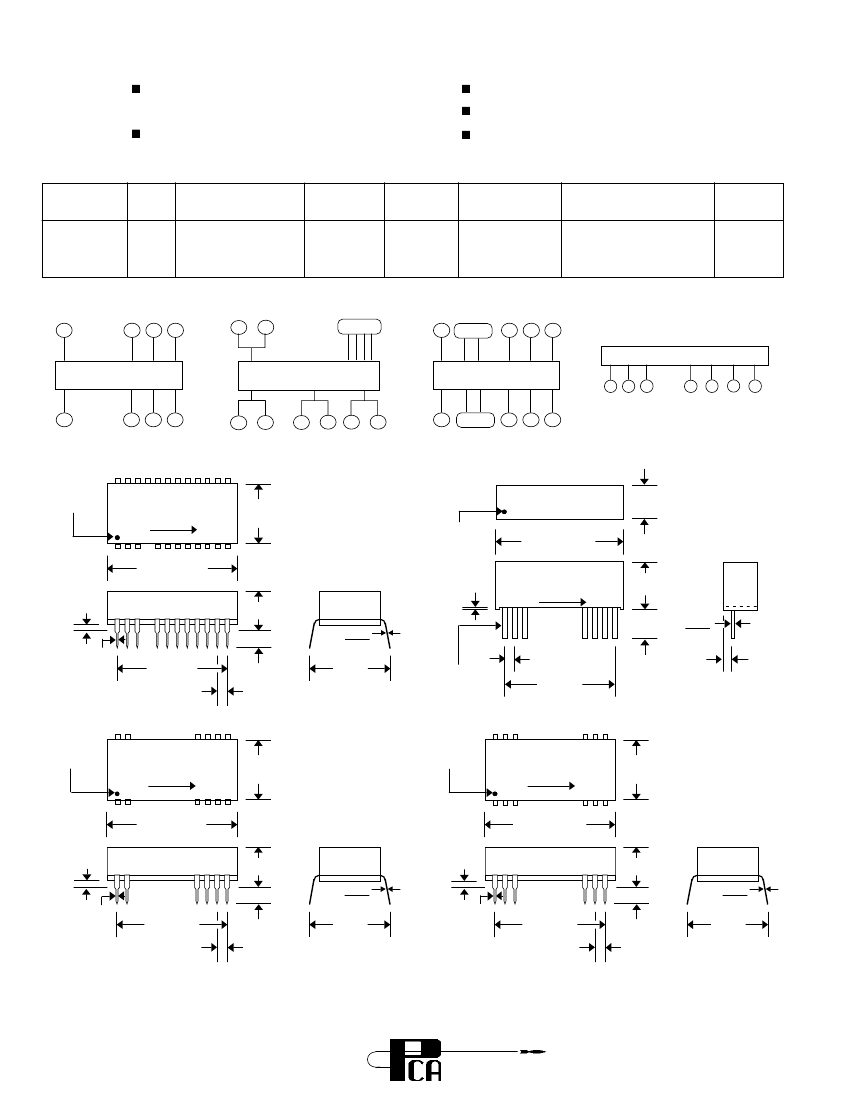

PACKAGE E

White Dot

Pin 1

PCA EPC1025P

Date Code

12V

5V

1.300 Max.

.020 Typ.

PACKAGE F2

.340

.585 Max.

**Pin 4 removed

Pins 2-9 & 16-23

not connected

.375 Max

.125 Min.

.008

.012

.635

Typ.

.020

Typ.

White Dot

Pin 1

.015

1.300 Max.

PCA EPC1025PF2

Date Code

12V

5V

.580 Max.

.250 Min. .009

.013

.100 Typ.

1.100

.040

.018

Typ.

1.100

.100 Typ.

PACKAGE E1

White Dot

Pin 1

PCA EPC1025H

Date Code

12V

5V

1.300 Max.

.020 Typ.

PACKAGE E4

White Dot

Pin 1

PCA EPC1025PE4

Date Code

12V

5V

1.300 Max.

.020 Typ.

.008

.012

.635

Typ.

.585 Max.

.375 Max

.125 Min.

.375 Max

.125 Min.

.008

.012

.635

Typ.

.018

Typ.

1.100

.100 Typ.

.018

Typ.

1.100

.100 Typ.

DSC1025

Rev. A

9/8/95

QAF-CSO6 Rev. B

9/9/94

Unless Otherwise Noted Dimensions in Inches

Tolerances:

Fractional = ± 1/32

.XX = ± .030

.XXX = ± .010

ELECTRONICS

INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

TEL: (818) 892-0761

FAX: (818) 894-5791
