BR810DL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BR810DL

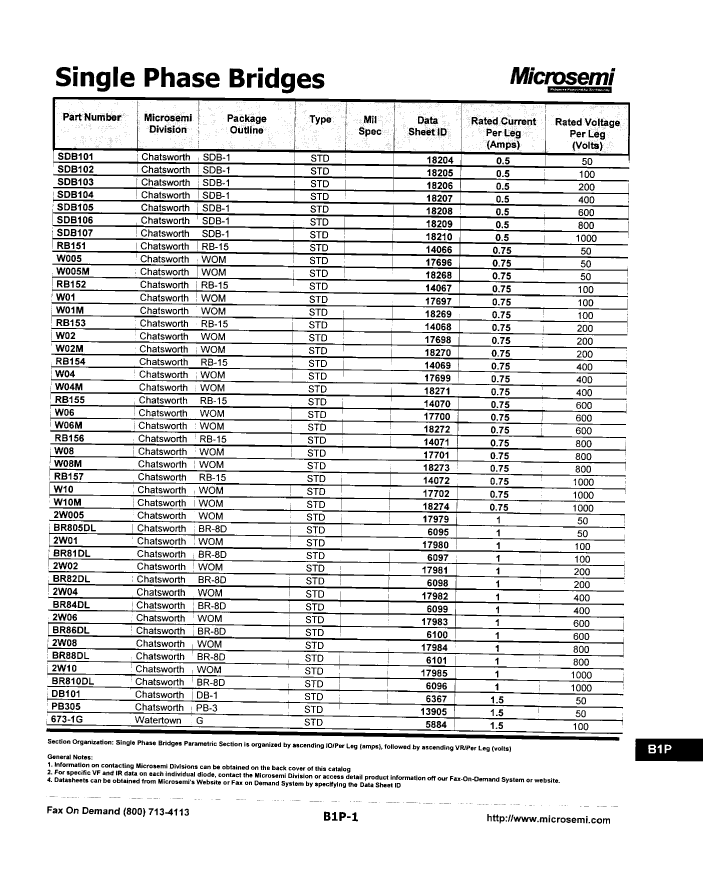

BR810DL: DescriptionBridge Rectifier Diode, 1 Phase, 2A, 1000V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN; CategoryDiscrete semiconductor diode; File Size52KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

BR810DL Overview

Bridge Rectifier Diode, 1 Phase, 2A, 1000V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN

BR810DL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	PLASTIC, BR-8D, 4 PIN
Contacts	4
Reach Compliance Code	not_compliant
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-W4
JESD-609 code	e0
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	SINGLE

Preview

Download Datasheet

View All

BR810DL Related Products

	BR810DL	BR81DL	BR805DL	BR82DL	BR86DL	BR88DL	BR84DL	W01	W10	W02
Description	Bridge Rectifier Diode, 1 Phase, 2A, 1000V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 50V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 200V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 600V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 800V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon, PLASTIC, BR-8D, 4 PIN	Bridge Rectifier Diode, 1 Phase, Silicon	Bridge Rectifier Diode, 1 Phase, Silicon	Bridge Rectifier Diode, 1 Phase, Silicon
package instruction	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	PLASTIC, BR-8D, 4 PIN	O-XBCY-W4	O-XBCY-W4	O-XBCY-W4
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	unknow	unknow	unknow
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	O-XBCY-W4	O-XBCY-W4	O-XBCY-W4
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	BOTTOM	BOTTOM	BOTTOM
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	-
Maker	Microsemi	-	-	Microsemi	-	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Contacts	4	4	4	4	4	4	4	-	-	-
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V	-	-	-
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	-	-	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-	-	-
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	-	-	-
Maximum repetitive peak reverse voltage	1000 V	100 V	50 V	200 V	600 V	800 V	400 V	-	-	-
