AM6TW-2415SH60-NZ

Description
DC/DC Converter; Product Weight (grams): 13; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 6; Max Output current (A): 0.4; Efficiency (%): 85; Max Capacitive load (µF): 680; Package type: DIP24; Mounting: PCB; W (in): 0.8; L (in): 1.24; H (in): 0.4; W (mm): 20.3; L (mm): 31.6; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 6000; EMC compliance 1: EN 55022 Class A; EMC compliance 2: EN 55022 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 71; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 120; Switching Frequency typ (KHz): 300; Short circuit protection: Continuous
CategoryPower/power management    The power supply circuit
File Size891KB，6 Pages
ManufacturerAimtec
Websitehttp://www.aimtec.ca/
Environmental Compliance
Download Datasheet Parametric View All

AM6TW-2415SH60-NZ Overview

DC/DC Converter; Product Weight (grams): 13; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 6; Max Output current (A): 0.4; Efficiency (%): 85; Max Capacitive load (µF): 680; Package type: DIP24; Mounting: PCB; W (in): 0.8; L (in): 1.24; H (in): 0.4; W (mm): 20.3; L (mm): 31.6; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 6000; EMC compliance 1: EN 55022 Class A; EMC compliance 2: EN 55022 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 71; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 120; Switching Frequency typ (KHz): 300; Short circuit protection: Continuous

AM6TW-2415SH60-NZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAimtec
package instructionPACKAGE-24/7
Reach Compliance Codecompliant
Factory Lead Time10 weeks
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage36 V
Minimum input voltage9 V
Nominal input voltage24 V
JESD-30 codeR-PDMA-P7
length31.6 mm
Number of functions1
Output times1
Number of terminals7
Maximum operating temperature71 °C
Minimum operating temperature-40 °C
Maximum output voltage15.45 V
Minimum output voltage14.55 V
Nominal output voltage15 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height10.7 mm
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output6 W
Fine-tuning/adjustable outputNO
width20.3 mm

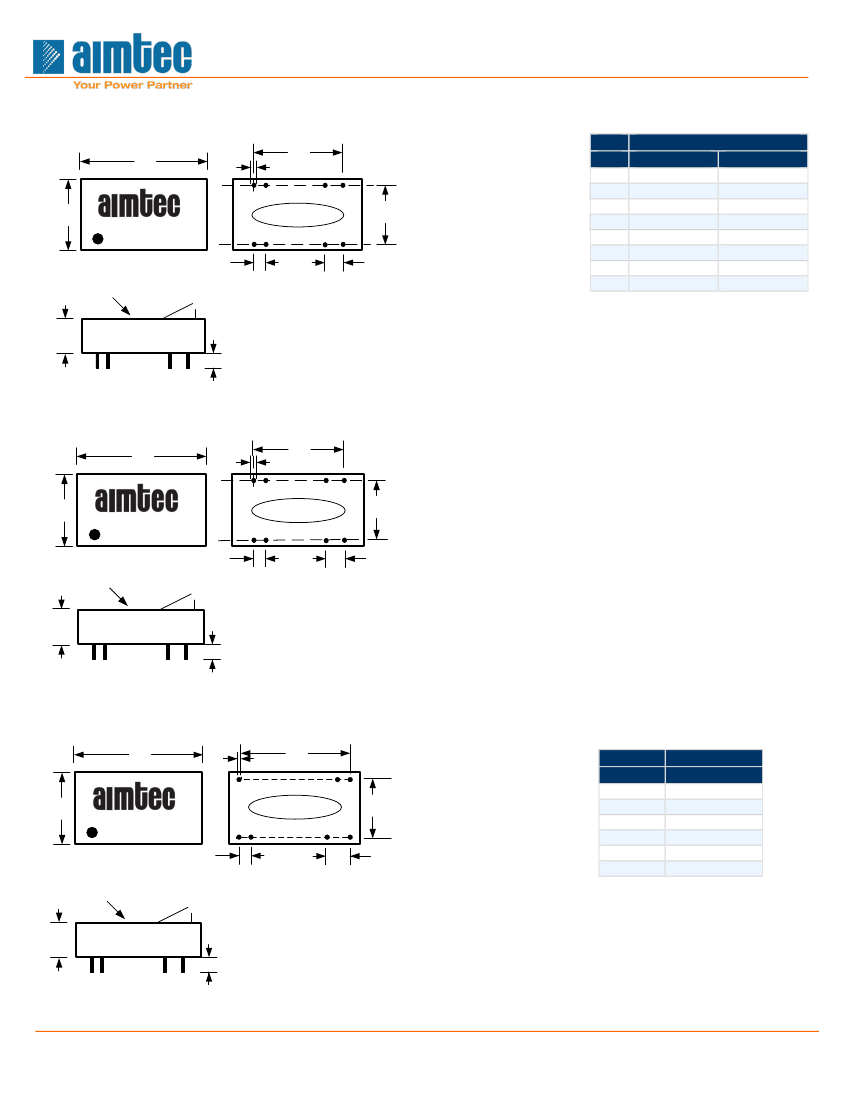

Preview

Download Datasheet
Series AM6TW-NZ

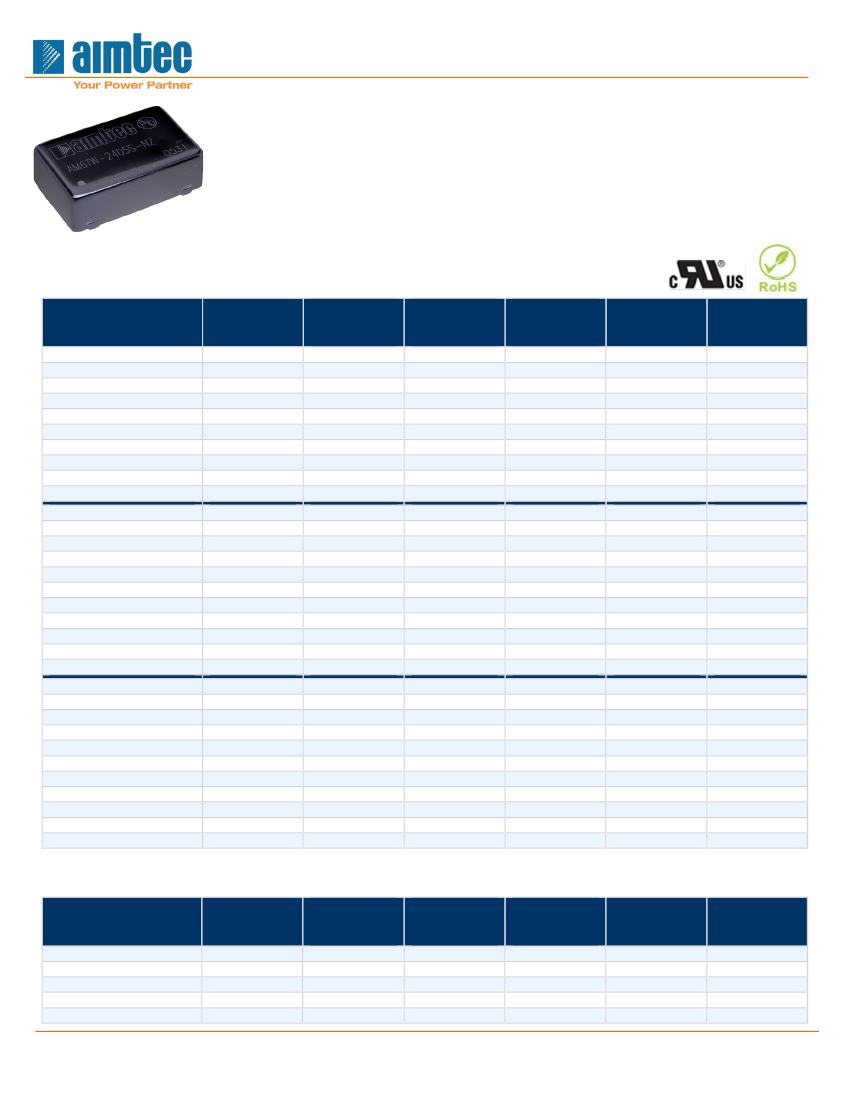

6 Watt | DC-DC Converter
FEATURES:
•
•
•
•
•
Over Voltage Protection
Wide 4:1 input range
High efficiency up to 88%
Over current Protection
Under voltage lockout
•
•
•
•
•
Very low no load power consumption of 0.12W
Input / Output Isolation 1500, 3000 & 6000VDC
Continuous short circuit protection
1.5KV isolation models design to meet EN50155
6KV isolation models design to meet EN60601-1 3
rd
,
2xMOPP, Type CF applied part
Models
Single output
Model
AM6TW-2403S-NZ
AM6TW-2405S-NZ
AM6TW-2412S-NZ
AM6TW-2415S-NZ
AM6TW-2424S-NZ
AM6TW-4803S-NZ
AM6TW-4805S-NZ
AM6TW-4812S-NZ
AM6TW-4815S-NZ
AM6TW-4824S-NZ
AM6TW-2403SH30-NZ
AM6TW-2405SH30-NZ
AM6TW-2409SH30-NZ
AM6TW-2412SH30-NZ
AM6TW-2415SH30-NZ
AM6TW-2424SH30-NZ
AM6TW-4803SH30-NZ
AM6TW-4805SH30-NZ
AM6TW-4812SH30-NZ
AM6TW-4815SH30-NZ
AM6TW-4824SH30-NZ
AM6TW-2405SH60-NZ
AM6TW-2406SH60-NZ
AM6TW-2409SH60-NZ
AM6TW-2412SH60-NZ
AM6TW-2415SH60-NZ
AM6TW-2424SH60-NZ
AM6TW-4805SH60-NZ
AM6TW-4809SH60-NZ
AM6TW-4812SH60-NZ
AM6TW-4815SH60-NZ
AM6TW-4824SH60-NZ
Input
Voltage (V)
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
9-36
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
9-36
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
Output
Voltage
(V)
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
9
12
15
24
3.3
5
12
15
24
5
6
9
12
15
24
5
9
12
15
24
Output
Current max
(mA)
1500
1200
500
400
250
1500
1200
500
400
250
1500
1200
667
500
400
250
1500
1200
500
400
250
1200
1000
667
500
400
250
1200
667
500
400
250
Max.
Capacitive
Load (µF)
1800
1000
470
220
100
1800
1000
470
220
100
2200
2200
1000
680
680
680
2200
2200
680
680
680
2700
2200
1800
1000
680
470
2700
1800
1000
680
470
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
Efficiency
(%)
79
83
87
88
87
80
84
87
88
87
77
80
85
83
85
85
78
81
87
86
87
80
81
83
84
85
84
81
83
84
85
84
Models
Dual output
Model
AM6TW-2405D-NZ
AM6TW-2409D-NZ
AM6TW-2412D-NZ
AM6TW-2415D-NZ
AM6TW-2424D-NZ
www.aimtec.com
F 051e R6.G
Rev: 07/20/A
Input
Voltage (V)
9-36
9-36
9-36
9-36
9-36
Output
Voltage
(V)
±5
±9
±12
±15
±24
Output
Current max
(mA)
±600
±333
±250
±200
±125
Max.
Capacitive
Load (µF)
±680
±220
±330
±220
±100
Isolation
(VDC)
1500
1500
1500
1500
1500
Efficiency
(%)
83
86
87
88
87
Tel: +1 514 620 2722
1 of 6
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
