46226-25/BXAJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> 46226-25/BXAJC

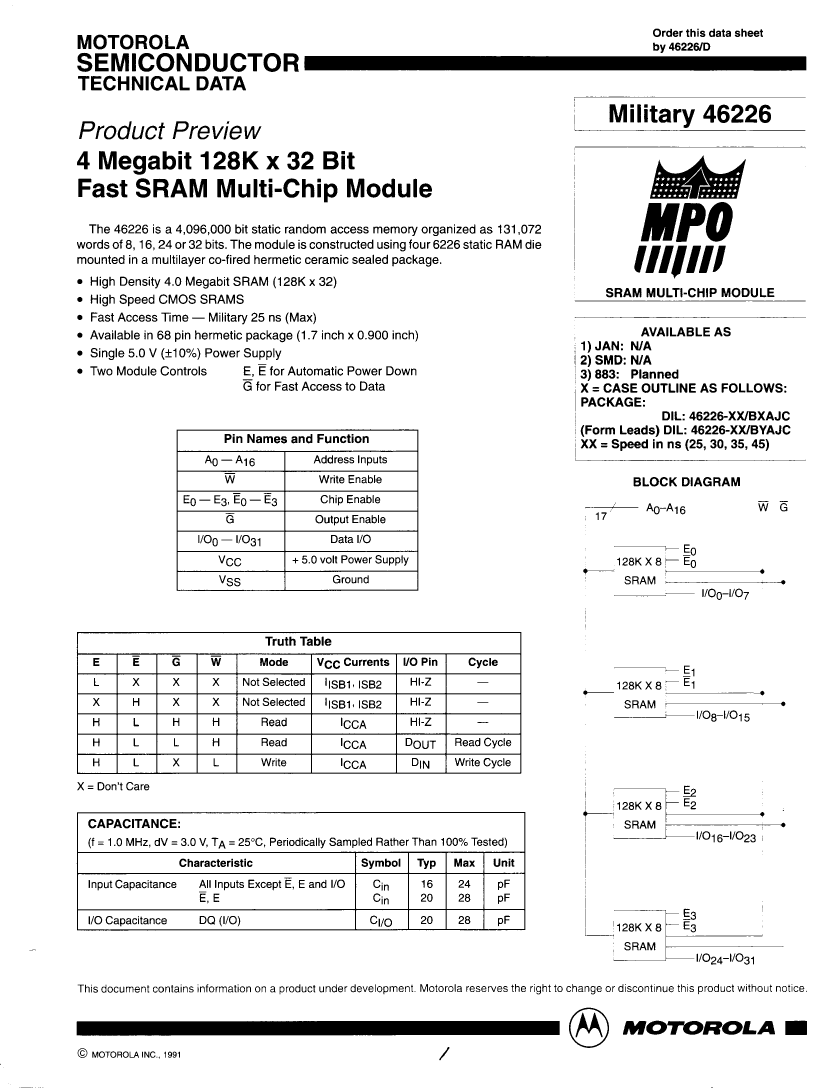

Preview

46226-25/BXAJC: DescriptionMEMORY MODULE,SRAM,128KX32,HYBRID,DIP,68PIN,CERAMIC; Categorystorage storage; File Size143KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

46226-25/BXAJC Overview

MEMORY MODULE,SRAM,128KX32,HYBRID,DIP,68PIN,CERAMIC

46226-25/BXAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP68(UNSPEC)
Reach Compliance Code	unknown
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T68
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	SRAM MODULE
memory width	32
Number of terminals	68
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX32
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP68(UNSPEC)
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Minimum standby current	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL

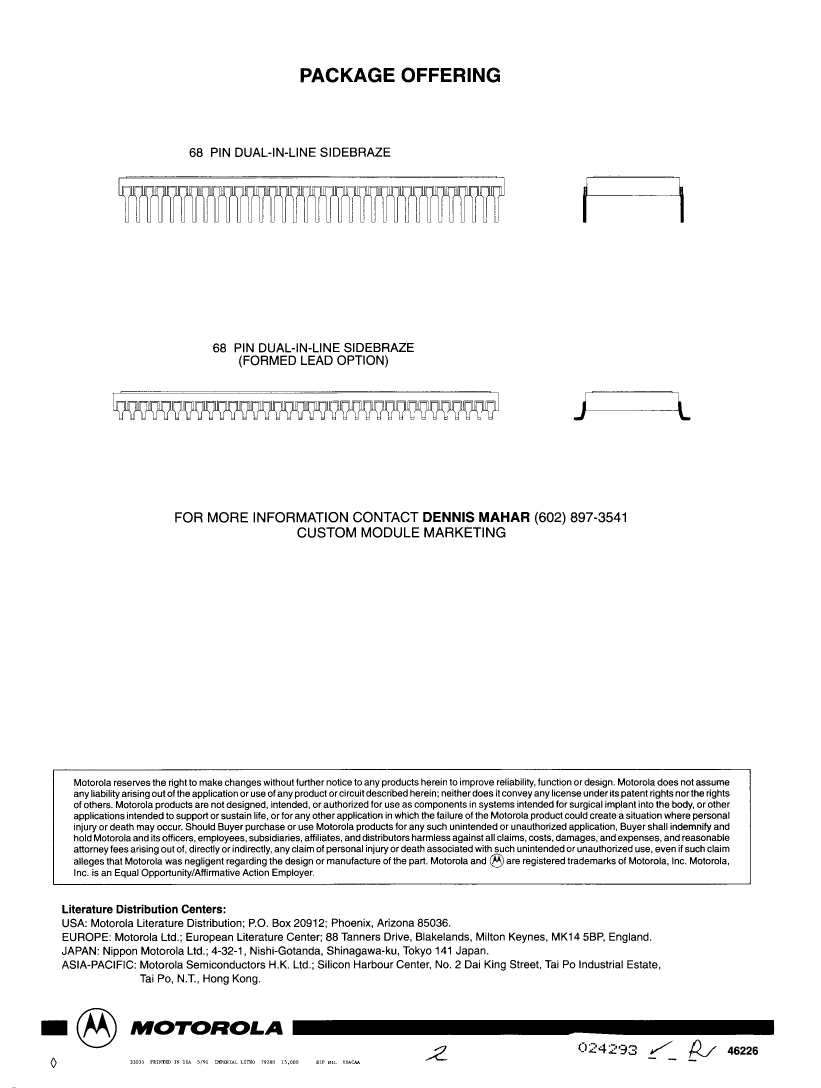

Preview

Download Datasheet

View All

46226-25/BXAJC Related Products

	46226-25/BXAJC	46226-30/BXAJC	46226-30/BYAJC	46226-45/BXAJC
Description	MEMORY MODULE,SRAM,128KX32,HYBRID,DIP,68PIN,CERAMIC	MEMORY MODULE,SRAM,128KX32,HYBRID,DIP,68PIN,CERAMIC	MEMORY MODULE,SRAM,128KX32,HYBRID,SO,68PIN,CERAMIC	MEMORY MODULE,SRAM,128KX32,HYBRID,DIP,68PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP
package instruction	DIP, DIP68(UNSPEC)	DIP, DIP68(UNSPEC)	SOP, SO68(UNSPEC)	DIP, DIP68(UNSPEC)
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	25 ns	30 ns	30 ns	45 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T68	R-XDIP-T68	R-XDSO-G68	R-XDIP-T68
JESD-609 code	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32
Number of terminals	68	68	68	68
word count	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	128KX32	128KX32	128KX32	128KX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP
Encapsulate equivalent code	DIP68(UNSPEC)	DIP68(UNSPEC)	SO68(UNSPEC)	DIP68(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
