M20-9470505 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M20-9470505

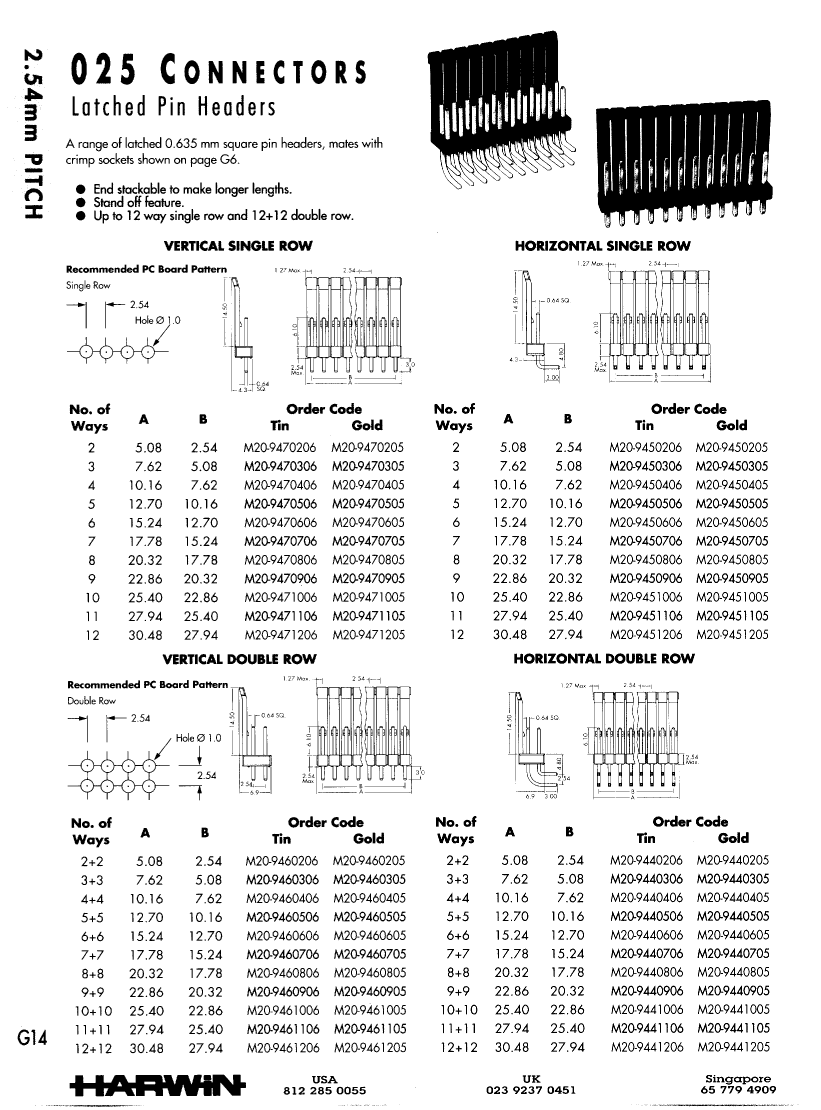

M20-9470505: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M20-9470505 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

M20-9470505 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED
body width	0.169 inch
subject depth	0.671 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	1000000000 Ω
MIL compliance	NO
Manufacturer's serial number	M20
Plug contact pitch	0.1 inch
Plug information	M20-1060500
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
