LM2901DR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM2901DR2

LM2901DR2: DescriptionQUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size130KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM2901DR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM2901DR2	-	-	View	Buy Now

LM2901DR2 Overview

QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14

LM2901DR2 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.5 µA
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Negative supply voltage upper limit	-18 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	1.75 mm
Maximum slew rate	2.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

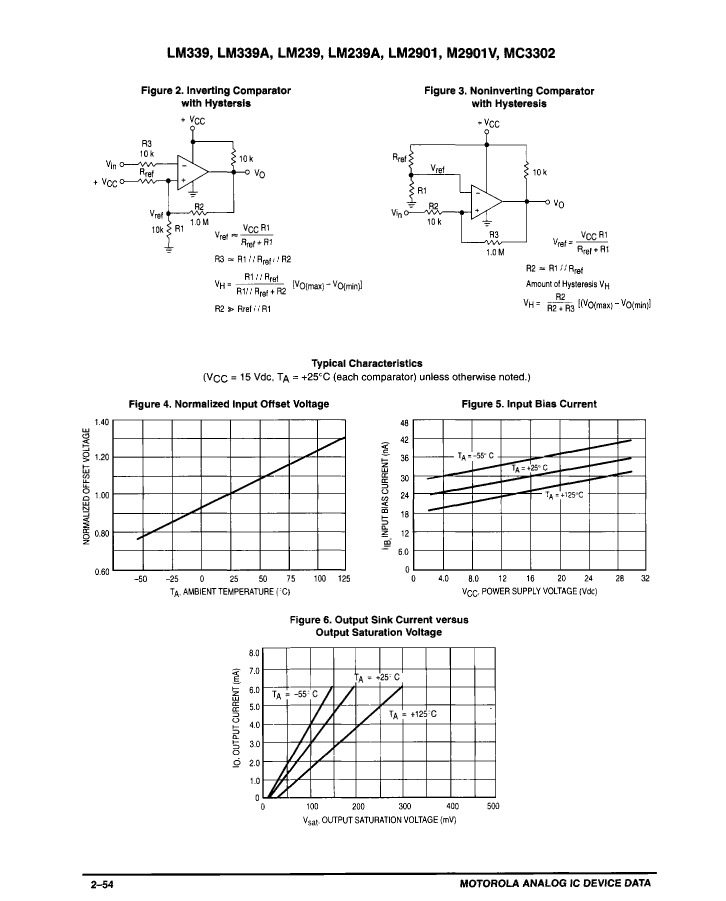

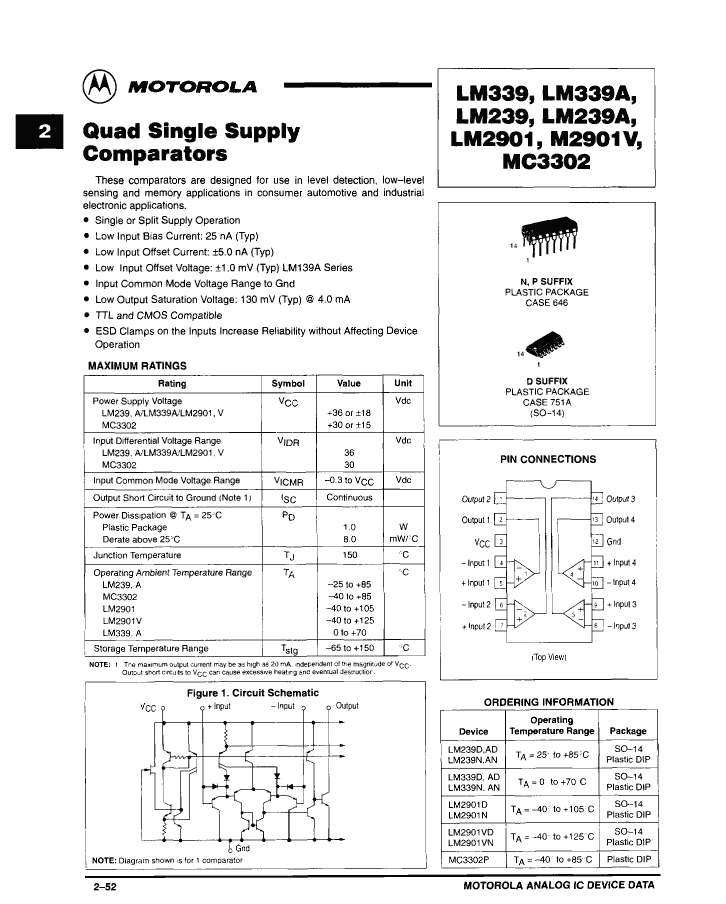

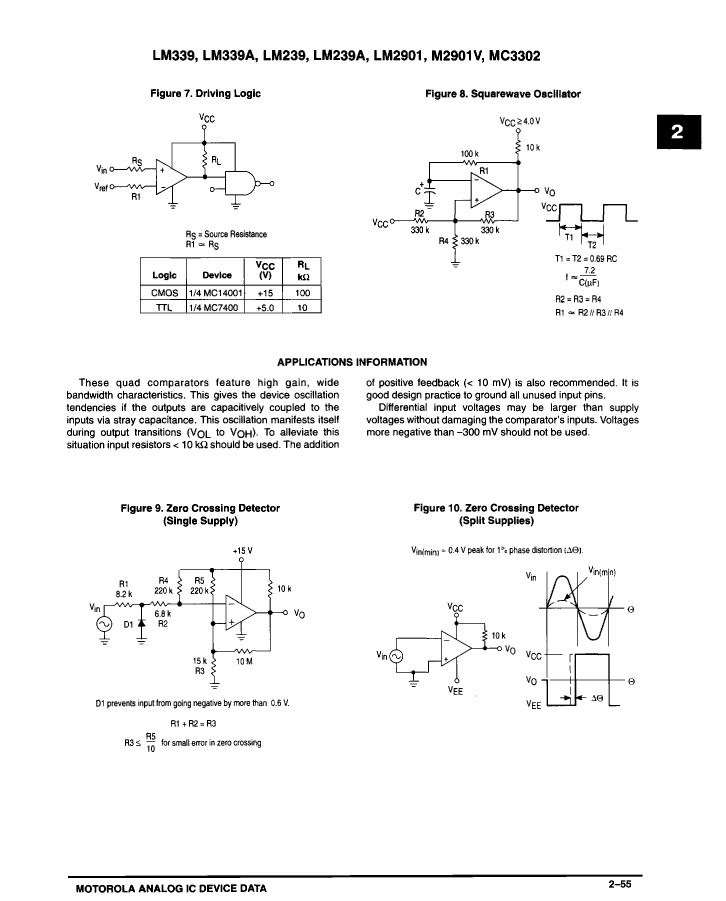

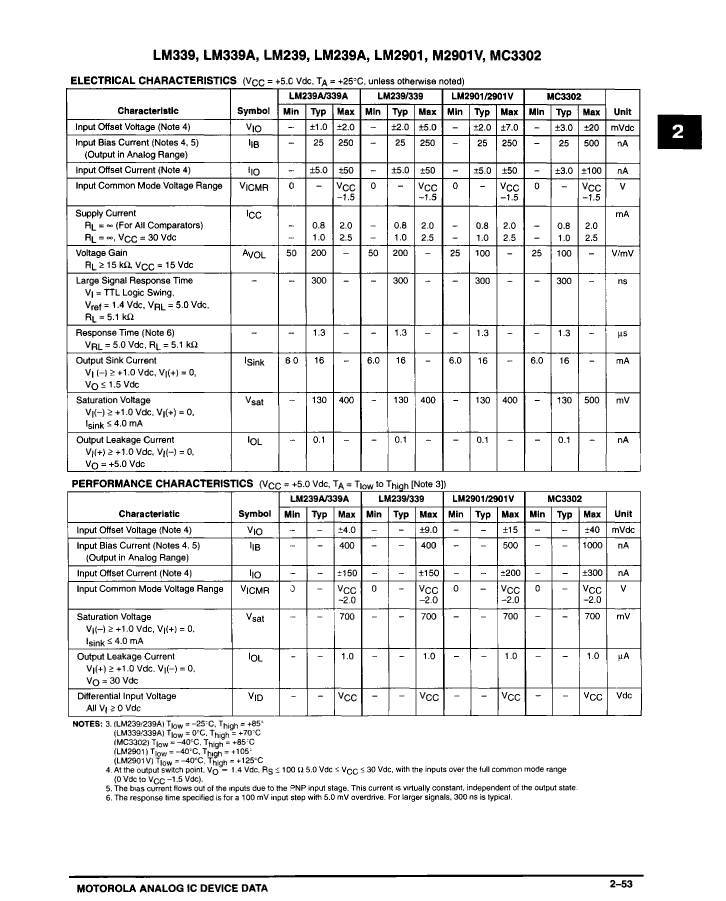

Preview

Download Datasheet

View All

LM2901DR2 Related Products

	LM2901DR2	LM239ADR2	LM239DR2	LM339ADR2	LM2901VDR2	LM339DR2
Description	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP, SOP14,.25	SOP,	SOP, SOP14,.25	SOP,	SOP,
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.5 µA	0.4 µA	0.4 µA	0.4 µA	0.5 µA	0.4 µA
Maximum input offset voltage	15000 µV	4000 µV	9000 µV	4000 µV	15000 µV	9000 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0
length	8.65 mm	8.65 mm	8.65 mm	8.65 mm	8.65 mm	8.65 mm
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	105 °C	85 °C	85 °C	70 °C	125 °C	70 °C
Minimum operating temperature	-40 °C	-25 °C	-25 °C	-	-40 °C	-
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum slew rate	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	OTHER	OTHER	COMMERCIAL	AUTOMOTIVE	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-	-18 V
Supply voltage upper limit	18 V	18 V	18 V	18 V	-	18 V
