BA983GS08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BA983GS08

BA983GS08: DescriptionMixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN; CategoryDiscrete semiconductor diode; File Size45KB，2 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BA983GS08 Overview

Mixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN

BA983GS08 Parametric

Parameter Name	Attribute value
Maker	TEMIC
package instruction	GLASS, SIMILAR TO DO-213AA, 2 PIN
Reach Compliance Code	unknown
Minimum breakdown voltage	35 V
Configuration	SINGLE
Maximum diode capacitance	1.5 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	1 V
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-LDSO-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	100 A
Package body material	GLASS
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum reverse current	0.05 µA
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	DUAL

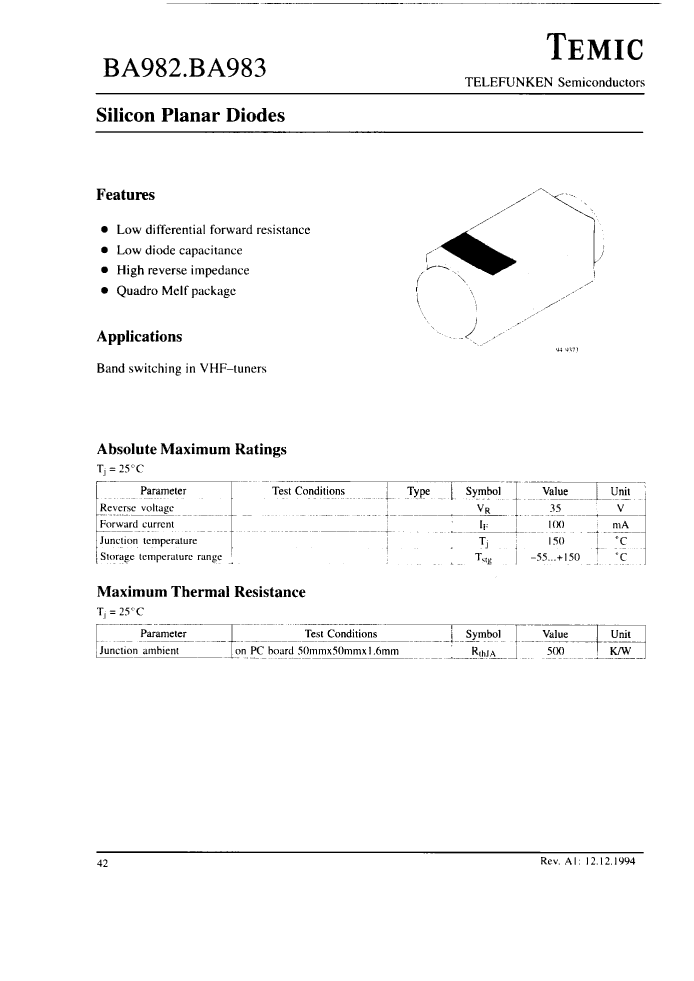

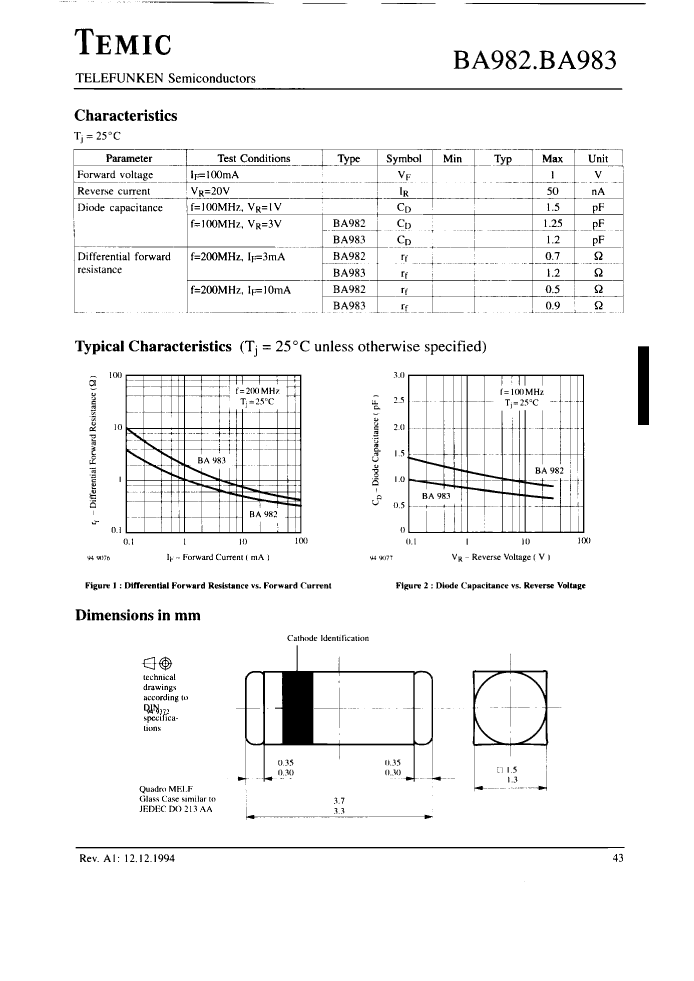

Preview

Download Datasheet

View All

BA983GS08 Related Products

	BA983GS08	BA983GS18	BA982GS08	BA982GS18
Description	Mixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN	Mixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN	Mixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN	Mixer Diode, Very High Frequency, Silicon, GLASS, SIMILAR TO DO-213AA, 2 PIN
Maker	TEMIC	TEMIC	TEMIC	TEMIC
package instruction	GLASS, SIMILAR TO DO-213AA, 2 PIN	GLASS, SIMILAR TO DO-213AA, 2 PIN	GLASS, SIMILAR TO DO-213AA, 2 PIN	GLASS, SIMILAR TO DO-213AA, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Minimum breakdown voltage	35 V	35 V	35 V	35 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	1.5 pF	1.5 pF	1.5 pF	1.5 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V
frequency band	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY
JESD-30 code	R-LDSO-R2	R-LDSO-R2	R-LDSO-R2	R-LDSO-R2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	100 A	100 A	100 A	100 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.05 µA	0.05 µA	0.05 µA	0.05 µA
surface mount	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	DUAL	DUAL	DUAL	DUAL
