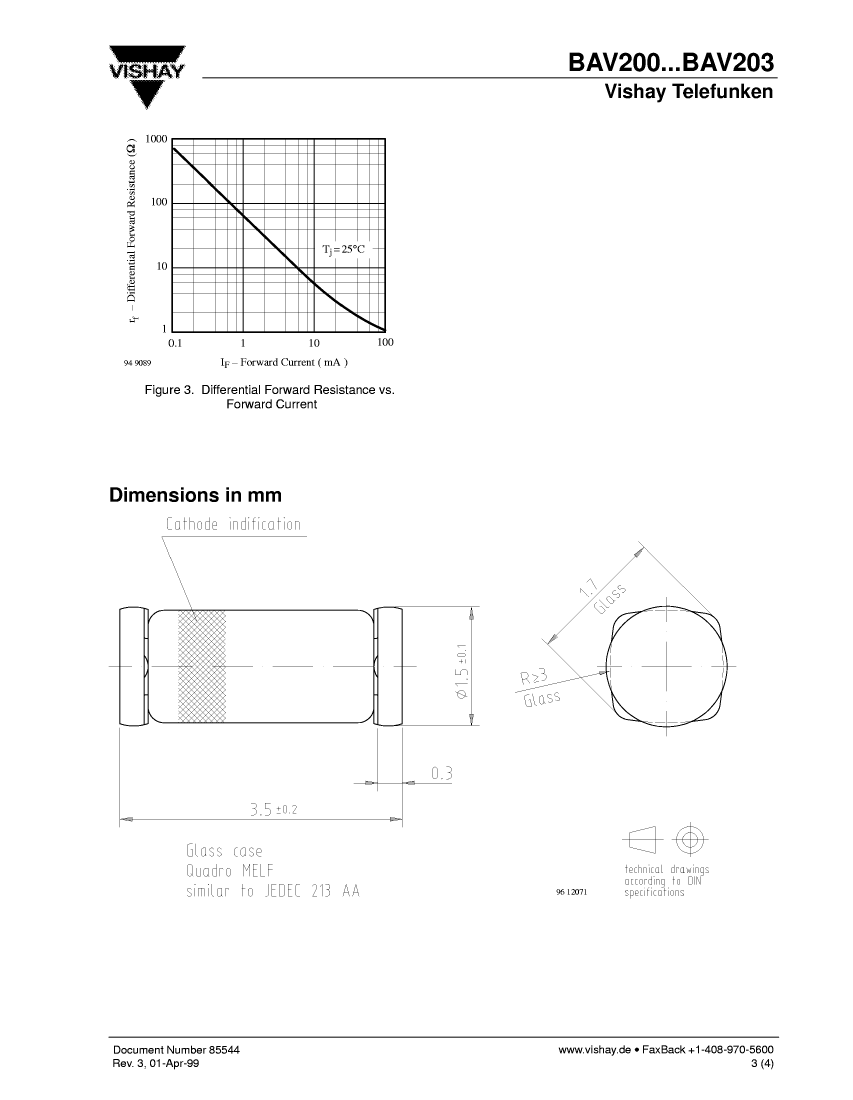

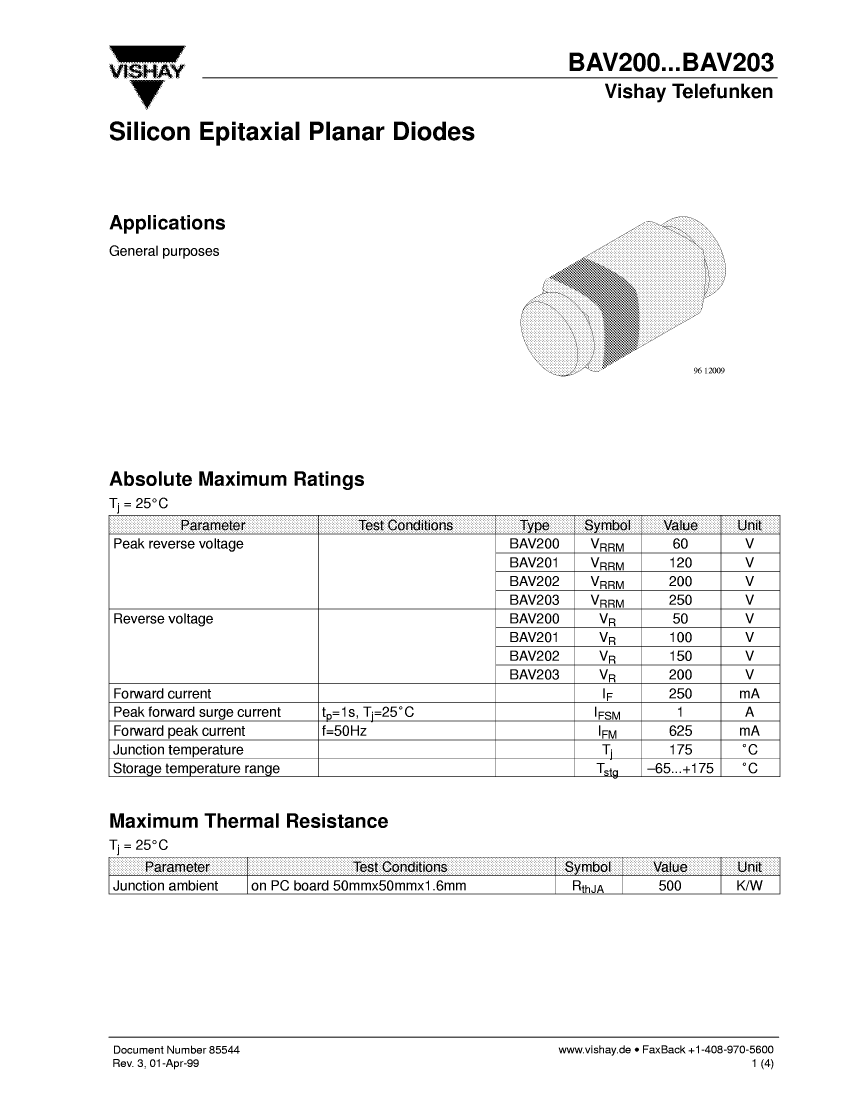

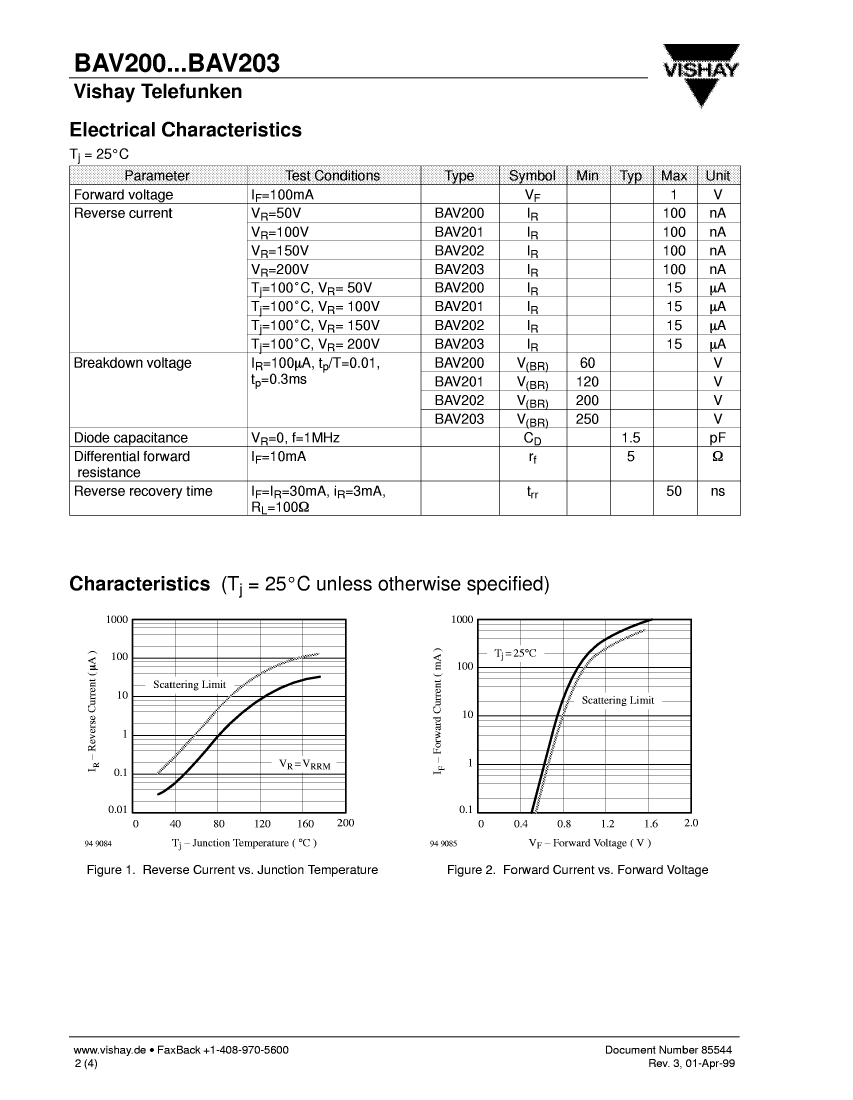

BAV200 Overview

Rectifier Diode, 1 Element, 0.25A, 60V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay Telefunken (Vishay)
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	1 A
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	0.25 A
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

	BAV200	BAV202	BAV203	BAV201
Description	Rectifier Diode, 1 Element, 0.25A, 60V V(RRM),	Rectifier Diode, 1 Element, 0.25A, 200V V(RRM),	Rectifier Diode, 1 Element, 0.25A, 250V V(RRM),	Rectifier Diode, 1 Element, 0.25A, 120V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	1 A	1 A	1 A	1 A
Number of components	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Maximum output current	0.25 A	0.25 A	0.25 A	0.25 A
Maximum repetitive peak reverse voltage	60 V	200 V	250 V	120 V
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Vishay Telefunken (Vishay)	-	Vishay Telefunken (Vishay)	Vishay Telefunken (Vishay)
