BAV203GS18 datasheet, PDF - EEWORLD Datasheet

BAV203GS18: DescriptionRectifier Diode, 1 Element, 0.25A, 250V V(RRM), Silicon, GLASS, QUADROMELF-2; CategoryDiscrete semiconductor diode; File Size67KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

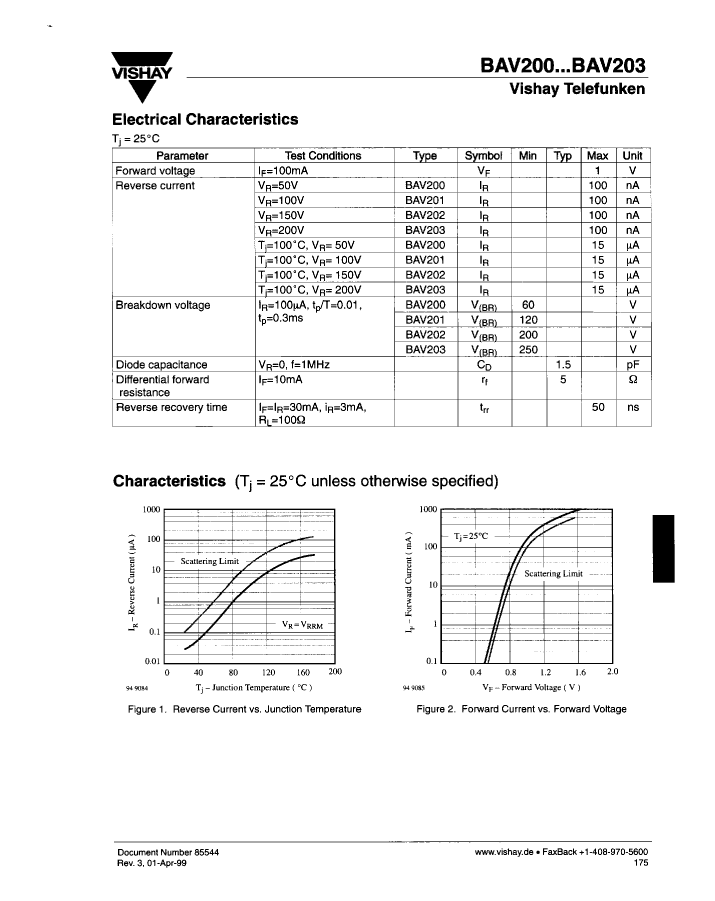

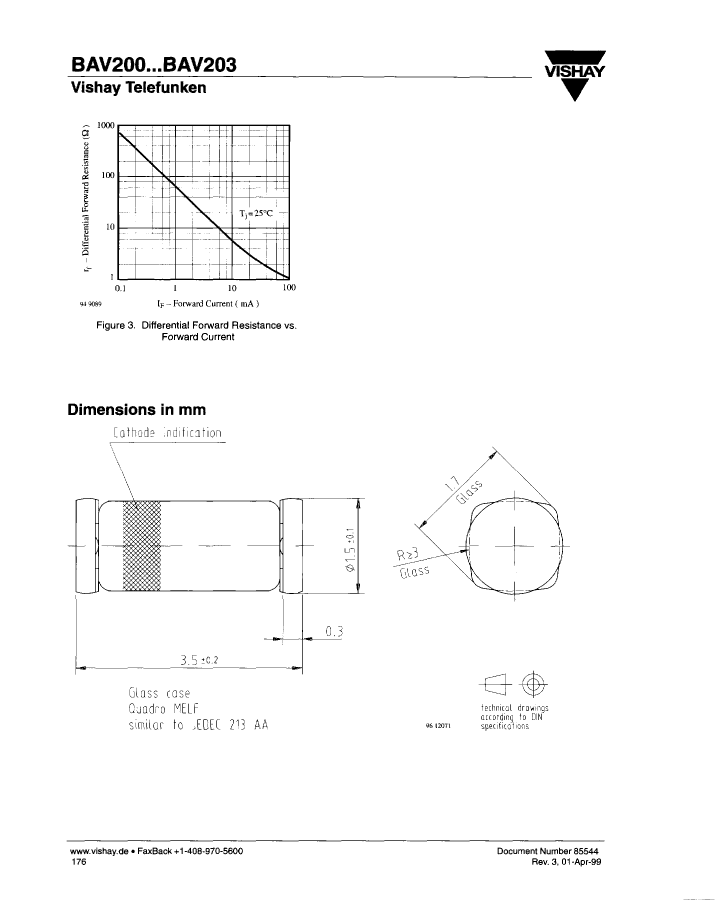

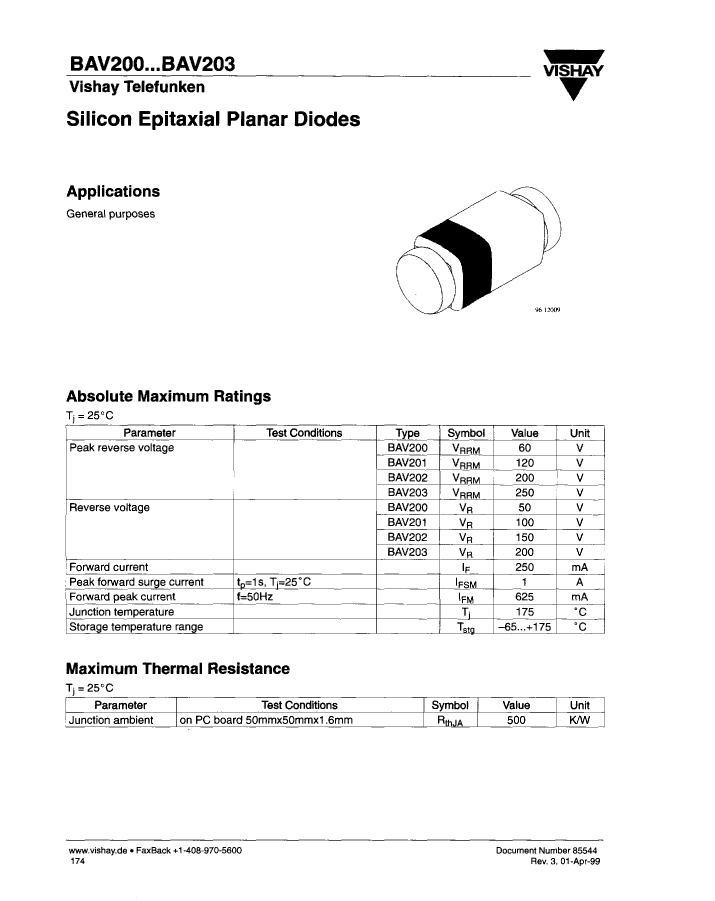

BAV203GS18 Overview

Rectifier Diode, 1 Element, 0.25A, 250V V(RRM), Silicon, GLASS, QUADROMELF-2

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	MELF
package instruction	O-LELF-R2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum output current	0.25 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	250 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END

	BAV203GS18	BAV202GS18	BAV200GS18	BAV201GS18
Description	Rectifier Diode, 1 Element, 0.25A, 250V V(RRM), Silicon, GLASS, QUADROMELF-2	Rectifier Diode, 1 Element, 0.25A, 200V V(RRM), Silicon, GLASS, QUADROMELF-2	Rectifier Diode, 1 Element, 0.25A, 60V V(RRM), Silicon, GLASS, QUADROMELF-2	Rectifier Diode, 1 Element, 0.25A, 120V V(RRM), Silicon, GLASS, QUADROMELF-2
Parts packaging code	MELF	MELF	MELF	MELF
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Contacts	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum output current	0.25 A	0.25 A	0.25 A	0.25 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	250 V	200 V	60 V	120 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END
Maker	Vishay	-	Vishay	Vishay
