BAV3004W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > BAV3004W

Preview

BAV3004W: Description0.225A,300V,Surface Mount Small Signal Switching Diodes, Single, 300V, 0.225A, 1.25V, 0.2A, 4A, 0.1uA; File Size249KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BAV3004W Overview

0.225A,300V,Surface Mount Small Signal Switching Diodes, Single, 300V, 0.225A, 1.25V, 0.2A, 4A, 0.1uA

BAV3004W Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOD-123
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
Other features	LOW LEAKAGE CURRENT
application	FAST RECOVERY
Minimum breakdown voltage	350 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G2
Maximum non-repetitive peak forward current	4 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.225 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.4 W
Maximum repetitive peak reverse voltage	350 V
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.05 µs
Reverse test voltage	240 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
VRRM (V) max	300
IF (A) max	0.225
VF (V) max	1.25
Condition1_IF (A)	0.2
IFSM (A) max	4
IR (uA) max	0.1
Condition2_VR (V)	240
trr (ns) max	50
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOD-123

Preview

Download Datasheet

View All

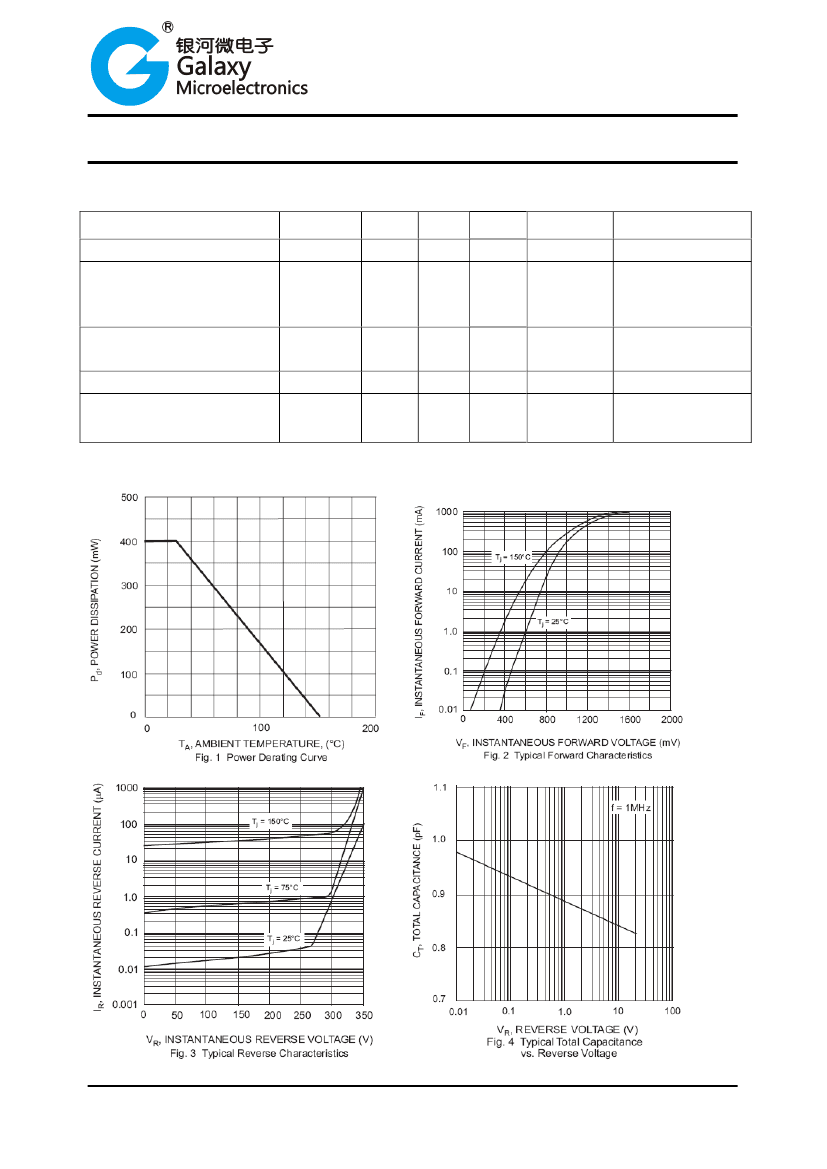

Production specification

Surface mount low leakage diode

FEATURES



Low Leakage Current.

High Reverse Breakdown Voltage.

Fast Switching Speed.

Surface Mount Package Ideally Suited for

Automatic Insertion.

BAV3004W

Pb

Lead-free

APPLICATIONS



Surface mount fast switching diode.

SOD-123

ORDERING INFORMATION

Type No.

BAV3004W

Marking

4P

Package Code

SOD-123

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse Voltage

Forward Continuous Current

Repetitive Peak Forward Current

Non-Repetitive Peak Forward Surge Current

@t=1.0us

@t=1.0s

Power Dissipation

Thermal Resistance Junction to Ambient Air

Operating and Storage Temperature Rage

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

FM

I

FRM

Value

350

300

212

225

625

4.0

1.0

400

312

-65 to +150

Unit

V

mA

I

FSM

A

P

d

R

θJA

T

j

,T

STG

mW

℃/W

℃

A022

Rev.A

www.gmesemi.com

1
