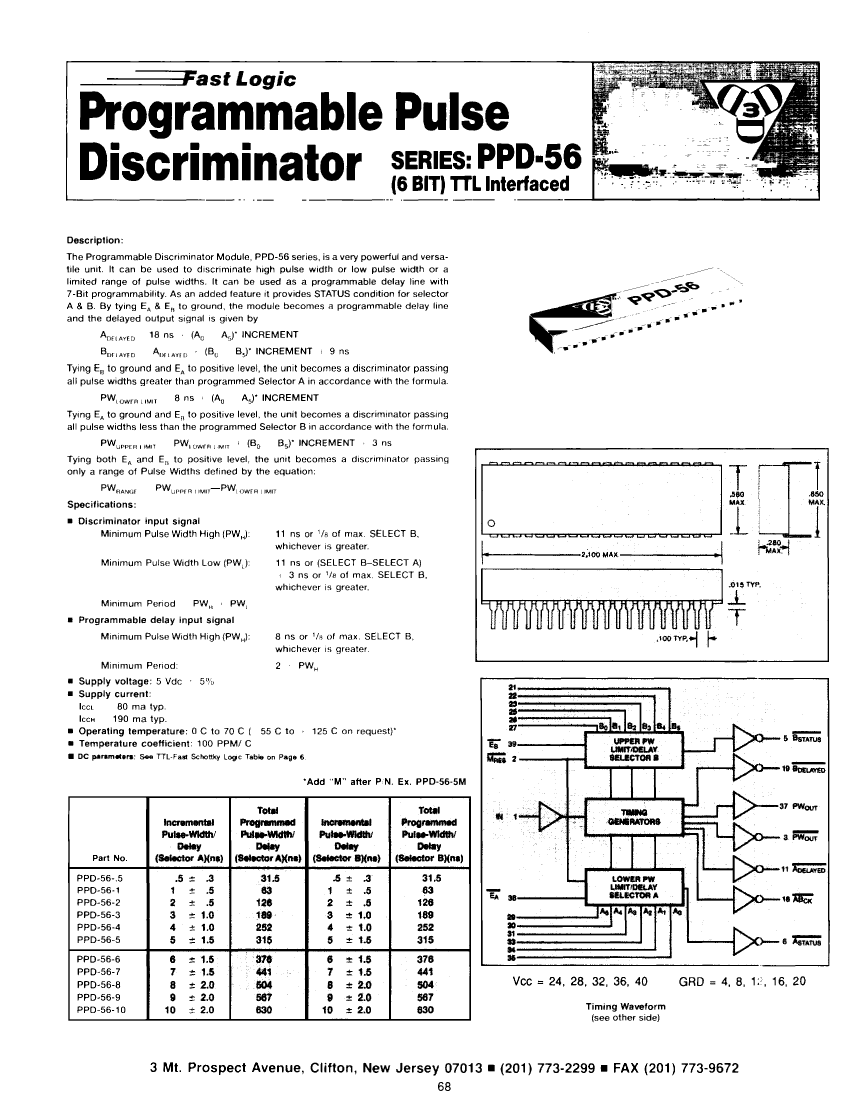

PPD-56-9MC5 datasheet, PDF - EEWORLD Datasheet

PPD-56-9MC5: DescriptionPulse Discriminator Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL,; Categorylogic logic; File Size93KB，2 Pages; ManufacturerData Delay Devices

Download Datasheet Parametric View All

PPD-56-9MC5 Overview

Pulse Discriminator Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL,

Parameter Name	Attribute value
Maker	Data Delay Devices
Reach Compliance Code	compliant

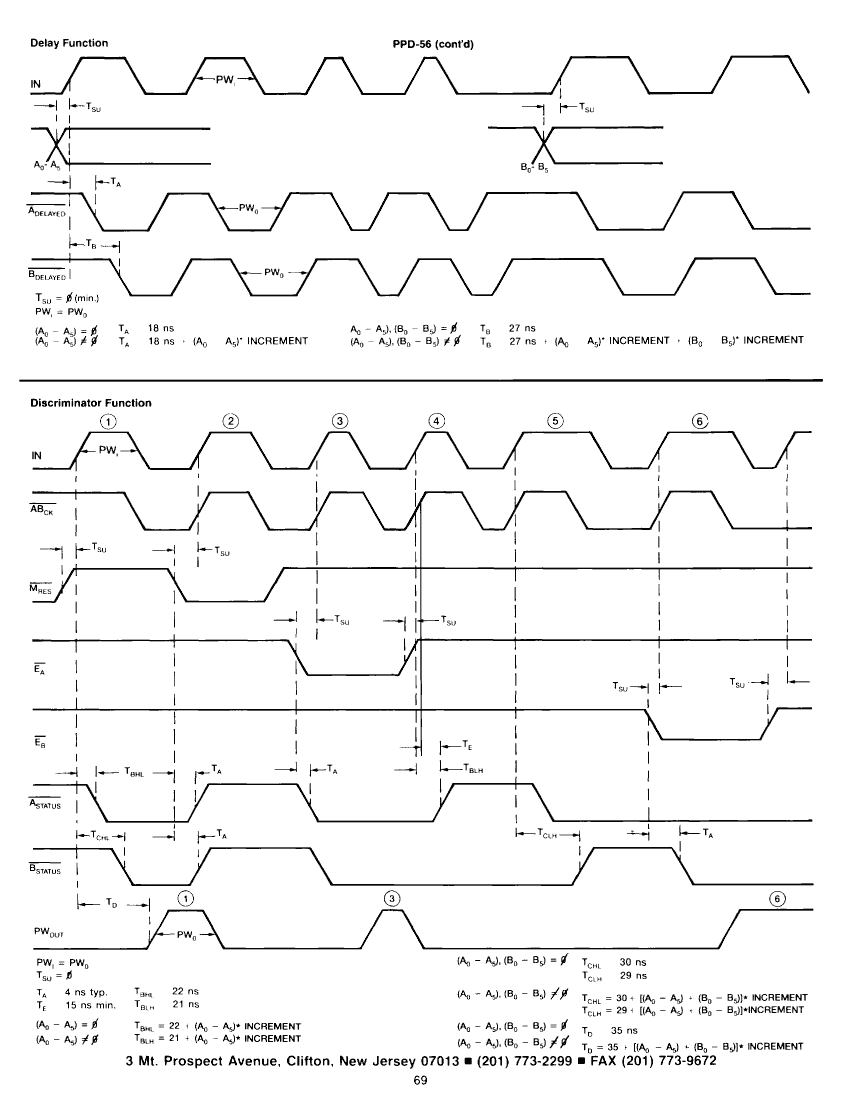

Other features	CAN ALSO BE USED AS A PROGRAMMABLE DELAY LINE; PULSE WIDTH CHANGE PER STEP = 9+-2NS
series	F
JESD-30 code	R-XDSO-G40
length	52.832 mm
Logic integrated circuit type	PULSE DISCRIMINATOR DELAY LINE
Number of functions	1
Number of taps/steps	63
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	7.4168 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
