PWC-30-400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PWC-30-400

PWC-30-400: DescriptionPulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5; Categorylogic logic; File Size65KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

PWC-30-400 Overview

Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5

PWC-30-400 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP-14/5
Contacts	14/5
Reach Compliance Code	compliant
Other features	TRIGGER INHERENT DELAY = 6.5+/-1NS
series	F
Input frequency maximum value (fmax)	2.38095 MHz
JESD-30 code	R-XDIP-T5
JESD-609 code	e3
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	32 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.747 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

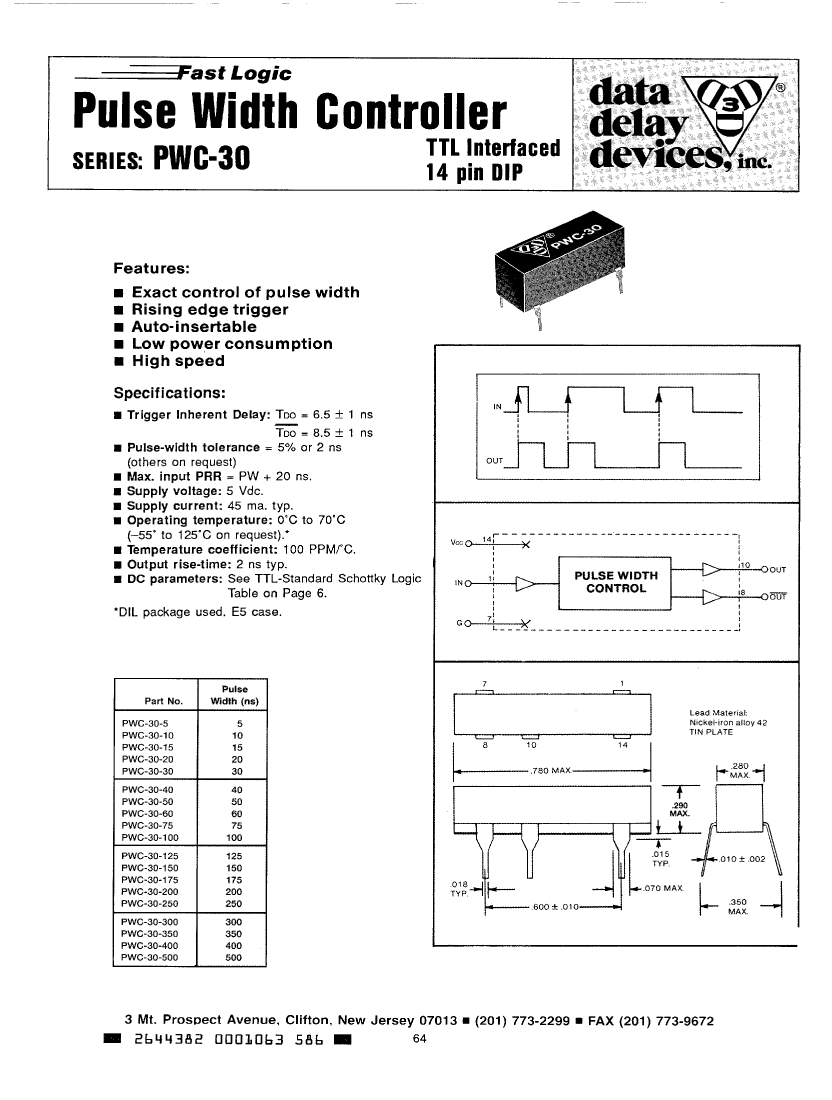

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

PWC-30-400 Related Products

	PWC-30-400	PWC-30-300	PWC-30-350	PWC-30-500
Description	Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5	Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5	Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5	Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14/5
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP-14/5	DIP-14/5	DIP-14/5	DIP-14/5
Contacts	14/5	14/5	14/5	14/5
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TRIGGER INHERENT DELAY = 6.5+/-1NS	TRIGGER INHERENT DELAY = 6.5+/-1NS	TRIGGER INHERENT DELAY = 6.5+/-1NS	TRIGGER INHERENT DELAY = 6.5+/-1NS
series	F	F	F	F
Input frequency maximum value (fmax)	2.38095 MHz	3.125 MHz	2.7027 MHz	1.92308 MHz
JESD-30 code	R-XDIP-T5	R-XDIP-T5	R-XDIP-T5	R-XDIP-T5
JESD-609 code	e3	e3	e3	e3
Logic integrated circuit type	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE
Number of functions	1	1	1	1
Number of taps/steps	1	1	1	1
Number of terminals	5	5	5	5
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	32 mA	32 mA	32 mA	32 mA
programmable delay line	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.747 mm	7.747 mm	7.747 mm	7.747 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
