QTLP652C-Y: DescriptionSingle Color LED, Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size2MB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

QTLP652C-Y Overview

Single Color LED, Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2

QTLP652C-Y Parametric

Parameter Name	Attribute value
Maker	EVERLIGHT
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	590 nm
shape	ROUND
size	1.6 mm
surface mount	YES
Terminal pitch	3.4 mm
perspective	130 deg

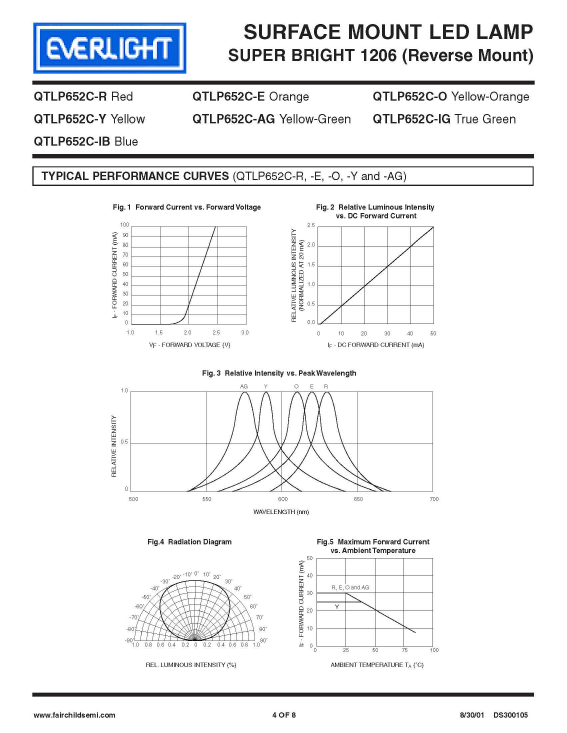

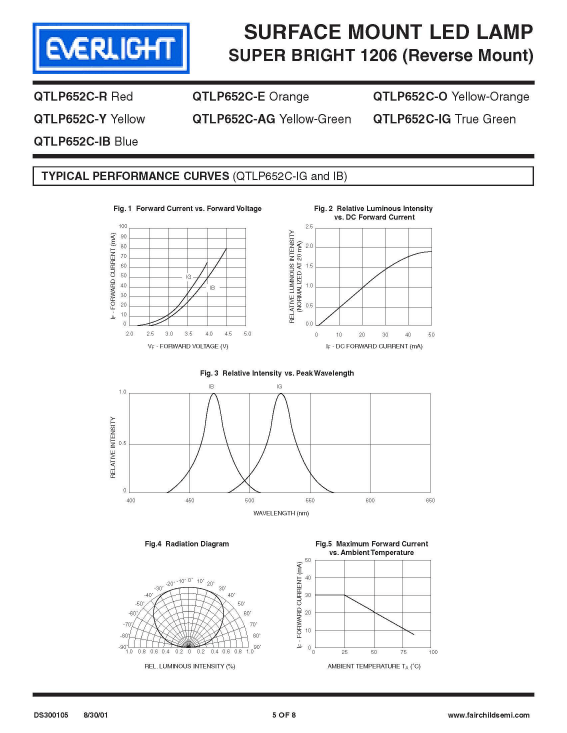

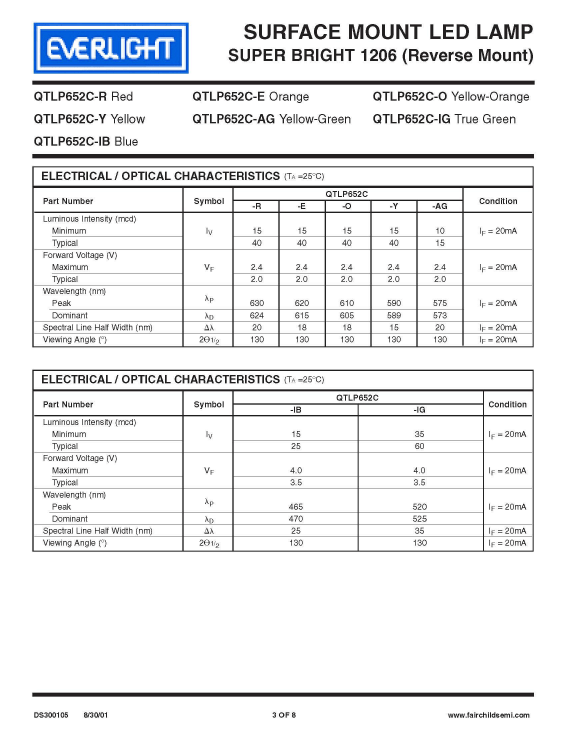

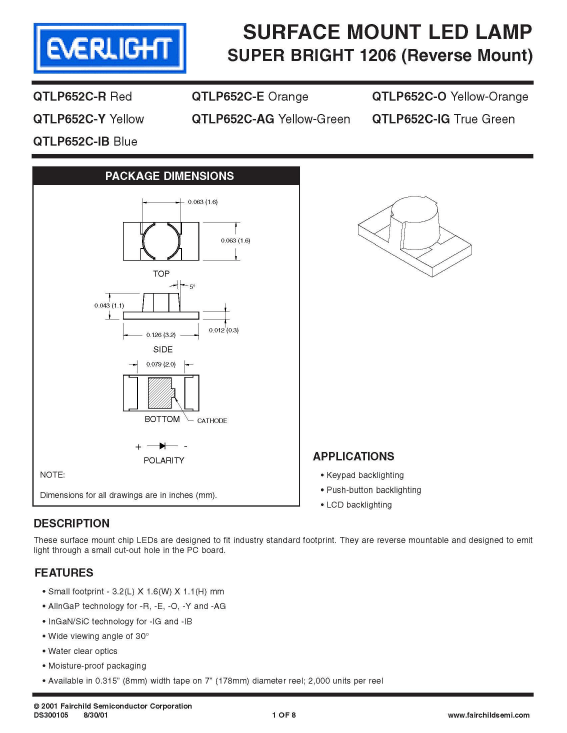

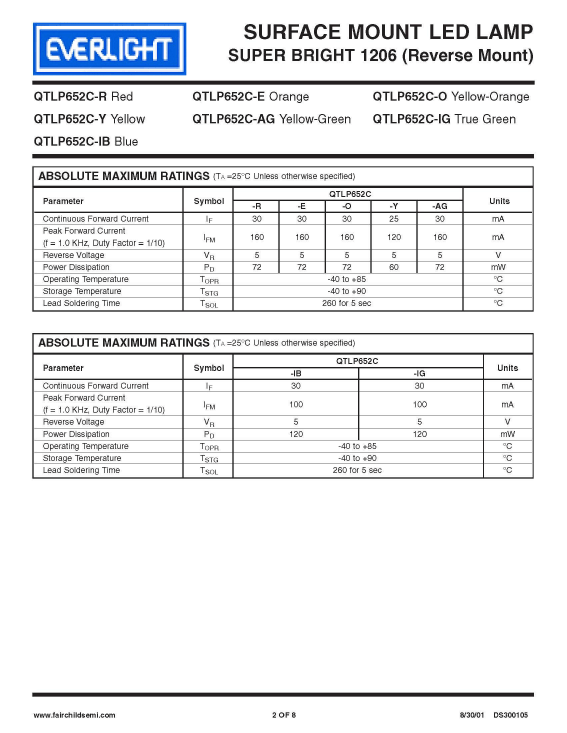

Preview

Download Datasheet

View All

QTLP652C-Y Related Products

	QTLP652C-Y	QTLP652C-AG	QTLP652C-E	QTLP652C-IB	QTLP652C-IG	QTLP652C-O	QTLP652C-R
Description	Single Color LED, Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow Green, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Orange, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Blue, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, True Green, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow Orange, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	YELLOW	YELLOW GREEN	ORANGE	BLUE	TRUE GREEN	YELLOW ORANGE	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	40.0 mcd	15.0 mcd	40.0 mcd	25.0 mcd	60.0 mcd	40.0 mcd	40.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	590 nm	575 nm	620 nm	465 nm	520 nm	610 nm	630 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm
perspective	130 deg	130 deg	130 deg	130 deg	130 deg	130 deg	130 deg
Base Number Matches	-	1	1	1	1	1	-
