L2805M datasheet, PDF - EEWORLD Datasheet

L2805M: DescriptionConsumer Circuit, Bipolar, PDSO24, MFP-24; CategoryOther integrated circuit (IC) Consumption circuit; File Size248KB，9 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

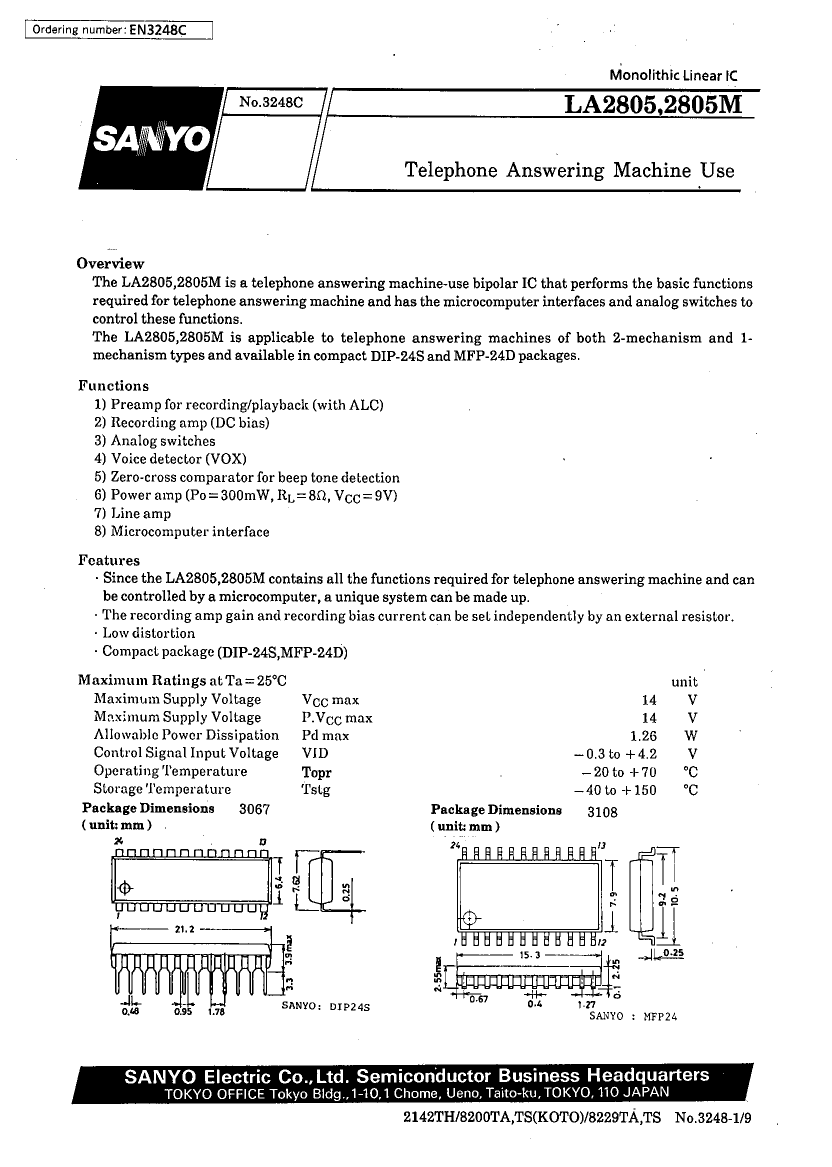

L2805M Overview

Consumer Circuit, Bipolar, PDSO24, MFP-24

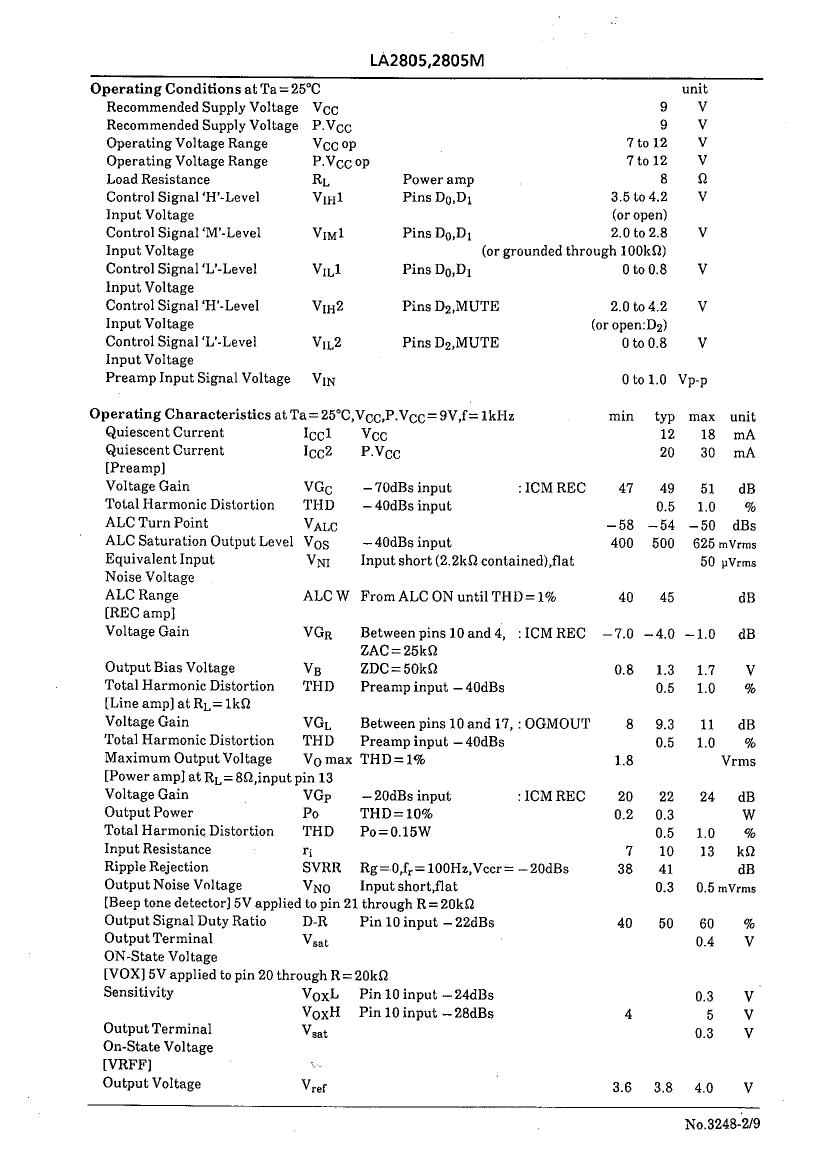

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DFP
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24
length	15.3 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.55 mm
Maximum slew rate	30 mA
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	7 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.9 mm

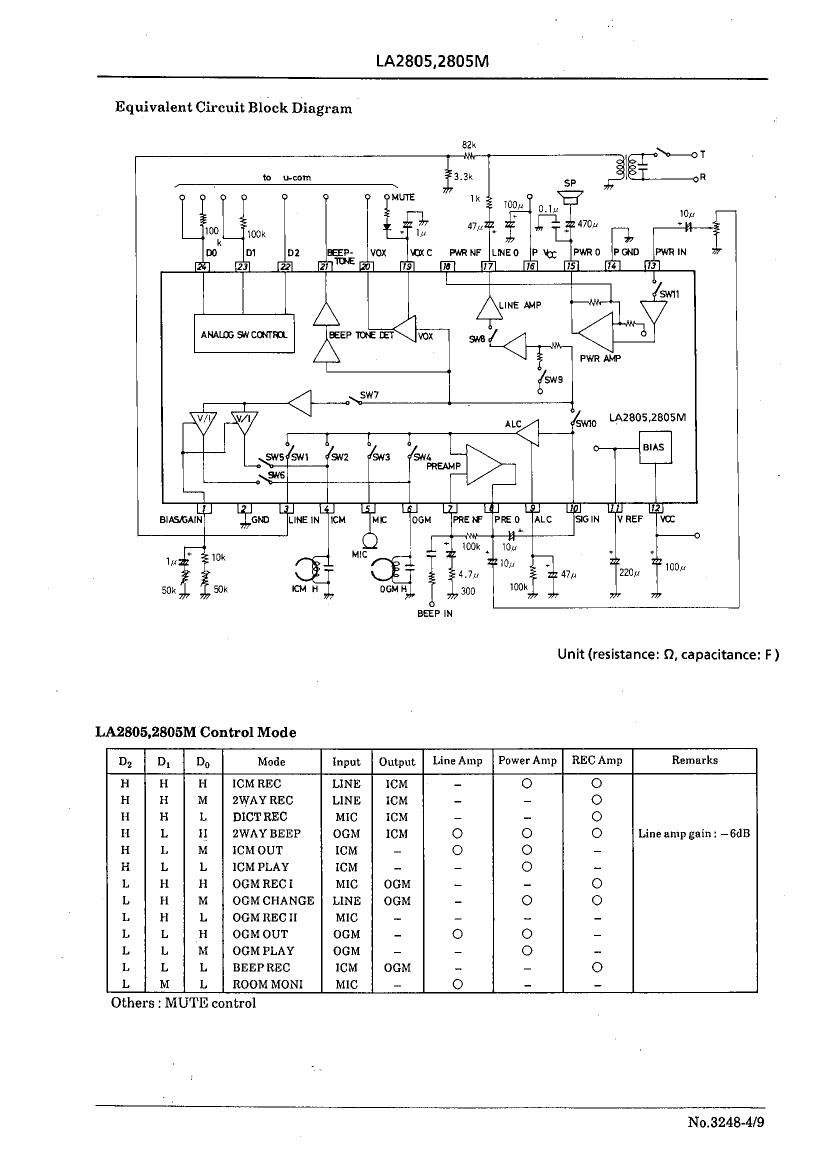

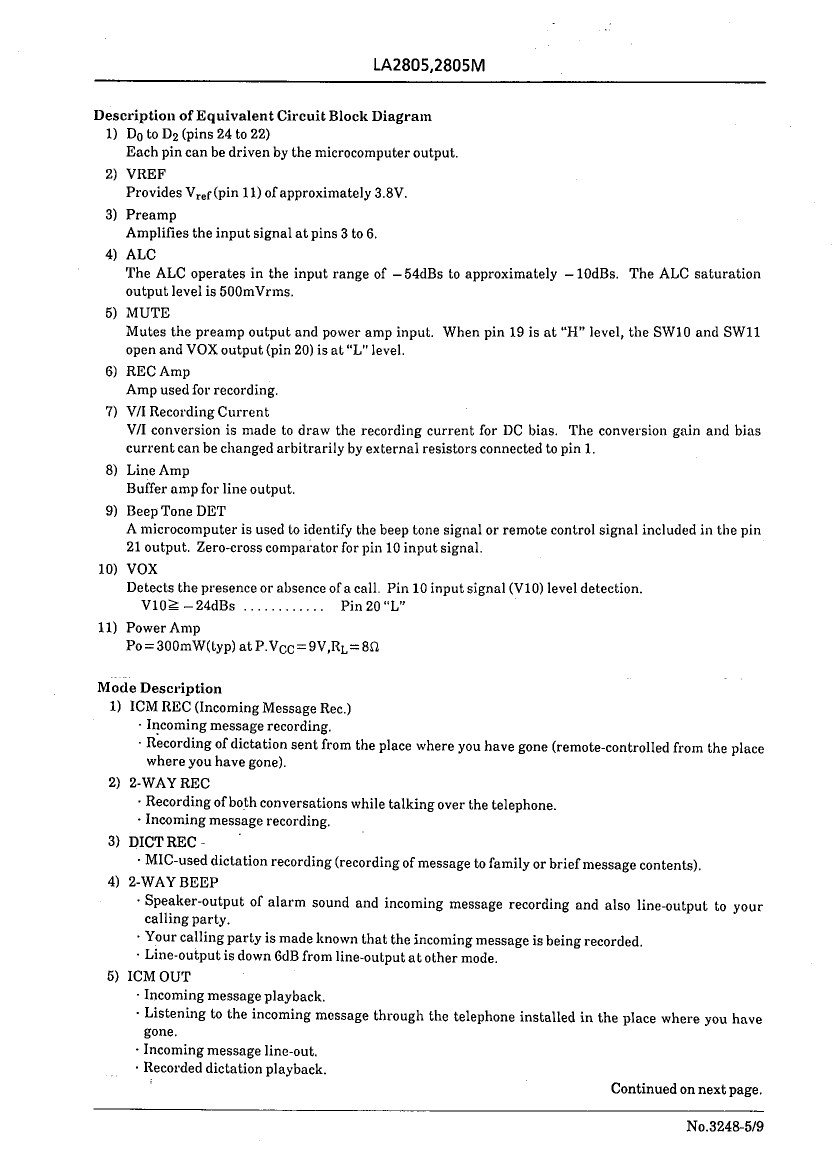

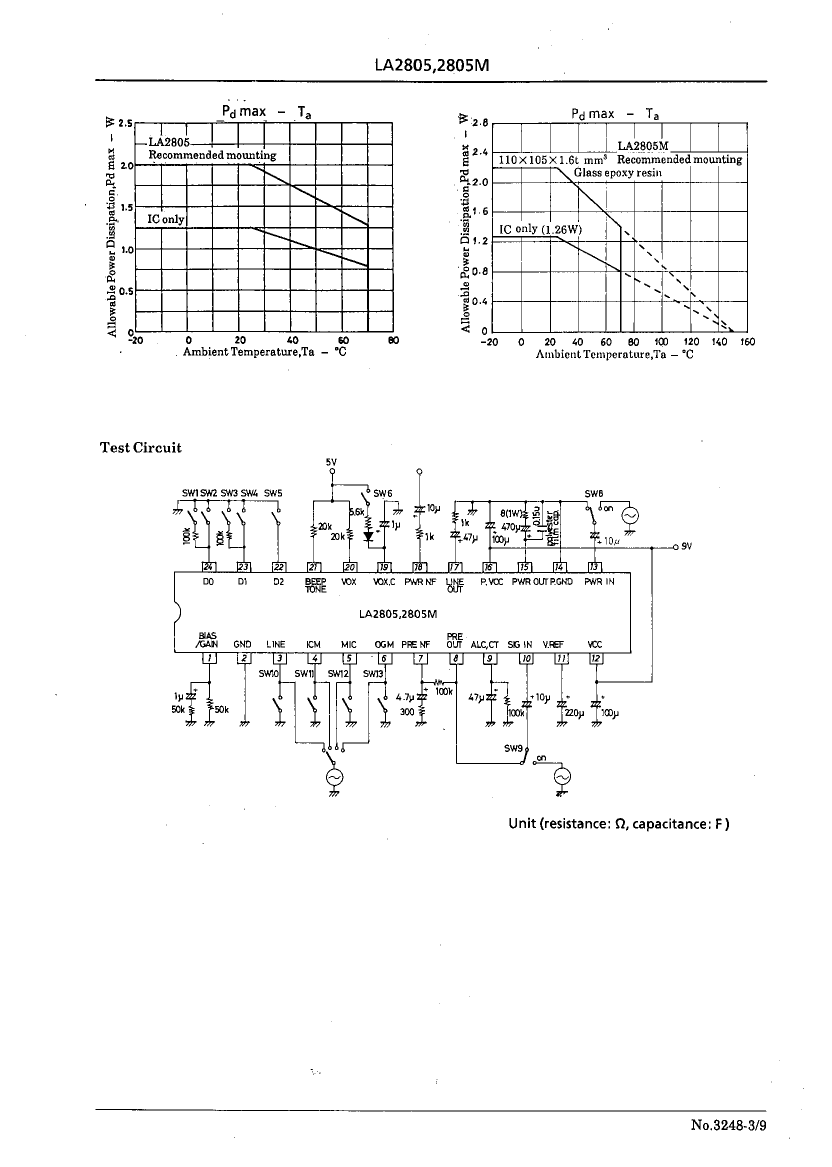

	L2805M	L2805
Description	Consumer Circuit, Bipolar, PDSO24, MFP-24	Consumer Circuit, Bipolar, PDIP24, SDIP-24
Maker	SANYO	SANYO
Parts packaging code	DFP	DIP
package instruction	SOP,	SDIP,
Contacts	24	24
Reach Compliance Code	unknown	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDIP-T24
length	15.3 mm	21.2 mm
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SDIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.55 mm	3.9 mm
Maximum slew rate	30 mA	48 mA
Maximum supply voltage (Vsup)	12 V	12 V
Minimum supply voltage (Vsup)	7 V	7 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.778 mm
Terminal location	DUAL	DUAL
width	7.9 mm	7.62 mm
