RP421005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RP421005

RP421005: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.1A (COIL), 5VDC (COIL), 500mW (COIL), 8A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size349KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RP421005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RP421005	-	-	View	Buy Now

RP421005 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.1A (COIL), 5VDC (COIL), 500mW (COIL), 8A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

RP421005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1584525269
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
YTEOL	6.79
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.1 A
Coil operating voltage (DC)	3.5 V
Coil power	500 mW
Coil release voltage (DC)	0.5 V
Coil resistance	54 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC/DC
Electrical life	2000000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	12 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BOX
physical size	29mm x 12.6mm x 25.5mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	RT2
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

General Purpose Relays

PCB Relays

Power PCB Relay RPII/2

SCHRACK

2 pole 8A, 2 form C (CO) or 2 form A (NO) contacts

4kV/8mm coil-contact

Twin contacts available

RoHS compliant (Directive 2002/95/EC)

Typical applications

Domestic appliances, UPS

Approvals

VDE REG.-Nr. C894, UL E214024

Technical data of approved types on request

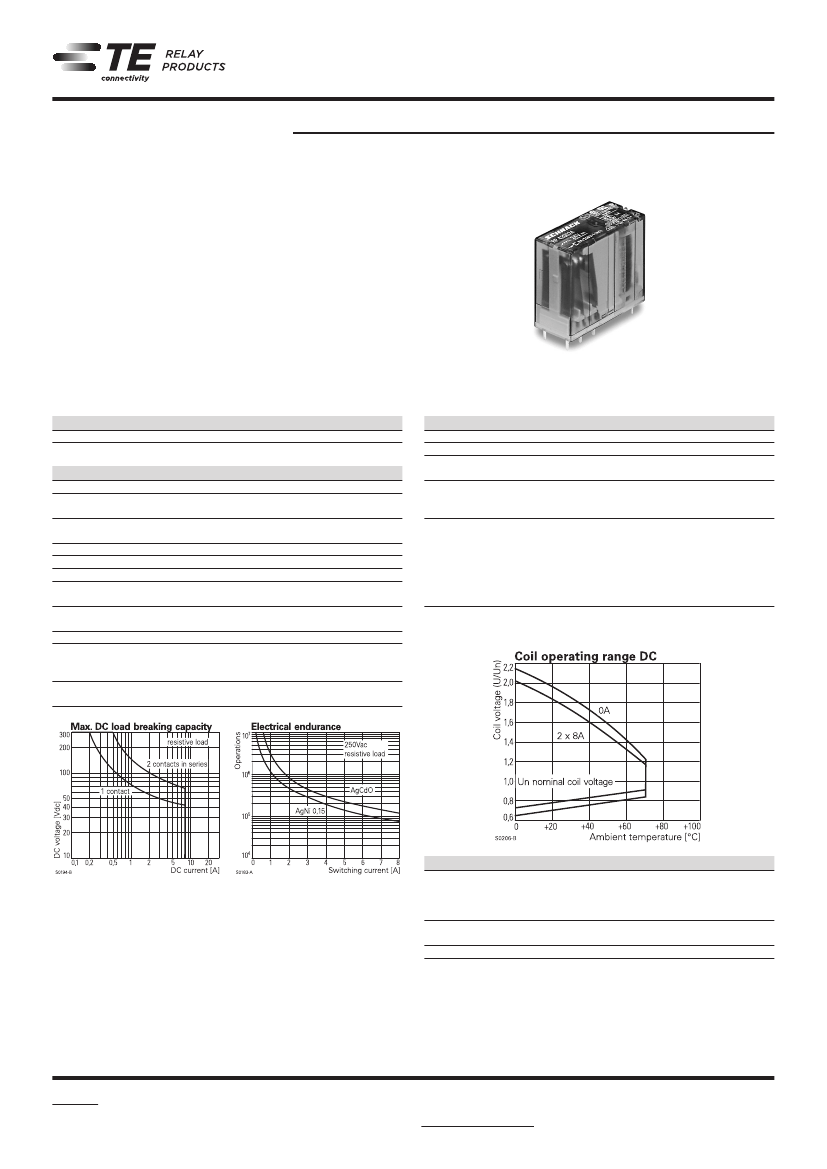

F0150-B

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

005

3.5

006

4.2

012

8.4

024

16.8

048

33.6

060

42.0

110

77.0

Release

voltage

VDC

0.5

0.6

1.2

2.4

4.8

6.0

11.0

5 to 110VDC

Coil

resistance

Ω±10%

270

1100

4400

6540

23100

Rated coil

power

500

Contact Data

Contact arrangement

2 form C (CO) or 2 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

8A (UL: 10A)

Limiting making current, max 4s, duty factor 10%

14A

Breaking capacity max.

2000VA

Contact material

AgCdO, AgNi0.15

Frequency of operation, with/without load

600/72000h

-1

Operate/release time typ.

9/3ms

Bounce time typ., form A/form B

2/3ms

Contact ratings

Type

Contact

IEC61810

RP420/421

A (NO)

RP420

A (NO)

Mechanical endurance

Load

8A, 250VAC, resistive, 35°C

5A, 250VAC, resistive, 70°C

>20x10

operations

Cycles

100x10

30x10

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +20°C.

Other coil voltages on request.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

between adjacent contacts

Clearance/creepage

between contact and coil

Material group of insulation parts

1000V

rms

4000V

rms

2500V

rms

≥8/8mm

IIIa

04-2011, Rev. 0411

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
