F.MF.01A.07.09.GC datasheet, PDF

Datasheet> All Categories > The connector> The connector> F.MF.01A.07.09.GC

F.MF.01A.07.09.GC: DescriptionMains Power Connector, 1A, 250VAC, Male, Solder Terminal, METAL PACKAGE-3; CategoryThe connector The connector; File Size299KB，3 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric View All

F.MF.01A.07.09.GC Overview

Mains Power Connector, 1A, 250VAC, Male, Solder Terminal, METAL PACKAGE-3

F.MF.01A.07.09.GC Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
package instruction	METAL PACKAGE-3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IEC 60320
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	1A, 250VAC
Manufacturer's serial number	F.MF
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

IEC Inlet Filters

With fuse holders and voltage selectors

A range of compact IEC 60320 inlet power entry modules combining

1 or 2 fuse holders for US and IEC fuses. Plus input voltage selector

with 4 possible combinations. These features ensure the range is

ideally suited for manufacturers of business, consumer and medical

equipment for international markets.

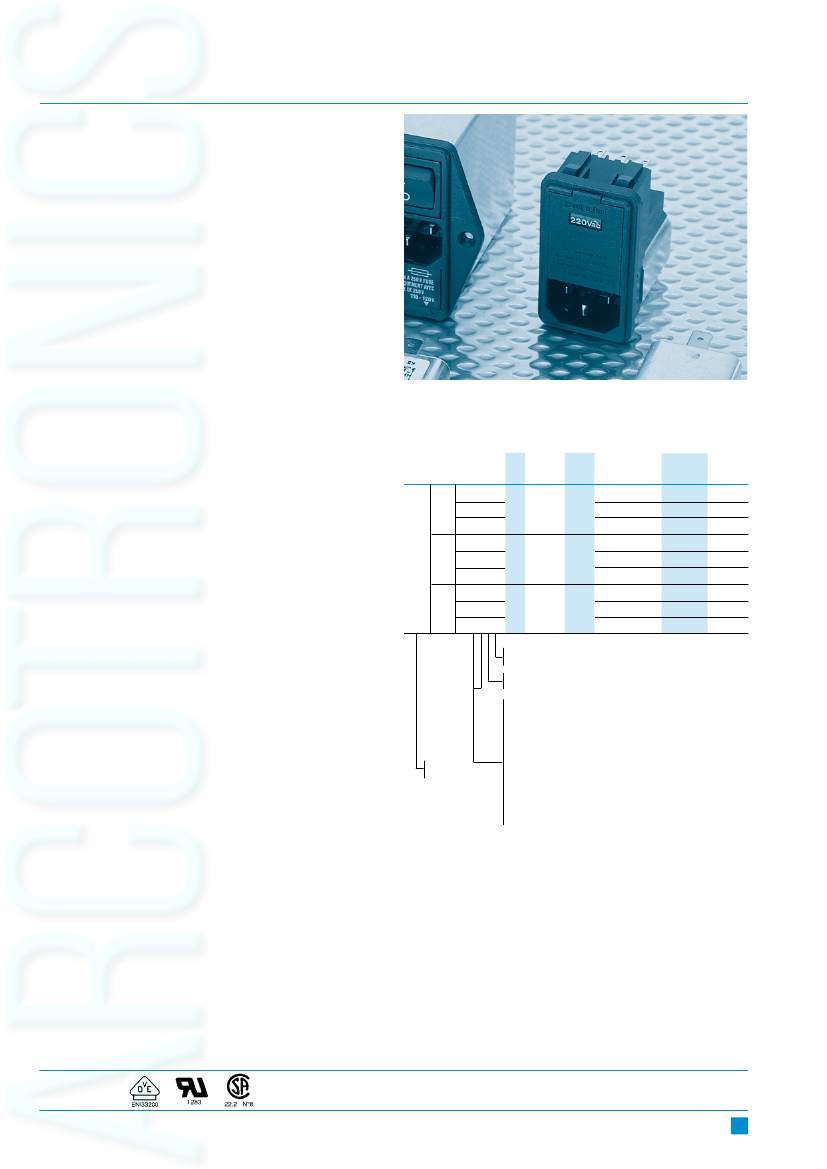

F.MF-F.MG

series

•

Current ratings from 1A to 6A

•

Integral single or twin fuse holder

•

Voltage selector

•

Snap-in or screw mount versions

•

Medical versions available

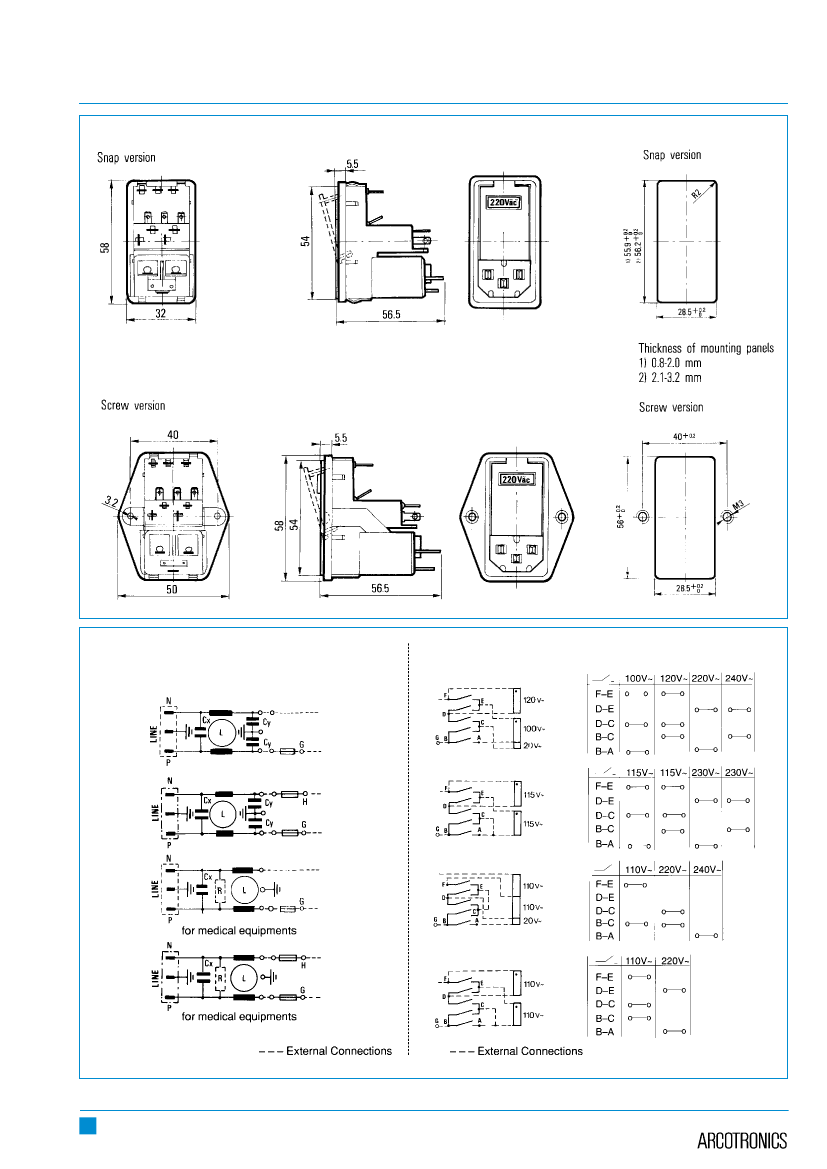

Mechanical Specifications

Manufacture:

metal case with built-in power line connector

according to IEC 60320, 1 (F.MF) or 2 (F.MG) fuse

holders for fuses 5 x 20mm (IEC) or 6.3 x 32mm

(US), voltage selector with 4 possible combinations;

internal components sealed with self-extinguishing

resin.

Connections:

IEC 60320 - Standard plug (INPUT);

faston 6.3 x 0.5mm or 2.8 x 0.5mm for filter

output terminals;

faston 2.8 x 0.5mm for fuse terminals;

faston 2.8 x 0.5mm for voltage selector terminals;

ground terminal connected to case.

F.MF.

01.– –.– –

01A. 04.– –.– –

07.– –.– –

02.– –.– –

2 x 2.5 0.047

2 x 2500

2x1

0.047

08.– –.– –

03.– –.– –

06A. 06.– –.– –

09.– –.– –

2 x 2500

F.MG. 03A. 05.– –.– –

2 x 10

0.047

Filter Range

(example pt no. - F.MF.01A.01.01.FA)

Code

(A)

(mH)

(µF)

(pF)

2 x 2500

(mA)

2 x 0.23

2 x 0.002

2 x 0.23

2 x 0.002

2 x 0.23

2 x 0.002

(MΩ)

Electrical Specifications

Rated voltage (V

max 250V, 50/60Hz

Rated current (I

Voltage test (2

.):

referred to room temperature = 40°C

line to ground 3000Vdc or 1800Vac

line to line 1700Vdc

Climatic category:

HPF (25/085/21);

Temperature range: -25°C to +85°C

Voltage selector:

110-220-240Vac

100-120-220-240Vac

115-115-230-230Vac

110-220Vac

Leakage current (I

at 220V, 50Hz, max value

F = 1 fuse

G = 2 fuses

A = Filter output terminals 2.8 x 0.5mm

C = Filter output terminals 6.3 x 0.8mm

F = Snap-in mounting

G = Screw mounting

01 = fuse 5 x 20mm + voltage selector 110-220-240V~

02 = fuse 5 x 20mm + voltage selector 100-120-220-240V~

03 = fuse 5 x 20mm + voltage selector 115-115-230-230V~

08 = fuse 6.3 x 32mm + voltage selector 110-220-240V~

09 = fuse 6.3 x 32mm + voltage selector 100-120-220-240V~

10 = fuse 6.3 x 32mm + voltage selector 115-115-230-230V~

15 = fuse 5 x 20mm + voltage selector 110-220V~

16 = fuse 6.3 x 32mm + voltage selector 110-220V~

19 = fuse 5 x 20mm + voltage selector 100-120-220-230V~

20 = fuse 6.3 x 32mm + voltage selector 100-120-230-240V~

21 = fuse 5 x 20mm + voltage selector 100-120-230-240V~
