2SC4601L datasheet, PDF - EEWORLD Datasheet

2SC4601L: DescriptionPower Bipolar Transistor, 1.5A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, SMP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size103KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

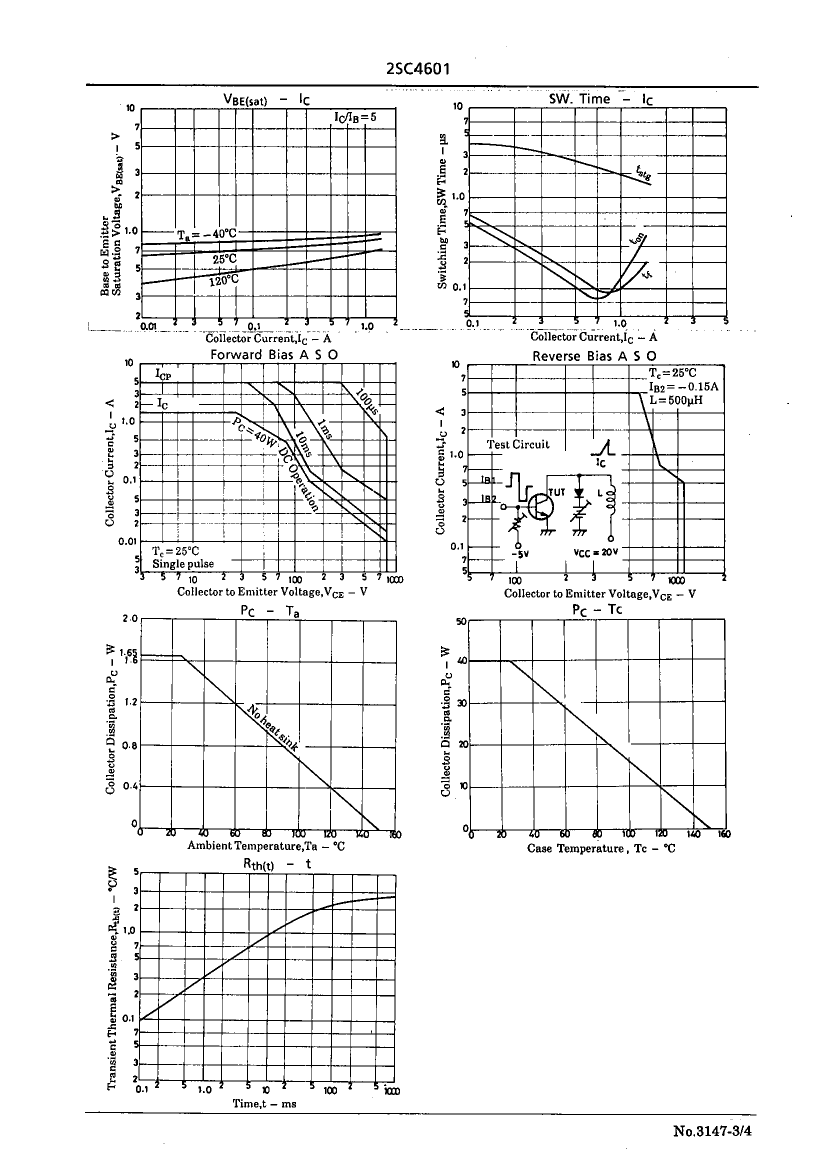

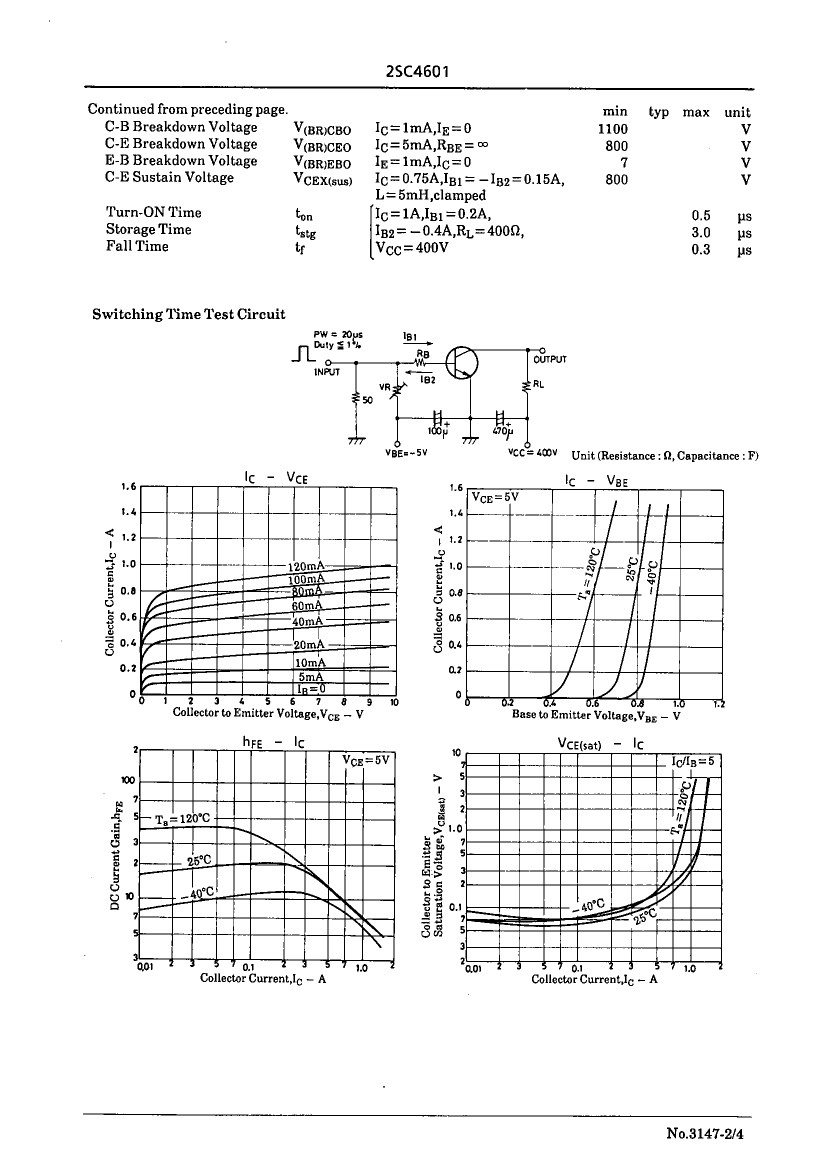

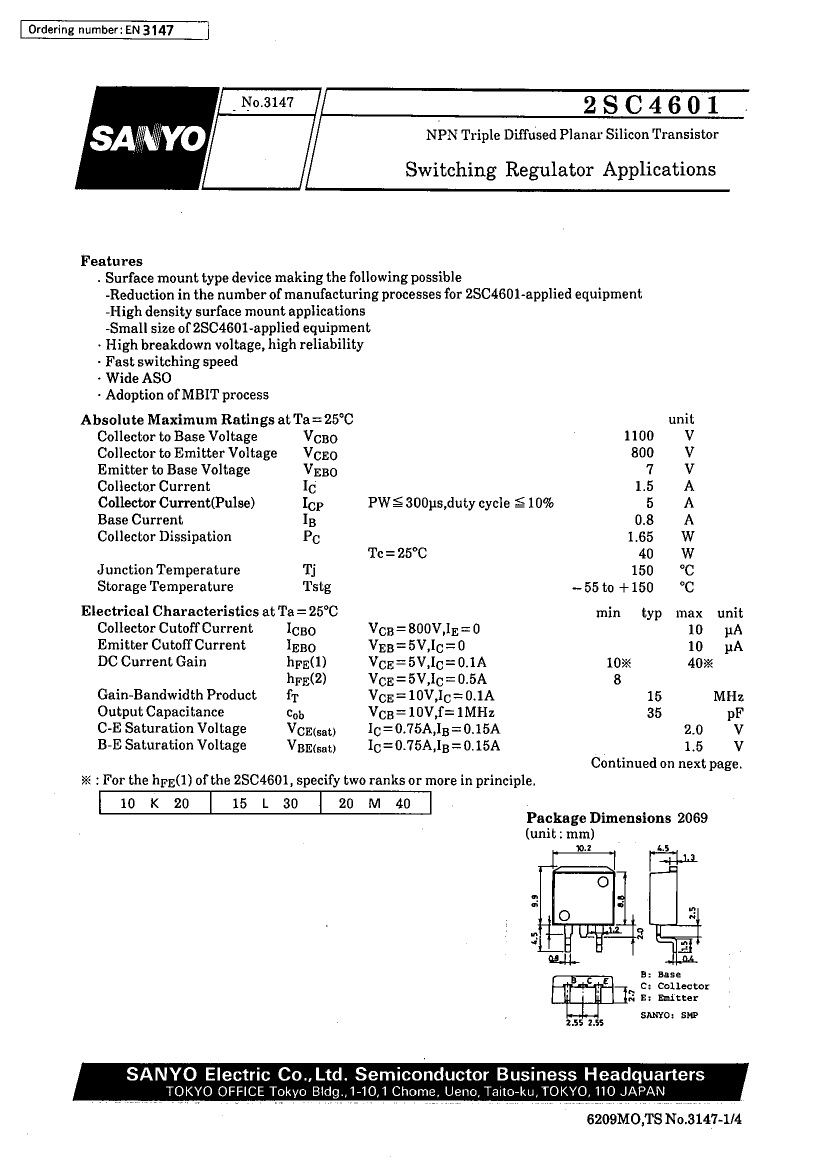

2SC4601L Overview

Power Bipolar Transistor, 1.5A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, SMP, 3 PIN

Parameter Name	Attribute value
Objectid	1483104781
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	40 W
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	15 MHz
