85013-2452: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size188KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

85013-2452 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal

85013-2452 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	85013
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

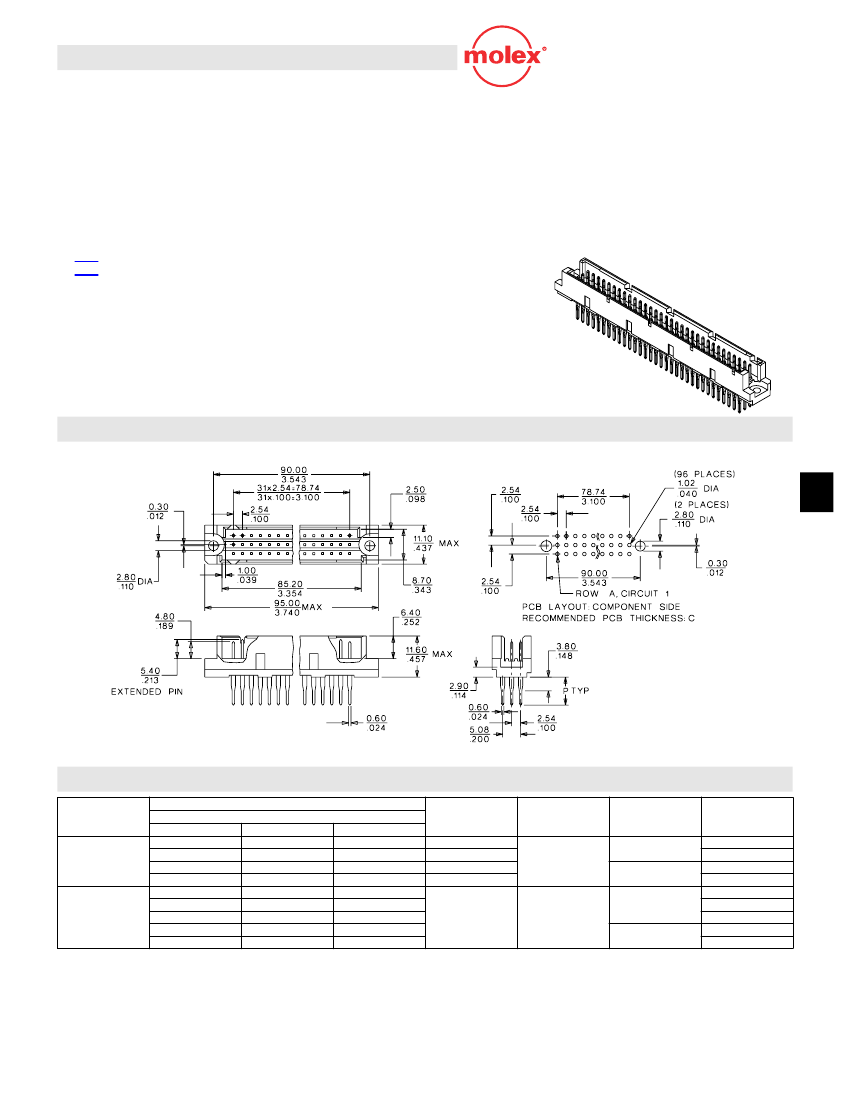

FEATURES AND SPECIFICATIONS

s

Features and Beneﬁts

Press-ﬁt termination

For 1.6 to 4mm backplanes

FMLB/LMFB pins (extended/recessed) available

Coding option

Electrical

Current: 1.5A

Physical

Housing: Glass-ﬁlled polyester, UL 94V-0

Contact: Bronze

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

DIN 41612/IEC 603-2

Connector

85013

Male

Style R

Press-Fit

Backplane Connector Systems

Reference Information

Packaging: Tray

Tooling: Press-in tool 85089-1079

UL File No.: E29179

CSA File No.: LR19980-390

Mates With:

85042—Straight

female style C

85052—Right

angle female style R

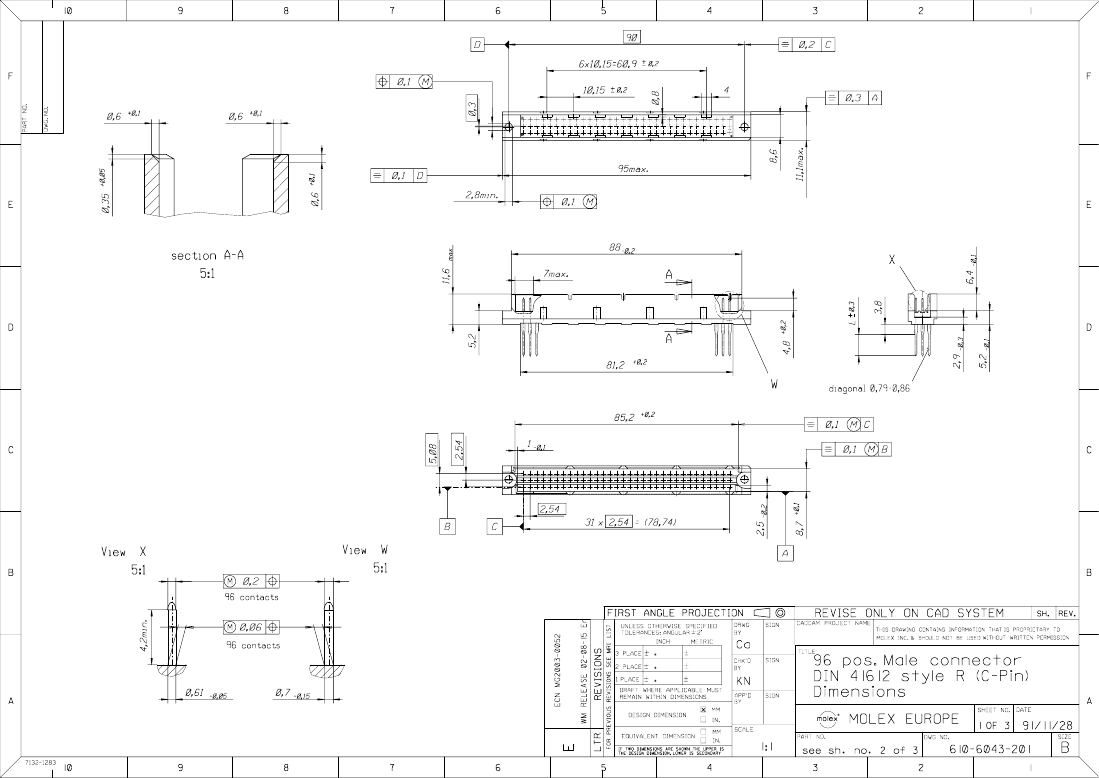

CATALOG DRAWING (FOR REFERENCE ONLY)

J

ORDERING INFORMATION AND DIMENSIONS

Circuits

1

85013-0476

85013-2438

85013-2452

85013-2476

85013-0218

85013-2440

85013-2464

Order No.

Performance Level*

2

85013-0103

85013-0115

85013-2268

85013-2270

85013-0189

85013-1225

85013-2256

85013-0165

85013-0177

Contact

Loading

Full

85013-2282

85013-2309

a, c

13.2 (.520)

5.8 (.228)

Full

85013-2294

85013-2311

a, b, c

13.2 (.520)

Rows

Press-Fit Tail

Dimension P

5.8 (.228)

Option(s)

2+2

64

Coding

FMLB-6 pins: 1,32 a, b, c

Coding

96

For other versions contact Molex

* Performance levels based on test conditions per DIN 41612, part 5:

1: >500 mating cycles. 10 day industrial environment (S02)

2: >400 mating cycles. 4 day industrial environment (S02)

2+2: Performance level 2 on mating pin and tail

MX01
