85899-101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85899-101

85899-101: DescriptionRectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85899-101 Overview

Rectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Receptacle

85899-101 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL (51)
Contact completed and terminated	TIN LEAD (315)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85899
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

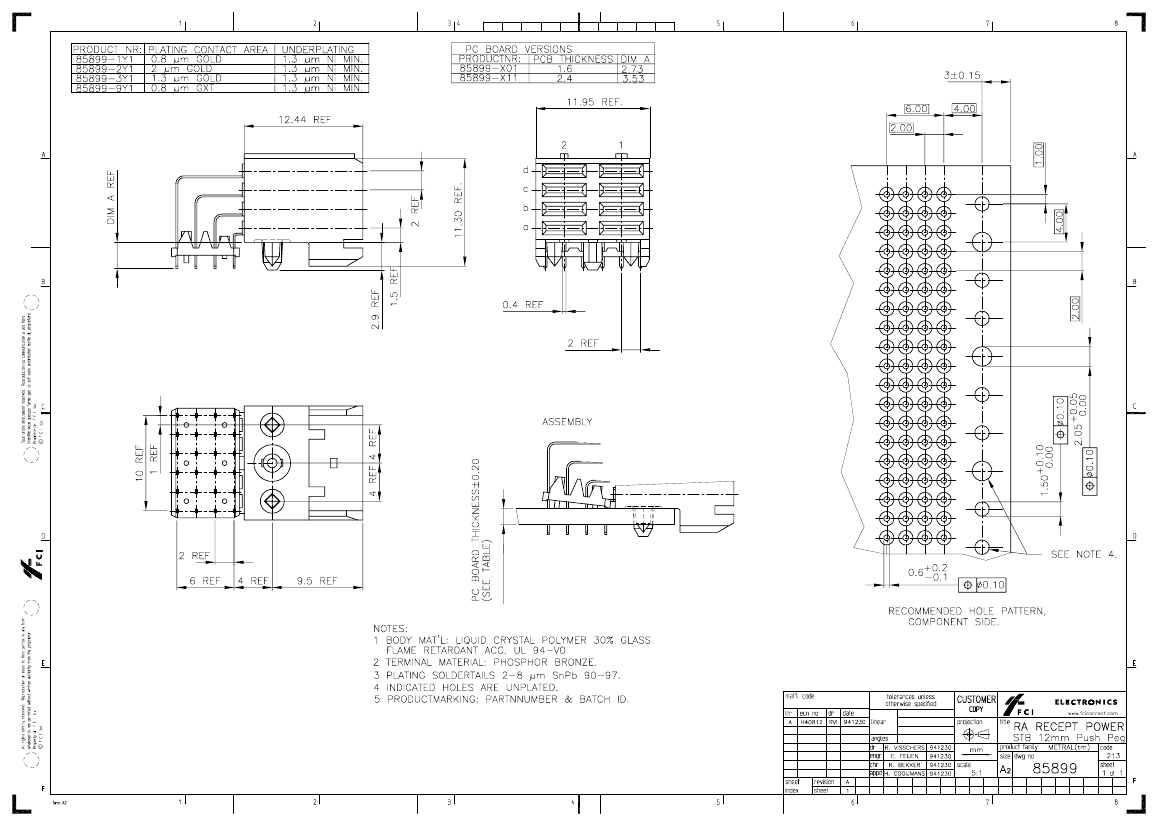

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: May 19, 2011
