HIN236CB-T datasheet, PDF - EEWORLD Datasheet

HIN236CB-T: DescriptionLine Transceiver, 1 Func, 4 Driver, 3 Rcvr, CMOS, PDSO24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size475KB，13 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

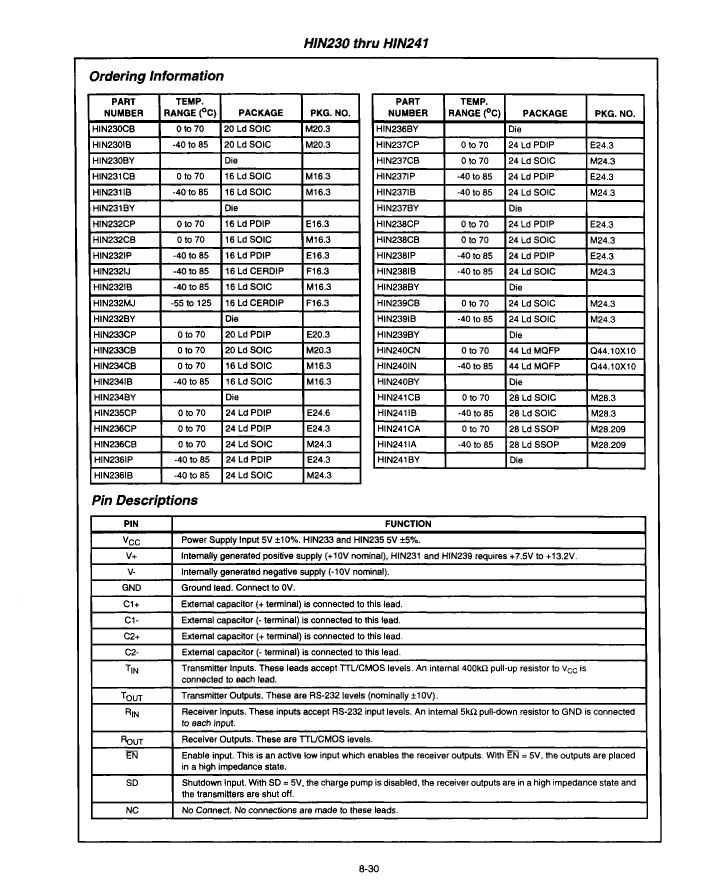

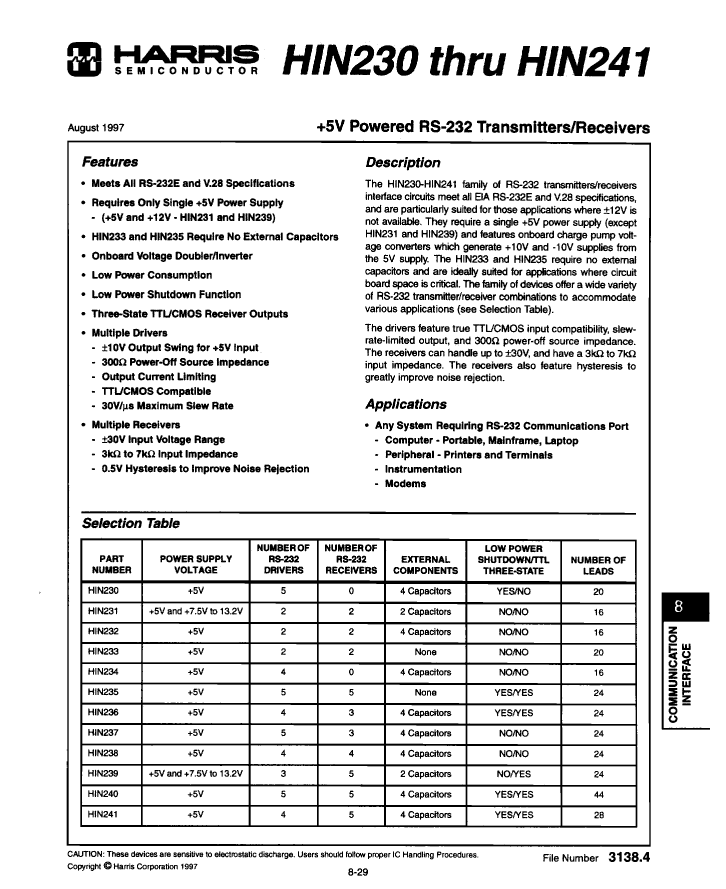

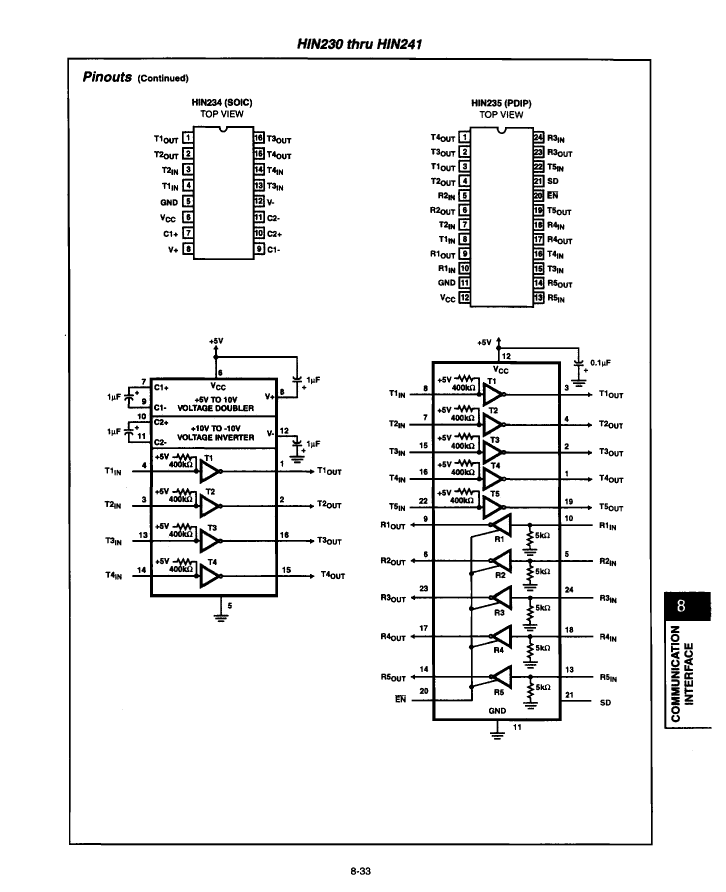

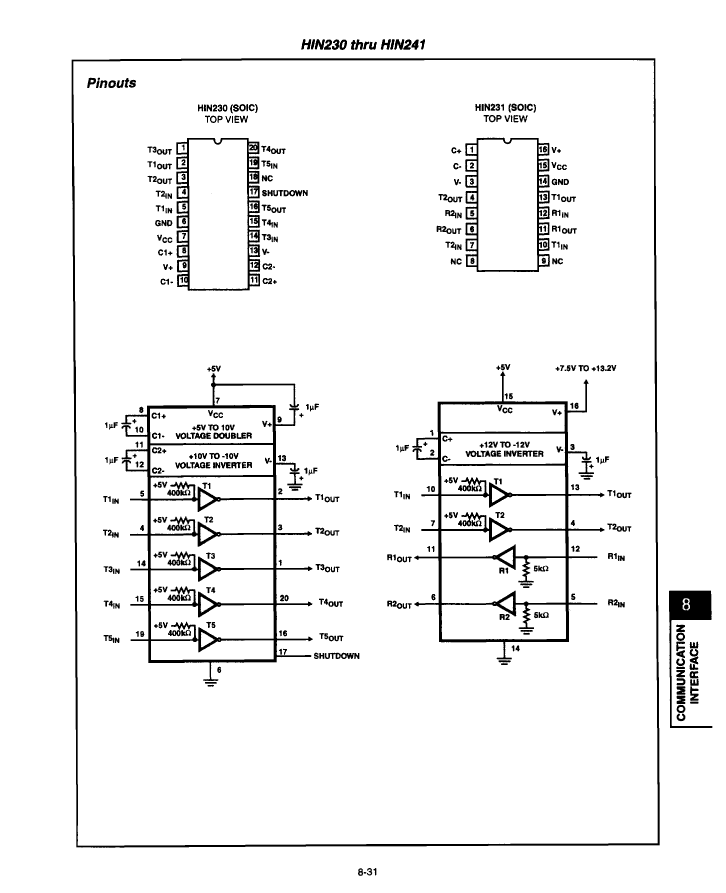

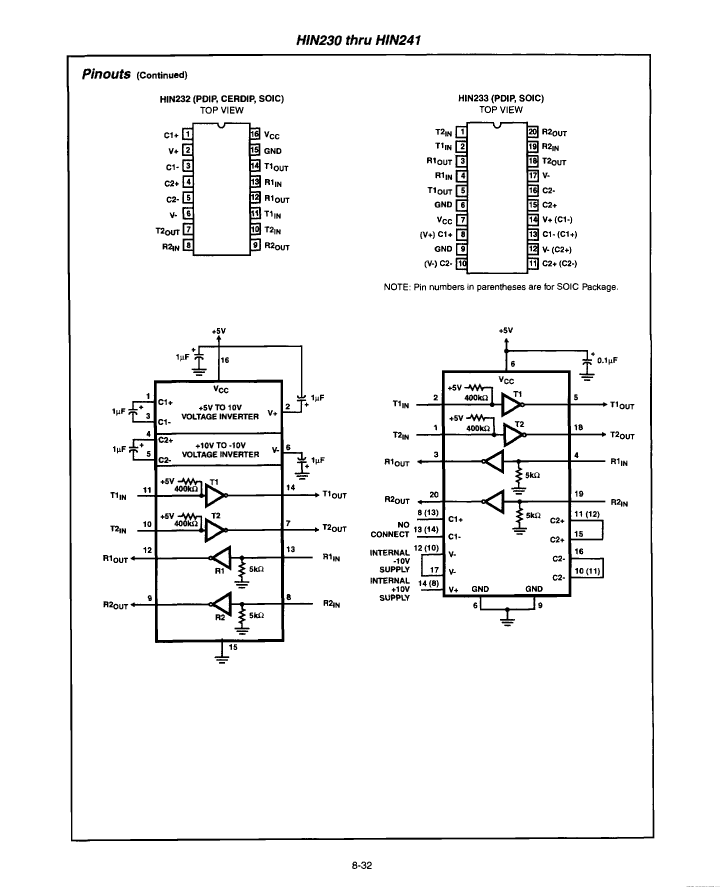

HIN236CB-T Overview

Line Transceiver, 1 Func, 4 Driver, 3 Rcvr, CMOS, PDSO24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP24,.4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	4
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C; V.28
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	10 V
Output characteristics	3-STATE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	3
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
