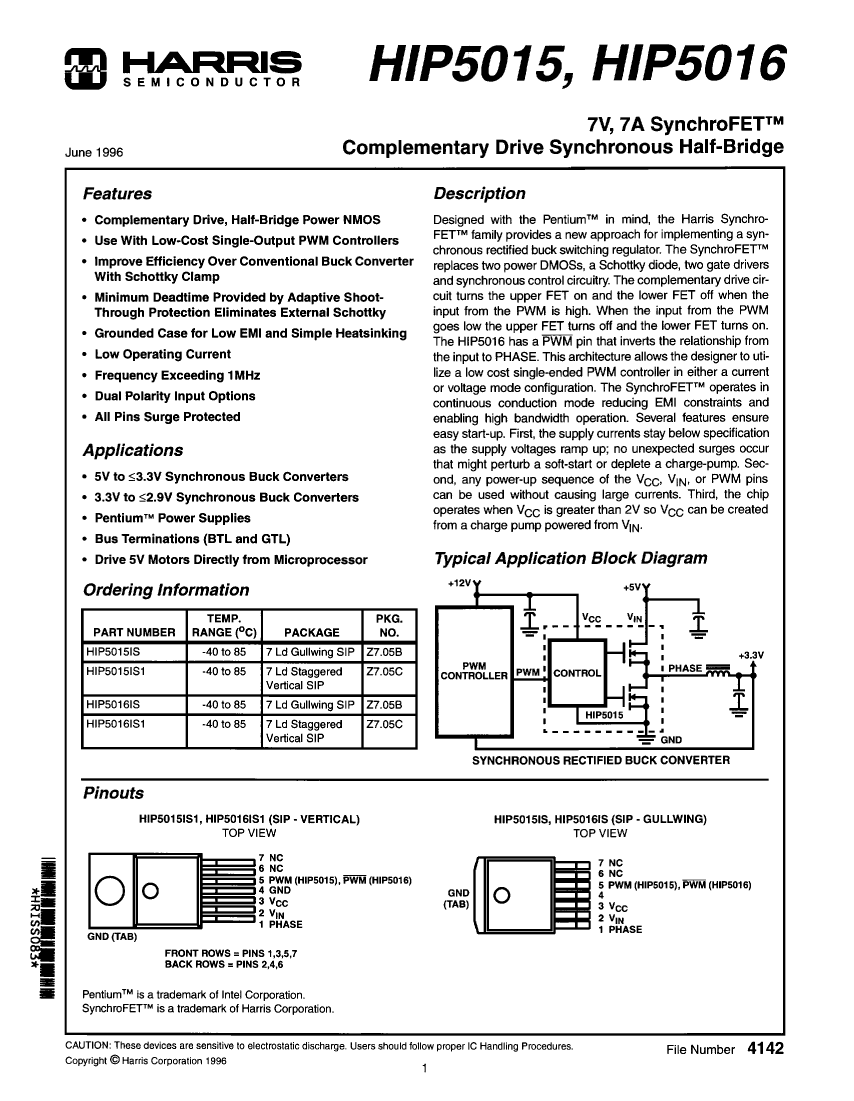

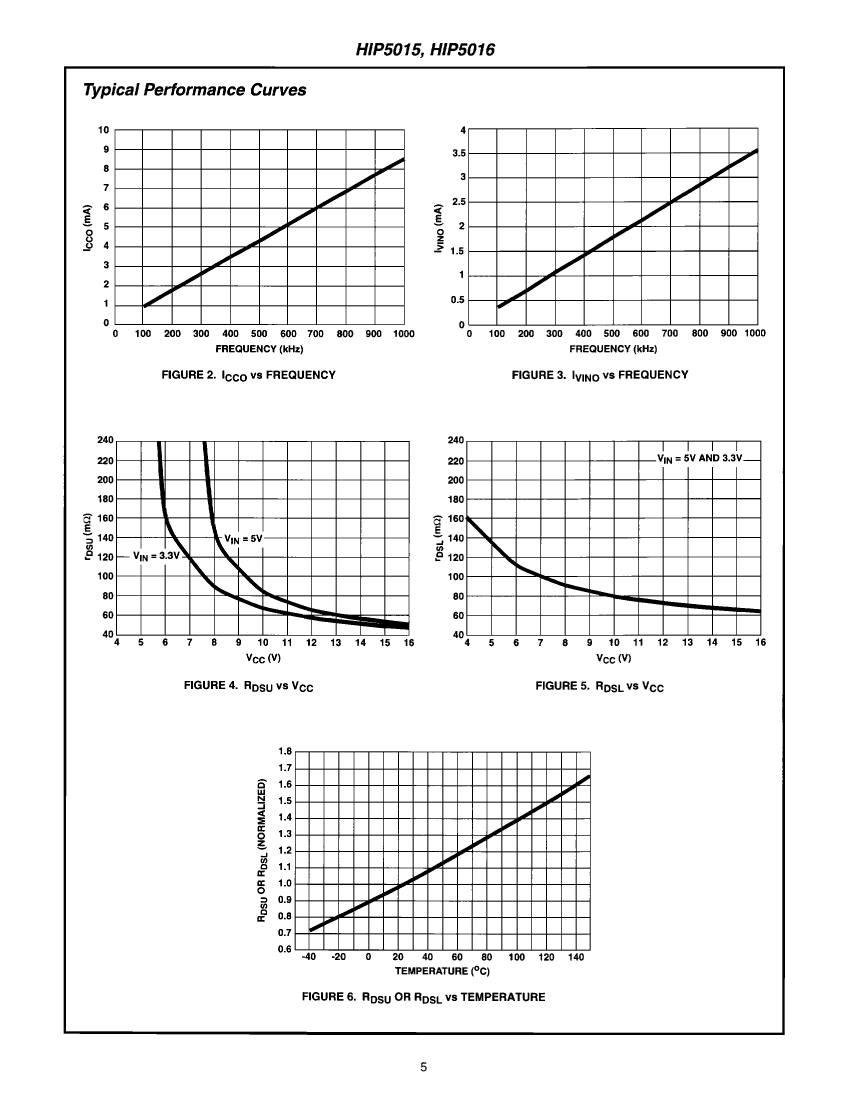

Preview

HIP5016IS1: DescriptionHB Based Peripheral Driver With Pwm, 7A, MOS, PSFM7; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size230KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

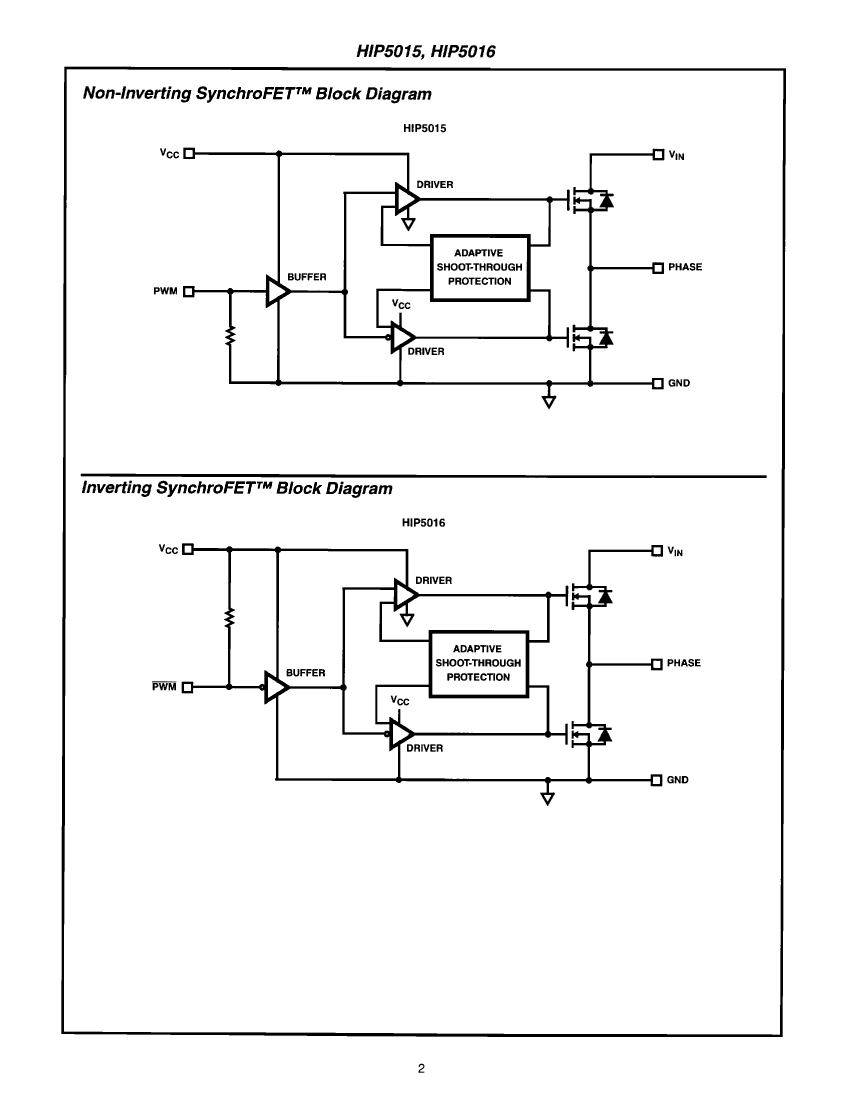

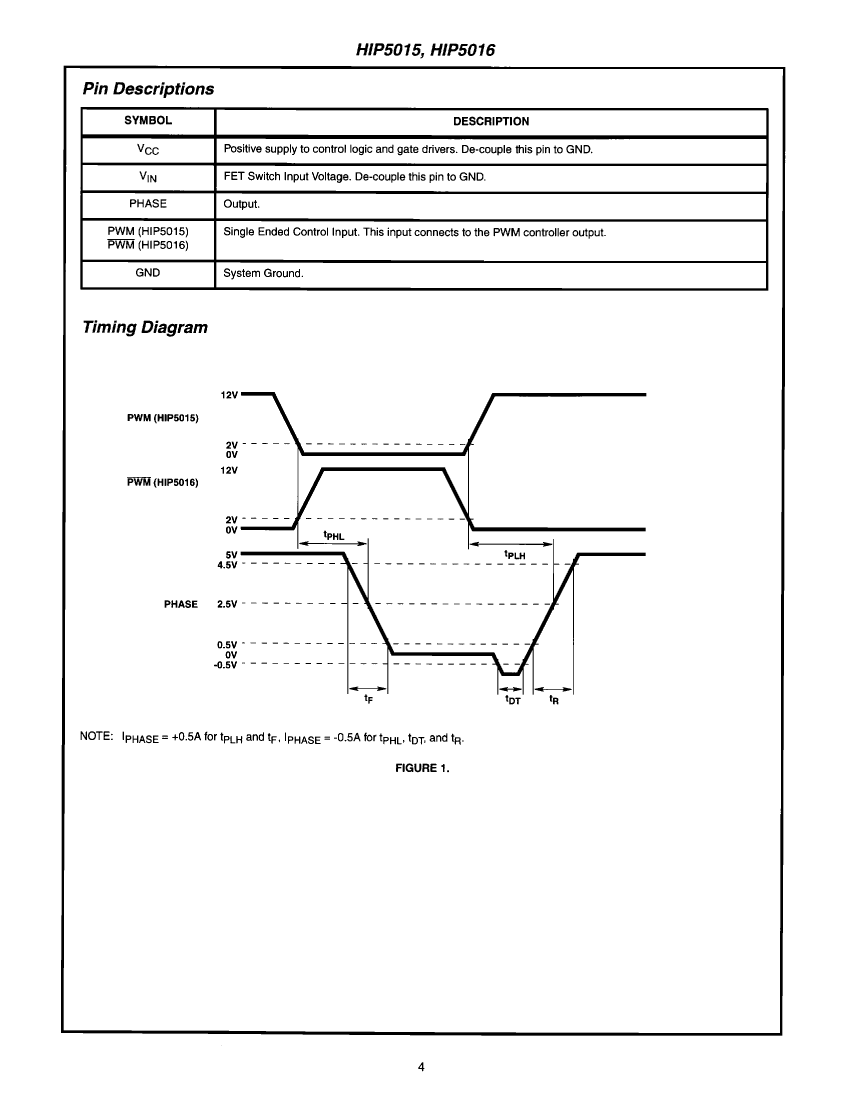

HIP5016IS1 Overview

HB Based Peripheral Driver With Pwm, 7A, MOS, PSFM7

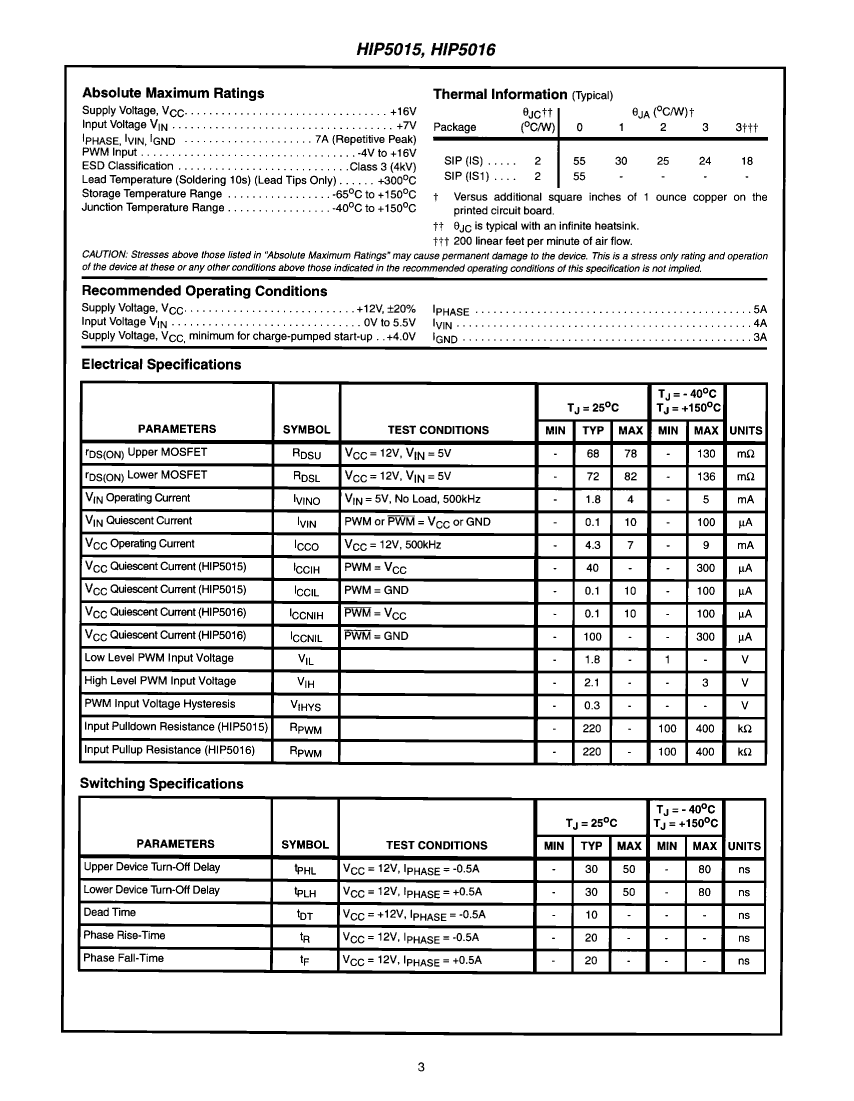

HIP5016IS1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	JUNCTION TEMPERATURE FOR TEST
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	HB BASED PERIPHERAL DRIVER WITH PWM
JESD-30 code	R-PSFM-T7
JESD-609 code	e0
Number of functions	1
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output current flow direction	SOURCE AND SINK
Nominal output peak current	7 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum slew rate	9 mA
Maximum supply voltage	14.4 V
Minimum supply voltage	9.6 V
Nominal supply voltage	12 V
Supply voltage 1-max	5.5 V
Mains voltage 1-minute
Supply voltage1-Nom	5 V
surface mount	NO
technology	MOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	0.08 µs

Preview

Download Datasheet

View All

HIP5016IS1 Related Products

	HIP5016IS1	HIP5015IS	HIP5015IS1	HIP5016IS
Description	HB Based Peripheral Driver With Pwm, 7A, MOS, PSFM7	HB Based Peripheral Driver With Pwm, 7A, MOS, PSSO7	HB Based Peripheral Driver With Pwm, 7A, MOS, PSFM7	HB Based Peripheral Driver With Pwm, 7A, MOS, PSSO7
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	JUNCTION TEMPERATURE FOR TEST	JUNCTION TEMPERATURE FOR TEST	JUNCTION TEMPERATURE FOR TEST	JUNCTION TEMPERATURE FOR TEST
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	HB BASED PERIPHERAL DRIVER WITH PWM	HB BASED PERIPHERAL DRIVER WITH PWM	HB BASED PERIPHERAL DRIVER WITH PWM	HB BASED PERIPHERAL DRIVER WITH PWM
JESD-30 code	R-PSFM-T7	R-PSSO-G7	R-PSFM-T7	R-PSSO-G7
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	7	7	7	7
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output current flow direction	SOURCE AND SINK	SOURCE AND SINK	SOURCE AND SINK	SOURCE AND SINK
Nominal output peak current	7 A	7 A	7 A	7 A
Output polarity	INVERTED	TRUE	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	9 mA	9 mA	9 mA	9 mA
Maximum supply voltage	14.4 V	14.4 V	14.4 V	14.4 V
Minimum supply voltage	9.6 V	9.6 V	9.6 V	9.6 V
Nominal supply voltage	12 V	12 V	12 V	12 V
Supply voltage 1-max	5.5 V	5.5 V	5.5 V	5.5 V
Supply voltage1-Nom	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Disconnect time	0.08 µs	0.08 µs	0.08 µs	0.08 µs
Maker	Harris	-	Harris	Harris
