2.2K3A1W3: DescriptionRESISTOR, TEMPERATURE DEPENDENT, NTC, 2252ohm, THROUGH HOLE MOUNT; CategoryPassive components The resistor; File Size195KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2.2K3A1W3 Overview

RESISTOR, TEMPERATURE DEPENDENT, NTC, 2252ohm, THROUGH HOLE MOUNT

2.2K3A1W3 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	IV
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
resistance	2252 Ω
Resistor type	NTC THERMISTOR
surface mount	NO
Terminal shape	FLEXIBLE WIRE
Thermal sensitivity index	3892 K
Thermistor Applications	TEMPERATURE SENSING
Base Number Matches	1

Preview

Download Datasheet

View All

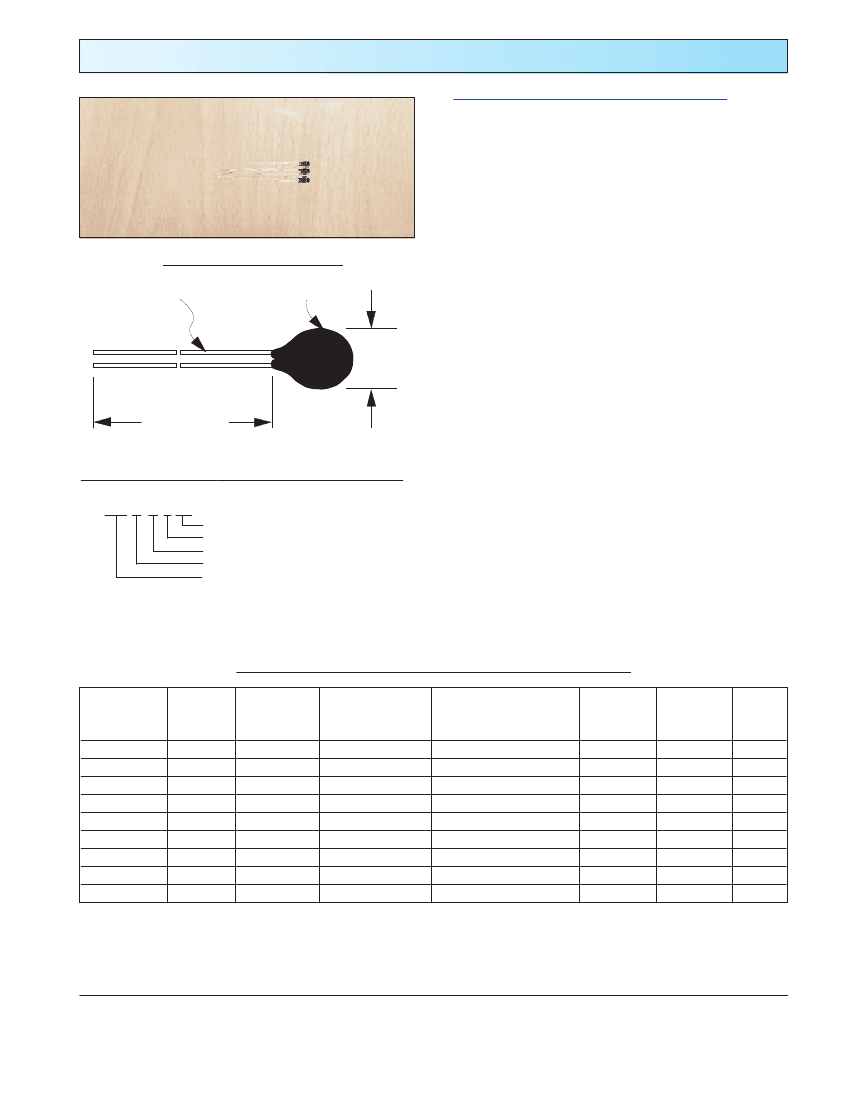

BetaTHERM Sensors

BetaCURVE Interchangeable Thermistor Series IV

BetaCURVE Interchangeable Series IV

Applications:

¥

Temperature sensing, control and compensation.

Applications where a Dissipation Constant of 3.0

mW/oC is required.

Photo ?

Features:

Thermistor Configuration

28 AWG Tin Plated

Copper

Lead Wires

Thermally Conductive

Epoxy Coating

¥

2.794mm

(0.110")

Max. Dia.

Rapid Time Response (1.5 second, typical in liquids).

DC (Dissipation Constant) = 3.0mW/oC

typical in still air at 25oC.

Min./Max. Temperature Exposure = -80oC to 150oC.

Available in custom probe assemblies.

Proven Stability and Reliability

45.7mm +/-5.0mm

(1.80" +/-0.20")

Example: BetaCURVE Series IV Part Number

10K 3 A 1 W3

3mW/oC Dissipation Constant

BetaCURVE Series

Epoxy Coated

Material Curve #

Resistance Value @ 25oC

BetaTherm Thermistor Series IV

provides a higher

Dissipation Constant (3.0mW/oC) allowing design

engineers greater flexibility on sensor design projects. The

higher D.C. is achieved using 28 AWG tin plated copper

lead wires and also larger chip thermistor elements. These

chip elements are manufactured using the same high quality

materials and manufacturing process as

Series I.

Custom

resistance values and tolerances are available upon request.

BetaCURVE Series IV Part Numbers and Specifications:

Part Number Color Code

Resistance Resistance Tolerance Temperature Tolerance

ohms @ 25oC

@ 25oC

and Range

Alpha @

25oC

0/50 oC Beta Curve #

Value

2.2K3A1W3

3K3A1W3

5K3A1W3

10K3A1W3

10K4A1W3

30K5A1W3

30K6A1W3

50K6A1W3

100K6A1W3

Brown

Red

Orange

Yellow

Black

White

Green

Blue

Violet

2252

3000

5000

10000

30000

50000

100000

+/- 0.50%

+/- 0.2 oC (0 to 70 oC)

-4.39 %/oC

-4.04 %/oC

-4.30 %/oC

-4.68 %/oC

3892

3575

3811

4143

3

4

5

6

Ireland 353-91-753238

U.S.A. 508-842-0516

BetaTHERM

57

Web: http://www.betatherm.com

2.2K3A1W3 Related Products

	2.2K3A1W3	3K3A1W3	5K3A1W3	RCMT2084500FHS09
Description	RESISTOR, TEMPERATURE DEPENDENT, NTC, 2252ohm, THROUGH HOLE MOUNT	RESISTOR, TEMPERATURE DEPENDENT, NTC, 3000ohm, THROUGH HOLE MOUNT	RESISTOR, TEMPERATURE DEPENDENT, NTC, 5000ohm, THROUGH HOLE MOUNT	RESISTOR, METAL FILM, 2 W, 1 %, 50 ppm, 8450 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknow	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-65 °C
Package shape	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	TUBULAR PACKAGE
resistance	2252 Ω	3000 Ω	5000 Ω	8450 Ω
Resistor type	NTC THERMISTOR	NTC THERMISTOR	NTC THERMISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO
Terminal shape	FLEXIBLE WIRE	FLEXIBLE WIRE	FLEXIBLE WIRE	WIRE
Manufacturer's serial number	IV	IV	IV	-
Thermal sensitivity index	3892 K	3892 K	3892 K	-
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING	-
Base Number Matches	1	1	1	-
