HM1-65262B-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HM1-65262B-9

HM1-65262B-9: DescriptionStandard SRAM, 16KX1, 70ns, CMOS, CDIP20; Categorystorage storage; File Size160KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HM1-65262B-9 Overview

Standard SRAM, 16KX1, 70ns, CMOS, CDIP20

HM1-65262B-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	70 ns
I/O type	SEPARATE
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	16KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00002 A
Minimum standby current	2 V
Maximum slew rate	0.116 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

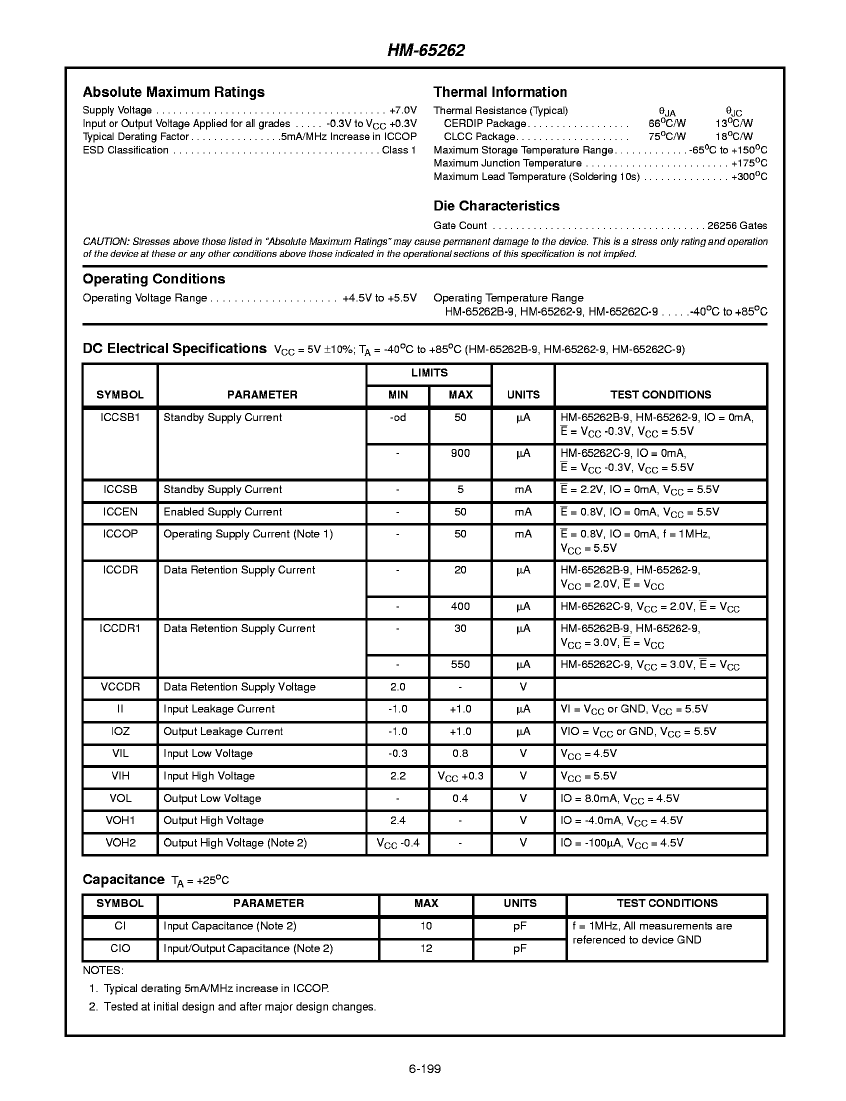

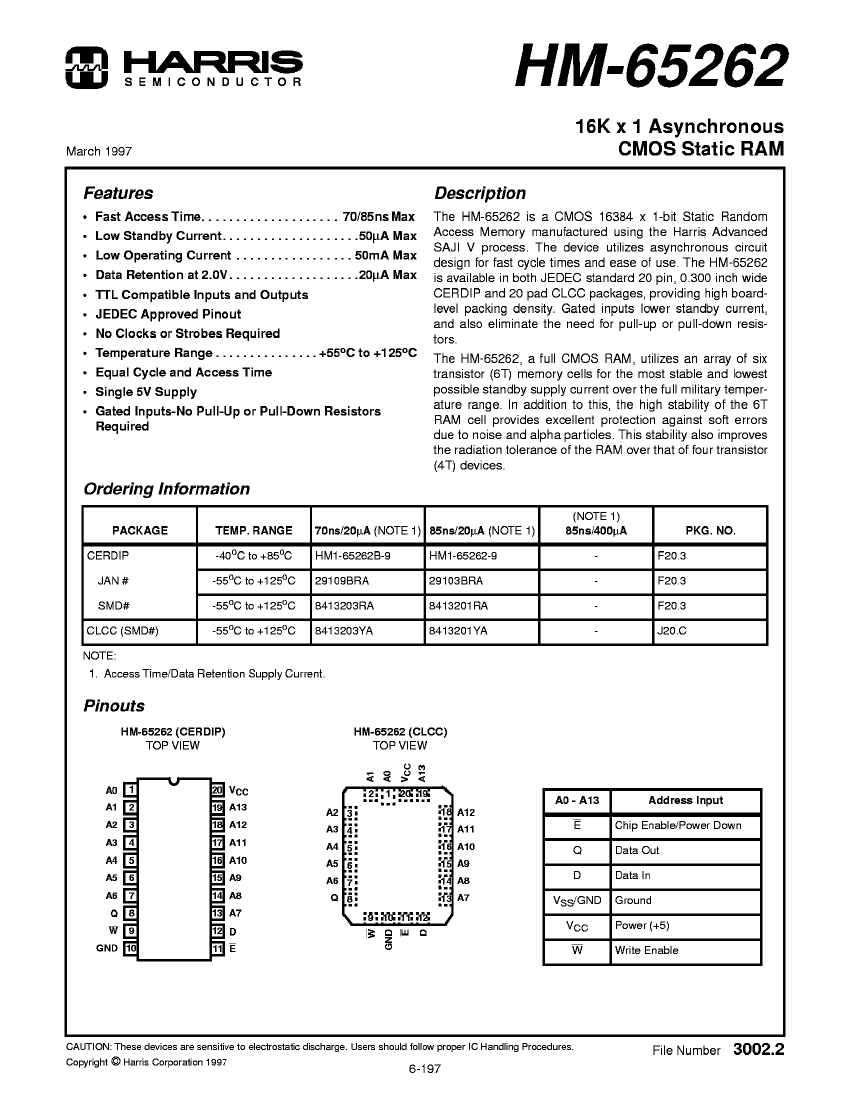

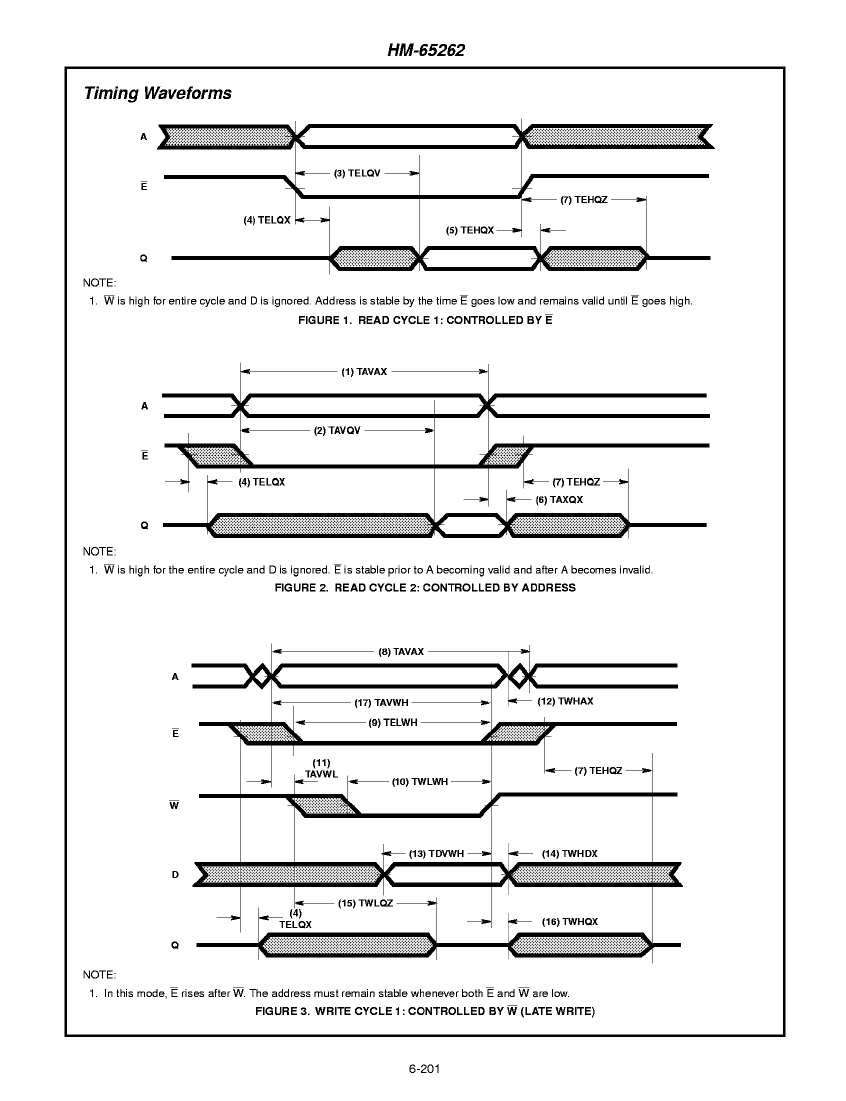

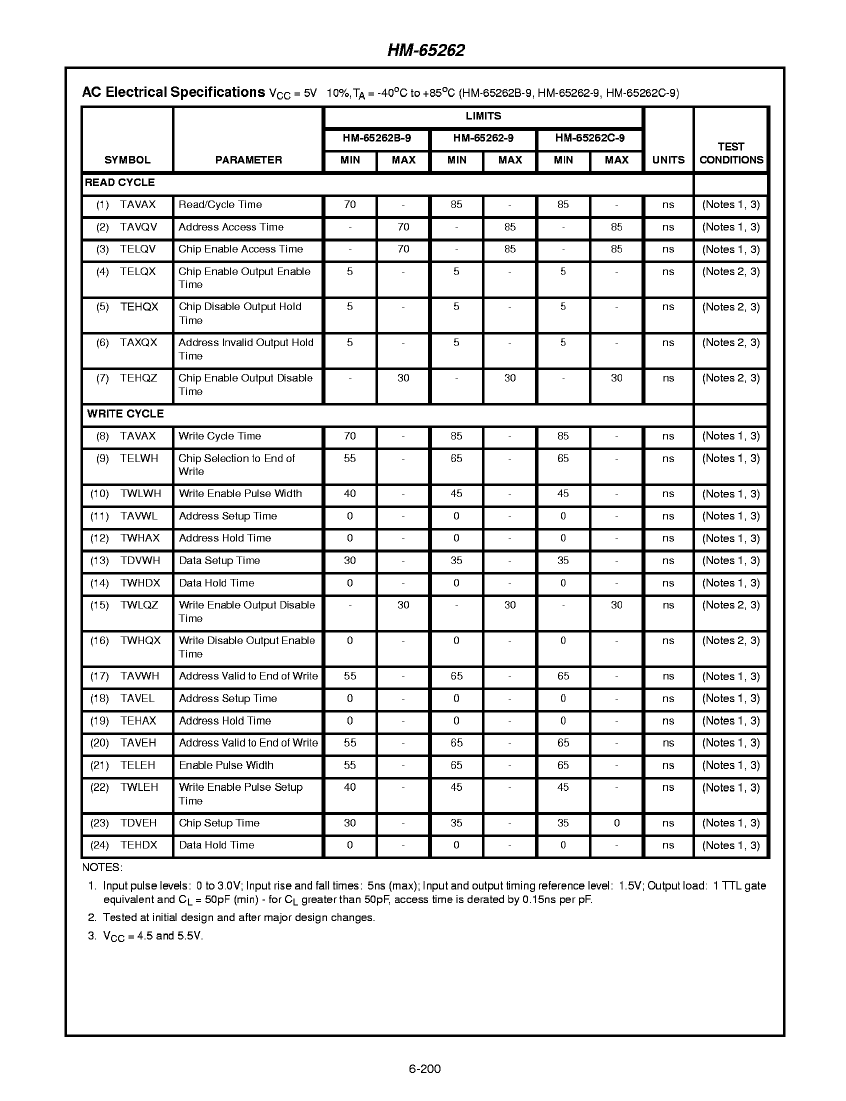

Preview

Download Datasheet

View All

HM1-65262B-9 Related Products

	HM1-65262B-9	29109BRA	29103BRA	8413201YA	8413203RX	HM1-65262-9	8413203RA	8413203YA	8413201RA
Description	Standard SRAM, 16KX1, 70ns, CMOS, CDIP20	Standard SRAM, 16KX1, 70ns, CMOS, CDIP20	Standard SRAM, 16KX1, 85ns, CMOS, CDIP20	Standard SRAM, 16KX1, 85ns, CMOS, CQCC20	Standard SRAM, 16KX1, 70ns, CMOS, CDIP20, DIP-20	Standard SRAM, 16KX1, 85ns, CMOS, CDIP20	Standard SRAM, 16KX1, 70ns, CMOS, CDIP20	Standard SRAM, 16KX1, 70ns, CMOS, CQCC20	Standard SRAM, 16KX1, 85ns, CMOS, CDIP20
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	70 ns	70 ns	85 ns	85 ns	70 ns	85 ns	70 ns	70 ns	85 ns
JESD-30 code	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-CQCC-N20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-CQCC-N20	R-GDIP-T20
memory density	16384 bit	16384 bi	16384 bi	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C
organize	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Parallel/Serial	PARALLEL	SERIAL	SERIAL	SERIAL	SERIAL	PARALLEL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL
Maker	Harris	-	-	Harris	Harris	Harris	Harris	Harris	Harris
