73790-0057 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73790-0057

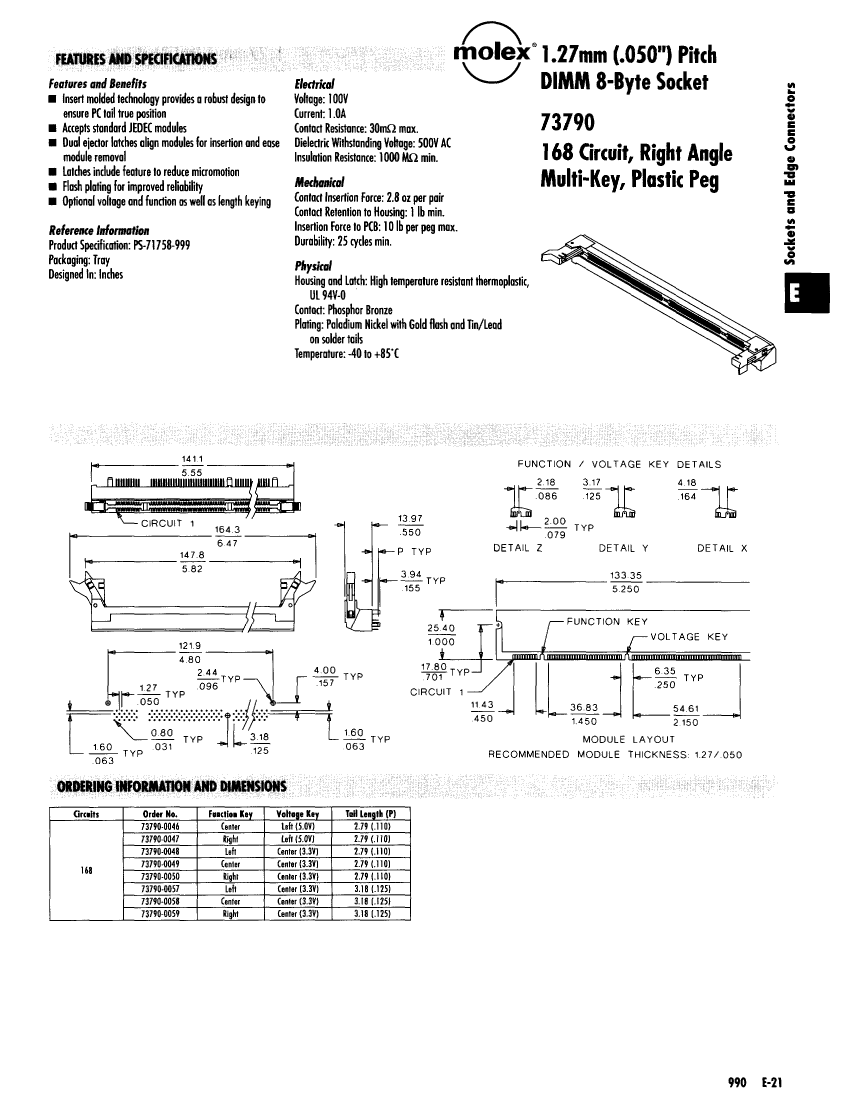

73790-0057: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

73790-0057 Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket

73790-0057 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	LATCHED, POLARIZED, STAGGERED CONFIGURATION
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	73790
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

73790-0057 Related Products

	73790-0057	73790-0046	73790-0047	73790-0050	73790-0059	73790-0048	73790-0049	73790-0058
Description	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket	Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	73790	73790	73790	73790	73790	73790	73790	73790
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	168	168	168	168	168	168	168	168
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
