ADG202AKN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> ADG202AKN

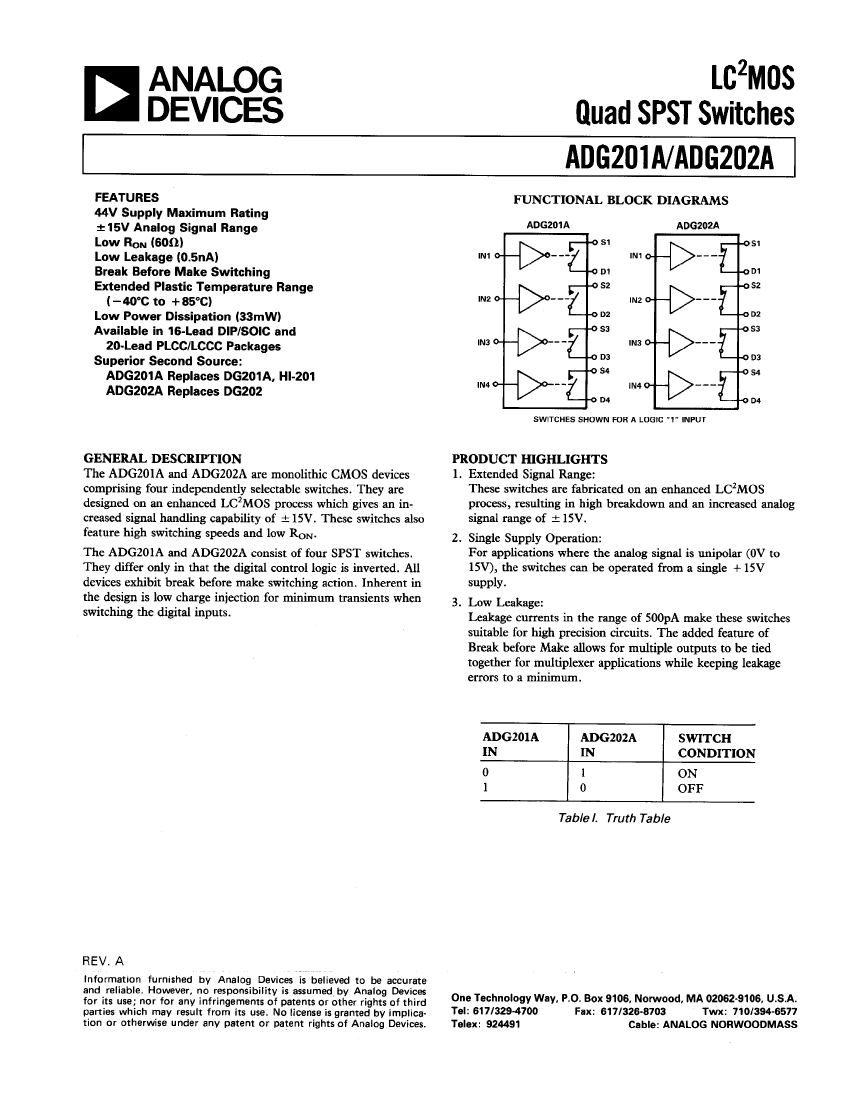

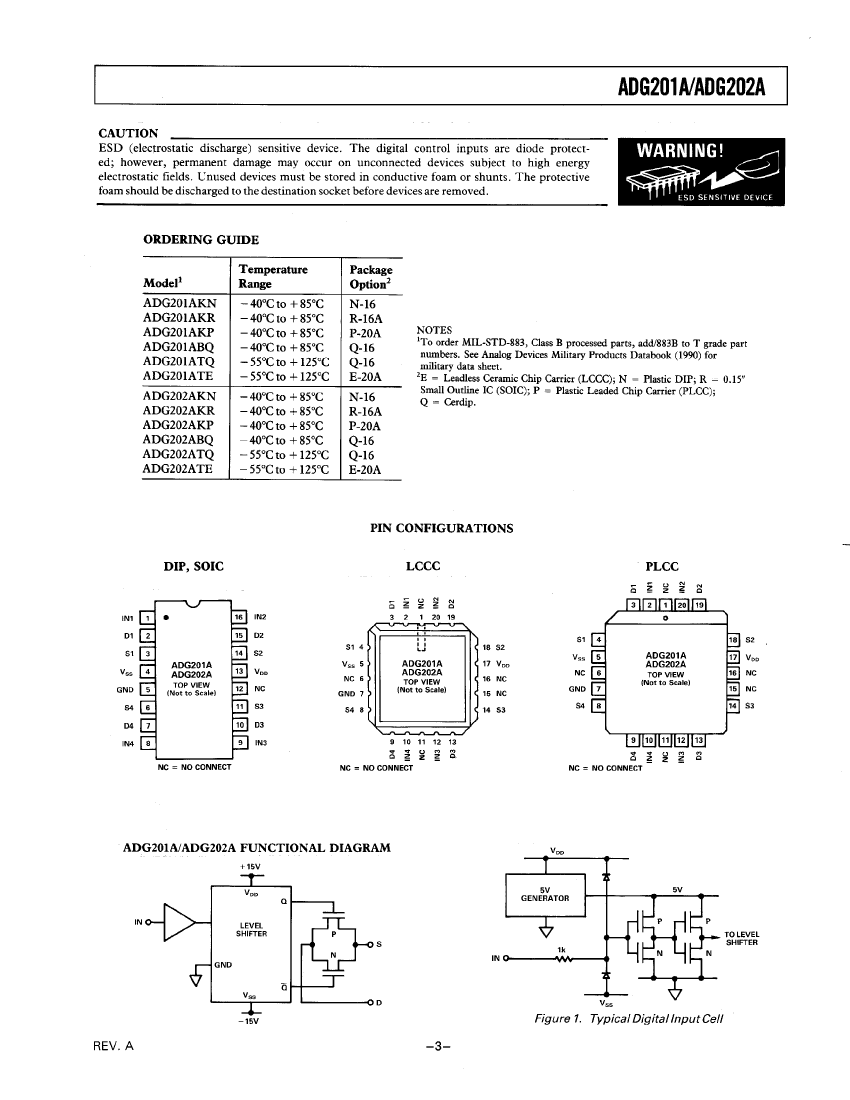

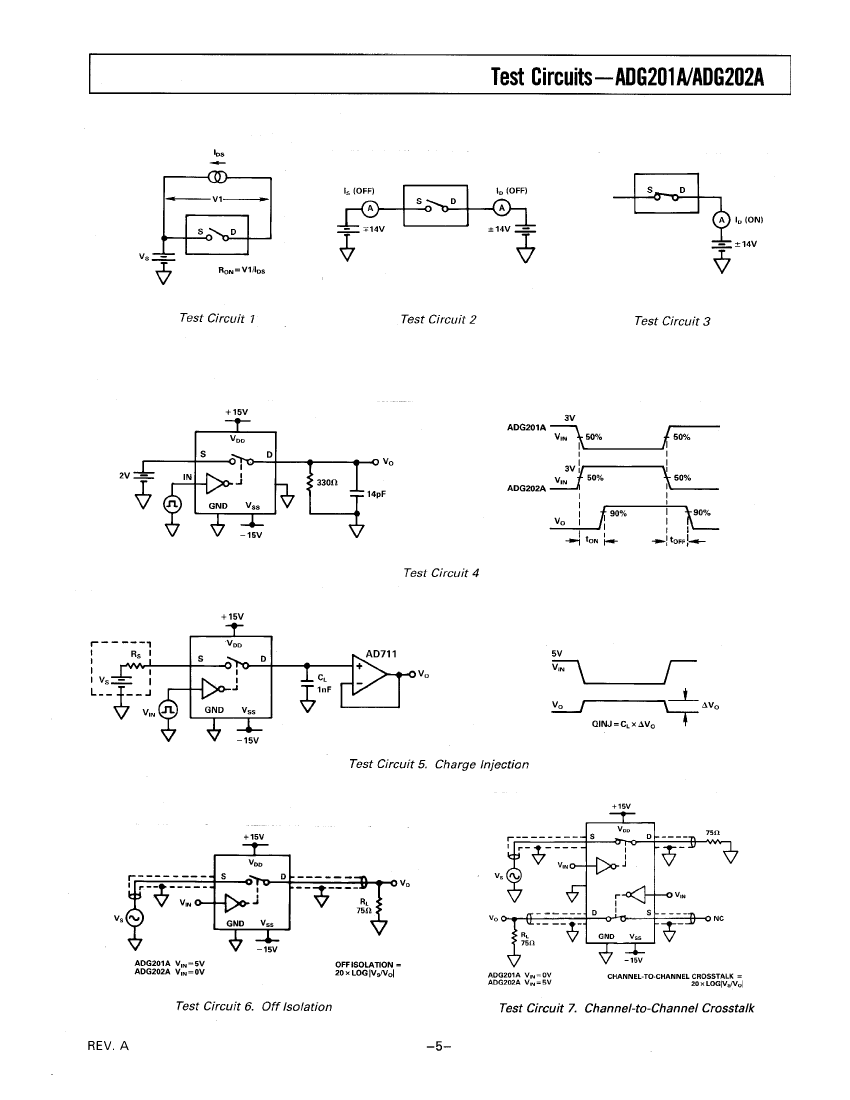

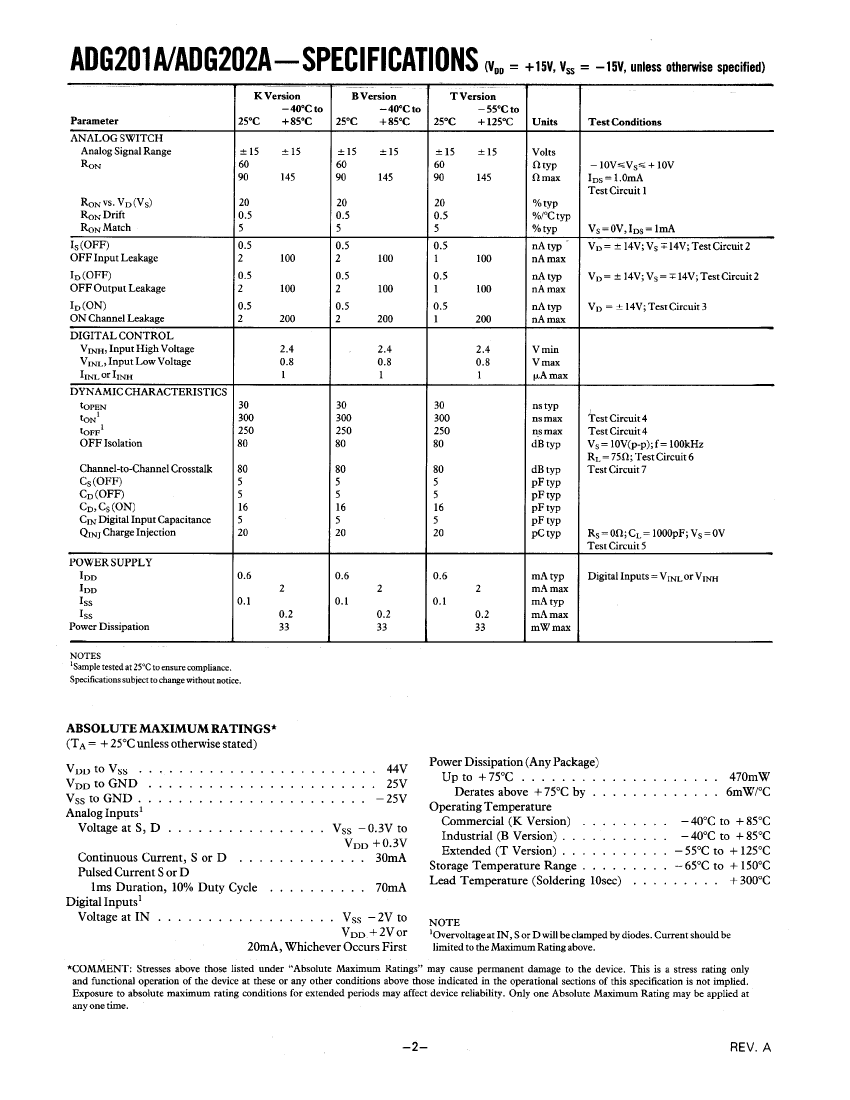

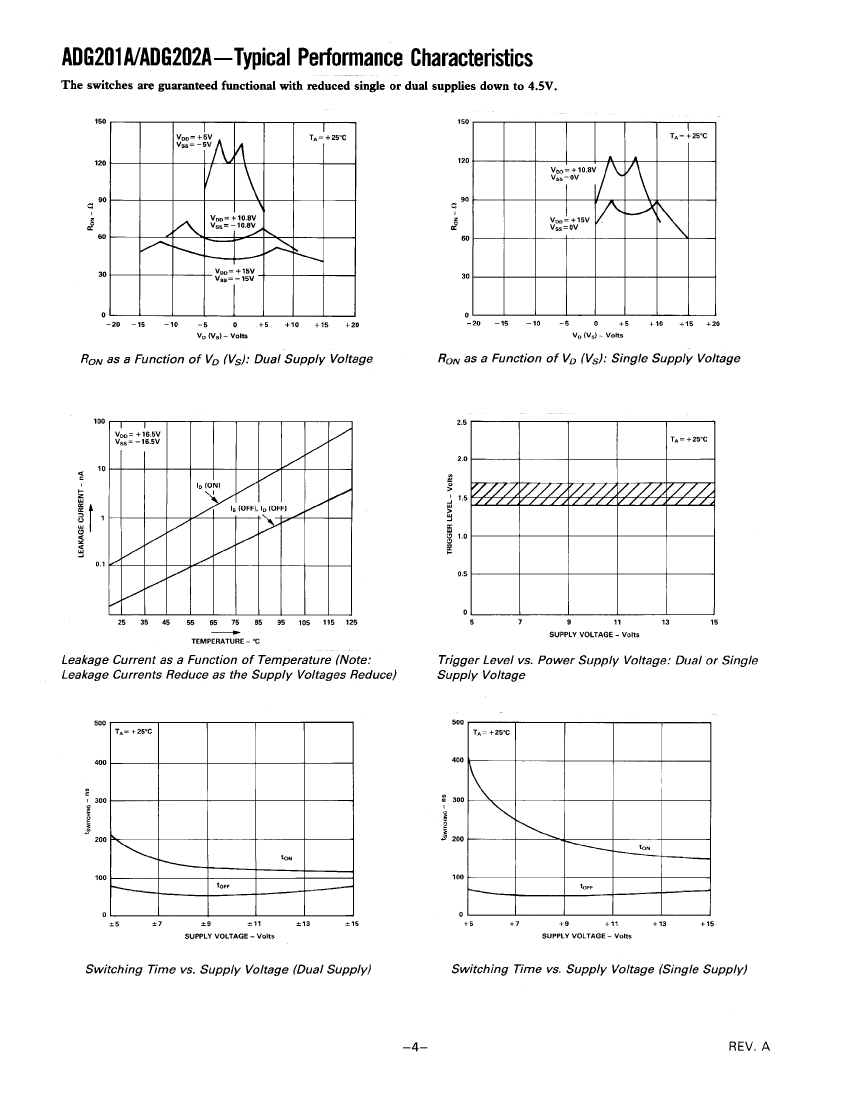

ADG202AKN: Description1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16; CategoryAnalog mixed-signal IC The signal circuit; File Size229KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

ADG202AKN Overview

1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16

ADG202AKN Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	15 V
Processing package description	0.150 INCH, SOIC-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Number of inputs	1
Maximum on-time	300 ns
Maximum off time	250 ns
Analog IC other types	Single Pole Single Throw Switch
Isolation Rating in Off State	80 dB
Maximum limit analog input voltage	15 V
Rated negative supply voltage	-15 V
Forward conduction resistance matching rating	5 ohm
Maximum on-state resistance	90 ohm

Preview

Download Datasheet

View All

ADG202AKN Related Products

	ADG202AKN	ADG201ABQ	ADG201A	ADG201ATE	ADG201ATQ	ADG202AKP	ADG202A	ADG202ATE
Description	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	125 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-55 Cel	-40 Cel	-40 Cel	-40 Cel
Rated supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Processing package description	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	CERDIP-16	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	DISCONTINUED	ACTIVE	ACTIVE	ACTIVE
Craftsmanship	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
packaging shape	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-line	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-hole	GULL WING	GULL WING	GULL WING
Terminal spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
terminal coating	tin lead	tin lead	tin lead	tin lead	tin lead	tin lead	tin lead	tin lead
Terminal location	pair	pair	pair	pair	pair	pair	pair	pair
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Ceramic, Glass-SEALED	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Number of inputs	1	1	1	1	1	1	1	1
Maximum on-time	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns
Maximum off time	250 ns	250 ns	250 ns	250 ns	250 ns	250 ns	250 ns	250 ns
Analog IC other types	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch	Single Pole Single Throw Switch
Isolation Rating in Off State	80 dB	80 dB	80 dB	80 dB	80 dB	80 dB	80 dB	80 dB
Maximum limit analog input voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Rated negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Forward conduction resistance matching rating	5 ohm	5 ohm	5 ohm	5 ohm	5 ohm	5 ohm	5 ohm	5 ohm
Maximum on-state resistance	90 ohm	90 ohm	90 ohm	90 ohm	90 ohm	90 ohm	90 ohm	90 ohm
surface mount	Yes	Yes	Yes	Yes	-	Yes	Yes	Yes
