GMM26417233ATG-7K datasheet, PDF

Datasheet> All Categories > storage> storage> GMM26417233ATG-7K

GMM26417233ATG-7K: DescriptionSynchronous DRAM Module, 16MX64, 6ns, CMOS, DIMM-168; Categorystorage storage; File Size380KB，14 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GMM26417233ATG-7K Overview

Synchronous DRAM Module, 16MX64, 6ns, CMOS, DIMM-168

GMM26417233ATG-7K Parametric

Parameter Name	Attribute value
Maker	LG Semicon Co., Ltd.
package instruction	DIMM-168
Reach Compliance Code	unknown
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	1073741824 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	168
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum standby current	0.008 A
Maximum slew rate	1.5 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

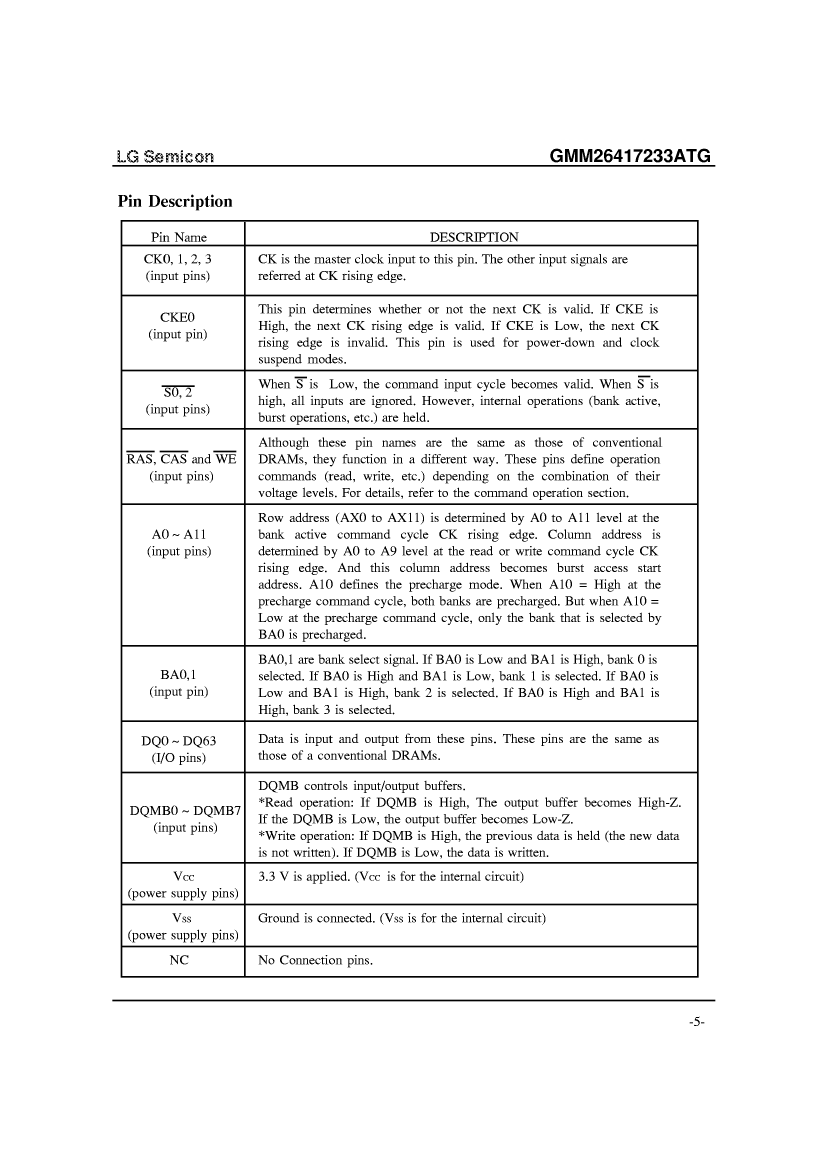

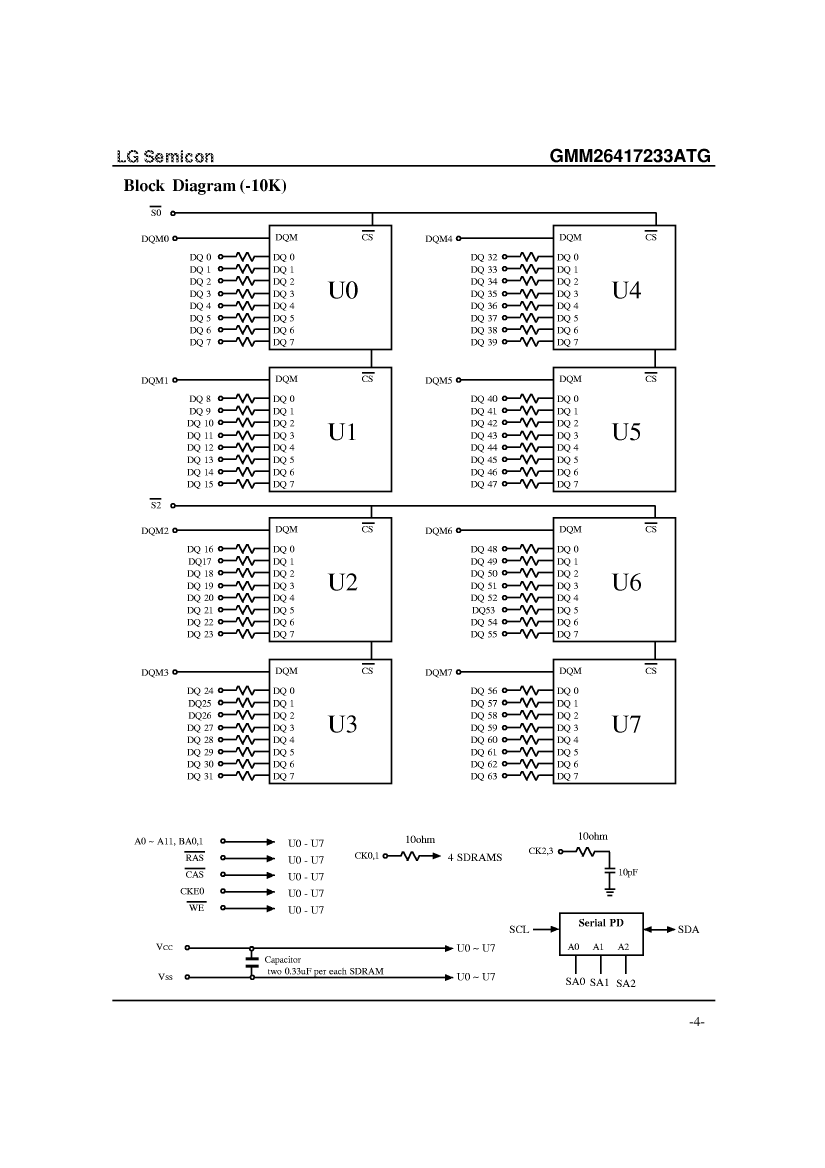

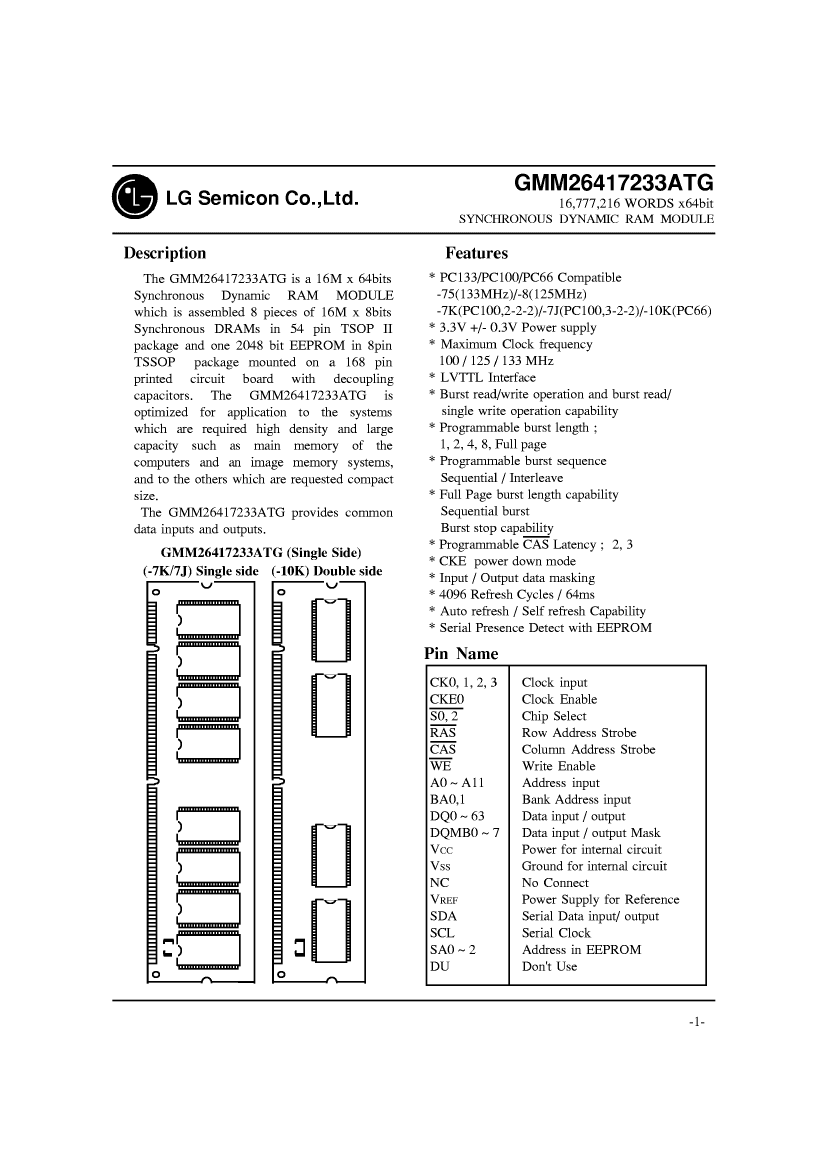

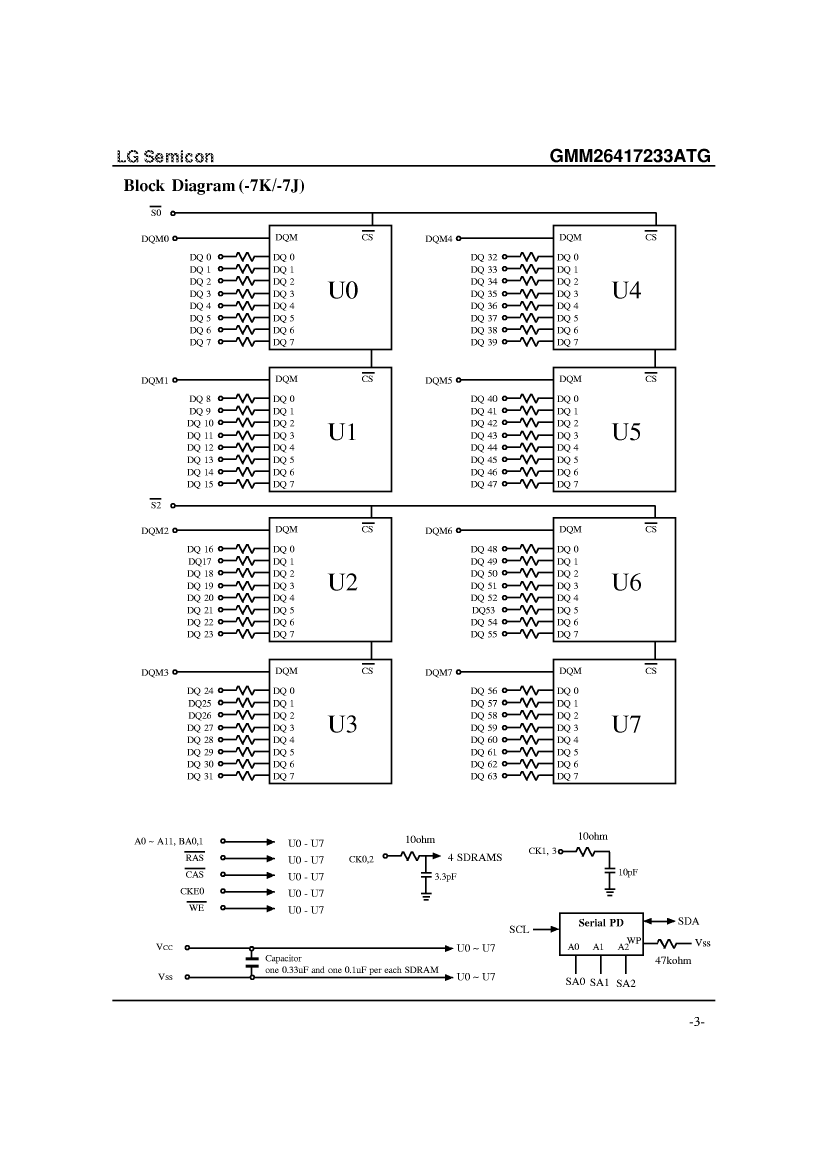

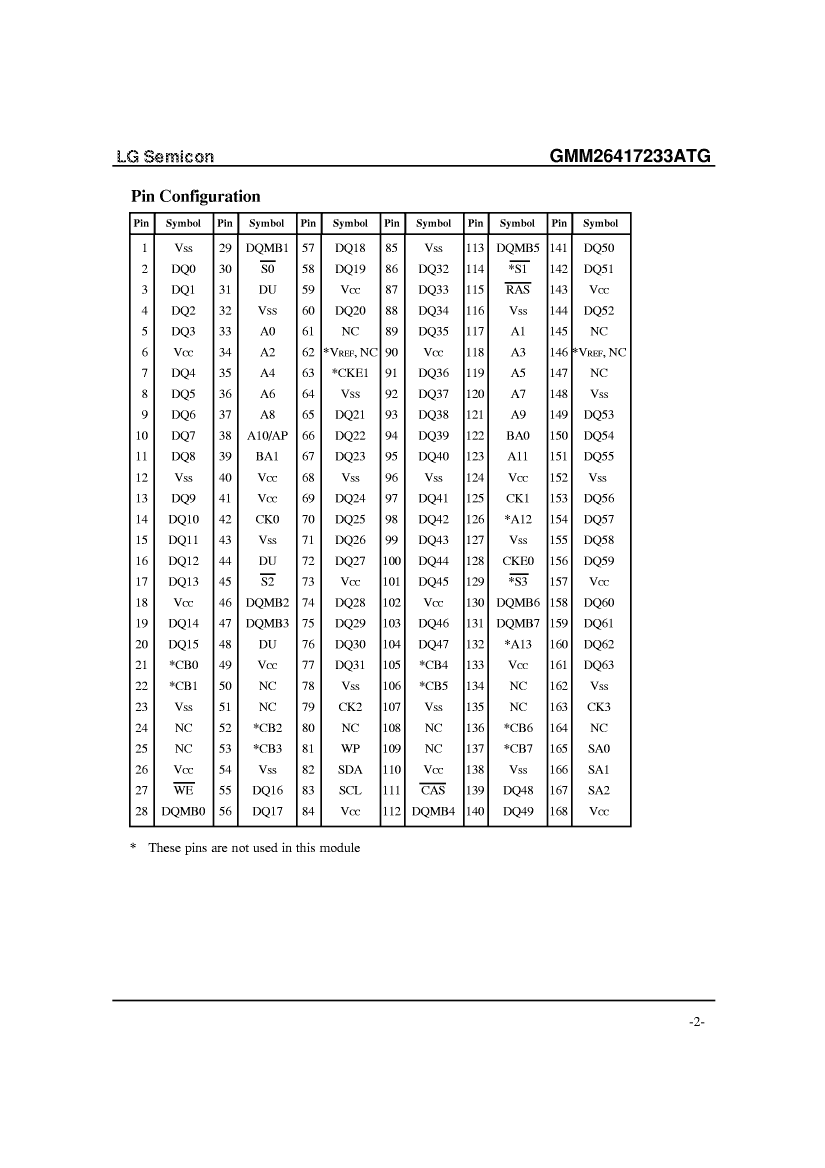

Preview

Download Datasheet

View All

GMM26417233ATG-7K Related Products

	GMM26417233ATG-7K	GMM26417233ATG-7J	GMM26417233ATG-10K	GMM26417233ATG-75	GMM26417233ATG-8
Description	Synchronous DRAM Module, 16MX64, 6ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX64, 6ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX64, 8ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX64, 5.4ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX64, 6ns, CMOS, DIMM-168
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	DIMM-168	DIMM-168	DIMM-168	DIMM-168	DIMM-168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	6 ns	8 ns	5.4 ns	6 ns
Maximum clock frequency (fCLK)	100 MHz	100 MHz	100 MHz	133 MHz	125 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	1073741824 bit	1073741824 bit	1073741824 bit	1073741824 bit	1073741824 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	64	64	64	64	64
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	168	168	168	168	168
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16MX64	16MX64	16MX64	16MX64	16MX64
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096
Maximum standby current	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Maximum slew rate	1.5 mA	1.5 mA	1.4 mA	1.6 mA	1.5 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
