LANF7236G Overview

ETHERNET 10BASE-T LAN FILTER MODULES

Preview

Download Datasheet

View All

Networking

Components

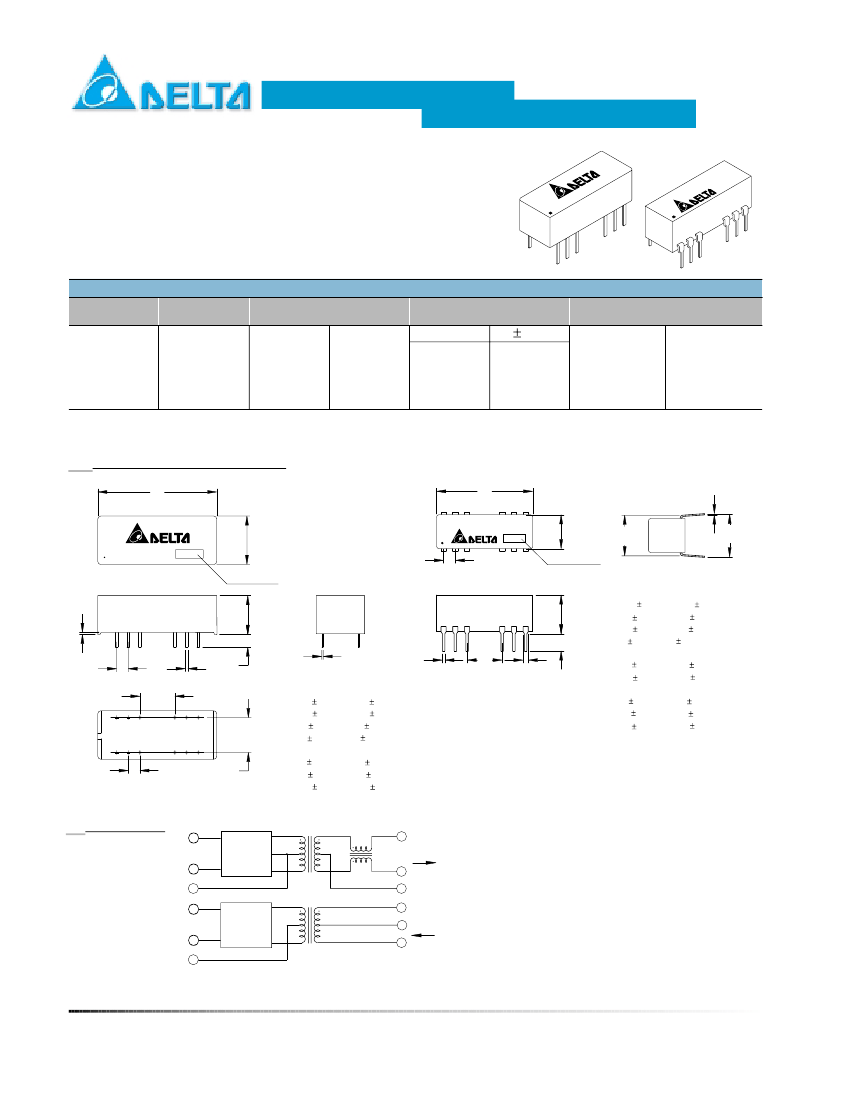

ELECTRICAL CHARACTERISTICS @25 C

Hi-Pot Test @60Sec, 1500Vrms

Model

LANF7236G

LANF7236X

Insertion Loss

(dB Max)

-1.0 (1-10MHz)

Attenuation

TX (dB Min) RX

-7 (20MHz)

-6 (20MHz)

-19 (25MHz)

-14 (25MHz)

-32 (30MHz)

-35 (40MHz)

-20 (30MHz)

-26 (35MHz)

-31 (40MHz)

ETHERNET

10BASE-T

LAN FILTER MODULES

Return Loss

5-10MHz (dB Min)

100 Ohm

98 13 Ohm

-18

-15

Com. To Com. Mode Rejection

TX (dB Min) RX

-35 (5-10MHz)

-30 (10-50MHz)

-28 (50-100MHz)

-25 (50-100MHz)

ECHANICAL CONSTRUCTION

LANF7236X

DATE CODE

LANF7236G

DATE CODE

7.62

UNIT : mm / inch

A = 25.40 0.254 / 1.000 0.010

B = 10.40 0.254 / 0.409 0.010

C = 7.56 0.254 / 0.298 0.010

D = 3.20 0.30 / 0.126 0.012

E = 2.54 / 0.100 (TYP)

F = 0.50 0.127 / 0.020 0.005

G = 0.51 0.127 / 0.020 0.005

H = 0.254 0.127 / 0.010 0.005

UNIT : mm/inch

A = 20.80 0.254 / 0.819 0.010

B = 6.90 0.254 / 0.272 0.010

C = 8.30 0.254 / 0.327 0.010

D = 3.2 0.3 / 0.126 0.012

E = 2.54 / 0.100 (TYP)

F = 0.46 0.127 / 0.018 0.005

G = 1.09 0.127 / 0.043 0.005

H = 7.62 / 0.300 (TYP)

I = 0.25 0.127 / 0.010 0.005

J = 7.62 0.254 / 0.300 0.010

K = 9.27 0.380 / 0.365 0.015

2.54

7.62

CHEMATICS

1:1

LOW PASS

FILTER

100 OHM

1:1

LOW PASS

FILTER

100 OHM

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

31-1, SHIEN PAN ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3626301; FAX: 886-3-3618901

www.deltaww.com/products/networking/
