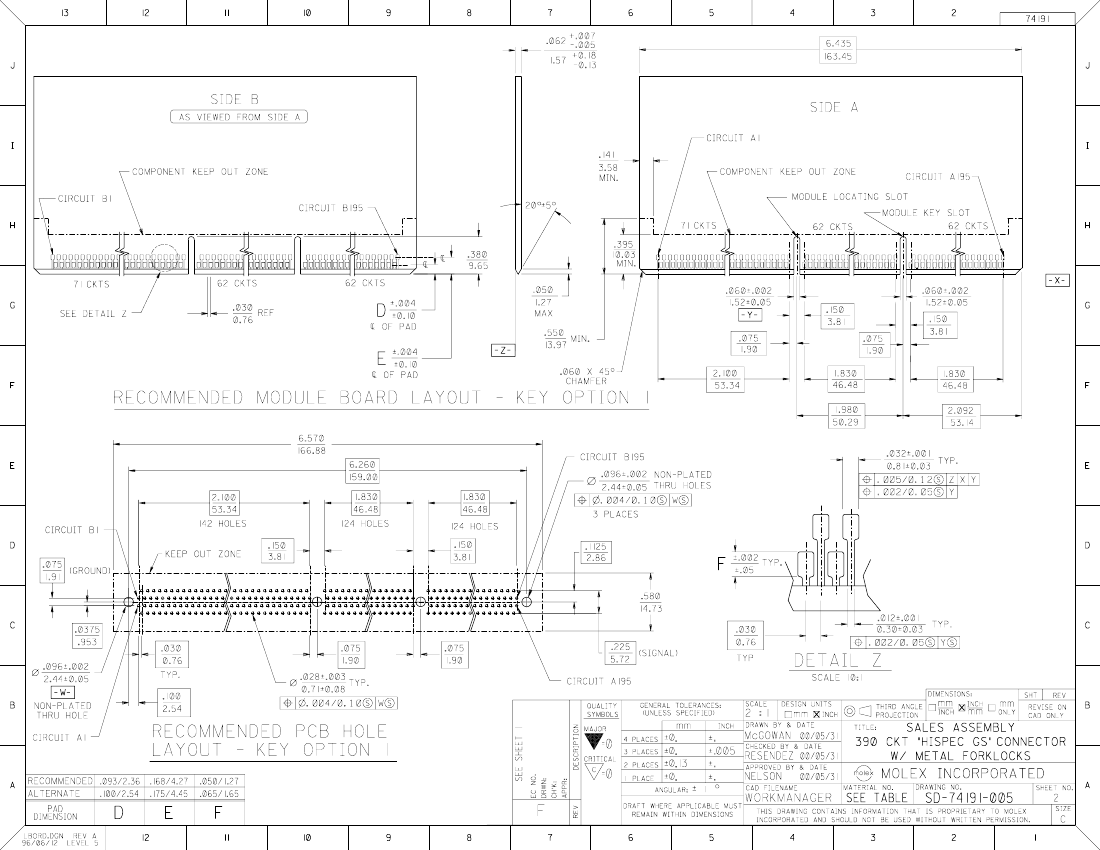

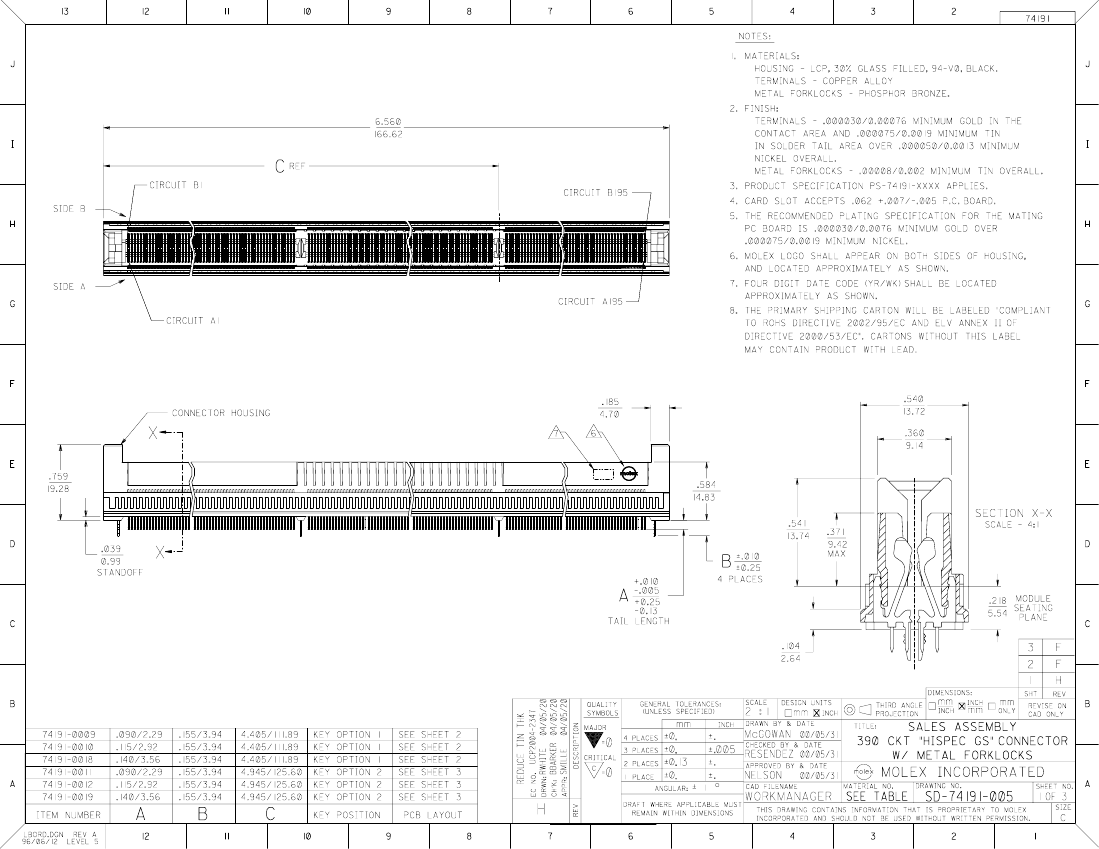

Preview

74191-0019: DescriptionCard Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket; CategoryThe connector The connector; File Size397KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

74191-0019 Overview

Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket

74191-0019 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION, POLARIZED, LATCHED
Board mount options	SPLIT BOARD LOCK
body width	0.54 inch
subject depth	0.759 inch
body length	6.56 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	400VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	74191
Plug contact pitch	0.03 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	1.52 mm
Termination type	SOLDER
Total number of contacts	390
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

74191-0019 Related Products

	74191-0019	0761559827_17	74191-0009	74191-0010	74191-0011	74191-0012
Description	Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket	Impact 100 Ohm 4 Pair Vertical Backplane Header, Right Guided, Left Endwall	Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket	Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket	Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket	Card Edge Connector, 390 Contact(s), 2 Row(s), Female, Straight, 0.03 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Socket
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Other features	STAGGERED CONFIGURATION, POLARIZED, LATCHED	-	STAGGERED CONFIGURATION, POLARIZED, LATCHED	STAGGERED CONFIGURATION, POLARIZED, LATCHED	STAGGERED CONFIGURATION, POLARIZED, LATCHED	STAGGERED CONFIGURATION, POLARIZED, LATCHED
Board mount options	SPLIT BOARD LOCK	-	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.54 inch	-	0.54 inch	0.54 inch	0.54 inch	0.54 inch
subject depth	0.759 inch	-	0.759 inch	0.759 inch	0.759 inch	0.759 inch
body length	6.56 inch	-	6.56 inch	6.56 inch	6.56 inch	6.56 inch
Body/casing type	SOCKET	-	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	GOLD (30)	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	DUAL PRONG	-	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
DIN compliance	NO	-	NO	NO	NO	NO
Dielectric withstand voltage	400VAC V	-	400VAC V	400VAC V	400VAC V	400VAC V
Durability	50 Cycles	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	-	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO
maximum insertion force	.556 N	-	.556 N	.556 N	.556 N	.556 N
Insulation resistance	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	-	NO	NO	NO	NO
Manufacturer's serial number	74191	-	74191	74191	-	74191
Plug contact pitch	0.03 inch	-	0.03 inch	0.03 inch	0.03 inch	0.03 inch
Mixed contacts	NO	-	NO	NO	NO	NO
Installation option 1	LOCKING MECH	-	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE
PCB row number	4	-	4	4	4	4
Number of rows loaded	2	-	2	2	2	2
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	-	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	30u inch	-	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	0.5 A	-	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.14 inch	-	0.09 inch	0.115 inch	0.09 inch	0.115 inch
Terminal pitch	1.52 mm	-	1.52 mm	1.52 mm	1.52 mm	1.52 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	390	-	390	390	390	390
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.278 N	-	.278 N	.278 N	.278 N	.278 N
