DAC7614U/1K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC7614U/1K

DAC7614U/1K: DescriptionD/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO16,; CategoryAnalog mixed-signal IC converter; File Size467KB，12 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

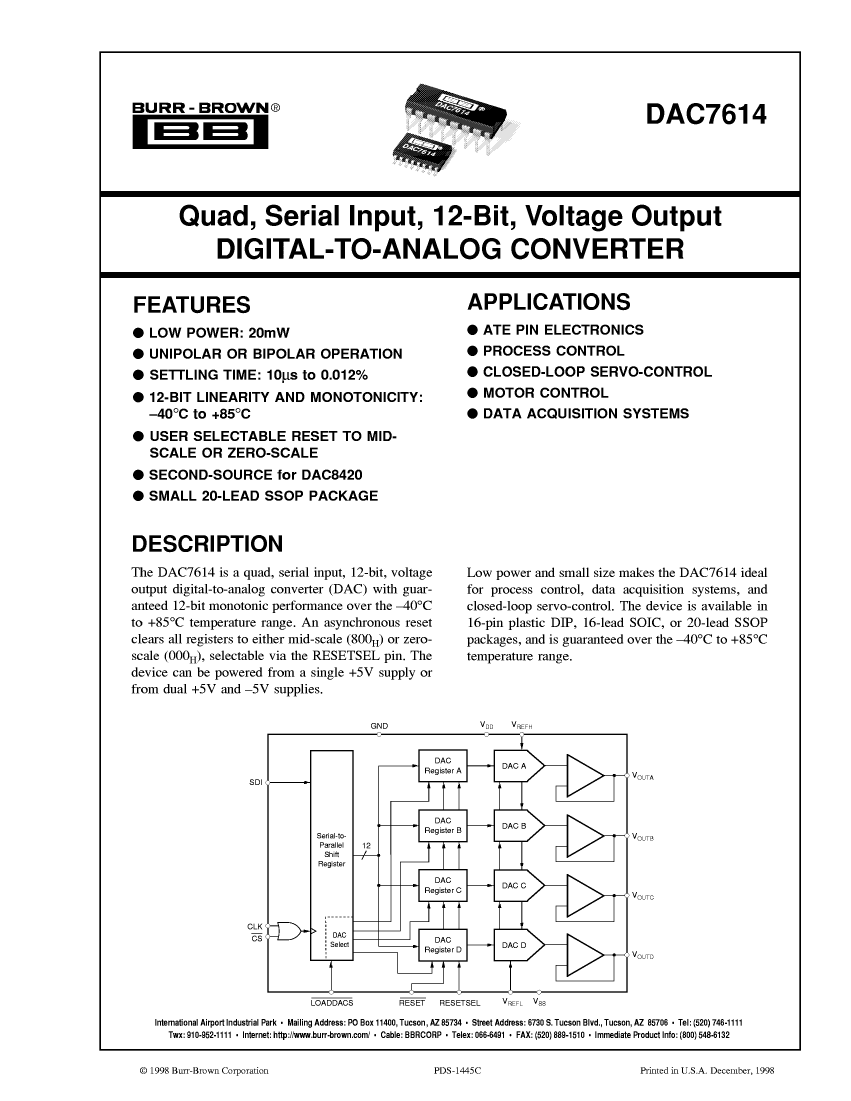

DAC7614U/1K Overview

D/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO16,

DAC7614U/1K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog output voltage	2.5 V
Minimum analog output voltage	-2.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Maximum linear error (EL)	0.0488%
Nominal negative supply voltage	-5 V
Number of digits	12
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-5 V
Certification status	Not Qualified
Maximum stabilization time	10 µs
Nominal settling time (tstl)	5 µs
Maximum slew rate	4 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

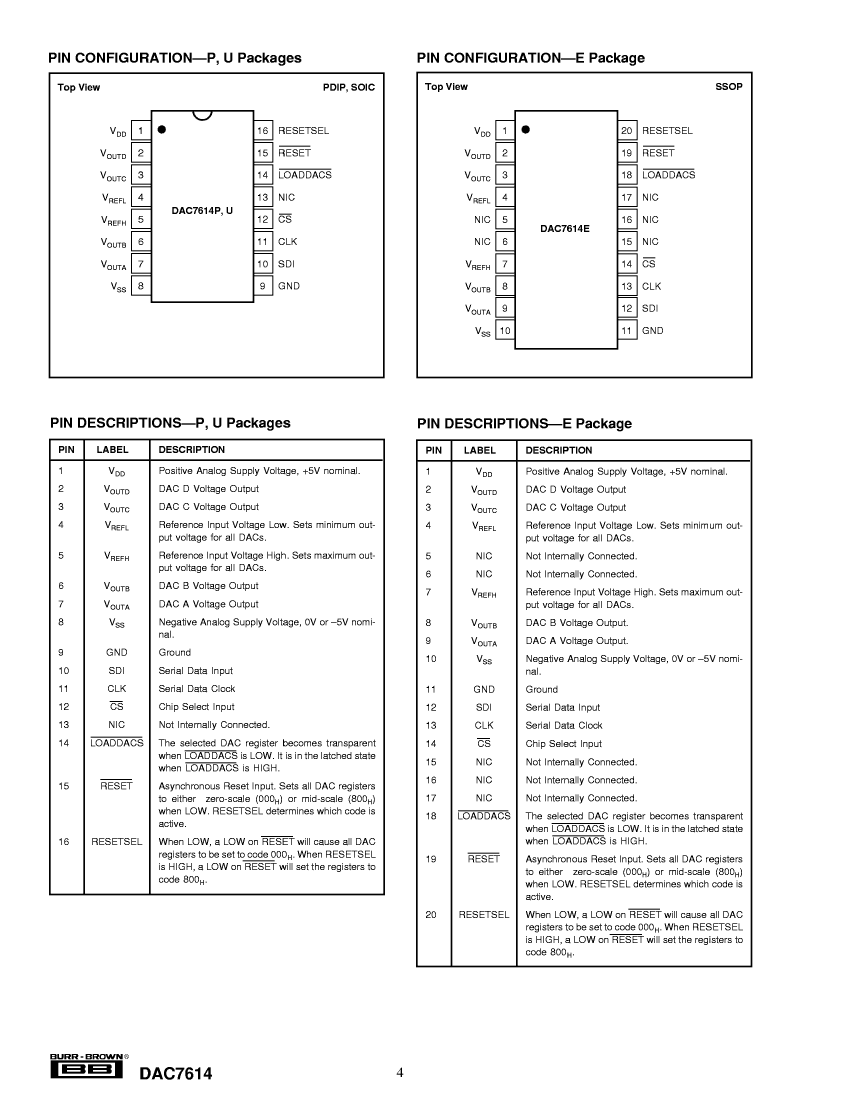

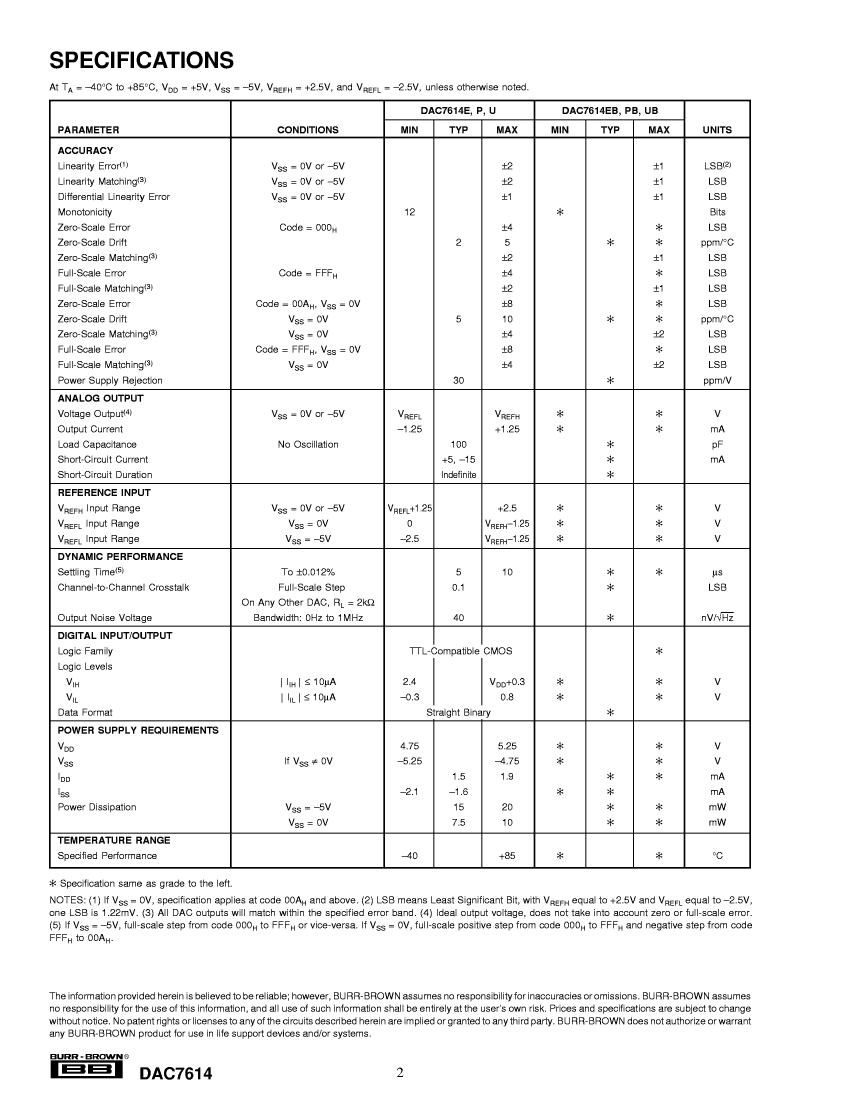

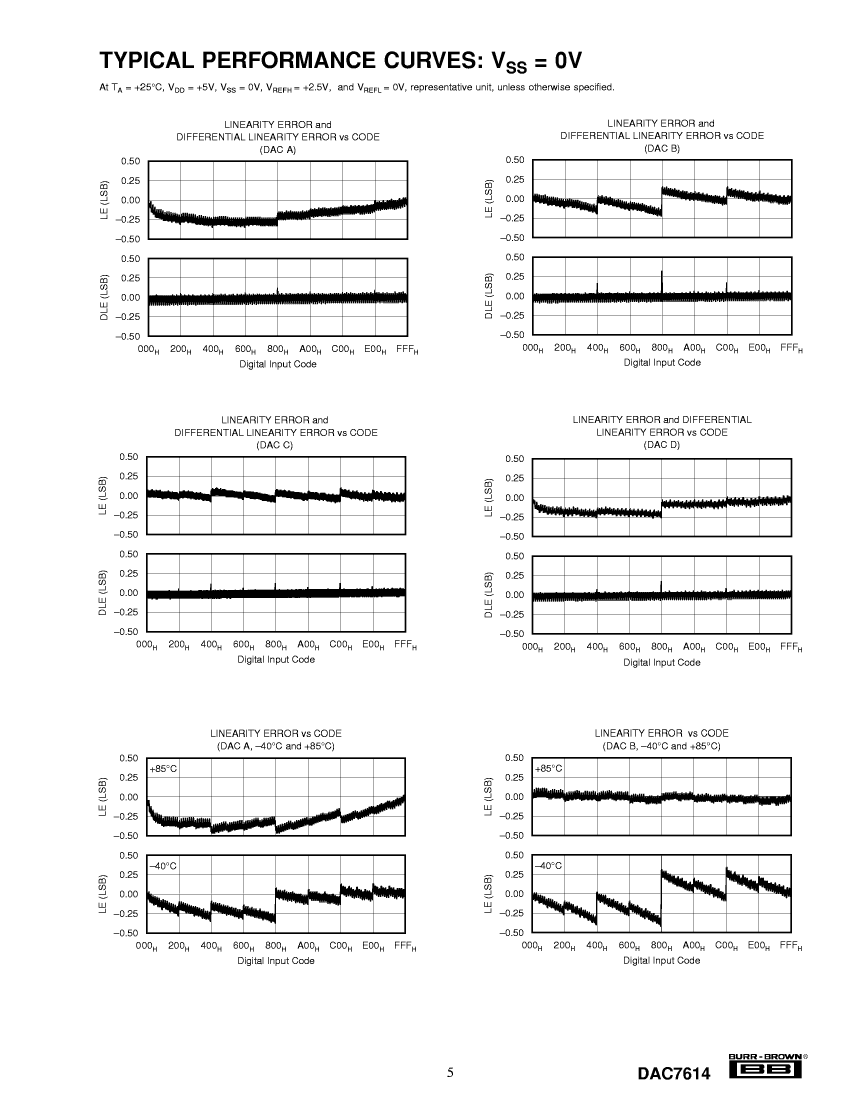

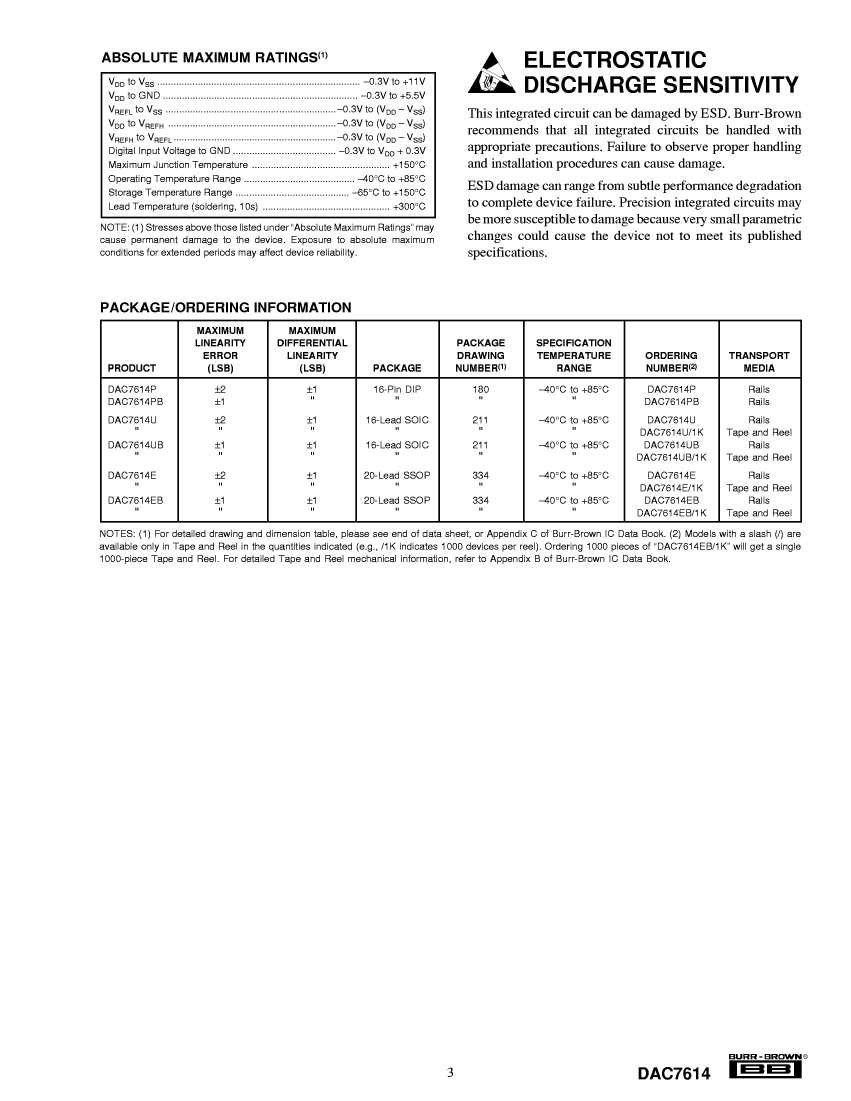

Preview

Download Datasheet

View All

DAC7614U/1K Related Products

	DAC7614U/1K	DAC7614E/1K	DAC7614EB/1K	DAC7614UB/1K
Description	D/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO16,	D/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO20,	D/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO20,	D/A Converter, 4 Func, Serial Input Loading, 5us Settling Time, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog output voltage	2.5 V	2.5 V	2.5 V	2.5 V
Minimum analog output voltage	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY
Input format	SERIAL	SERIAL	SERIAL	SERIAL
JESD-30 code	R-PDSO-G16	R-PDSO-G20	R-PDSO-G20	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0
Maximum linear error (EL)	0.0488%	0.0488%	0.0244%	0.0244%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V
Number of digits	12	12	12	12
Number of functions	4	4	4	4
Number of terminals	16	20	20	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP	SSOP	SOP
Encapsulate equivalent code	SOP16,.4	SSOP20,.3	SSOP20,.3	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	10 µs	10 µs	10 µs	10 µs
Nominal settling time (tstl)	5 µs	5 µs	5 µs	5 µs
Maximum slew rate	4 mA	4 mA	4 mA	4 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
