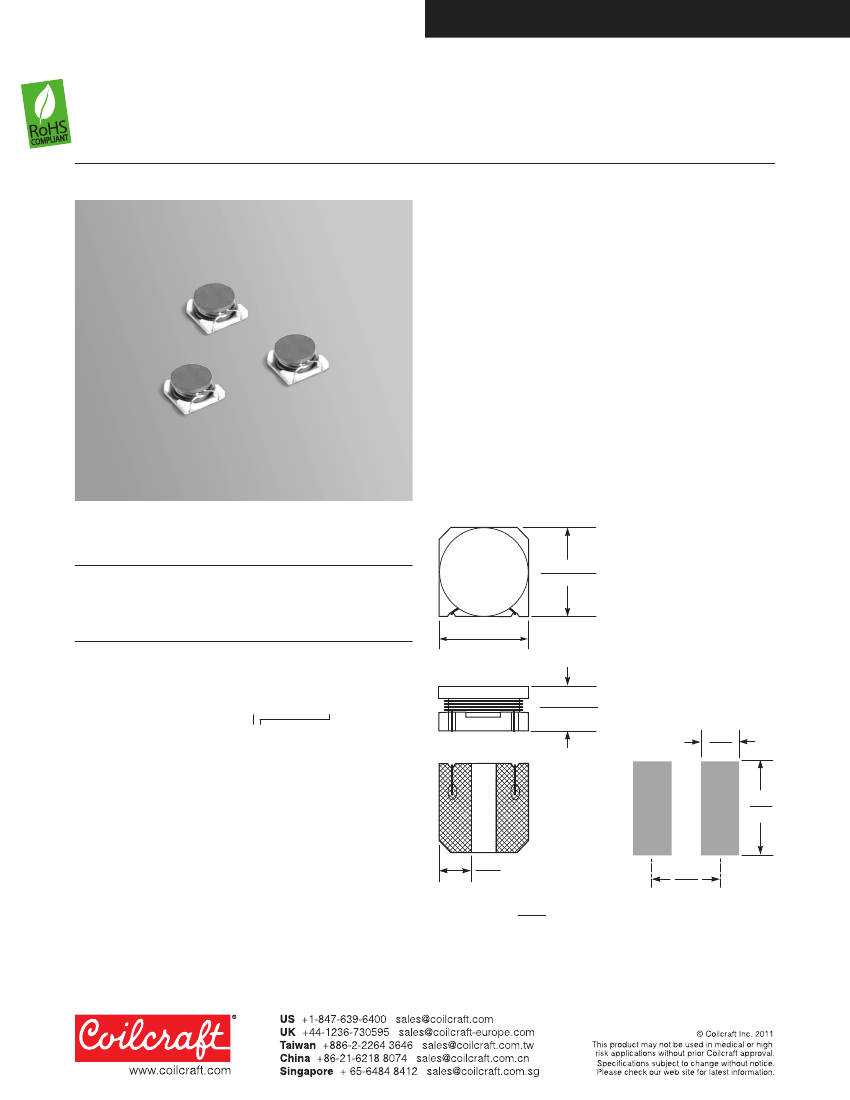

Document 413-1
SMT Power Inductors – DO2010
• Smallest power inductor, only 2 mm square and 1 mm high
• Can handle up to 0.51 A of saturating current
Designer’s Kit C399
contains 5 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over silver-plati-
num-glass frit. Other terminations available at additional cost.
Weight
11 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.19 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Inductance DCR
SRF
±20%
2
max
3
typ
4
1
Part number
(µH)
(Ohms) (MHz)
DO2010-123ML_
12
1.84
35
DO2010-153ML_
15
2.14
30
DO2010-223ML_
22
2.80
25
DO2010-333ML_
33
4.10
20
DO2010-473ML_
47
6.00
16
DO2010-683ML_
68
8.80
13
DO2010-104ML_
100
15.7
11
DO2010-224ML_
220
38.0
8.0
Isat
5
(A)
0.51
0.47
0.42
0.34
0.28
0.23
0.18
0.10
Irms
6
(A)
0.39
0.36
0.32
0.25
0.21
0.16
0.13
0.08
0.079 ±0.008
2,0 ±0,2
0.079 ±0.008
2,0 ±0,2
1. When ordering, please specify
termination
and
packaging
codes:
DO2010-123MLC
Termination: L
= RoHS compliant matte tin over nickel over silver-
platinum-glass frit
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at which the inductance drops 10% (typ) from its value with-
out current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
0.039 ±0.004
1,0 ±0,1
Recommended
Land Pattern
0.035
0,89
0.087
2,20
0.026
0,65
0.063
1,60
Dimensions are in
inches
mm

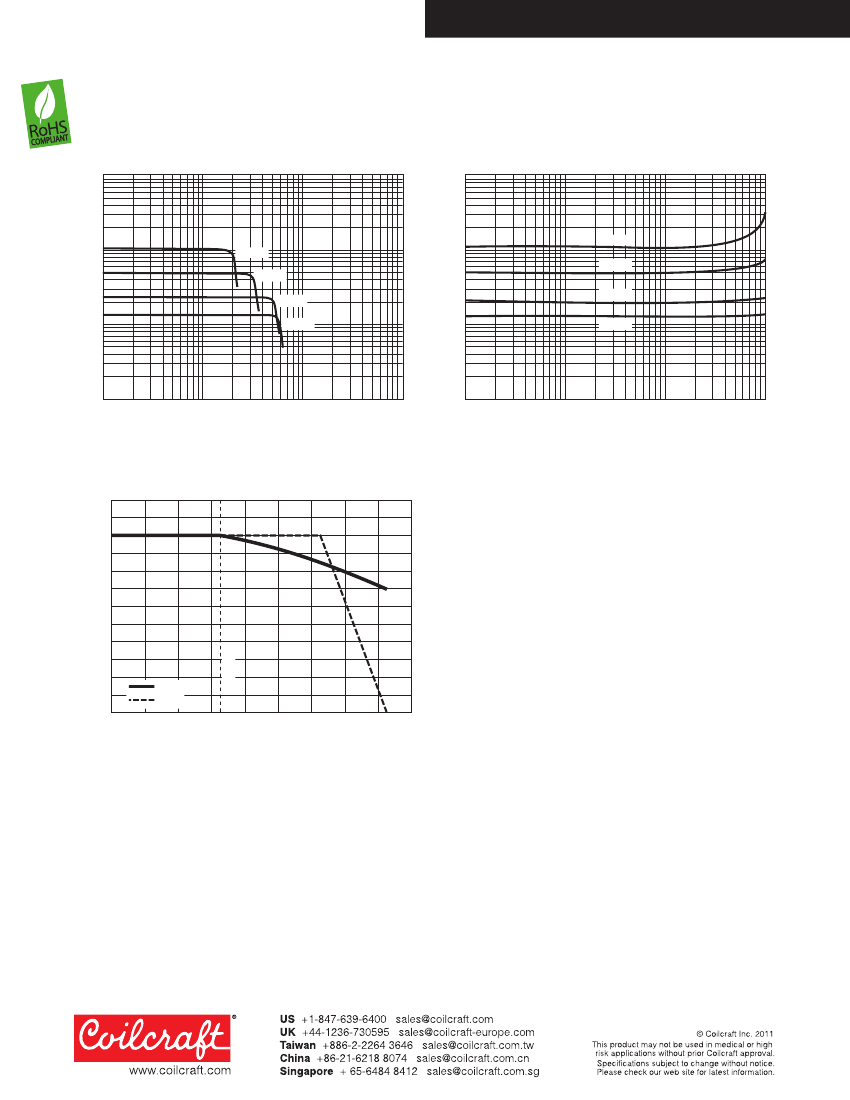

Document 413-1
Revised 12/27/10
