Dual-in-line sockets
and carriers
Technical specifications
Materials
– Insulator: Glass filled thermoplastic polyester, self extin-
guishing UL 94 V-0, colour black, resistant to mineral acids,
solvents, greases, oils (short time).
– Receptacle contact:
– Sleeve: Screw-machined brass (QQ-B-626), gold or tin-lead
plated (90/10) over 2–3
µm
nickel
– Clip: Stamped beryllium-copper (QQ-C-533), gold or tin-
lead (90/10) plated over 2–3
µm
nickel
– Pin contact: Screw-machined brass (QQ-B-626) or phosphor
bronze (QQ-B-750), gold or tin-lead plated (90/10) over
2–3
µm
nickel
Mechanical data
– Insertion characteristics
(measured with a polished steel gauge, typical values):
– Type of clip (finger):
4
4
3
6
standard short
– Gauge diameter (mm): 0.43
0.43
0.43
0.46
– Insertion force (N):
1.8
2
1
0.6
– Withdrawal force (N):
0.9
1
0.5
0.3
– Mechanical life:
min. 100 cycles
Electrical data
– Rated current:
– Rated voltage:
– Contact resistance:
– Insulation resistance:
– Dielectric strength:
– Air and creepage distances:
– Capacitance:
49
1A
100 V
RMS
/ 150 V
DC
10 mΩ max.
10 000 MΩ min.
1000 V
RMS
min.
(700 for Series 117 Shrink-Dip)
0.6 mm
(0.3 for Series 117 Shrink-Dip)
0.3 pF max.
(1 for series 117 Shrink-Dip)
Environmental data
– Operating temperature:
– Vibration
(10–2000 Hz, 15 g):
– Shock: (50 g):
– Solderability
(IEC 68-2-54 Ta):
– Resistance to soldering heat:
(IEC 68-2-20 Tb):
– Resistance to atmospheric
corrosion:
– Climatic category (IEC):
–55/+125 °C
no electrical discontinuity > 1
µs
no electrical discontinuity > 1
µs
235 °C, 5 s
260 °C, 5 s
IEC 68-2-42 and 43
55/125/21
Dual-in-line
50
Insulator bodies
Standard, open frame
210

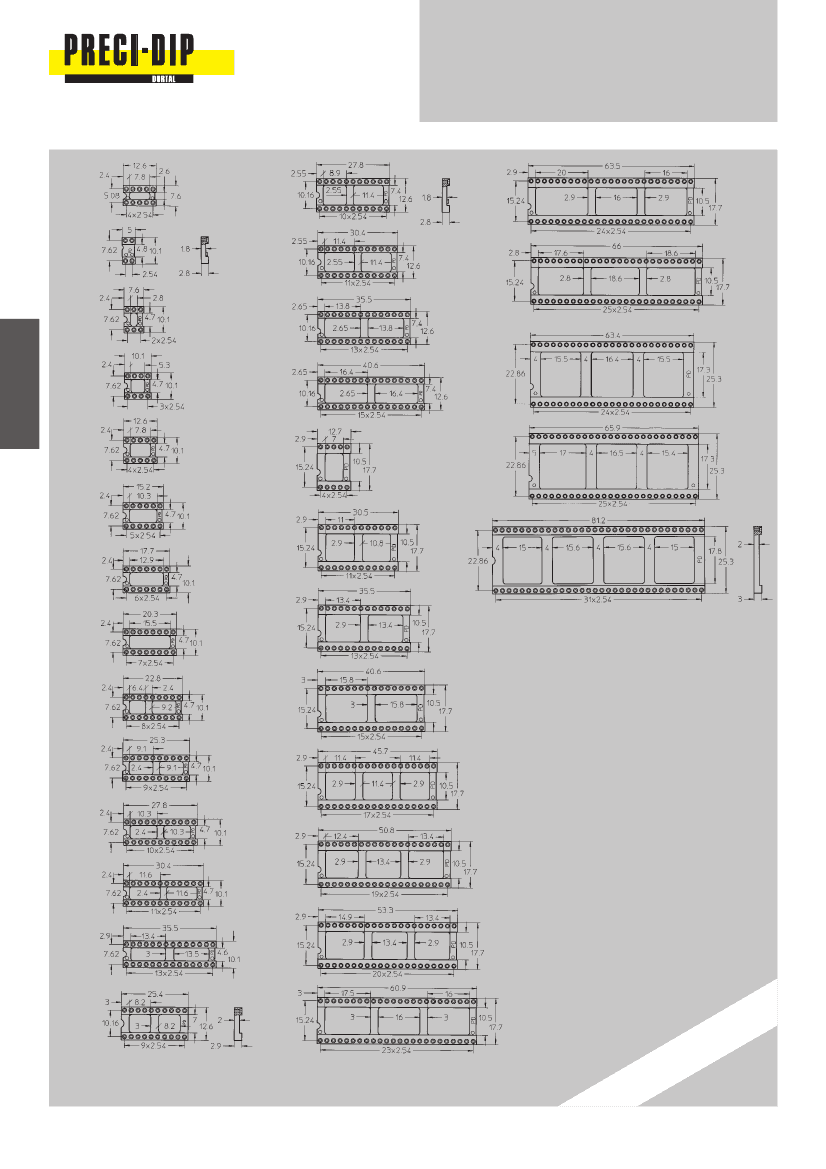

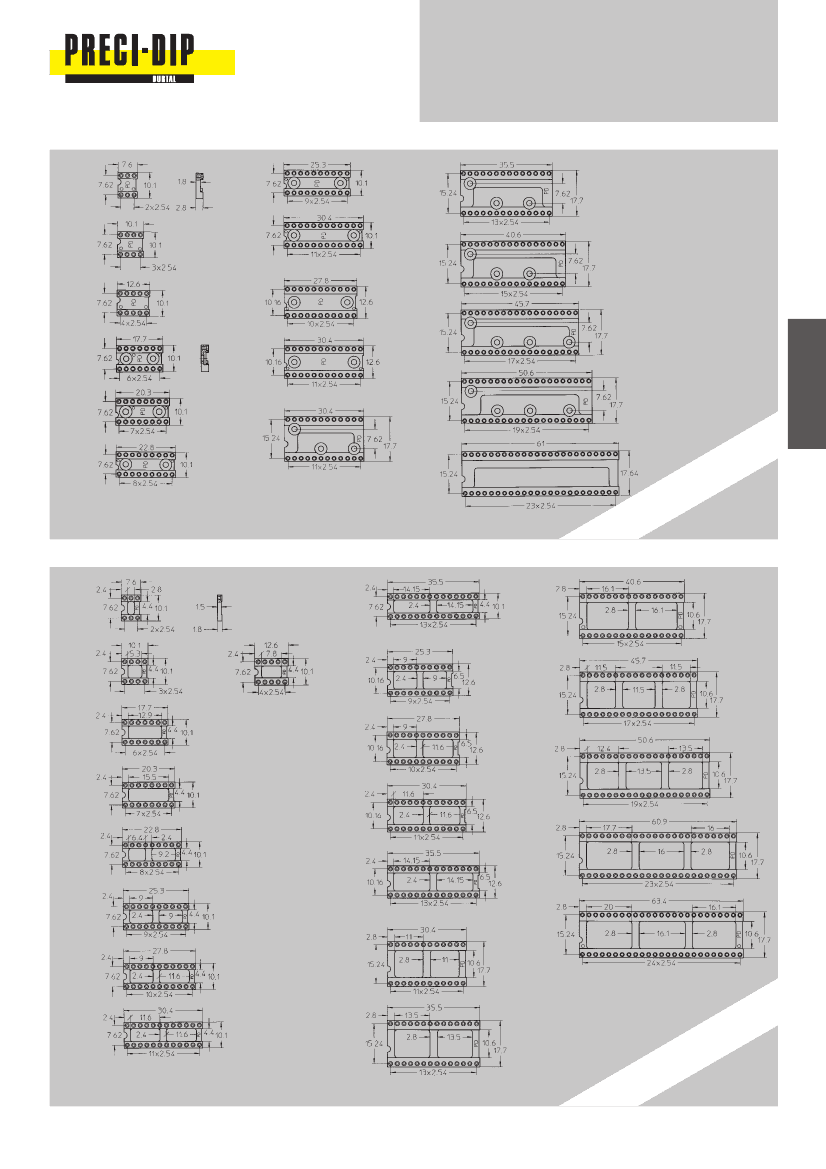

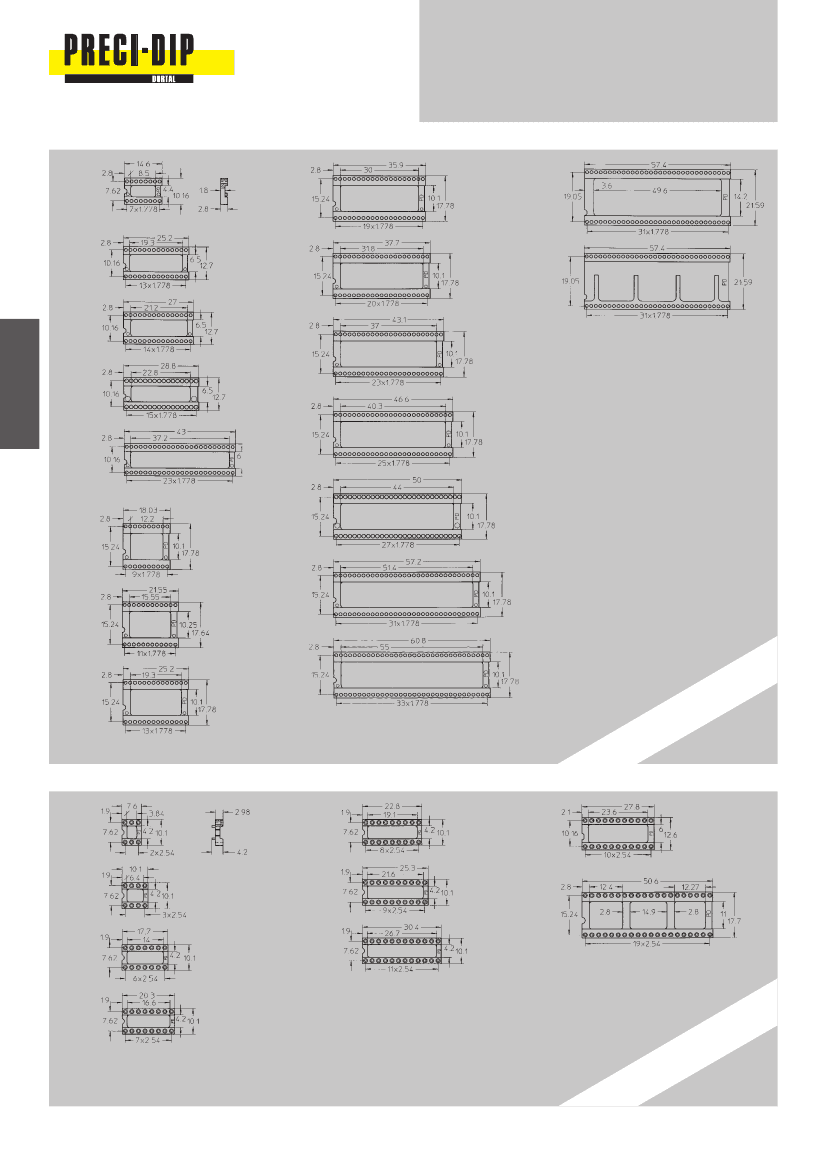

Fig. 1
422
Fig. 13
650
Fig. 24
304
Fig. 2
424
Fig. 14
652
Fig. 25
306
Fig. 3
428
Fig. 15
308
Fig. 4
432
Fig. 16
950
Fig. 26
310
Fig. 5
610
Fig. 16a
312
Fig. 5a
624
Fig. 17
952
Fig. 27
314
Fig. 6
964
Fig. 28
316
Fig. 7
628
Fig. 18
318
Fig. 8
632
Fig. 19
320
Fig. 9
636
Fig. 20
322
Fig. 10
Open frame insulators 318, 320, 322, 324,
624, 628, 632, 640 and 648 available on
special request without center bars.
Order number same as the corresponding
socket with bars but with suffix 050 added.
Example:
110-93-628-41-001 standard
110-93-628-41-001050
Same but without center bar.
324
Fig. 11
640
Fig. 21
328
Fig. 12
642
Fig. 22
420
Fig. 12a
648
Fig. 23
S
d
tan
ard
p
,o
en
m
fra
e

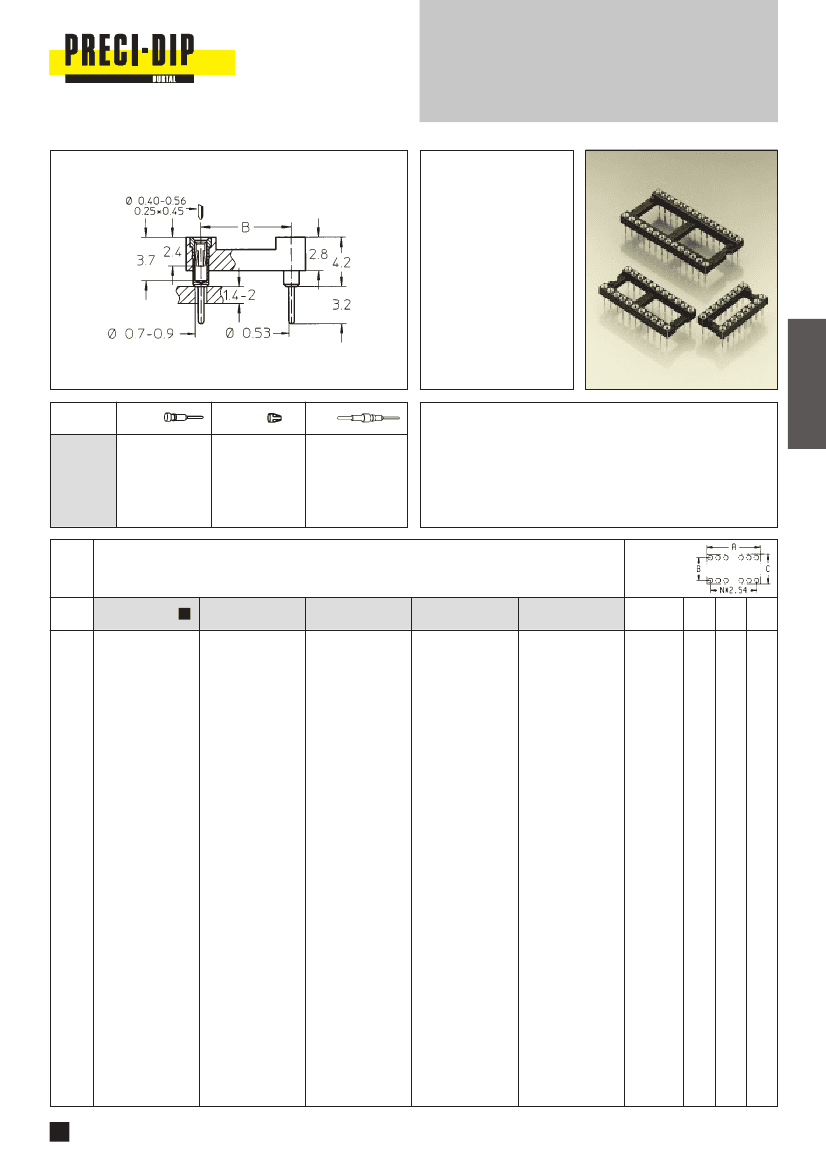

Series 110
Dual-in-line sockets
Open frame
Solder tail
53
Most popular line of
standard low profile
IC-Sockets.
Open frame design
leaves space beneath IC
for improved heat
dissipation, easier PCB
cleaning and inspections
Insertion
characteristics:
4-finger standard
Platings
13
91
93
97
99
No.
of
poles
Sleeve
0.25
µm
Au
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.75
µm
Au
0.25
µm
Au
0.75
µm
Au
Goldflash
5
µm
Sn Pb
Pin
Ordering information
For standard versions see table (order codes)
Option (*):
Open frame insulators 318, 320, 322, 324, 624, 628, 632, 640
and 648 available on special request without center bars; add
suffix 050 to the part number. Example: 110–93–628–41–001
becomes: 110–93–628–41–001-050
Insulator
dimen-
sions
Plating 97
110-97-210-41-001
110-97-304-41-001
110-97-306-41-001
110-97-308-41-001
110-97-310-41-001
110-97-312-41-001
110-97-314-41-001
110-97-316-41-001
110-97-318-41-001
110-97-320-41-001
110-97-322-41-001
110-97-324-41-001
110-97-328-41-001
110-97-420-41-001
110-97-422-41-001
110-97-424-41-001
110-97-428-41-001
110-97-432-41-001
110-97-610-41-001
110-97-624-41-001
110-97-628-41-001
110-97-632-41-001
110-97-636-41-001
110-97-640-41-001
110-97-642-41-001
110-97-648-41-001
110-97-650-41-001
110-97-652-41-001
110-97-950-41-001
110-97-952-41-001
110-97-964-41-001
Plating 99
110-99-210-41-001
110-99-304-41-001
110-99-306-41-001
110-99-308-41-001
110-99-310-41-001
110-99-312-41-001
110-99-314-41-001
110-99-316-41-001
110-99-318-41-001
110-99-320-41-001
110-99-322-41-001
110-99-324-41-001
110-99-328-41-001
110-99-420-41-001
110-99-422-41-001
110-99-424-41-001
110-99-428-41-001
110-99-432-41-001
110-99-610-41-001
110-99-624-41-001
110-99-628-41-001
110-99-632-41-001
110-99-636-41-001
110-99-640-41-001
110-99-642-41-001
110-99-648-41-001
110-99-650-41-001
110-99-652-41-001
110-99-950-41-001
110-99-952-41-001
110-99-964-41-001
See
page 50
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
aFig.
5a
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
aFig.
12a
Fig. 13
Fig. 14
Fig. 15
Fig. 16
aFig.
16a
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26
Fig. 27
Fig. 28
A
12.6
5.0
7.6
10.1
12.6
15.2
17.7
20.3
22.8
25.3
27.8
30.4
35.5
25.3
27.8
30.4
35.5
40.6
12.6
30.4
35.5
40.6
45.7
50.6
53.2
60.9
63.4
65.9
B
5.08
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
10.16
10.16
10.16
10.16
10.16
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
C
7.6
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
12.6
12.6
12.6
12.6
12.6
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
Order Codes
Plating 13
B
10
4
6
8
10
12
14
16
*18*
*20*
*22*
*24*
28
20
22
24
28
32
10
*24*
*28*
*32*
36
*40*
42
*48*
50
52
50
52
64
110-13-210-41-001
110-13-304-41-001
110-13-306-41-001
110-13-308-41-001
110-13-310-41-001
110-13-312-41-001
110-13-314-41-001
110-13-316-41-001
110-13-318-41-001
110-13-320-41-001
110-13-322-41-001
110-13-324-41-001
110-13-328-41-001
110-13-420-41-001
110-13-422-41-001
110-13-424-41-001
110-13-428-41-001
110-13-432-41-001
110-13-610-41-001
110-13-624-41-001
110-13-628-41-001
110-13-632-41-001
110-13-636-41-001
110-13-640-41-001
110-13-642-41-001
110-13-648-41-001
110-13-650-41-001
110-13-652-41-001
110-13-950-41-001
110-13-952-41-001
110-13-964-41-001
Plating 91
110-91-210-41-001
110-91-304-41-001
110-91-306-41-001
110-91-308-41-001
110-91-310-41-001
110-91-312-41-001
110-91-314-41-001
110-91-316-41-001
110-91-318-41-001
110-91-320-41-001
110-91-322-41-001
110-91-324-41-001
110-91-328-41-001
110-91-420-41-001
110-91-422-41-001
110-91-424-41-001
110-91-428-41-001
110-91-432-41-001
110-91-610-41-001
110-91-624-41-001
110-91-628-41-001
110-91-632-41-001
110-91-636-41-001
110-91-640-41-001
110-91-642-41-001
110-91-648-41-001
110-91-650-41-001
110-91-652-41-001
110-91-950-41-001
110-91-952-41-001
110-91-964-41-001
Plating 93
110-93-210-41-001
110-93-304-41-001
110-93-306-41-001
110-93-308-41-001
110-93-310-41-001
110-93-312-41-001
110-93-314-41-001
110-93-316-41-001
110-93-318-41-001
110-93-320-41-001
110-93-322-41-001
110-93-324-41-001
110-93-328-41-001
110-93-420-41-001
110-93-422-41-001
110-93-424-41-001
110-93-428-41-001
110-93-432-41-001
110-93-610-41-001
110-93-624-41-001
110-93-628-41-001
110-93-632-41-001
110-93-636-41-001
110-93-640-41-001
110-93-642-41-001
110-93-648-41-001
110-93-650-41-001
110-93-652-41-001
110-93-950-41-001
110-93-952-41-001
110-93-964-41-001
63.4 22.86 25.3
65.9 22.86 25.3
81.1 22.86 25.3
B
Products not available from stock. Please consult PRECI-DIP.
