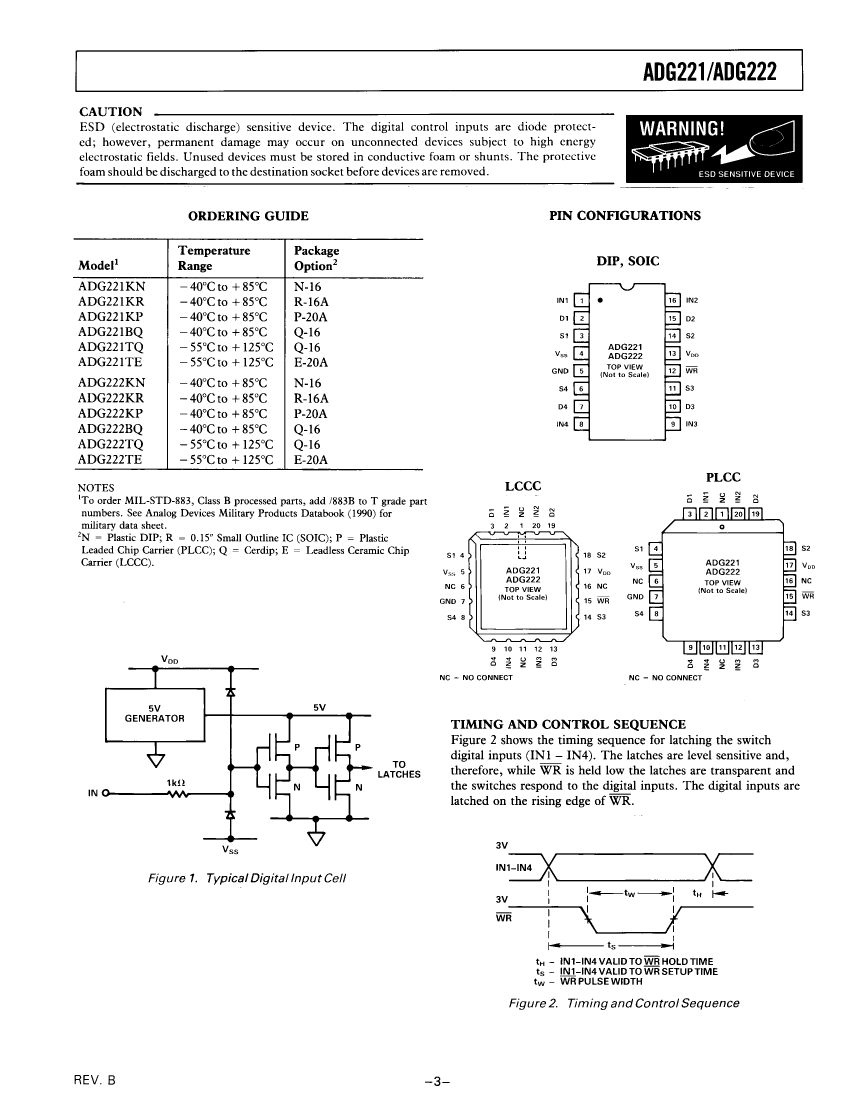

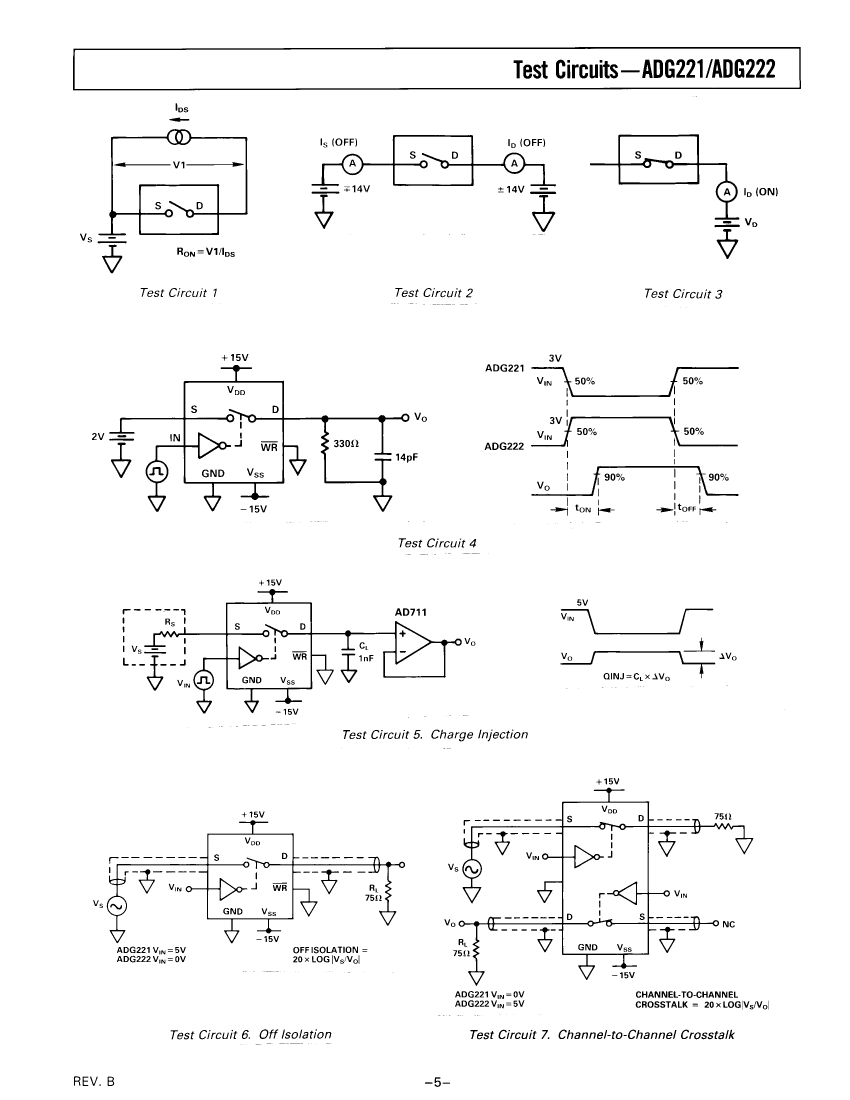

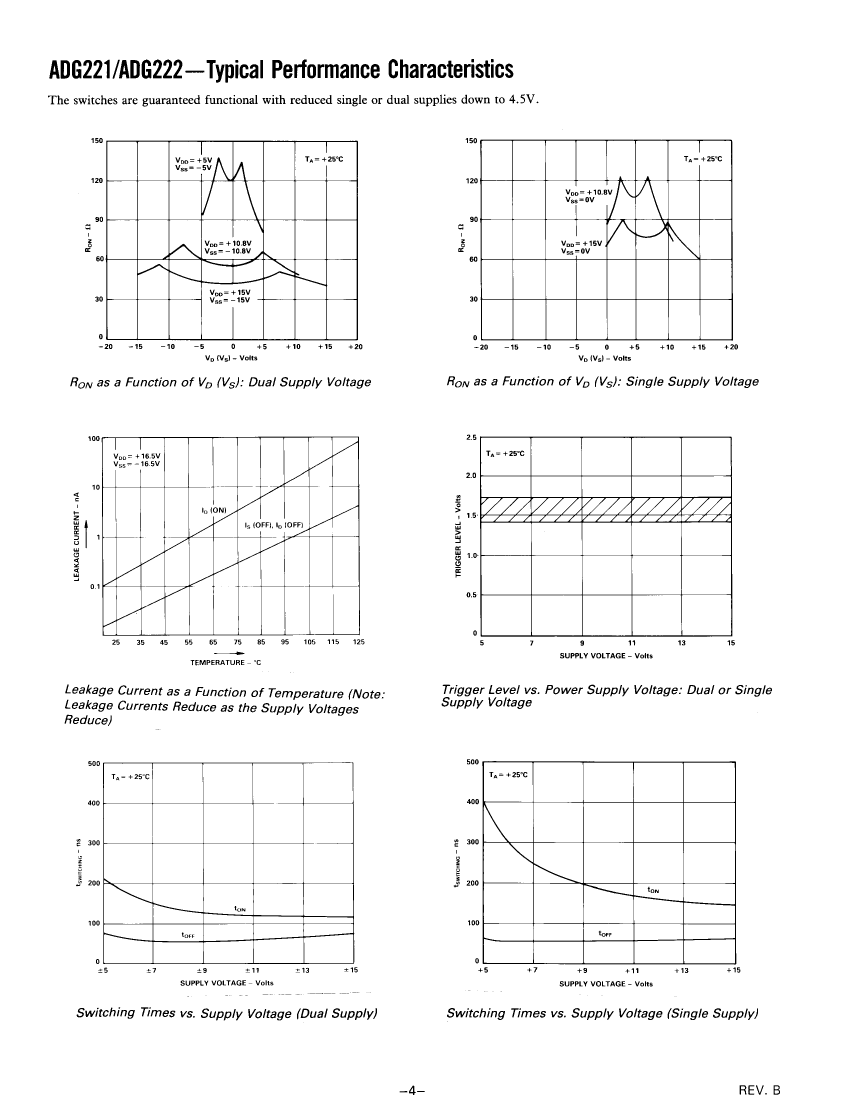

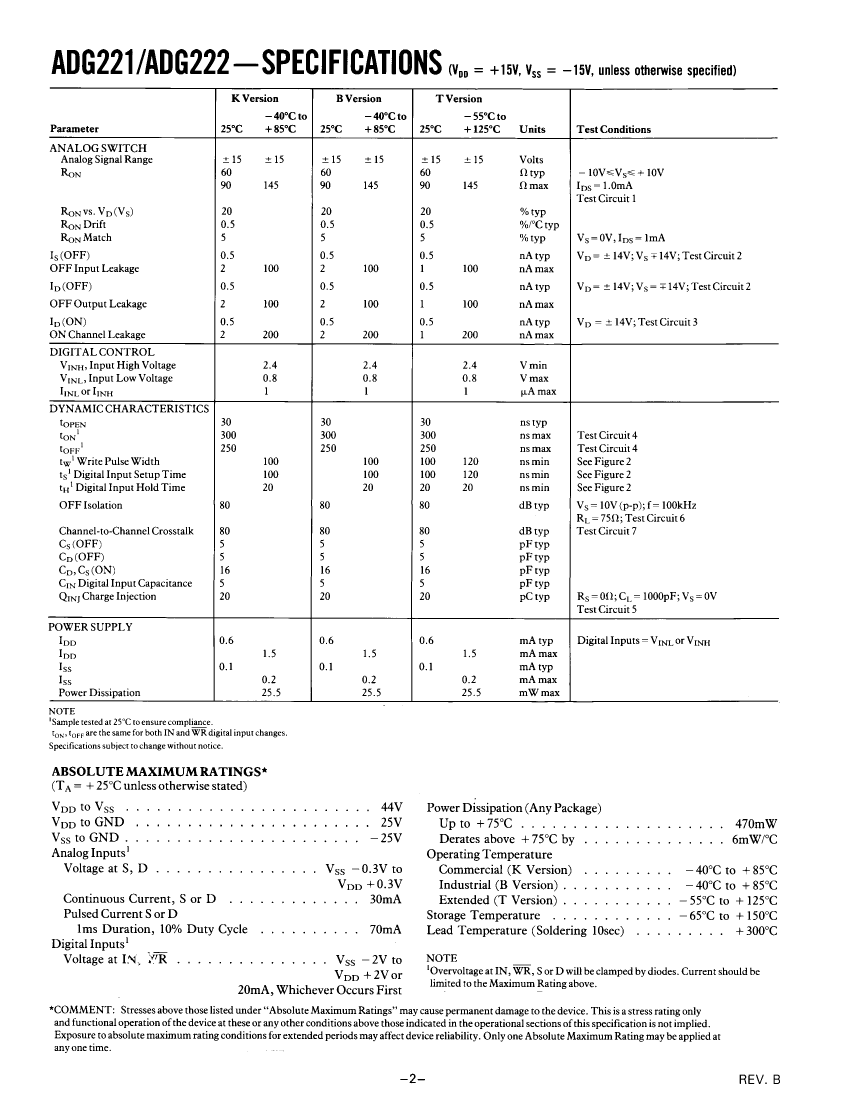

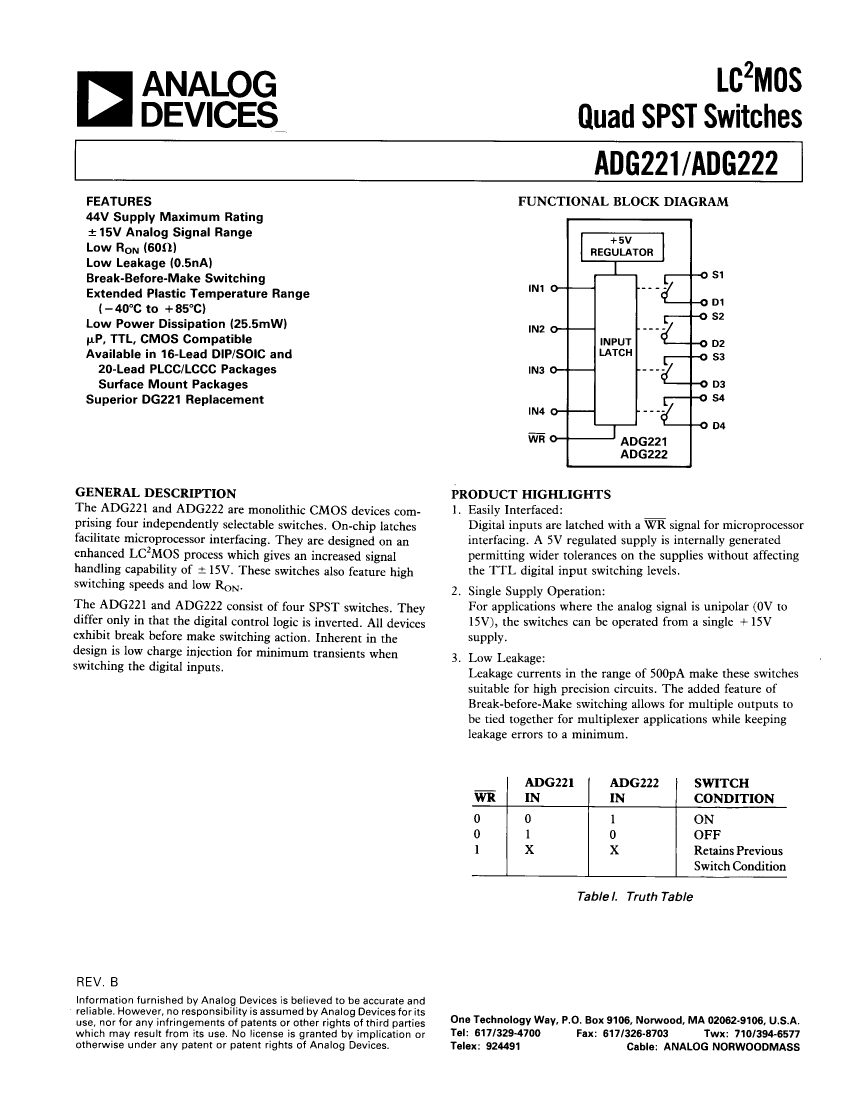

ADG221KP datasheet, PDF - EEWORLD Datasheet

ADG221KP: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size231KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

ADG221KP Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	QLCC
package instruction	PLASTIC, LCC-20
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-PQCC-J20
JESD-609 code	e0
length	8.966 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	20
Nominal off-state isolation	80 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	90 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	8.966 mm
Base Number Matches	1
