9100-33-121-01: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size154KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9100-33-121-01 Overview

Board Connector, 21 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

9100-33-121-01 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.118 inch
subject depth	0.155 inch
body length	2.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

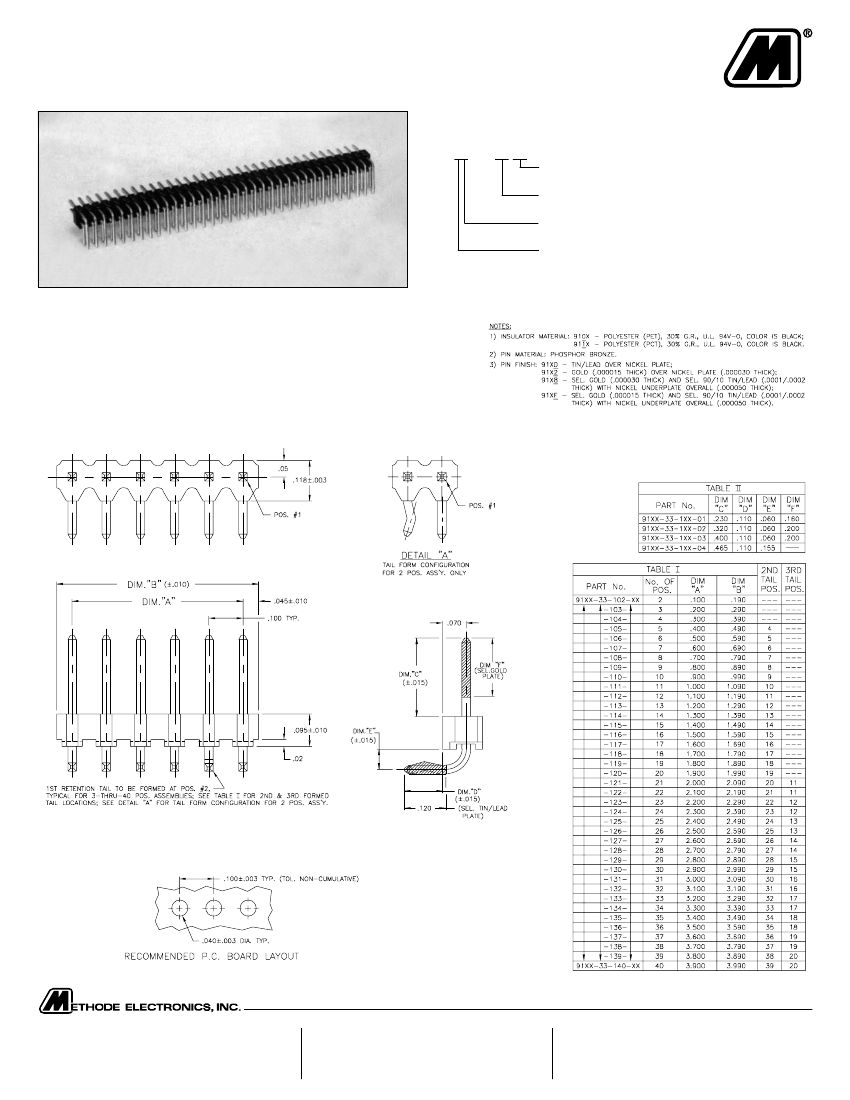

.100" (2.54mm) Single Row, Through Hole,

Right Angle Header with Retention Tails

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-33-1XX-XX

PIN NUMBER

(SEE TABLE II)

NUMBER OF POSITIONS

(SEE TABLE I)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 9000 SERIES

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
