IDT71B259S10Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71B259S10Y

IDT71B259S10Y: DescriptionStandard SRAM, 32KX9, 10ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32; Categorystorage storage; File Size162KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71B259S10Y Overview

Standard SRAM, 32KX9, 10ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32

IDT71B259S10Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.B
Maximum access time	10 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J32
JESD-609 code	e0
length	20.96 mm
memory density	294912 bit
Memory IC Type	STANDARD SRAM
memory width	9
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	32
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ32,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum slew rate	0.175 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

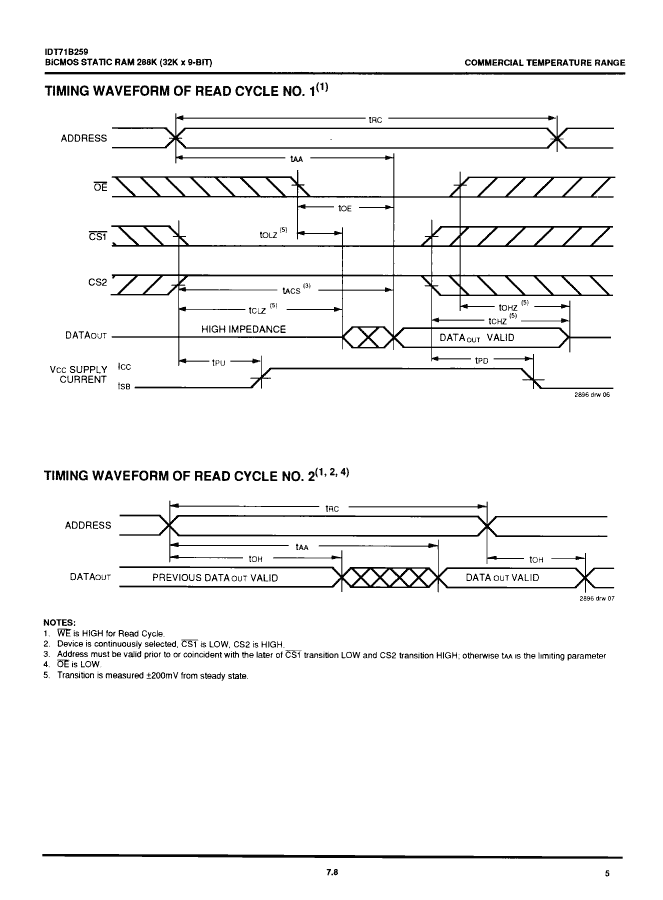

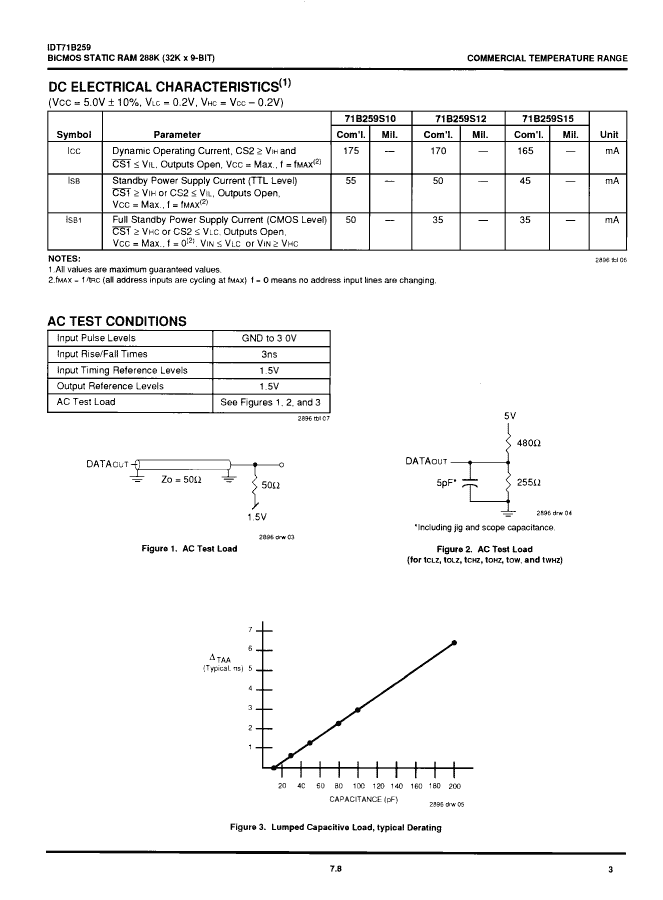

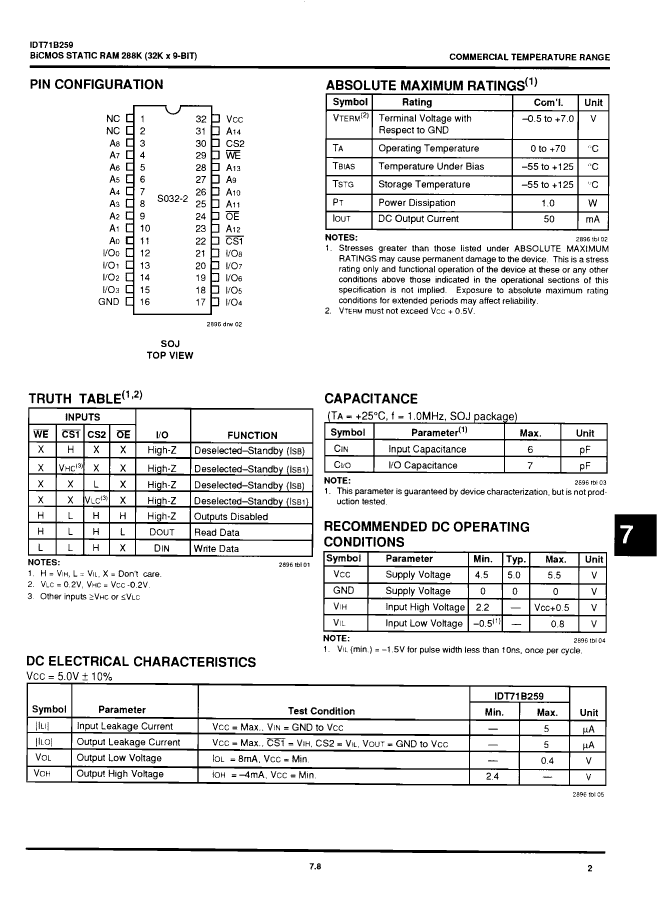

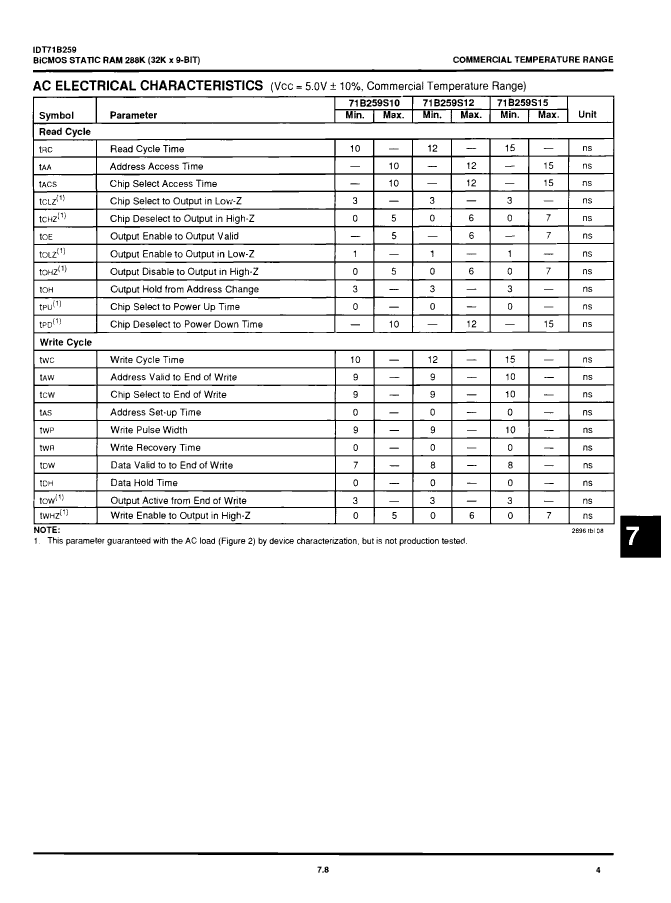

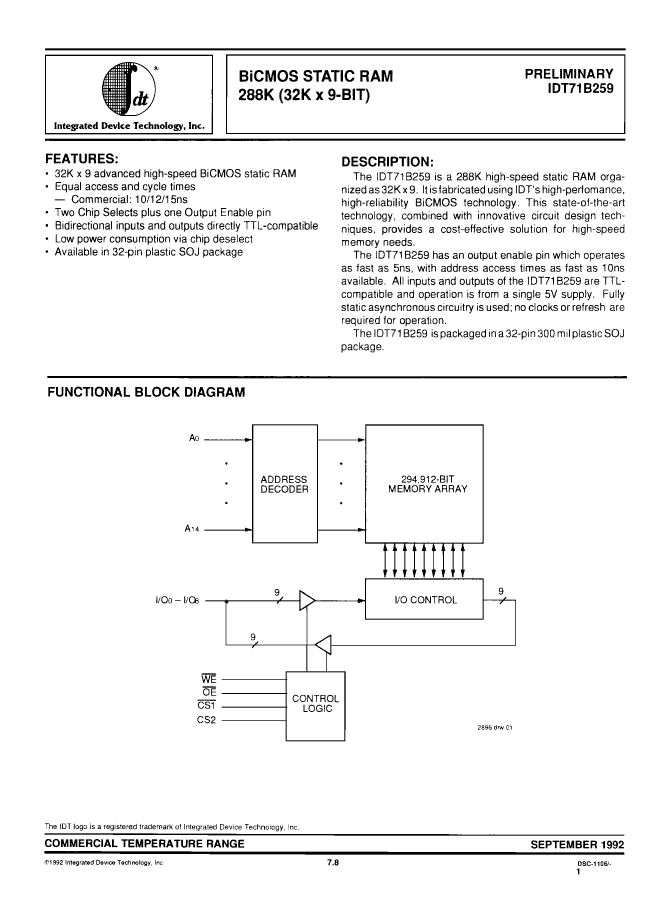

Preview

Download Datasheet

View All

IDT71B259S10Y Related Products

	IDT71B259S10Y	IDT71B259S10Y8	IDT71B259S12Y	IDT71B259S12Y8	IDT71B259S15Y	IDT71B259S15Y8
Description	Standard SRAM, 32KX9, 10ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32	Standard SRAM, 32KX9, 10ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32	Standard SRAM, 32KX9, 12ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32	Standard SRAM, 32KX9, 12ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32	Standard SRAM, 32KX9, 15ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32	Standard SRAM, 32KX9, 15ns, BICMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-32	SOJ,	0.300 INCH, PLASTIC, SOJ-32	SOJ,	0.300 INCH, PLASTIC, SOJ-32	SOJ,
Contacts	32	32	32	32	32	32
Reach Compliance Code	not_compliant	unknown	not_compliant	unknown	not_compliant	unknown
ECCN code	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	10 ns	10 ns	12 ns	12 ns	15 ns	15 ns
JESD-30 code	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32
JESD-609 code	e0	e0	e0	e0	e0	e0
length	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm
memory density	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX9	32KX9	32KX9	32KX9	32KX9	32KX9
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)	TIN LEAD
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
