PFE480A25R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PFE480A25R

PFE480A25R: DescriptionTrigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size571KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

PFE480A25R Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4

PFE480A25R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant
Other features	ULRECOGNIZED
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	25 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

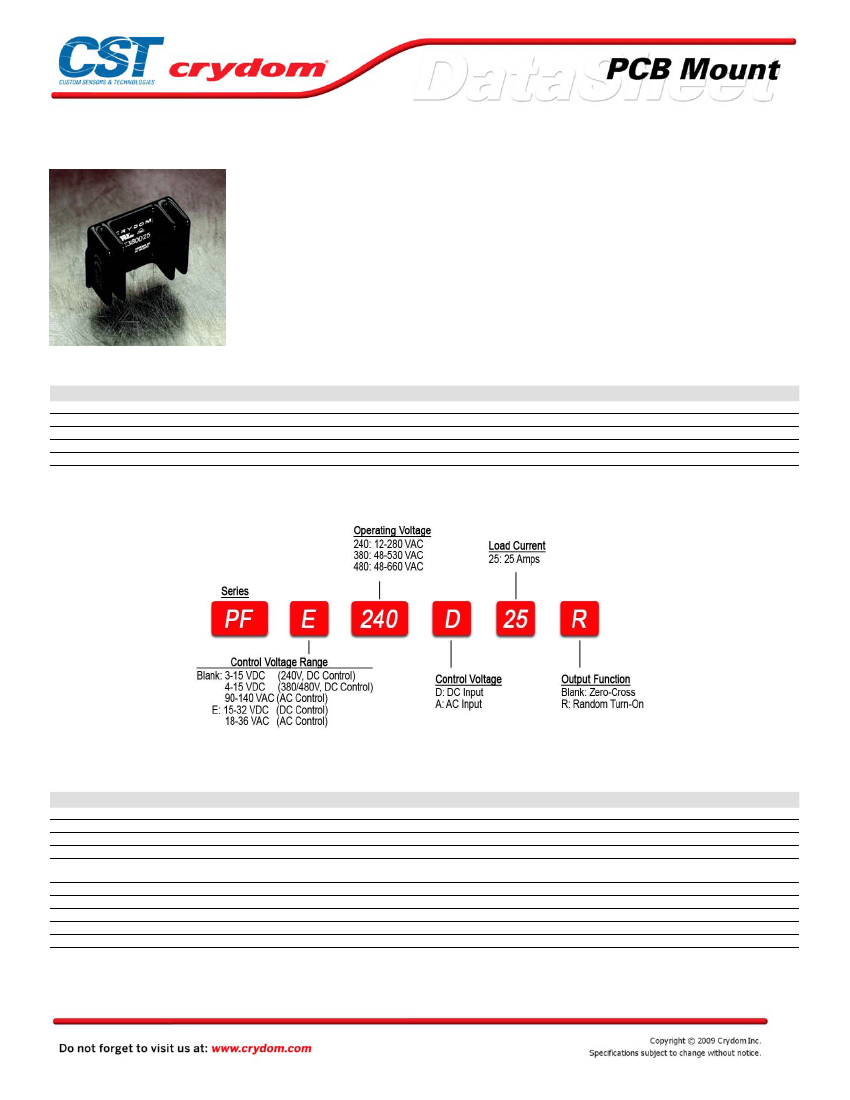

PF Series

• SIP SSR

• Ratings to 25A (forced air) @ 480 VAC

• SCR output for heavy industrial loads

• AC or DC control

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

PRODUCT SELECTION

Control Voltage

3-15 VDC

4-15 VDC

15-32 VDC

18-36 VAC

90-140 VAC

25A

PF240D25

PFE240D25

PFE240A25

PF240A25

25A

PF380D25

PFE380D25

25A

PF480D25

PFE480D25

AVAILABLE OPTIONS

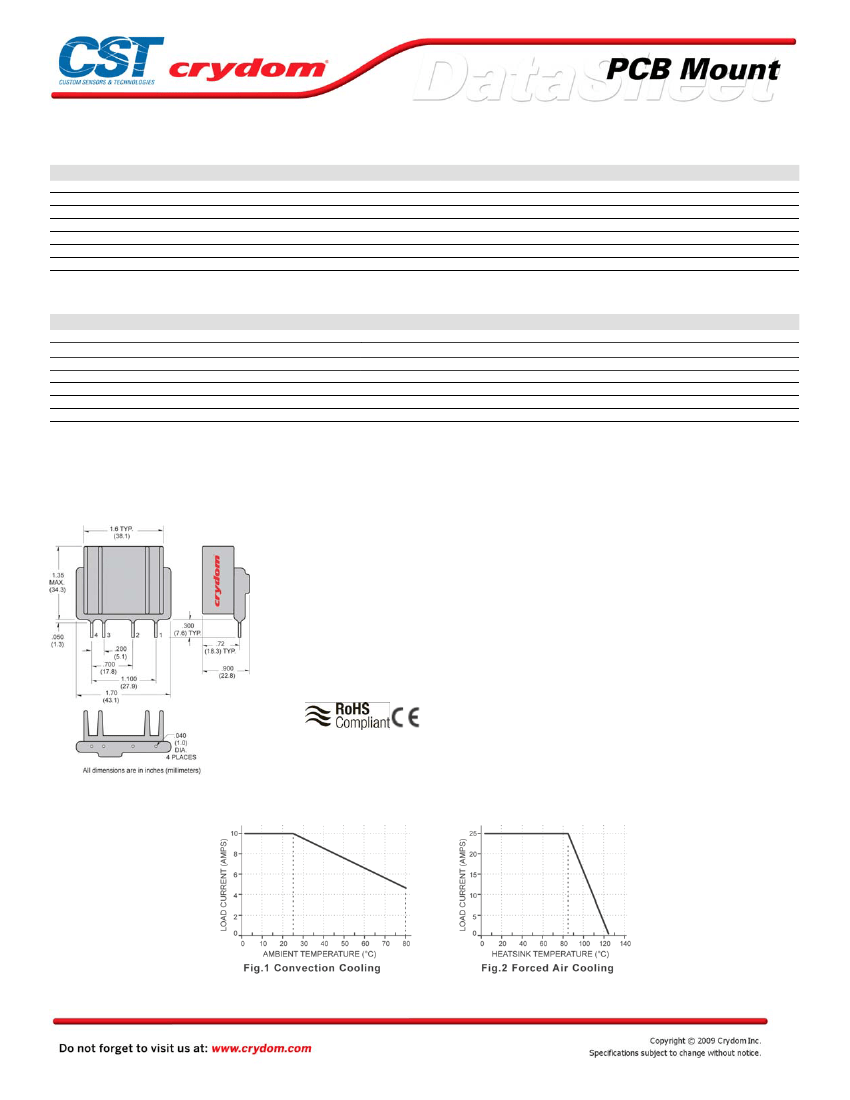

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum I²t for fusing (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

PF240

12-280

600

0.1

500

Forced Air 25(3)

Convection Air 10

0.06

250

1.6

260

0.5

PF380

48-530

1200

0.1

500

Forced Air 25(3)

Convection Air 10

0.06

250

1.6

260

0.5

PF480

48-660

1200

0.1

500

Forced Air 25(3)

Convection Air 10

0.06

250

1.6

260

0.5

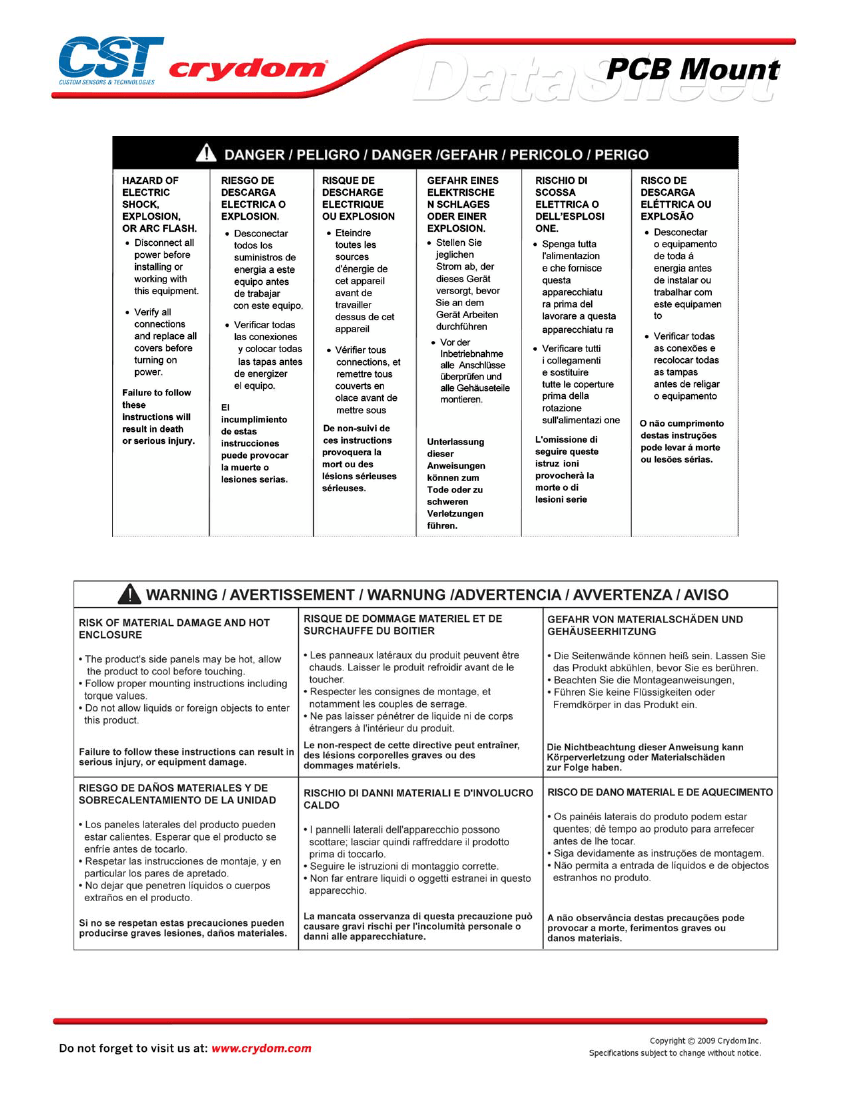

PFE480A25R Related Products

	PFE480A25R	PF380A25	PF380A25R	PF480A25R	PF480A25
Description	Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4	Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4	Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4	Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4	Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Crydom	Crydom	Crydom	Crydom	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ULRECOGNIZED	ZEROVOLTAGECROSSING,ULRECOGNIZED	ULRECOGNIZED	ULRECOGNIZED	ZEROVOLTAGECROSSING,ULRECOGNIZED
Maximum insulation voltage	4000 V	4000 V	4000 V	4000 V	4000 V
JESD-609 code	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1
Maximum on-state current	25 A	25 A	25 A	25 A	25 A
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches	-	1	1	1	1
