HFW22R-1STBE9H1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HFW22R-1STBE9H1LF

HFW22R-1STBE9H1LF: DescriptionCard Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size364KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HFW22R-1STBE9H1LF Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

HFW22R-1STBE9H1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0

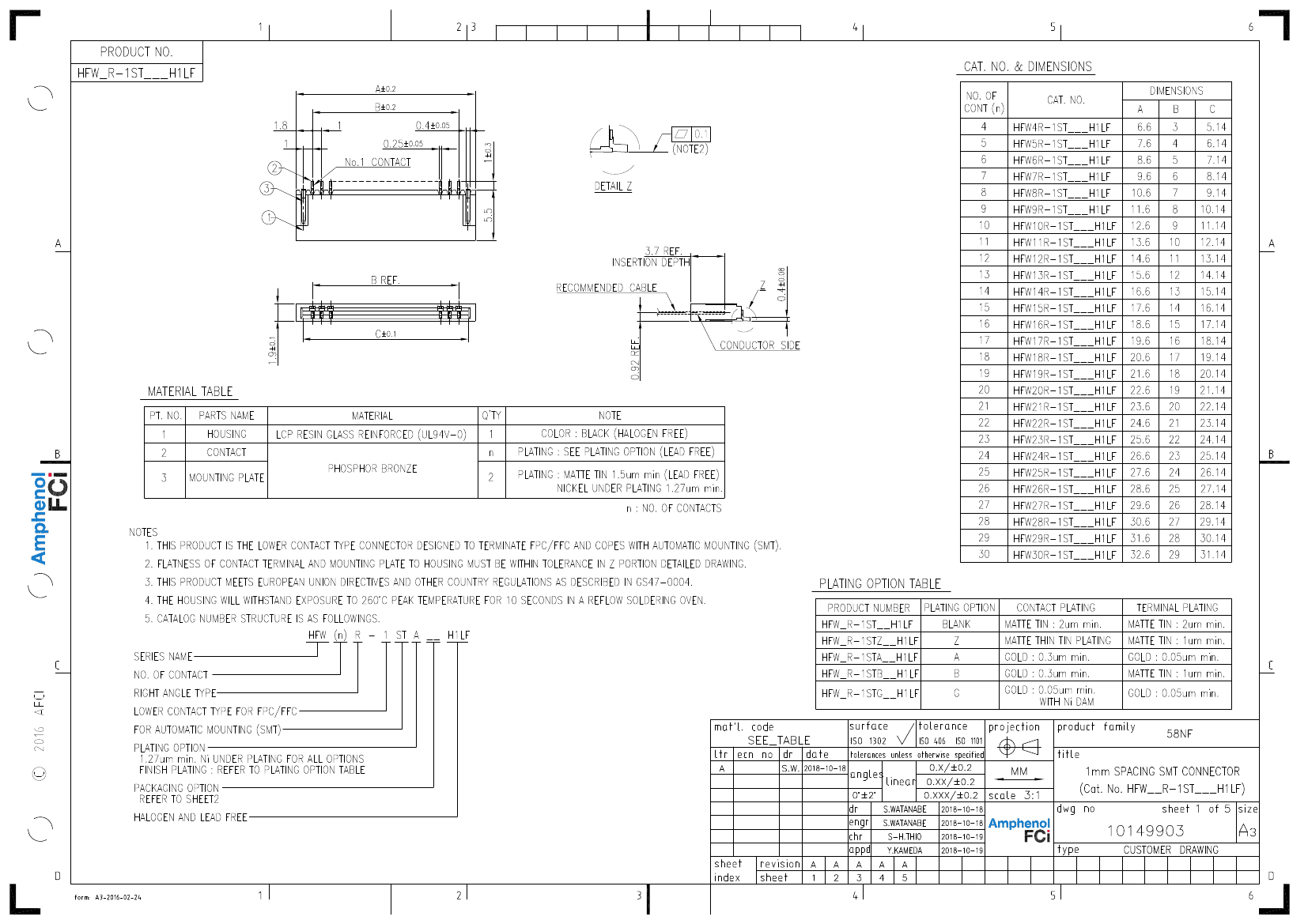

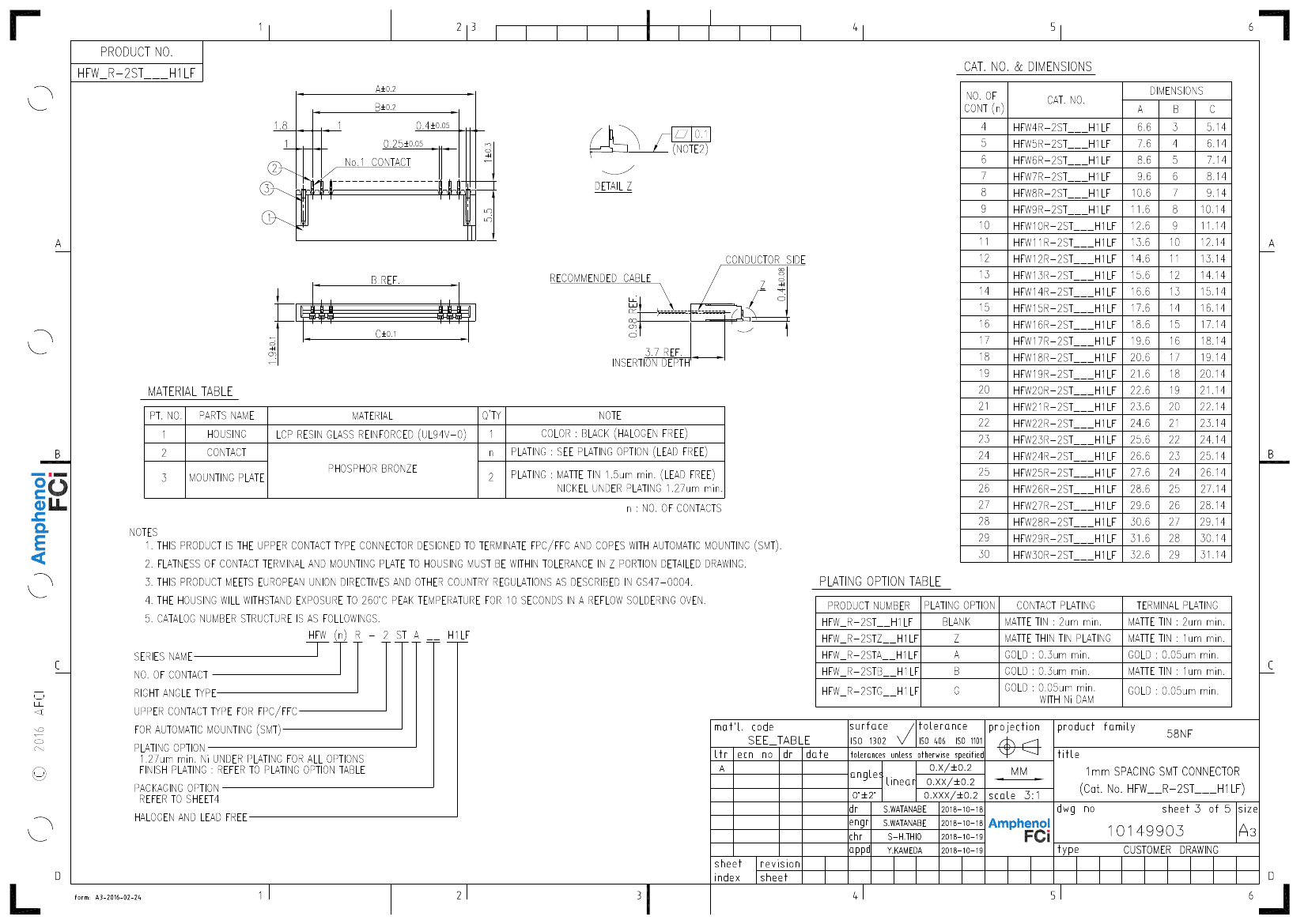

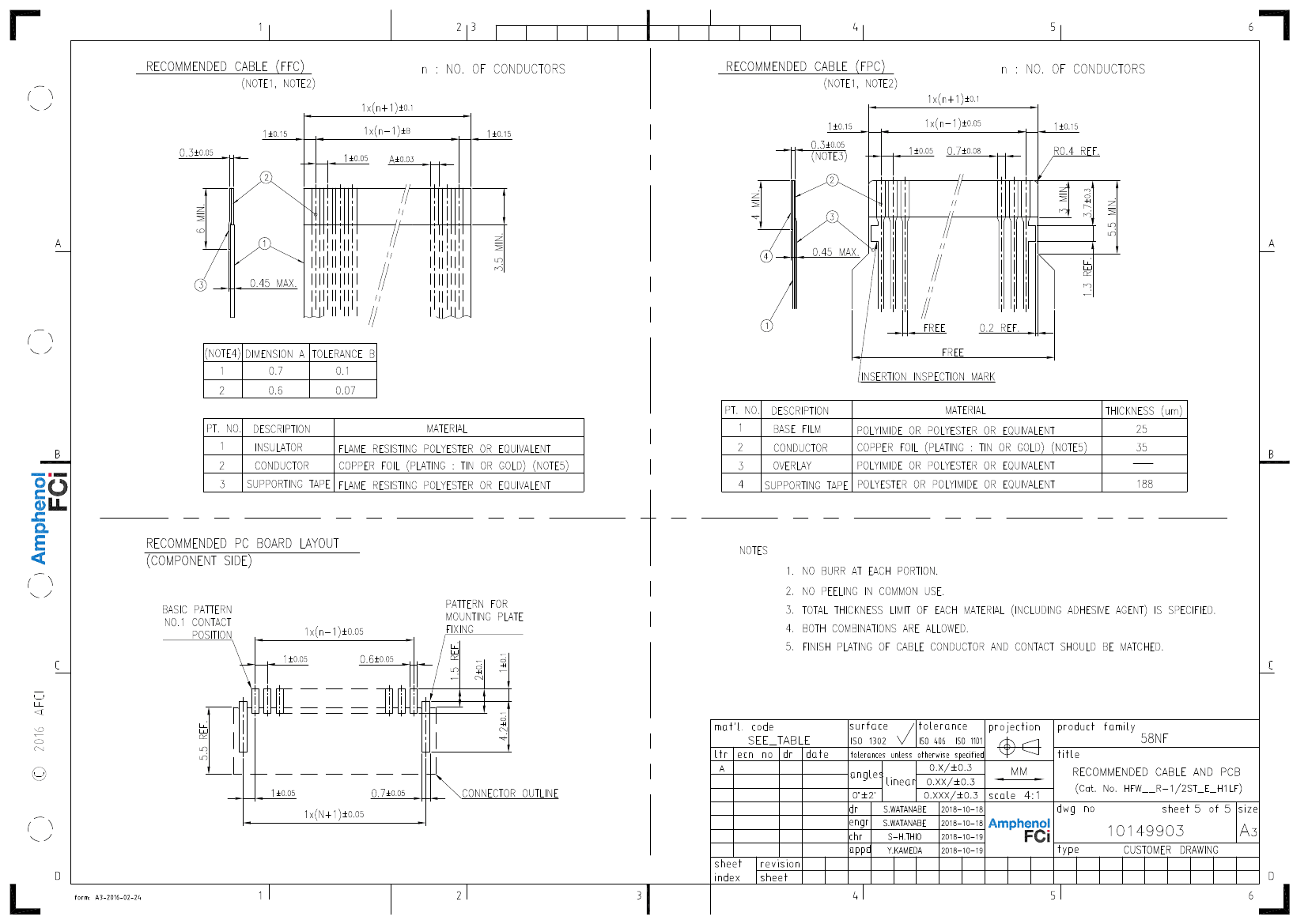

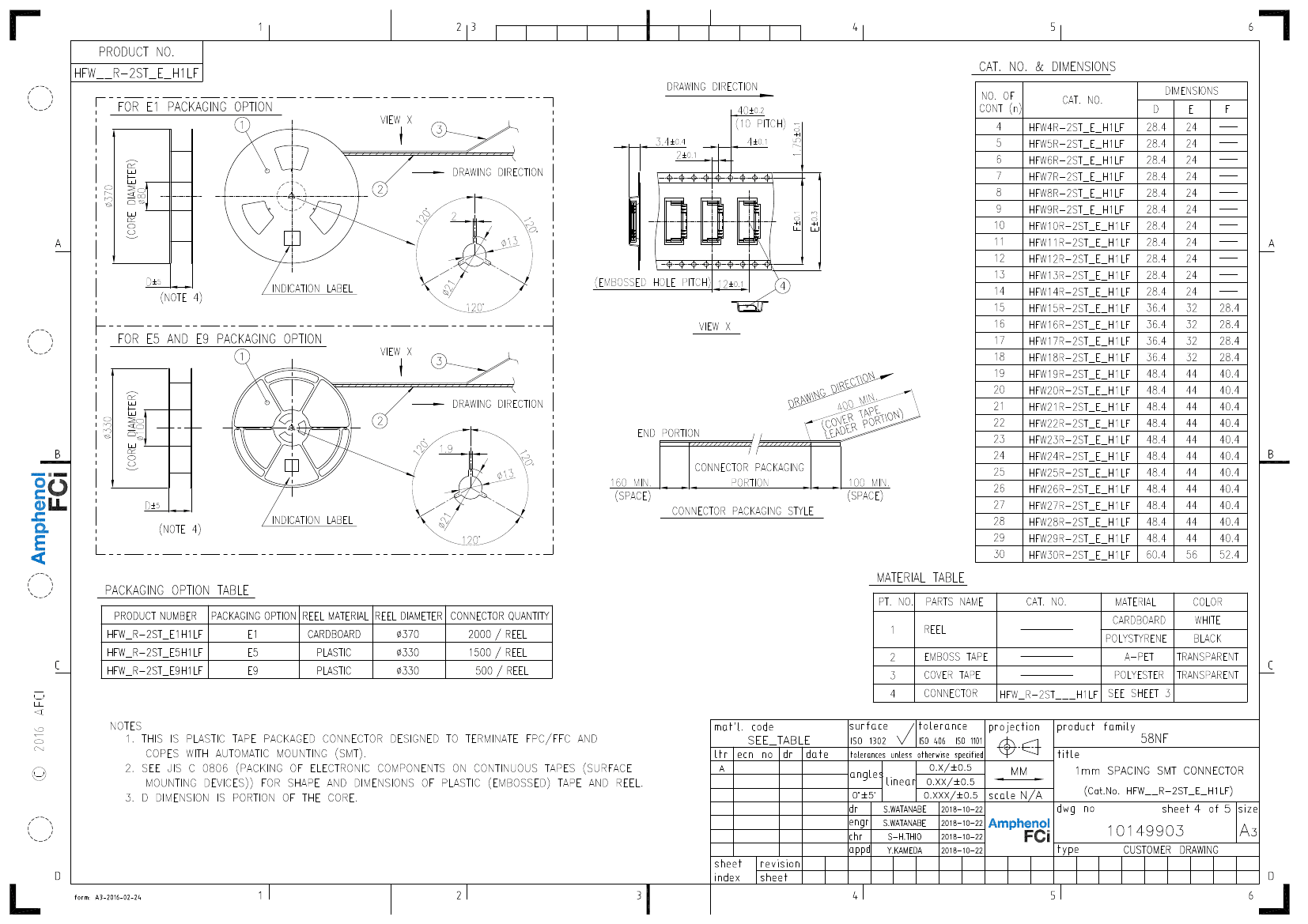

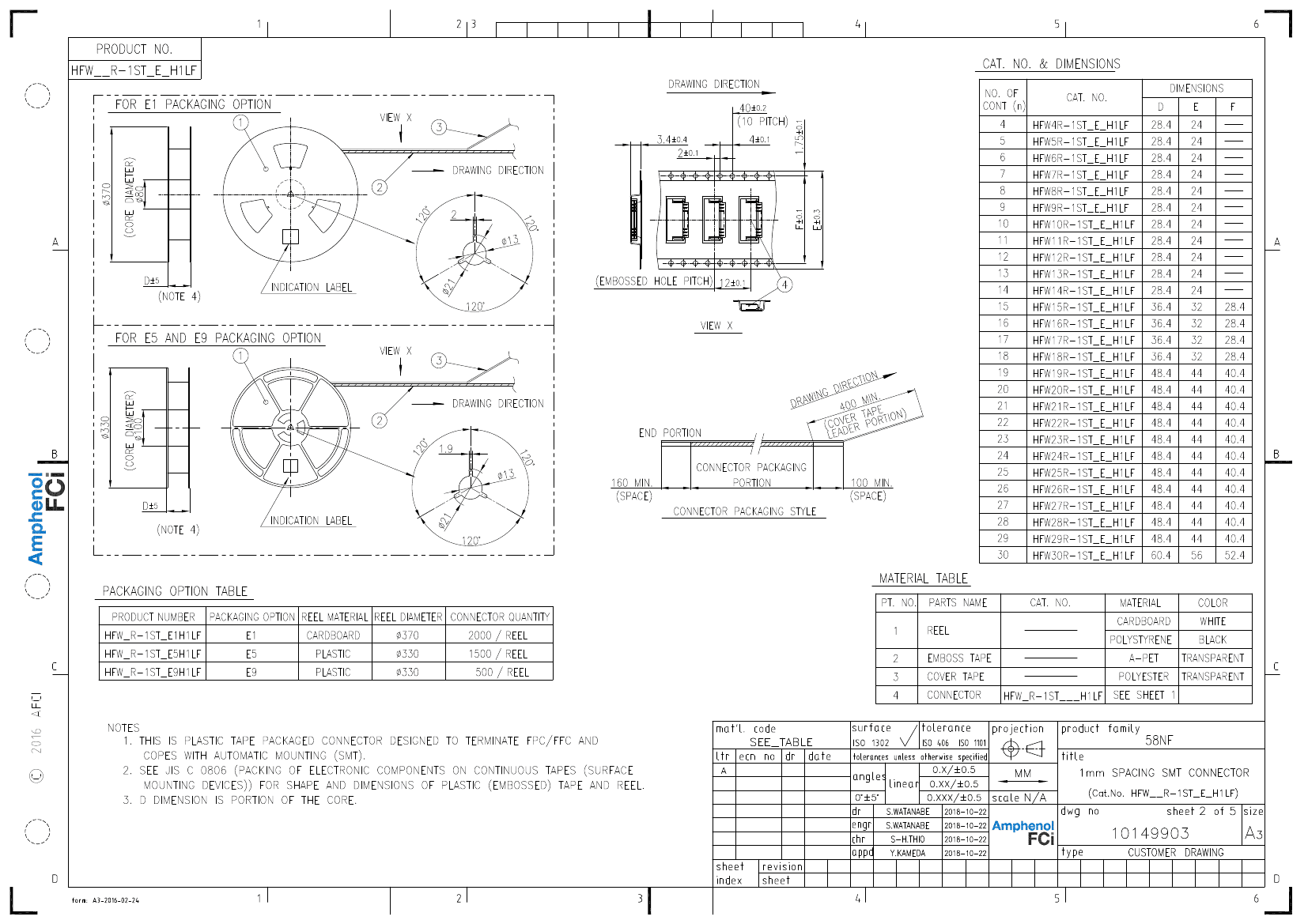

Preview

Download Datasheet

View All

HFW22R-1STBE9H1LF Related Products

	HFW22R-1STBE9H1LF	HFW12R-1STBE9H1LF	HFW26R-1STBE9H1LF	HFW17R-1STBE9H1LF	HFW4R-1STBE9H1LF	HFW9R-1STBE9H1LF	HFW11R-1STBE9H1LF	HFW30R-1STAE1H1LF	HFW30R-1STE1H1LF
Description	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	MATTE TIN
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e4	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	22	12	26	17	4	9	11	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
