Bay Linear

Inspire the Linear Power

1.0A Step Down Switching voltage Regulator

Adjustable & Fix Output

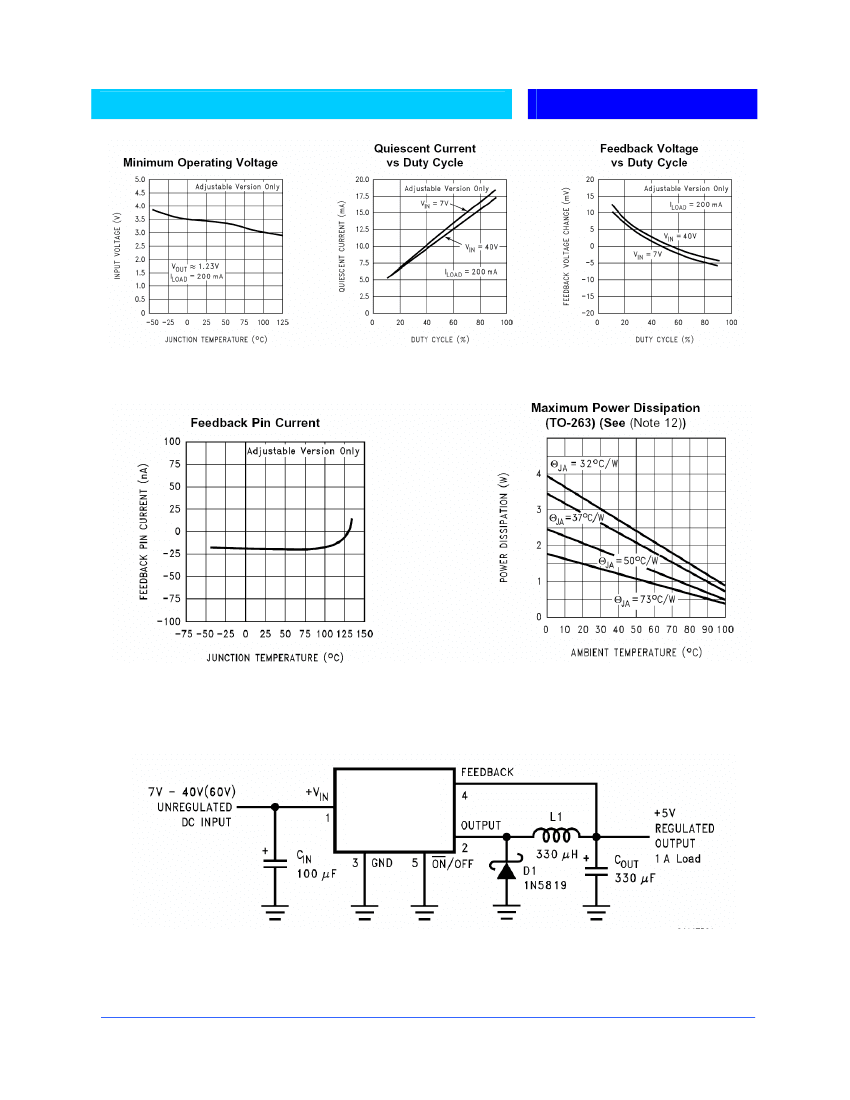

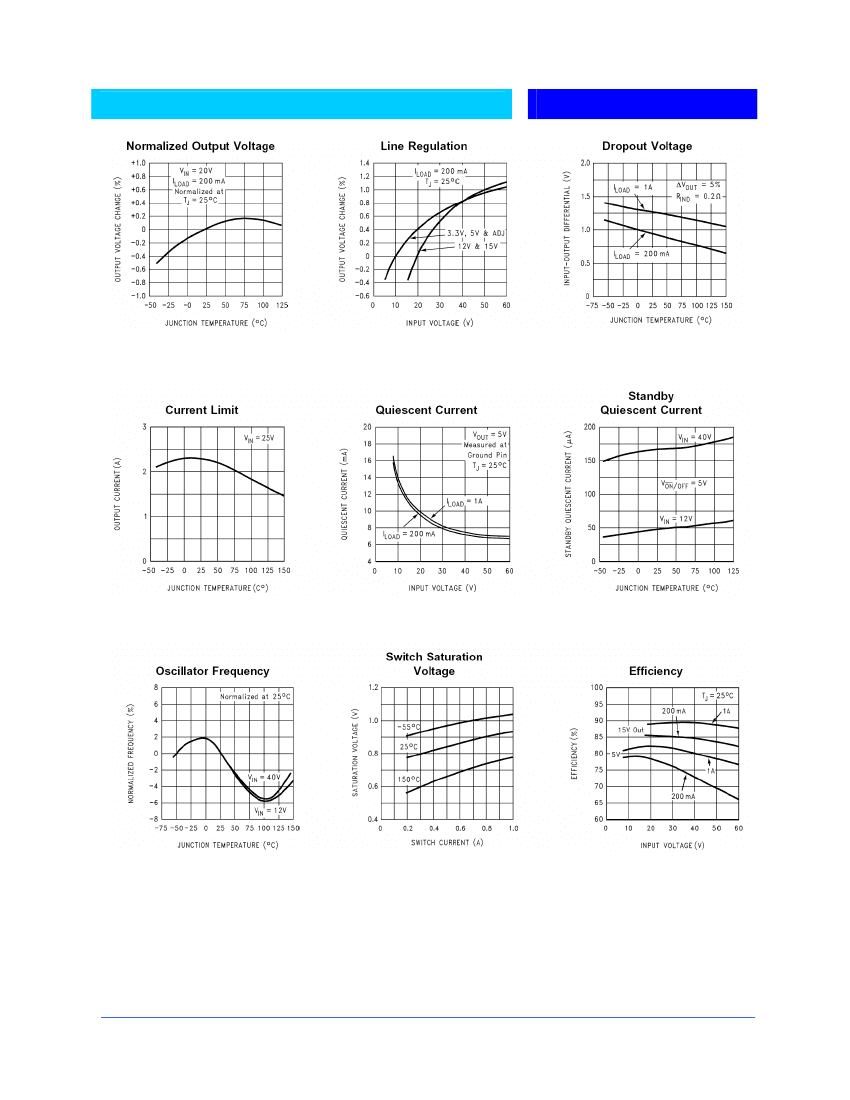

LM2575

Description

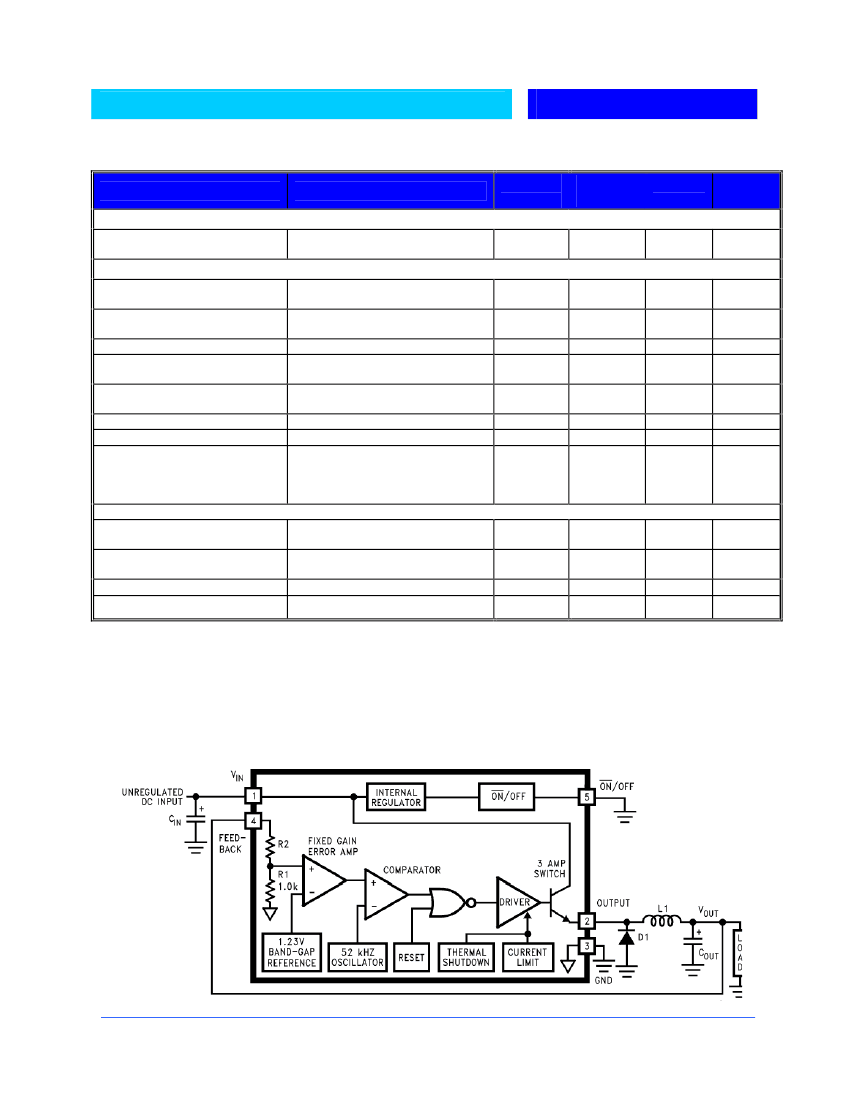

The Bay Linear LM2575 contains fixed and adjustable

switching voltage regulators that require a minimum of

external components. All circuitry necessary to build a

buck-switching regulator is included.

The LM2575 is available in 3.3V; 5V, 12V & 15V fixed

voltages, or an adjustable version with an output voltage

range from 1.23V to 37V. The guaranteed accuracy for

specified input and load conditions is

±4%.

The LM2575 can supply 1A with an excellent load and

line regulation. Protection such as cycle-by-cycle

current limiting or thermal shutdown has been designed.

In standby mode, the current consumption has been

minimized (200µA).

For 3A step-down switching regulators refer to LM2576

data sheets

Features

•

Guaranteed 1A Output Current

High Efficiency

Wide Input Voltage, up to 40V

3.3V, 5V, 12V, 15V and Adjustable Output

Versions

Thermal Shutdown and Current Limit

Protection

Requires only 4 External Components

Low Power Standby Mode < 200µA Typical

Shutdown Capability (Standby Mode)

52kHz Fixed Frequency Internal Oscillator

Uses Standard Inductors

Pin-to-Pin Compatible with LM2575

Applications

•

Efficient Pre-Regulator for Linear Regulators

On-card Switching Regulators

Positive to Negative Converter (Buck-Boost)

Simple High-efficiency Step-down (Buck)

Portable Instruments

Pin Connection

Ordering Information

PIN CONNECTIONS

Devices

LM2575T-X

LM2575S-X

LM2575J-X

Package

TO-220

TO-263

LPDD

Temp.

-40

°C

to 125

°C

-40°C to 125

°C

-40°C to 125

°C

X= Output Voltage (X=3.3V, 5.0V, 12V, 15V or Blank for Adjustable)

Consult factory for other fixed voltages.

TO-263-5 Package

TO-220-5 Package

BAY

B2575

1 2 3 4 5

OUT

GND

4) FB

5) ON/OFF

BAY

B2575

1 2 3 4 5

1) V

2) V

OUT

3) GND

4) FB

5) ON/OFF

Top View

Bay Linear, Inc

2418 Armstrong Street, Livermore, CA 94550 Tel: (925) 606-5950, Fax: (925) 940-9556

www.baylinear.com
