PTH03020WAV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PTH03020WAV

PTH03020WAV: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 55W, Hybrid; CategoryPower/power management The power supply circuit; File Size201KB，4 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

PTH03020WAV Overview

DC-DC Regulated Power Supply Module, 1 Output, 55W, Hybrid

PTH03020WAV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	3.65 V
Minimum input voltage	2.95 V
Nominal input voltage	3.3 V
JESD-30 code	R-XDMA-P10
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	10
Maximum output voltage	2.5 V
Minimum output voltage	0.8 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	55 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

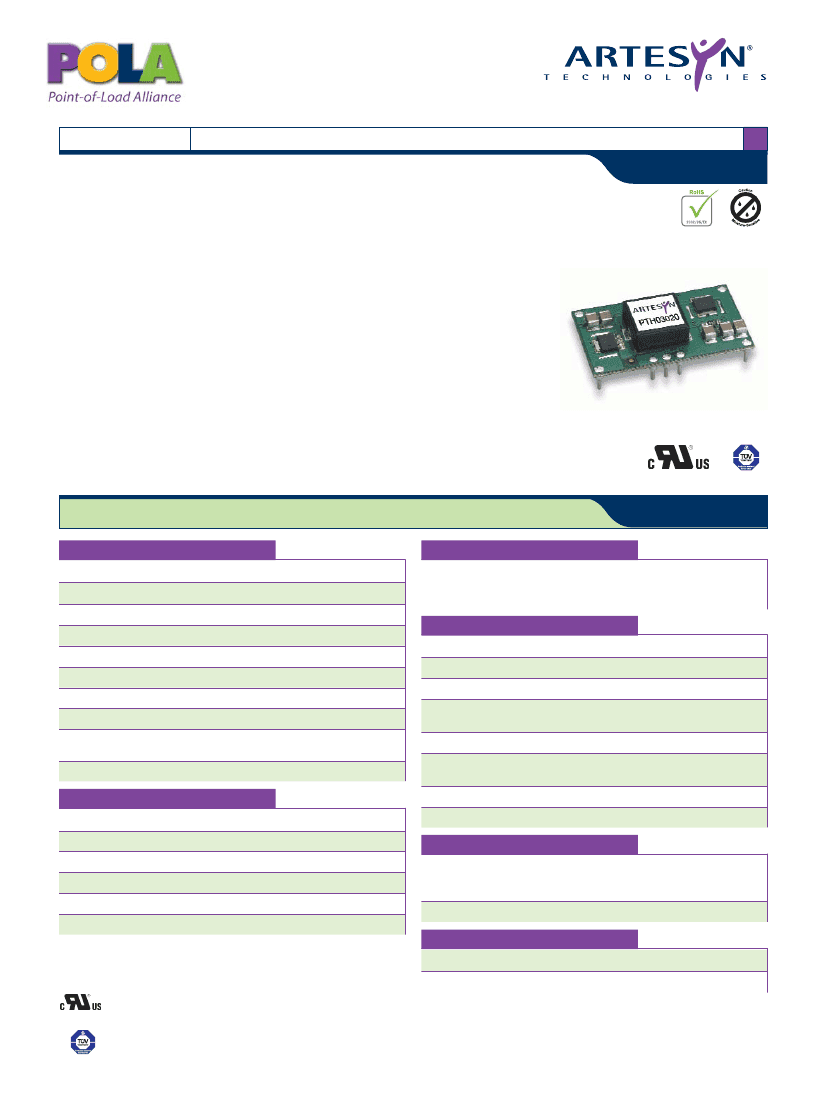

3.3 Vin single output

DC-DC CONVERTERS

•

POLA Non-isolated

NEW Product

22 A output current

3.3 V input voltage

Wide-output voltage adjust (0.8 Vdc to 2.5 Vdc)

Auto-track™ sequencing*

Margin up/down controls

Pre-bias start-up capability

Efficiencies up to 95%

Output ON/OFF inhibit

Output voltage sense

Point-of-Load-Alliance (POLA) compatible

Available RoHS compliant

PTH03020

The PTH03020 is a next generation series of non-isolated dc-dc converters offering

some of the most advanced POL features available in the industry. The primary new

feature provides for sequencing between multiple modules, a function, which is

becoming a necessity for powering advanced silicon including DSP’s, FPGA’s and

ASIC’s requiring controlled power-up and power-down Other industry leading features

include margin up/down controls, pre-bias start-up capability and efficiencies up to

95%. The PTH03020 has an input voltage of

2.95 Vdc to 3.65 Vdc

and offers a wide

0.8 Vdc to 2.5 Vdc output voltage range with up to 22 A output current, which allows

for maximum design flexibility and a pathway for future upgrades.

All specifications are typical at nominal input, full load at 25 °C unless otherwise stated

= 1000 µF, C

out

= 0 µF

OUTPUT SPECIFICATIONS

Voltage adjustability

Setpoint accuracy

Line regulation

Load regulation

Total regulation

Minimum load

Ripple and noise

20 MHz bandwidth

(See Note 4)

0.8-2.5 Vdc

±2.0% Vo

±5 mV typ.

±3.0% Vo

20 mV pk-pk

±0.5% Vo

GENERAL SPECIFICATIONS

Efficiency

Insulation voltage

Switching frequency

Approvals and

standards

Material flammability

Dimensions

Weight

(See Note 3)

No load

(See Note 1)

2.95-3.65 Vdc

10 mA typ.

Positive logic

1 V/ms

2.7-2.8 Vdc typ.

Pin 8 (See Note 6, 7)

±0.3 Vin

PROTECTION

Short-circuit

International Safety Standard Approvals

UL/cUL CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1,

File No. E174104

TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044

CB Report and Certificate to IEC60950, Certificate No.

US/8292/UL

2 YEAR WARRANTY

SPECIFICATIONS

EMC CHARACTERISTICS

Electrostatic discharge

Conducted immunity

Radiated immunity

EN61000-4-2, IEC801-2

EN61000-4-6

EN61000-4-3

(See Efficiency Table)

95% max.

Non-isolated

250 kHz to 340 kHz

EN60950

UL/cUL60950

UL94V-0

(L x W x H)

37.97 x 22.10 x 9.00 mm

1.495 x 0.870 x 0.354 in

5 g (0.18 oz)

Telcordia SR-332

5,236,000 hours

Temperature co-efficient -40 ºC to +85 ºC

Transient response

(See Note 5)

Margin adjustment

INPUT SPECIFICATIONS

Input voltage range

Input current

Remote ON/OFF

Start-up time

Undervoltage lockout

Track input voltage

50 µs recovery time

Overshoot/undershoot 100 mV

±5.0% Vo

MTBF

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

(See Note 2)

MSL (‘Z’ suffix only)

Operating ambient,

temperature

Non-operating

JEDEC J-STD-020C

-40 ºC to +85 ºC

-40 ºC to +125 ºC

Level 3

Auto reset

41 A typ.

Auto recovery

Thermal

*Auto-track™ is a trade mark of

Texas Instruments

File Name: pth03020.pdf Rev (08): 16 Dec 2005
