32-2198UL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 32-2198UL

Preview

32-2198UL: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, IDC Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

32-2198UL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32-2198UL	-	-	View	Buy Now

32-2198UL Overview

Telecom and Datacom Connector, 8 Contact(s), Male, IDC Terminal, Plug, ROHS COMPLIANT

32-2198UL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

DESCRIPTION:

MODEL NUMBER:

APPLICATION:

CRIMP TOOL:

IMPEDANCE:

FREQUENCY RANGE:

MATERIAL:

RoHS COMPLIANCE:

TECHINCAL DETAIL:

CAT5E, RJ45 (8P8C) MODULAR PLUG, UNSHIELDED,

OFF-SET ,SOLID/STRANDED, ROUND CABLE

32-2198UL

MODULAR PLUG

N/A

HOUSING

CLEAR POLYCARBONATE UL94-V0

CONTACT

PHOSPHOR BRONZE

SELECTIVE GOLD PLATING

MANAGEMENT BAR CLEAR POLYCARBONATE UL94-V0

YES

N/A

PLUG BODY

.113 [2.88]

.385 [9.78]

.150 [3.81]

CONTACTS (8)

POS #1

.040 [1.02]

( .389 [9.88] )

( .189 [4.80] )

.040 [1.02]

.885 [22.48] REF

.460 [11.68]

MANAGEMENT BAR

.260 [6.60]

SS

.045 [1.14]

.234 [5.94]

.109 [2.77]

.312 [7.92]

.124 [3.15]

.240 [6.10]

This PROPRIETARY Document

is property of Cinch Connectivity

Solutions. It is confidential in

nature, non-transferable, and

issued with the clear

understanding that it is not

traced or copied without

permission and is returnable

upon demand.

3RD ANGLE PROJECTION

.080 [2.04]

( .582 [14.78] )

AIM-Cambridge

Title:

RoHS2

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

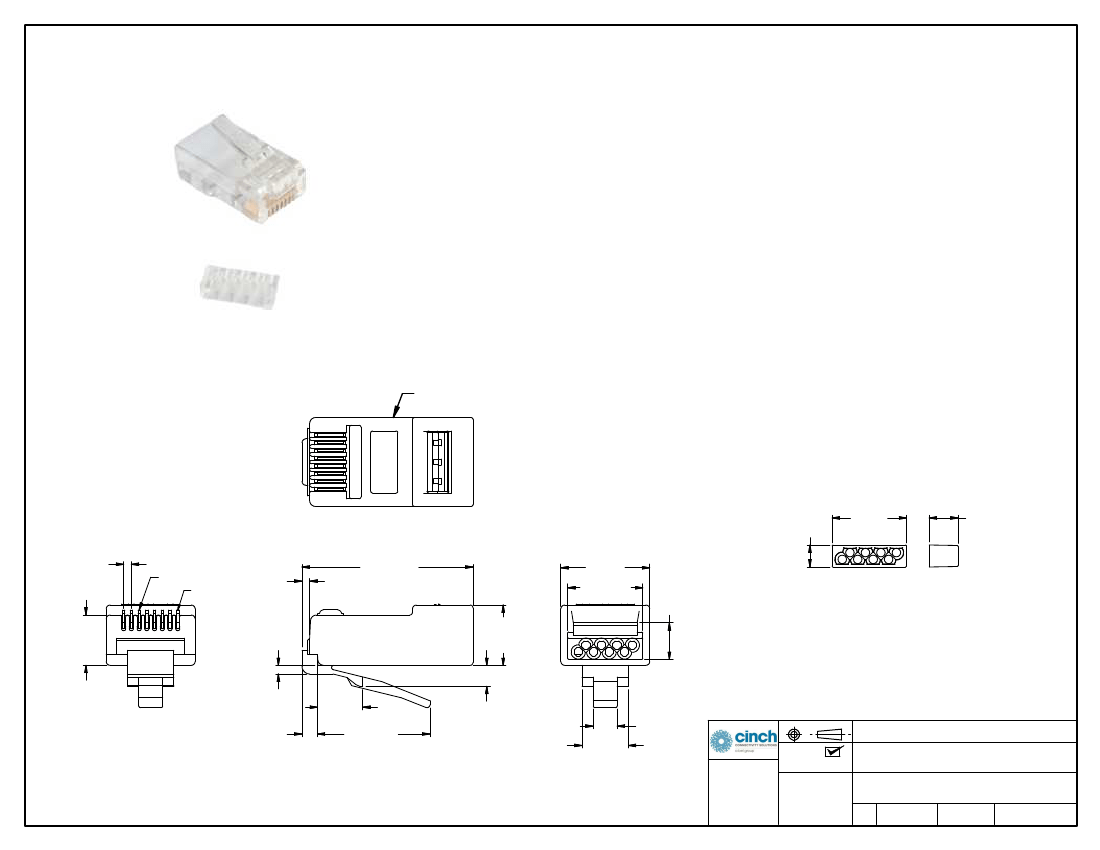

CAT5E, RJ45 (8P8C) Modular Plug, Unshielded,

Off-set ,Solid/Stranded, Round Cable

Model No.

INTERPRET DRAWING IN

ACCORDANCE W ITH ASME

Y14.5-2009.

.XX

u

.02

.XXX

u

.005

ANGLES

u

2

v

32-2198UL

Size

A

DO NOT SCALE

Date:

2015/5/19

DRAWING

Sheet 1 of 1
