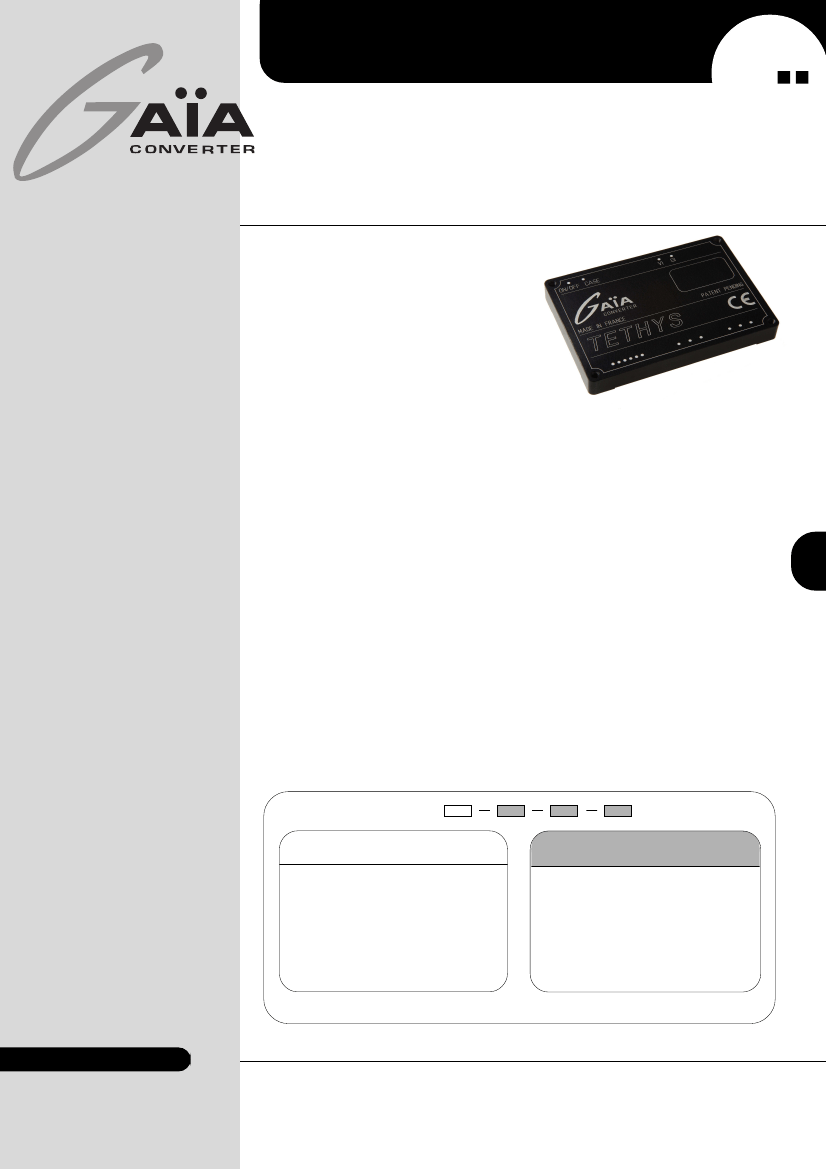

Hi-Rel DC/DC CONVERTER

CGDM TETHYS : 30W POWER

Hi-Rel

Grade

Configurable Multiple Outputs

Metallic case - 1.500 VDC Isolation

• 28 Vdc input compliant with MIL-STD-704D/E

• Highly configurable DC/DC converter

• Up to 6 outputs and 3 independant line

regulations

• Low profile : 0,33 “ ( 8.5mm)

• Nominal Power of 30 W without derating

• Wide temperature range : -40°C/+105°C case

• Galvanic isolation 1.500 VDC

• Integrated LC EMI filter

• Permanent short circuit protection

• External trim and sense adjustment : +/-5%

• Inhibit function

1-General

The TETHYS 30W series is a full family of highly

configurable DC/DC low profile power module

designed for direct implementation on high

density printed circuit boards designed for

aerospace, military and high-end industrial ap-

plications. This module uses a high frequency

fixed swiching technic at 480 KHz providing ex-

cellent reliability, low noise characteristics and

low profile package. This model is available with

nominal input voltages as 12 or 28 volts in range

of 9-36 or 16-40 volts. The serie includes

thousands of output configuration from single,

bi up to six possible output voltages in choices

of 3,3, 5, 12, 15, 24 volts with trim and sense

functions for output voltage adjustment.

No external heatsink is required for the for CGDM

series to supply 30W output power over the

case temperature range of -40°C up to 105°C.

All the modules are designed with LC network

filters to minimize reflected input current ripple

and output voltage ripple.

The modules include undervoltage lock-out, a

permanent short circuit protection an output

overvoltage protection and a thermal protection

to ensure efficient module protections.

The soft-start allows current limitation and

eliminates inrush current during start-up. The

short circuit protection completely protects the

module against short-circuits of any duration by

a shut-down and restores to normal when the

overload is removed. The thermal protection is

adjusted to 110°C and protects the module

against overheat.

The inhibit function is commanded with a low

logic level and disables the module for applica-

tions requiring on/off operations.

The design has been carried out with surface

mount components and is manufactured in a

fully automated process to guarantee high

quality. Each module is tested and burned-in

with a GAIA Converter automated test

equipment.

2-Product Selection

Multiple output model : CGDM-

Input Voltage Range

Permanent

H : 9-36 VDC

J : 16-40 VDC*

Transient

40 VDC/100 ms*

50 VDC/100 ms*

Output

3 : 3.3 VDC

5 : 5 VDC

5B : +/-5VDC

12 : 12 VDC

12B : +/-12VDC

15 : 15 VDC

15B : +/-15VDC

24 : 24 VDC

24B : +/- 24VDC

* Consult factory for details

REDEFINING THE SOURCE OF POWER

Gaia Converter FC97-019.08/06 Revision J

For locations, phone, fax, E-Mail see back cover
