HN62412FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HN62412FP

HN62412FP: DescriptionMASK ROM, 256KX8, 200ns, CMOS, PQFP44, PLASTIC, QFP-44; Categorystorage storage; File Size130KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN62412FP Overview

MASK ROM, 256KX8, 200ns, CMOS, PQFP44, PLASTIC, QFP-44

HN62412FP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFP, QFP44,.7SQ,32
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	200 ns
Spare memory width	16
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	14 mm
memory density	2097152 bi
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum standby current	0.00003 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

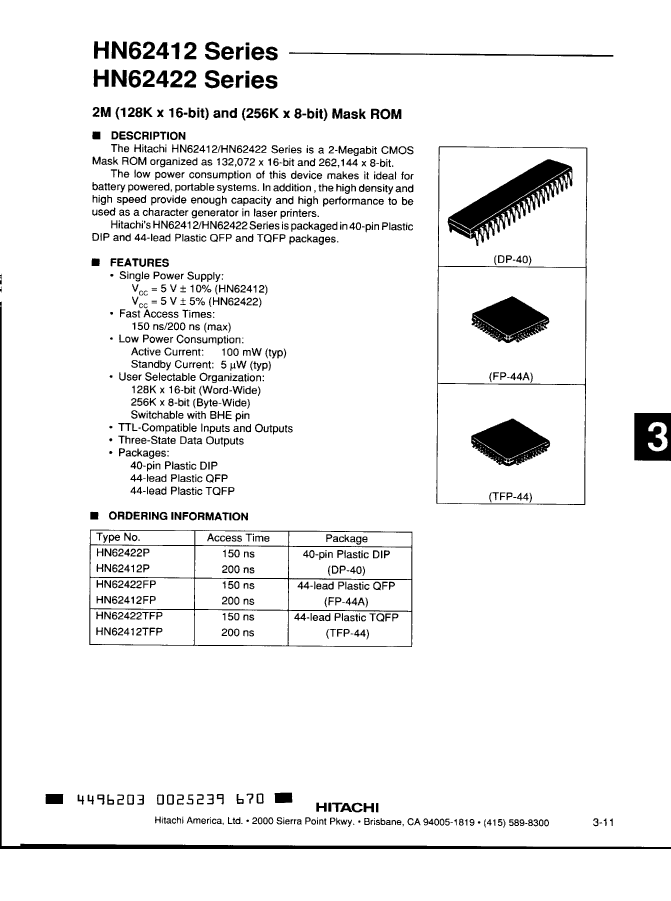

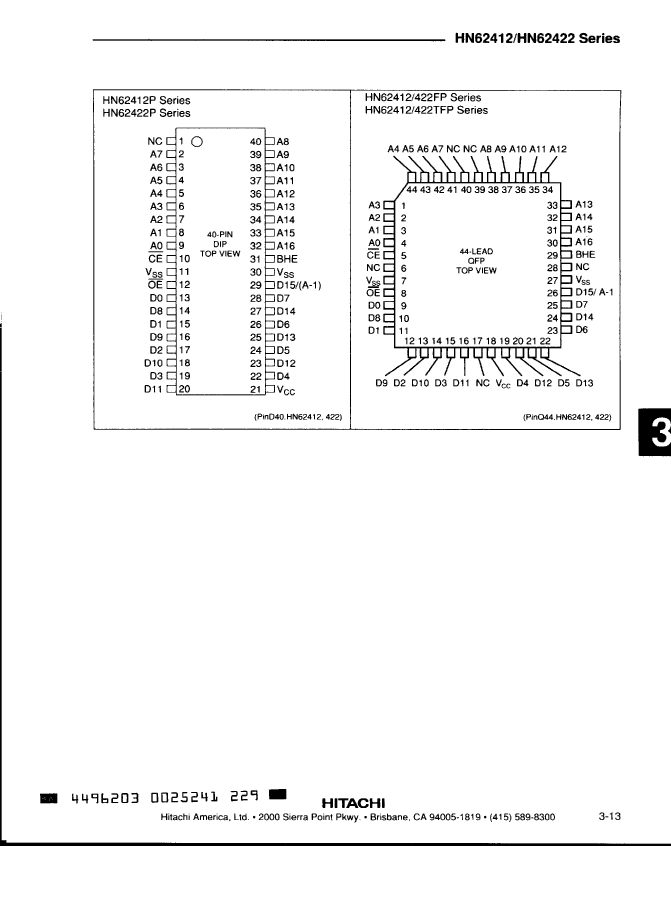

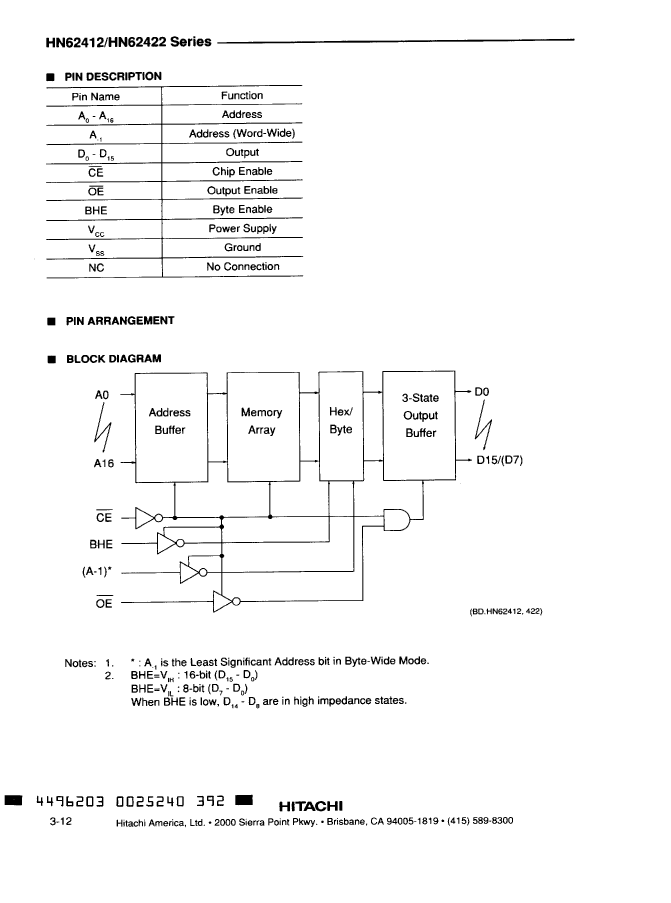

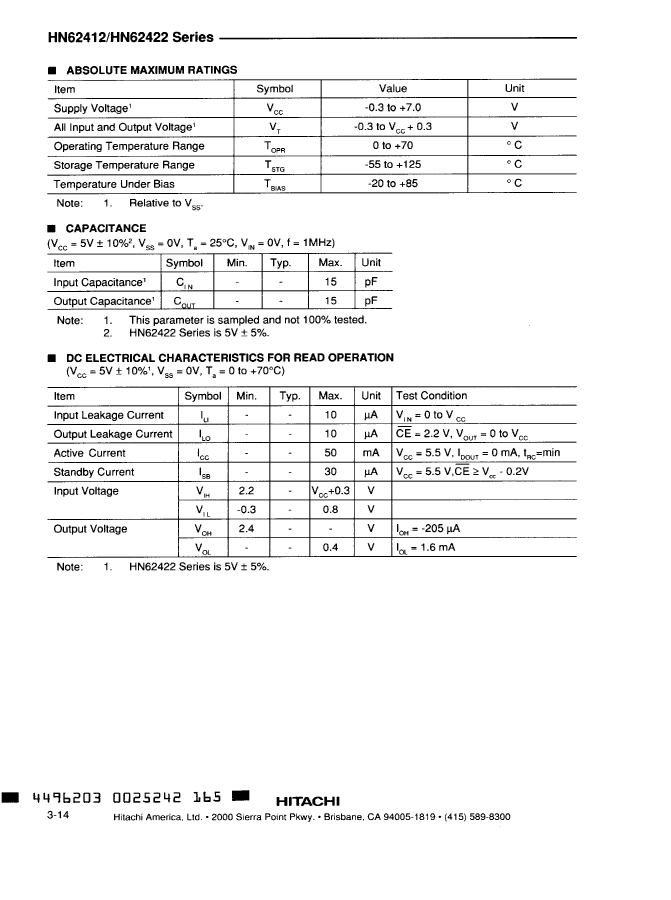

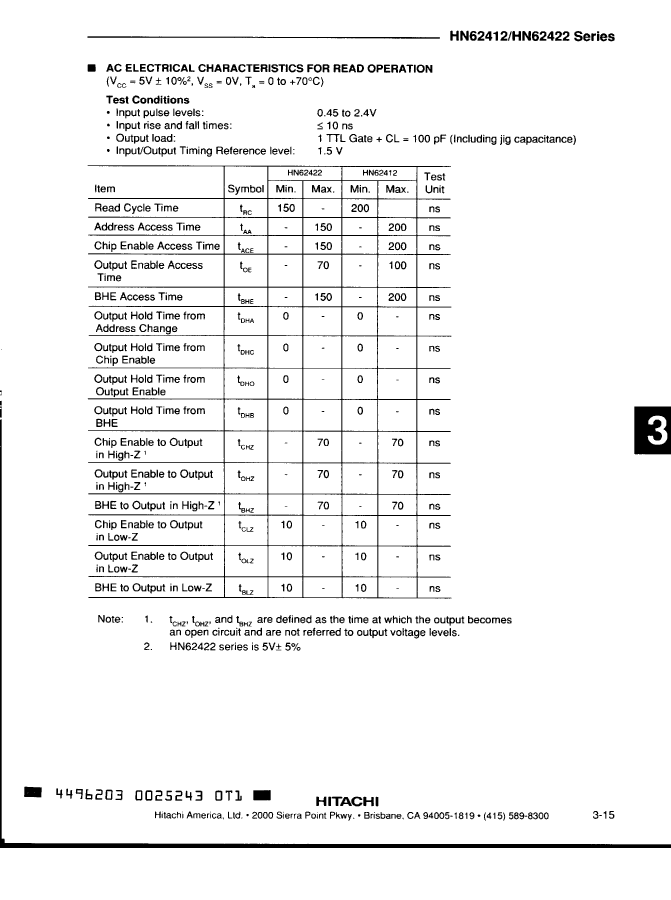

Preview

Download Datasheet

View All

HN62412FP Related Products

	HN62412FP	HN62422FP	HN62422TFP	HN62412P	HN62412TFP	HN62422P
Description	MASK ROM, 256KX8, 200ns, CMOS, PQFP44, PLASTIC, QFP-44	MASK ROM, 256KX8, 150ns, CMOS, PQFP44, PLASTIC, QFP-44	MASK ROM, 256KX8, 150ns, CMOS, PQFP44, PLASTIC, TQFP-44	MASK ROM, 256KX8, 200ns, CMOS, PDIP40, PLASTIC, DIP-40	MASK ROM, 256KX8, 200ns, CMOS, PQFP44, PLASTIC, TQFP-44	MASK ROM, 256KX8, 150ns, CMOS, PDIP40, PLASTIC, DIP-40
Parts packaging code	QFP	QFP	QFP	DIP	QFP	DIP
package instruction	QFP, QFP44,.7SQ,32	QFP, QFP44,.7SQ,32	TQFP,	DIP, DIP40,.6	TQFP,	DIP, DIP40,.6
Contacts	44	44	44	40	44	40
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	150 ns	150 ns	200 ns	200 ns	150 ns
Spare memory width	16	16	16	16	16	16
JESD-30 code	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	R-PDIP-T40	S-PQFP-G44	R-PDIP-T40
length	14 mm	14 mm	14 mm	52.8 mm	14 mm	52.8 mm
memory density	2097152 bi	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	44	44	44	40	44	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	TQFP	DIP	TQFP	DIP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK, THIN PROFILE	IN-LINE	FLATPACK, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.05 mm	3.05 mm	1.1 mm	5.08 mm	1.1 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	2.54 mm	0.8 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	QUAD	DUAL
width	14 mm	14 mm	14 mm	15.24 mm	14 mm	15.24 mm
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-	incompatible
JESD-609 code	e0	e0	-	e0	-	e0
Encapsulate equivalent code	QFP44,.7SQ,32	QFP44,.7SQ,32	-	DIP40,.6	-	DIP40,.6
power supply	5 V	5 V	-	5 V	-	5 V
Maximum standby current	0.00003 A	0.00003 A	-	0.00003 A	-	0.00003 A
Maximum slew rate	0.05 mA	0.05 mA	-	0.05 mA	-	0.05 mA
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maker	-	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
