3221-2-00-1-00-00-08-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 3221-2-00-1-00-00-08-0

Preview

3221-2-00-1-00-00-08-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size57KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

3221-2-00-1-00-00-08-0 Overview

PCB Terminal

3221-2-00-1-00-00-08-0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	3221-2
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

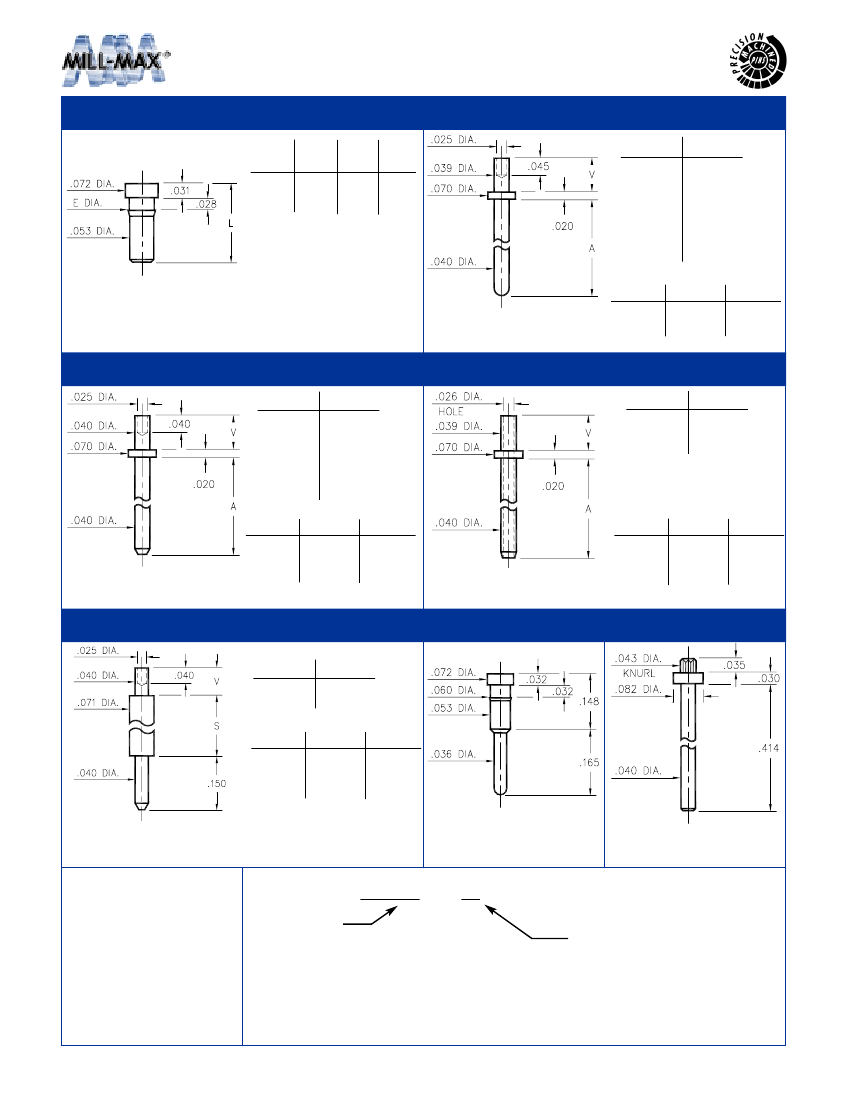

PRINTED CIRCUIT PINS

0259/0286

Basic

Part

Number

Length

L

Barb

Dia.

E

Mount-

ing

Hole

3122

⇒

3153

Basic Part

Number

Pin Length

A

0259-0 .173

0286-0 .115

.062

.060

.059

.057

3153-X

3141-X

3122-X

3149-X

3123-X

3140-X

3124-X

-X-

.180

.230

.280

.380

.580

.780

.880

Board

Thickness

Length

V

02XX-0-00-XX-00-00-03-0

Press-fit in .057/.059 mounting hole

31XX-X-00-XX-00-00-08-0

Swage mount in .043 hole

1

2

.031

.062

.051

.082

3101

⇒

3106

Basic Part

Number

Pin Length

A

3221

⇒

3223

Basic Part

Number

Pin Length

A

3101-X

3102-X

3103-X

3104-X

3105-X

3106-X

-X-

.150

.188

.300

.500

.750

1.000

Board

Thickness

Length

V

3221-X

3222-X

3223-X

.100

.150

.300

-X-

Board

Thickness

Length

V

310X-X-00-XX-00-00-08-0

Swage mount in .043 hole

1

2

3

.031

.062

.094

.051

.082

.113

322X-X-00-XX-00-00-08-0

Swage mount in .043 hole

1

2

3

.031

.062

.094

.051

.082

.113

3125/3126

Basic Part

Number

Pin Length

S

0995

3125-X

3126-X

-X-

4526

.170

.420

Board

Thickness

Length

V

1

2

3

.031

.062

.094

.051

.082

.113

312X-X-00-XX-00-00-08-0

Swage mount in .043 hole

0995-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

4526-0-00-XX-00-00-03-0

Press-fit in .040 mounting hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

( Except Swage pins which

are annealed )

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 00 - XX - 00 - 00 - 0X - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

21

20µ"

GOLD OVER

NICKEL

34

50µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
