RPLH22-02-07-02

Description
Single Color LED, White,
CategoryLED optoelectronic/LED    photoelectric
File Size133KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric Compare View All

RPLH22-02-07-02 Overview

Single Color LED, White,

RPLH22-02-07-02 Parametric

Parameter NameAttribute value
MakerLEDtronics
Reach Compliance Codeunknown
colorWHITE
ConfigurationSINGLE
Installation featuresPANEL MOUNT
Number of functions1
Number of terminals2
Optoelectronic device typesSINGLE COLOR LED
method of packingBULK
shapeROUND
surface mountNO

Preview

Download Datasheet

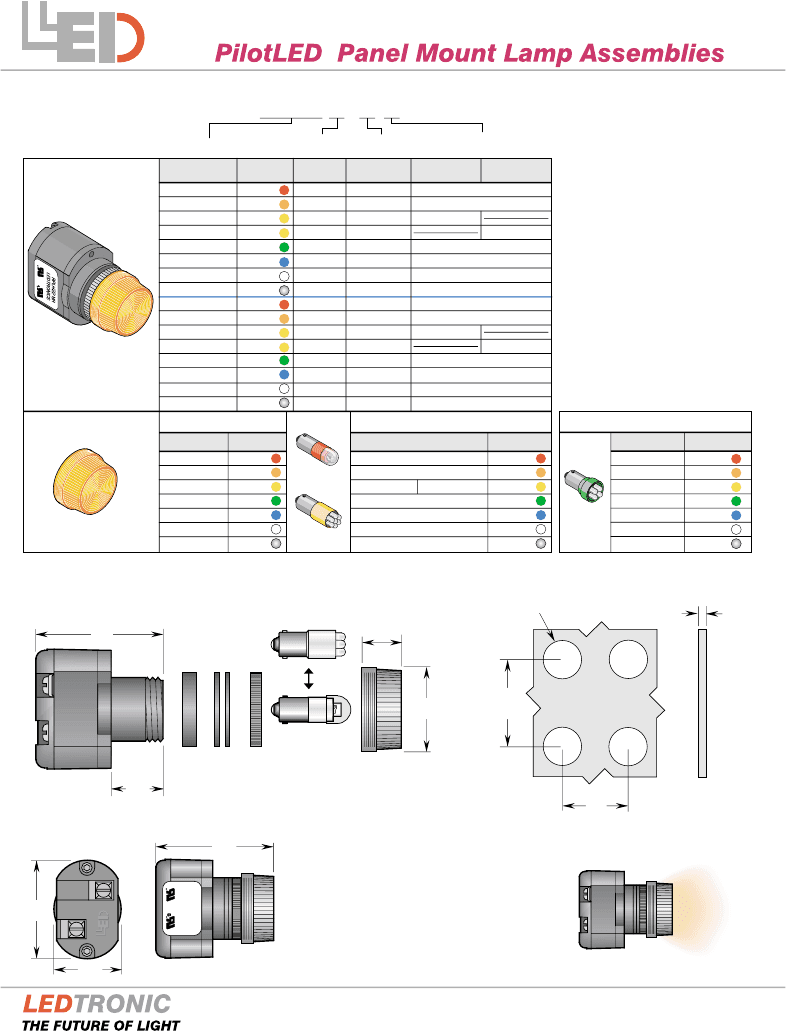

16mm, 22mm, 30mm Relampable Pilot Lights
Selection Guide
Part numbers are for complete
assembly of lens, lamp and
lampholder
Series
Assembly
Part Number
RPLH22-01-01-02
RPLH22-01-02-02
RPLH22-01-03-02
RPLH22-01-03-03
RPLH22-01-04-02
RPLH22-01-05-02
RPLH22-01-06-02
RPLH22-01-07-02
RPLH22-02-01-02
RPLH22-02-02-02
RPLH22-02-03-02
PilotLED Assembly Part Number
RPLH22-01*-01-02
Incoming
Voltage
Color
RED
AMBER
YELLOW
YELLOW
GREEN
BLUE
WHITE
CLEAR
RED
AMBER
YELLOW
YELLOW
GREEN
BLUE
WHITE
CLEAR
PilotLED
LED Lamp
Selection
Indoor
Outdoor
Lamp
Lamp
RPLB-0201-28V
RPLB-0203-28V
Panel Mount Lamp Assemblie
Lens
Color
Lens
RPLL22-CRF
RPLL22-CAF
RPLL22-CYF
RPLL22-CYF
RPLL22CGF
RPLL22-CBF
RPLL22-TWF
RPLL22-CWF
RPLL22-CRF
RPLL22-CAF
RPLL22-CYF
RPLL22-CYF
RPLL22-CGF
RPLL22-CBF
RPLL22-TWF
RPLL22-CWF
Volts
*
48VDC
**
48VDC
**
48VDC
**
48VDC
**
48VDC
**
48VDC
**
48VDC
**
48VDC
**
130VDC
**
130VDC
**
130VDC
**
130VDC
**
130VDC
**
130VDC
**
130VDC
**
130VDC
**
22mm PilotLED
RPLB-0204-28V
RPLB-0304-28V
RPLB-0206-28V
RPLB-0208-28V
RPLB-0209-28V
RPLB-0210-28V
RPLB-0201-28V
RPLB-0203-28V
RPLB-0204-28V
RPLB-0304-28V
RPLB-0206-28V
RPLB-0208-28V
RPLB-0209-28V
RPLB-0210-28V
Series RPLH22
UL File No. E110075
RPLH22-02-03-03
RPLH22-02-04-02
RPLH22-02-05-02
RPLH22-02-06-02
RPLH22-02-07-02
Replacement Lenses
Part Number
RPLL22-CRF
RPLL22-CAF
RPLL22-CYF
RPLL22-CGF
RPLL22-CBF
RPLL22-TWF
RPLL22-CWF
Replacement Lamps
Part Number
RPLB-0201-28V
RPLB-020X
RPLB-0203-28V
RPLB-0204-28V
RPLB-0304-28V
RPLB-0206-28V
RPLB-0208-28V
RPLB-030X
RPLB-0209-28V
RPLB-0210-28V
Optional Replacement Lamps
Color
RED
AMBER
YELLOW
GREEN
BLUE
WHITE
CLEAR
Color
RED
AMBER
YELLOW
GREEN
BLUE
WHITE
CLEAR
Part Number
RPLB-0601-28V
RPLB-0603-28V
RPLB-0604-28V
RPLB-0606-28V
RPLB-0608-28V
RPLB-0609-28V
RPLB-0610-28V
Color
RED
AMBER
YELLOW
GREEN
BLUE
WHITE
CLEAR
* = Full voltage customer defines incoming voltage, lamp in holder is made to that voltage.
This holder contains no current limiting resistor. (Example RPLH22-24-01-02 [24 volt incoming source])
** 48 & 130VDC use an internal series resistor to drop the voltage across the LED bulb to 28 volts.
130VDC assemblies can also be used for 120VAC applications.
1.82
[46.2]
0.87
[22.1] mounting hole diameter
Maximum
panel thickness
0.25
[6.35]
0.53
[13.46]
Lampholder
Package Dimensions
RPLH22-01-01-02
48V
DA
0.78
[19.8]
1.14
[28.96]
Vertical
2.00
[50.8]
(Neoprene)
Gasket
Nut
Lamp
Lens
Horizontal
1.50
[38.1]
Minimum center to center spacing
1.93
[49.0]
Illumination Pattern
22mm LAMP HLDR
LEDTRONICS E110075
RPLH22-48
1.60
[40.6]
1.09
[27.7]
Dimensions are approximate
S
Phone: (310) 534-1505
Fax: (310) 534-1424
Website: http://www.ledtronics.com
