56-615919LI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 56-615919LI

56-615919LI: DescriptionRectangular Connector Adapter, 26 Contacts(Side1), 26 Contacts(Side2), Male-Female; CategoryThe connector The connector; File Size49KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

56-615919LI Overview

Rectangular Connector Adapter, 26 Contacts(Side1), 26 Contacts(Side2), Male-Female

56-615919LI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE-FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
触点数量:侧 1	26
触点数量:侧 2	26
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ZINC ALLOY
direct connection	YES
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Insertion Loss (dB)

Series 600 Hi-Density

Filtered Connectors

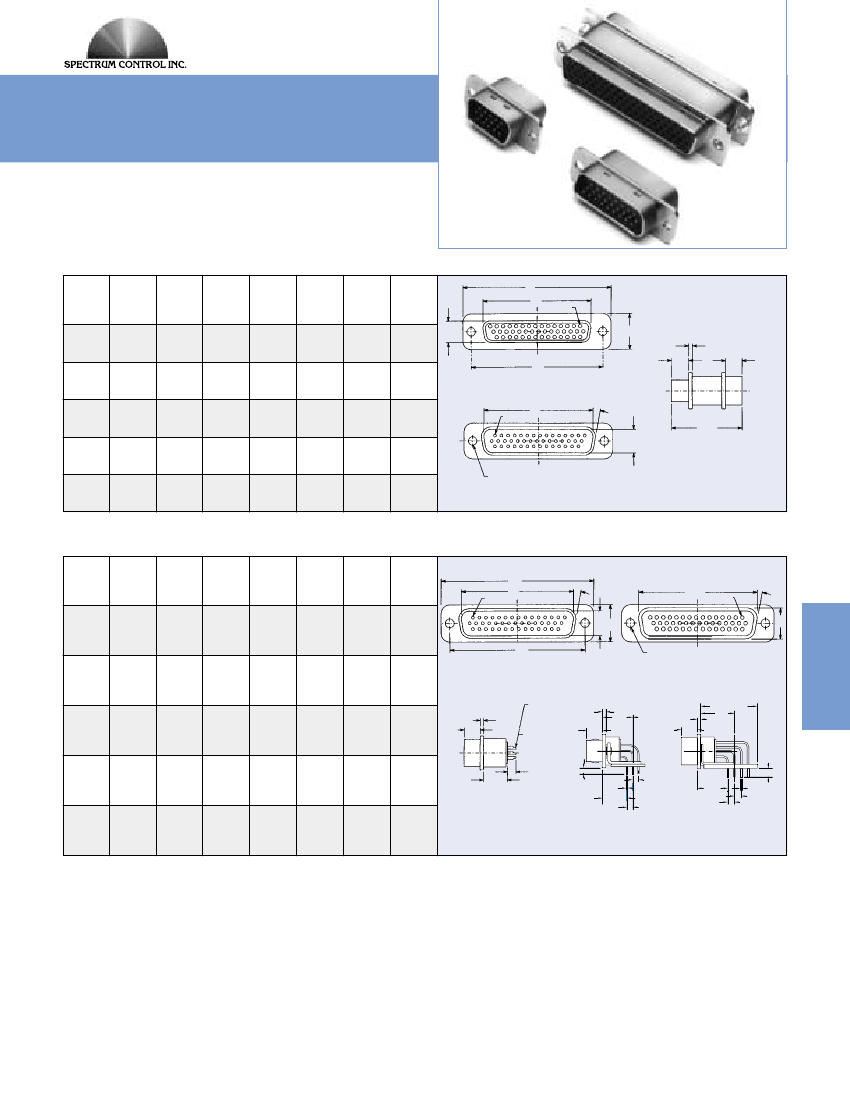

The miniaturization of electronic systems and sub-

systems is pushing designers to increase circuit

densities within smaller packages. To address this

growing need, Spectrum Control has developed a

line of filtered Hi-Density D-subminiature connectors.

This new line of connectors incorporates the high

performance and reliable filtering of Spectrum’s

standard D-subs in the Hi-Density format.

Typical Insertion Loss

Capacitive Filter

1MHz

10MHz

100MHz

Frequency

1GHz 5GHz

Features

Connectors designed to MIL-C-24308

Capacitance values from 85 pF to 4000 pF

Filter type feed-thru C

Selectively specify and filter each contact position

Available in feed-thru capacitive configurations

Mechanical Specifications:

Same as Series 700 connectors, page 147.

Above curves represent application of proper

grounding fundamentals, for assistance consult

with Spectrum Control.

Insertion loss measured per MIL-STD-220, no load, 50 ohm source and load.

Electrical Specifications: Hi-Density Connectors

Capacitance

Filter

Desig-

nations

3 dB

Cut-off

Fre-

quency

Max.

(MHz)

Minimum Insertion Loss - Decibels (dB)

Dielectric

Working

With-

Voltage DC

standing

-55°C to

MHz

Voltage

+125°C

300V

100V

—

MHz

100

MHz

200

MHz

500

MHz

GHz

Filter

Circuits

Value

Tol.

85 pF

±25%

—

180 pF

±25%

300V

100V

—

1000 pF

±25%

5.1

300V

100V

—

Filtered Connectors

4000 pF

±25%

1.3

300V

100V

Filter designation “G” for grounded contacts, “I” for insulated (not filtered) contacts.

Filter designation “O” for omitted contact and no hole in ground plane.

Above data represents guaranteed minimum.

Ordering Information

Example:

56-605-015-LI

6 0 5 - 0 15

This part number represents a Series 600 Hi-Density filtered D-Sub

connector with 15 contacts, pin-socket adapter configuration. The FT

filters have a capacitance value of 85 pF and the connector includes

4-40 locking inserts.

D-Sub

Connector

Hi-Density

Shell

Size**

0 = 15

1 = 26

2 = 44

3 = 62

4 = 78

Contact/Termination

1 - Pin to solder cup

2 - Pin to 90° PCB mount

3 - Socket to PCB mount

4 - Socket to 90° PCB

mount

5 - Pin-socket adapter

7 - Pin to PCB mount

Special

0 = All

positions

same

9 = Special

Filter Designation

15 - 85 pF FT

16 - 180 pF FT

18 - 1,000 pF FT

19 - 4,000 pF FT

20 - Insulated contact

Options

LI = 4-40 inserts

S = Solder dip tails

50G = µ gold

Some shell sizes require minimum order quantity.

Consult Spectrum Control for details.

142

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
