8471EP: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size125KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

8471EP Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm

8471EP Parametric

Parameter Name	Attribute value
Maker	EMC Technology RF Labs
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=100W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	40 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.4

Preview

Download Datasheet

View All

TITLE:

SPECIFICATION CONTROL DRAWING

PART IDENTIFIER:

: 8471EP

DESCRIPTION:

50 OHM FLANGE LOAD

ASSEMBLY DWG:

2100624

1.0

SPECIFICATIONS

1.1

ELECTRICAL:

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

FREQUENCY RANGE: DC-18GHZ.

1.1.3

INPUT POWER (MAX @ 60°C):

1.1.3.1

AVERAGE: 10 WATT.

1.1.3.2 PEAK: 100 WATTS (10US PULSE WIDTH).

1.1.4

VSWR: DC TO 4.0 GHZ - 1.10 MAX.

4.1 TO 8.0 GHZ - 1.15 MAX.

8.1 TO 12.0 GHZ - 1.25 MAX.

12.1 TO 18.0 GHZ - 1.40 MAX.

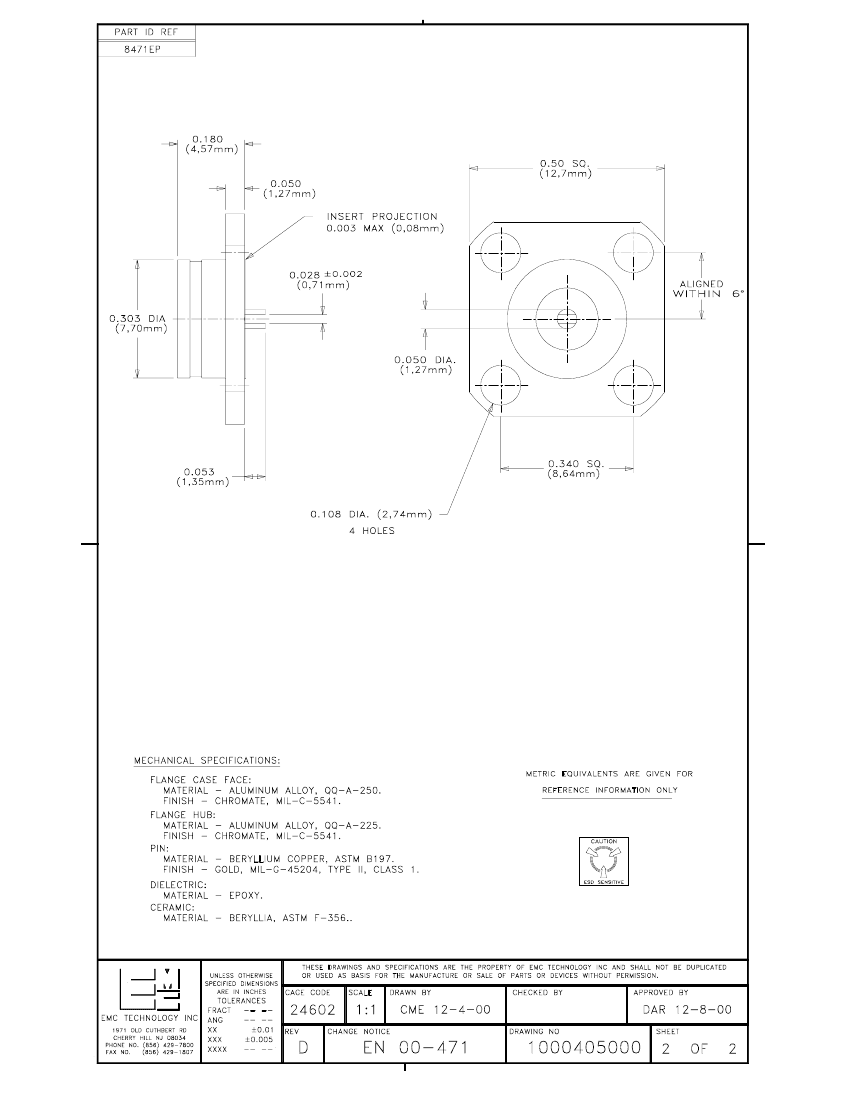

MECHANICAL:

1.2.1

OUTLINE DWG: SEE SHEET 2.

1.2.2

WORKMANSHIP: PER MIL-STD-454, REQUIREMENT 9.

ENVIRONMENTAL:

1.3.1

TEMPERATURE RANGE:

1.3.1.1

NON-OPERATING: -55 C TO +150 C.

1.3.1.2

OPERATING: -55°C TO +125°C.

1.3.2

VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.

1.3.3

SHOCK: PER MIL-STD-202, METHOD 213, COND. I.

1.3.4

MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT

LOADING VOLTAGE IS NOT APPLICABLE

1.2

1.3

2.0

UNIT MARKING:

"EMCT"

LEGIBILITY AND PERMANENCY PER MIL-STD-130.

3.0

QUALITY ASSURANCE

3.1

SAMPLE INSPECT PER MIL-STD-105, LEVEL II, 1.0% AQL.

3.1.1

VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO CONTROL DRAWING REQUIREMENTS,

INCLUDING SMA INTERFACE.

3.1.2

MEASURE AND RECORD VSWR @ 1 TO 18 GHZ IN 1 GHZ INCREMENTS.

3.1.2.1

ACCEPTANCE LIMITS: SEE ELECTRICAL 1.1.4.

3.2

TEST DATA REQUIREMENTS:

3.2.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.2.2

DATA RETENTION: STANDARD.

STANDARD PACK PER MC0023.

4.0

PACKAGING:

.

ENG

CC

PUR

MFG

QA

PLAN

SM

EMC TECHNOLOGY, INC

1971 OLD CUTHBERT ROAD

CHERRY HILL, NJ 08034

CAGE CODE # 24602

CHANGE NOTICE

EN 00-471

DWG #

REV LVL

SHEET

1000405000

D

1

OF

2
