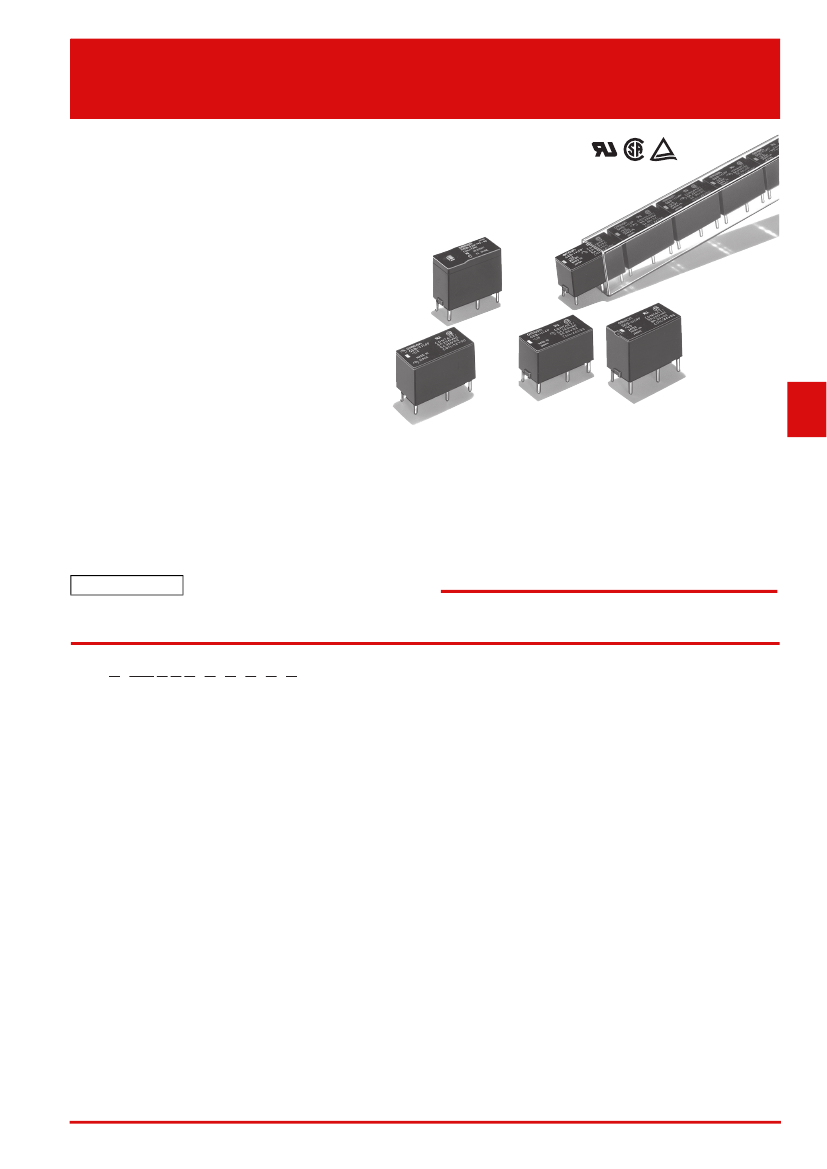

G6B
PCB Power Relay
High Capacity and High
Dielectric Strength Miniature
Relay with Fully Sealed
Construction in 5 A (8 A)
SPST-NO(1a),
SPST-NO+SPST-NC(1a1b),
DPST-NO(2a),
DPST-NC(2b) Types
• High sensitive with operating power of 98 mW.
(G6B-1114P-US and G6B-1174P-US models)
• High insulation with dielectric strength of 3,000VAC
between coil and contacts (impulse withstand voltage of 6 kV).
• Stick packing models are provided in consideration of compatibility to the automatic production line.
• Standard model conforms to UL/CSA standards. Other SEV approved models are also available.
• AgSnIn contacts suitable for loads that generate surge voltage (inductive load, capacity load, etc.) available. (-FD type)
• Ultrasonic cleanable models available. (-U type)
• Operation indicator & built-in surge absorption diode available. (-ND type)
• 2-Pole type available.
RoHS Compliant
G
6
B
■Application
Examples
• Ideal for output applications of control equipments
■Model
Number Legend
G6 B@-
@ @@ @ @-@- @
-
@-@
-@
-
1
2
3 4 5
6
7
8
9 10
3. Classification
1: Standard
7: High-capacity
4. Enclosure rating
4: Fully sealed
7: Flux protection
5. Terminal Shape
P: PCB terminals
Socket mounting terminals
6. Contact material
None: Standard (Ag-alloy (Cd free))
FD : AgSnIn contact
(Suitable for DC inductive load with
high inrush current)
7. Operation Indicator Diode
Availability
None: Standard
ND : Operation indicator & coil surge
absorption diode
(for -1177 type only)
8. Approved Standards
US: UL/CSA
9. Washability
None: Standard
U : For ultrasonically cleanable
10. Mounting
None: Mounted directly to PCB
P6B : Mounted to Socket
1. Relay Function
None: Single-side stable
U : Single-winding latching
(G6B@-1114 models only)
K : Double-winding latching
(G6B@-1114 models only)
2. Contact Form
21: SPST-NO + SPST-NC
22: DPST-NO
20: DPST-NC
11: SPST-NO
1
G6B
■Ordering
Information
●
Standard Models (UL, CSA certified)
Number
of poles
Contact material
Relay Function
Contact form
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(High-capacity)
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Built-in high-capacity
operation indicator &
diode)
SPST-NO (1a)+
SPST-NC (1b) (Standard)
2-pole
Single-side stable
DPST-NO (2a)
(Standard)
DPST-NC (2b)
(Standard)
Standard (Ag-alloy (Cd free))
Model
G6B-1114P-US
G6B-1174P-US
G6BU-1114P-US
G6BK-1114P-US
Rated coil voltage
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
PCB Power Relay
AgSnIn contact
Model
G6B-1114P-FD-US
G6B-1174P-FD-US
G6BU-1114P-FD-US
G6BK-1114P-FD-US
Minimum
packing unit
Rated coil voltage
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
100
pcs/tray
20
pcs/tube
100
pcs/tray
Single-side stable
1-pole
Single-winding
latching
Double-winding
latching
Single-side stable
G6B-1177P-ND-US
5, 12, 24 VDC
G6B-1177P-FD-ND-US
5, 12, 24 VDC
20
pcs/tube
G6B-2114P-US
G6B-2214P-US
G6B-2014P-US
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
G6B-2114P-FD-US
G6B-2214P-FD-US
G6B-2014P-FD-US
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
100
pcs/tray
Note: AgSnIn contact models are highly welding-resistant, and roughening of contacts due to inrush current and inductive load is lessened.
G
6
B
●
Models for Ultrasonically Cleanable
Number
of poles
Contact material
Relay Function
Single-side stable
1-pole
Single-winding
latching
Double-winding
latching
Contact form
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)+
SPST-NC (1b) (Standard)
2-pole
Single-side stable
DPST-NO (2a)
(Standard)
DPST-NC (2b)
(Standard)
Standard (Ag-alloy (CD free))
Model
G6B-1114P-US-U
G6BU-1114P-US-U
G6BK-1114P-US-U
G6B-2114P-US-U
G6B-2214P-US-U
G6B-2014P-US-U
Rated coil voltage
5, 6, 12, 24 VDC
24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
AgSnIn contact
Model
G6B-1114P-FD-US-U
−
G6BK-1114P-FD-US-U
G6B-2114P-FD-US-U
G6B-2214P-FD-US-U
G6B-2014P-FD-US-U
Minimum
packing unit
Rated coil voltage
6, 12, 24 VDC
−
12, 24 VDC
5, 12, 24 VDC
5, 12, 24 VDC
5, 12, 24 VDC
100
pcs/tray
Note: When ordering, add the rated coil voltage to the model number.
Example: G6B-1114P-US DC5
Rated coil voltage
However, the notation of the coil voltage on the product case as well as on the packing will be marked as
@@
VDC.
●
Connecting Sockets (Sold Separately)
Applicable relay
G6B-1114P(-FD)-US-P6B
G6B-1174P(-FD)-US-P6B
G6B-1177P(-FD)-ND-US-P6B
G6BU-1114P-US-P6B
G6BK-1114P-US-P6B
G6B-2114P-US-P6B
G6B-2214P-US-P6B
G6B-2014P-US-P6B
Removal Tool
Hold-down Clips
Model
P6B-04P
P6B-06P
P6B-26P
P6B-Y1
P6B-C2
1 pcs
20 pcs
Minimum ordering unit
Note 1. G6B-1174P-US-P6B and G6B-1177P-ND-US-P6B are rated for 8 A when mounted on a PCB. However,
when used with the P6B-04P socket models, the allowable current is derated to 5 A.
2. The P6B sockets are designed to be used with G6B-@@@@P(-FD)-US-P6B relays. Only use G6B relays
that include "-P6B" in their model numbers with the sockets. Do not use standard G6B's that omit "-P6B"
from their model numbers with the sockets.
3. The hold-down clips of the P6B-C2 model are not suitable for the G6B-1174P and G6B-1177P models
since they have different heights.
4. Products with UL/CSA certification marks will be supplied for orders of standard models.
2
G6B
■Ratings
●
Coil: 1-Pole, Single-side Stable Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
40
33.3
16.7
8.3
125
180
720
2,880
70% max.
10% min.
160%
(at 23°C)
Approx. 200
Must operate Must release Max. voltage
Power consumption
voltage (V)
voltage (V)
(V)
(mW)
% of rated voltage
PCB Power Relay
●
Coil: 2-Pole, Single-side Stable Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
60
50
25
12.5
83.3
120
480
1,920
80% max.
10% min.
140%
(at 23°C)
Approx. 300
Must operate Must release Max. voltage
Power consumption
voltage (V)
voltage (V)
(V)
(mW)
% of rated voltage
●
Coil: Single-winding Latching Type
(Including models for ultrasonically cleanable)
Item
Rated
current
(mA)
40
33.3
16.7
8.3
Coil
resistance
(Ω)
125
180
720
2,880
70% max.
70% max.
160%
(at 23°C)
200
200
Must set Must reset Max. voltage
voltage (V) voltage (V)
(V)
% of rated voltage
Power consumption
Set coil
(mW)
Reset coil
(mW)
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
G
6
B
●
Coil: Double-winding Latching Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current (mA)
Set coil
56
46.8
23.3
11.7
Reset coil
56
46.8
23.3
11.7
Coil resistance (Ω)
Set coil
89.2
128.5
515
2,060
Reset coil
89.2
128.5
515
2,060
70% max.
70% max.
130%
(at 23°C)
280
280
Must set voltage Must reset voltage Max. voltage
(V)
(V)
(V)
% of rated voltage
Power consumption
Set coil
(mW)
Reset coil
(mW)
●
Coil: Operation Indicator Model
(Flux-resistant type. Do not wash down with water.)
Item
Rated voltage
5 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
43
19.7
11.3
116
610
2,120
70% max.
10% min.
Must operate Must release Max. voltage
Power consumption
voltage (V)
voltage (V)
(V)
(mW)
% of rated voltage
130%
(at 23°C)
Approx. 200
Approx. 240
Approx. 275
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
●
Contacts
G6B-1114P-US
G6BU-1114P-US
G6BK-1114P-US
G6B-1114P-FD-US
G6BU-1114P-FD-US
G6BK-1114P-FD-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
G6B-1174P-US
G6B-1177P-ND-US
G6B-1174P-FD-US
G6B-1177P-FD-ND-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
Single
Ag-Alloy (Cd free)
5 A (3 A) at 250 VAC
5 A (3 A) at 30 VDC
2 A (2 A) at 250 VAC
2 A (2 A) at 30 VDC
8 A (5 A) at 250 VAC
8 A (5 A) at 30 VDC
2 A (2 A) at 250 VAC
2 A (2 A) at 30 VDC
5 A (3 A) at 250 VAC
5 A (3 A) at 30 VDC
1.5 A (1.5 A) at 250 VAC
1.5 A (1.5 A) at 30 VDC
G6B-2114P-US
G6B-2214P-US
G6B-2014P-US
G6B-2114P-FD-US
G6B-2214P-FD-US
G6B-2014P-FD-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
Model
Load
Item
Contact type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
5 A (5 A)
5 A (5 A)
8 A (5 A)
380 VAC, 125 VDC
8 A (5 A)
5 A (5 A)
5 A (5 A)
Note 1. The values in the parentheses ( ) are for -FD models only.
2. Use the -FD type for inductive load and switching load which contact roughening is small.
3
G6B
■Characteristics
G6B-1114P-US
G6B-1114P-FD-US
Model
G6B-1174P-US
G6B-1174P-FD-US
PCB Power Relay
G6BU-1114P-US
G6BK-1114P-US
Item
Contact resistance *1
Operate (set) time
Release (reset) time
Min. set pulse width
Min. reset pulse width
Insulation resistance *2
Classification
Single-side stable
Single-winding
latching
Double-winding
latching
G6B-2114P-US
G6B-2114P-FD-US
G6B-2214P-US
G6B
-1177P(-FD)-ND-US G6B-2214P-FD-US
G6B-2014P-US
G6B-2014P-FD-US
Built-in operation
indicator & surge
Single-side stable
absorption diode
Between coil and contacts
Between contacts of the same
polarity
Dielectric strength
Between contacts of different
polarity
Between set and reset coils
Impulse withstand voltage (between coil and contacts)
Destruction
Vibration
resistance
Malfunction
Destruction
Shock resistance
Malfunction
Mechanical
Durability
Electrical
Failure rate (P level) (reference value) *3
Ambient operating temperature
Ambient operating humidity
Weight
30 mΩ max.
10 ms max.
10 ms max.
−
15 ms (at 23°C)
−
15 ms (at 23°C)
1,000 MΩ min.
2,000 VAC,
3,000 VAC, 50/60 Hz for 1 min
50/60 Hz for 1 min
1,000 VAC, 50/60 Hz for 1 min
−
−
−
−
3,000 VAC, 50/60 Hz for 1 min
2,000 VAC,
50/60 Hz for 1 min
G
6
B
250 VAC,
−
50/60 Hz for 1 min
6 kV 1.2
×
50
μs
4.5 kV 1.2
×
50
μs
6 kV 1.2
×
50
μs
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
1,000 m/s
2
100 m/s
2
300 m/s
2
100 m/s
2
50,000,000 operations min. (at 18,000 operations/hr)
100,000 operation min. (at 1,800 operations/hr under rated load)
10 mA at 5 VDC
-25°C to 70°C (with no icing or condensation)
5% to 85%
Approx. 3.5 to 4.6 g
Approx. 3.5 g
Approx. 3.7 g
Approx. 5.4 g
Approx. 4.5 g
Note 1. The values here are initial values.
2. The G6B-1177P(-FD)-ND model is flux-resistant. Do not wash it down with water.
*1. The contact resistance was measured with 1 A at 5 VDC using a voltage-drop method.
*2. Measurement conditions: The insulation resistance was measured with a 500 VDC megohmmeter at the same locations as the dielectric strength was
measured.(Except the location between set/reset coil)
*3. This value was measured at a switching frequency of 120 operations/min.
4
G6B

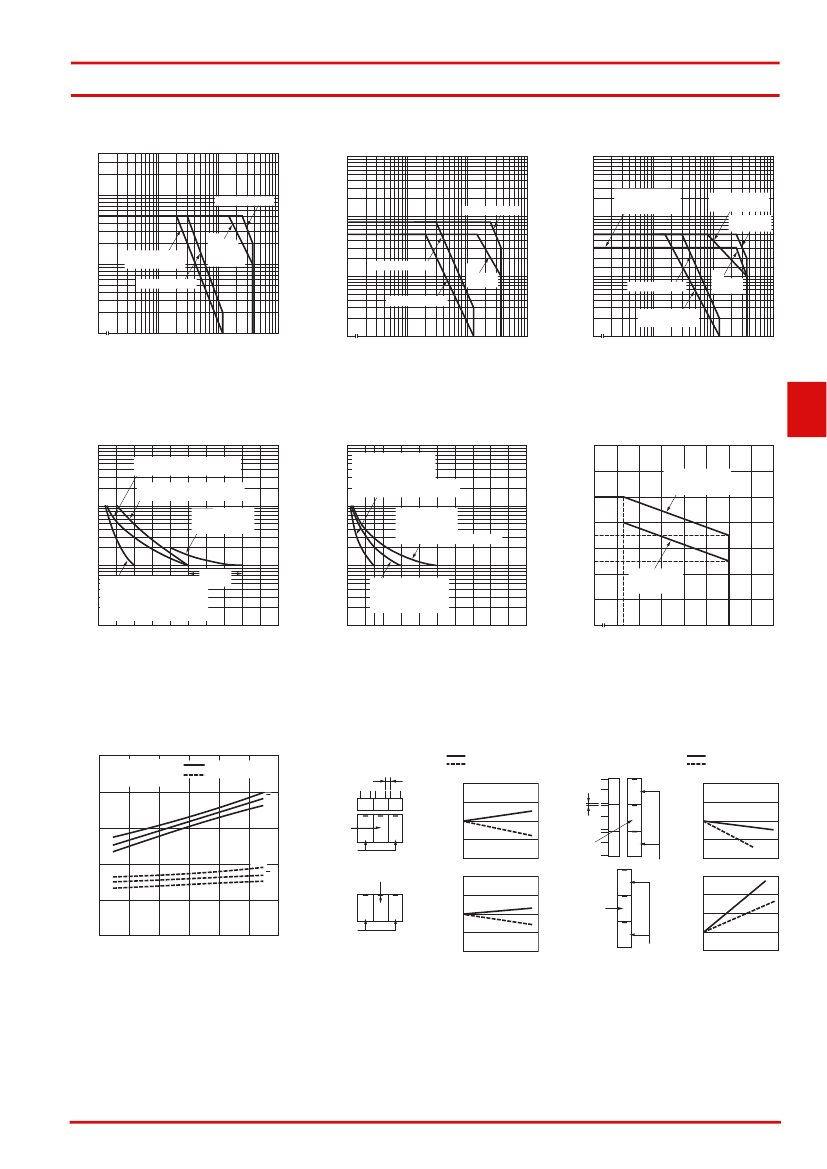

■Engineering
Data
●
Maximum Switching Current
G6B-1114P-US
G6B-1174P-FD-US
Switching current (A)
40
20
10
5
3
2
1
0.5
0.3
0.2
0.1
0
3
5
10
20 30
100
300 500
Switching voltage (V)
DC inductive load
(L/R = 7 ms)
DC resistive load
0.5
0.3
0.1
0
3
5
10
30 50 100
380
1,000
Switching voltage (V)
DC inductive load
AC
inductive
load
cosφ = 0.4
PCB Power Relay
G6B-1174P-US
Switching current (A)
100
50
30
AC resistive load
G6B-2114P-US
G6B-2214P-US
G6B-2014P-US
Switching current (A)
100
50
30
G6B-2114P-FD-US
G6B-2214P-FD-US
G6B-2014P-FD-US
AC inductive load
(cosφ = 0.4)
AC resistive
load
AC resistive load
10
8
5
3
2
DC resistive load
1
10
5
3
2
1.5
1
0.5
0.3
0.1
0
AC
inductive
load
DC resistive load
AC
resistive
load
DC inductive load
(L/R = 7 ms)
3
5
10
30 50 100
300 500 1,000
Switching voltage (V)
●
Durability
G6B-1114P-US
G6B-1174P-US
G6B-1174P-FD-US
Durability (x10
4
operations)
G6B-2114P(-FD)-US
G6B-2214P(-FD)-US
G6B-2014P(-FD)-US
Durability (x10
4
operations)
●
Ambient Temperature vs.
Maximum Coil Voltage
G6B-1114P-US
G6B-2114P-US
G6B-1174P-US
G6B-2214P-US
G6B-1174P-FD-US
G6B-2014P-US
Maximum coil voltage (%)
200
180
1,000
500
300
G6B-1114P-US
250 VAC/30 VDC resistive load
G6B-1174P-FD-US
250 VAC/30 VDC resistive load
100
50
30
G6B-1174P-US
250 VAC/30 VDC
resistive load
1,000
G6B-2114P(-FD)-US
500 G6B-2214P(-FD)-US
300 G6B-2014P(-FD)-US
250 VAC/30 VDC inductive load
(cosφ = 0.4, L/R = 7 ms)
100
50
30
G6B-2114P-US
G6B-2214P-US
G6B-2014P-US
250 VAC/30 VDC resistive load
160
G6B-1114P-US
G6B-1174P-US
G6B-1174P-FD-US
G
6
B
140
130
120
10
Higher
capacity
5 G6B-1114P-US
G6B-1174P-FD-US
3 G6B-1174P-US
250 VAC/30 VDC inductive load
(cosφ = 0.4, L/R = 7 ms)
1
0
1
2
3
4
5
6
7
10
5
3
1
8
9
10
0
1 1.5 2
3
4
5
6
7
8
9
10
Switching current (A)
G6B-2114P-FD-US
G6B-2214P-FD-US
G6B-2014P-FD-US
250 VAC resistive load
110
100
G6B-2114P-US
G6B-2214P-US
G6B-2014P-US
80
60
0
20 23 30
40
50
60
70
80
90
Ambient temperature (°C)
Switching current (A)
Note: The maximum coil voltage refers to the
maxi-mum value in a varying range of
operating power voltage, not a continuous
voltage.
●
Ambient Temperature vs. Must
Operate and Must Release Voltage
G6B-1114P-US
Must-operate/must-release voltage (%)
●
Mutual Magnetic Interference
G6B-1114P-US
Must operate voltage
Must release voltage
Initial stage
G6B-1114P-US
Must operate voltage
Must release voltage
Change rate on the
basis of initial value (%)
100
Change rate on the
basis of initial value (%)
Sample:
G6B-1114P-US
Number of Relays: 5 pcs
Must operate voltage
Must release voltage
max.
X
min.
2.54 mm
+1.0
+0.5
0
−0.5
−1.0
+1.0
+0.5
0
−0.5
−1.0
Test
Initial stage
+1.0
+0.5
0
−0.5
−1.0
+1.0
+0.5
0
−0.5
−1.0
Test
80
2.54 mm
60
Sample
De-energized
Average value
Initial stage
Test
Sample
De-energized
Average value
Initial stage
Test
40
max.
Change rate on the
basis of initial value (%)
20
Sample
0
−40
Energized
−20
0
20
40
60
80
Change rate on the
basis of initial value (%)
X
min.
Sample
Average value
Energized
Average value
Ambient temperature (°C)
5
京公网安备 11010802033920号
EEWORLD
