M5M5W817KT-70HI datasheet, PDF

Datasheet> All Categories > storage> storage> M5M5W817KT-70HI

M5M5W817KT-70HI: DescriptionStandard SRAM, 512KX16, 70ns, CMOS, PDSO52, 10.79 X 10.49 MM, 0.40 MM PITCH, MICRO, TSOP-52; Categorystorage storage; File Size79KB，10 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

M5M5W817KT-70HI Overview

Standard SRAM, 512KX16, 70ns, CMOS, PDSO52, 10.79 X 10.49 MM, 0.40 MM PITCH, MICRO, TSOP-52

M5M5W817KT-70HI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	TSOP
package instruction	SOP, TSOP52(UNSPEC)
Contacts	52
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	70 ns
Spare memory width	8
I/O type	COMMON
JESD-30 code	R-PDSO-G52
JESD-609 code	e0
memory density	8388608 bit
Memory IC Type	STANDARD SRAM
memory width	16
Number of functions	1
Number of terminals	52
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	TSOP52(UNSPEC)
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	3/3.3 V
Certification status	Not Qualified
Minimum standby current	3 V
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

2002.9.3 Ver. 0.0

MITSUBISHI LSIs

M5M5W817KT - 70HI

8388608-BIT (524288-WORD BY 16-BIT / 10485776-WORD BY 8-BIT) CMOS STATIC RAM

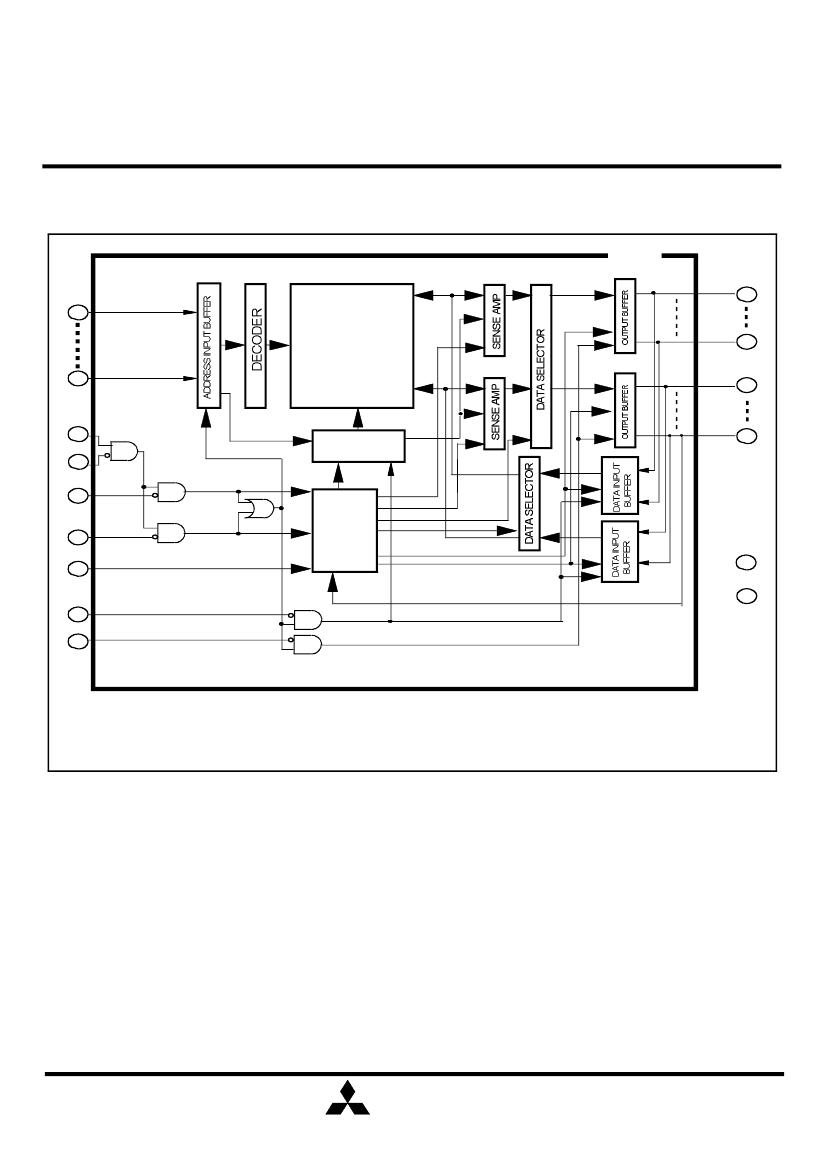

DESCRIPTION

The M5M5W817KT is a f amily of low v oltage 8Mbit static RAMs

organized as 524288-words by 16-bit / 1048576-words by 8-bit,

f abricated by

Mitsubishi's high-perf ormance 0.18µm CMOS

technology .

The M5M5W817KT is suitable f or memory applications where a

simple interf acing , battery operating and battery backup are

the important design objectiv es.

The M5M5W817KT is packaged in a 52pin-µTSOP with the outline

of 10.79mm x 10.49mm, and pin pitch of 0.40mm. It giv es the

best solution f or a compaction of m ounting area as well as

f lexibility of wiring pattern of printed circuit boards.

The operating temperature range is -40 ~ +85°C

FEATURES

Single 2.7~3.6V power supply

Small stand-by current: 0.1µA (2.0V, ty p.)

No clocks, No ref resh

Data retention supply v oltage =2.0~3.6V

All inputs and outputs are TTL compatible.

Easy memory expansion by S1#, S2, BC1# and BC2#

Common Data I/O

Three-state outputs: OR-tie capability

OE prev ents data contention in the I/O bus

By te f unction (x8 mode) av ailable by By te# & A-1.

Process technology : 0.18µm CMOS

Package: 52pin 10.79mm x 10.49mm µTSOP

[0.4mm pin pitch]

Operating

temperature

Part name

Power

Access time * Ty pical

Ratings (max.)

Supply

max.

25ºC 40ºC 25ºC 40ºC 70ºC 85ºC

70ns

1.0

1.2

Stand-by c urrent

Icc1

(3.3V, Ty p.)

30mA

(10MHz)

5mA

(1MHz)

Active

current

-40 ~ +85°C

M5M5W817KT -70HI 2.7 ~ 3.6V

PIN CONFIGURATION

A15

A14

A13

A12

A11

A10

S1#

VCC

A18

A17

A16

BYTE#

BC2#

GND

* Typical parameter indicates the value for the center

of distribution, and not 100% tested.

BC1#

DQ16/A-1

DQ8

DQ15

DQ7

DQ14

DQ6

DQ13

DQ5

DQ12

DQ4

DQ11

DQ3

DQ10

DQ2

DQ9

DQ1

OE#

GND

A0 ~ A18

Function

Address input

DQ1 ~ DQ16 Data input / output

Chip select input 1

S1#

OE#

BC1#

BC2#

BYTE#

Vcc

GND

Chip select input 2

Write control input

Output enable input

Lower By te (DQ1 ~ 8)

Upper By te (DQ9 ~ 16)

By te (x8 mode) enable input

Power supply

Ground supply

10.49mm

Outline:

52PTG-A

N C : No Connection

MITSUBISHI ELECTRIC
