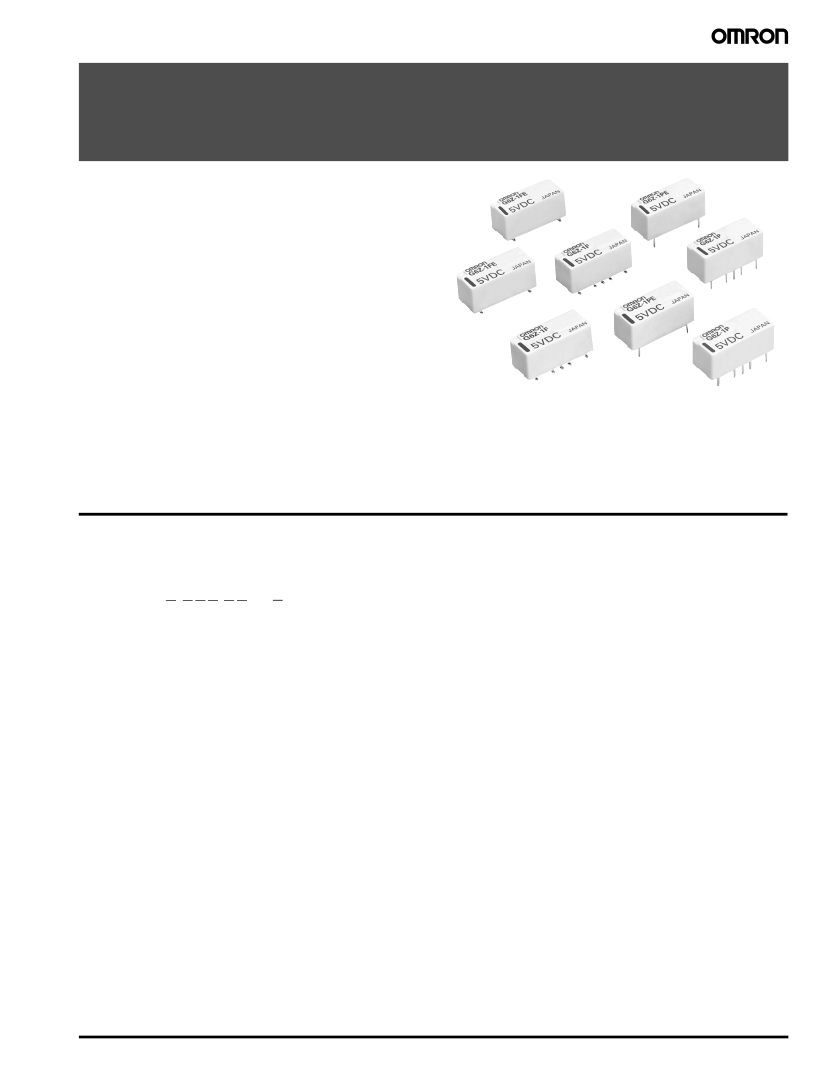

High-frequency Relay
G6Z
Miniature 2.6-GHz-Band, SPDT,
High-frequency Relay
• Superior high-frequency characteristics include an isolation
of 30 dB min., 60-65 dB isolation at 900 MHz, insertion loss
of 0.5 dB max., and V.SWR of 1.5 max. at 2.6 GHz.
• Triplate micro stripline technology assures superior
high-frequency characteristics.
• Miniature dimensions of 20
×
8.6
×
8.9 mm (L
×
W
×
H).
• Available models include single-coil latching (200 mW),
dual coil latching (360 mW), and models with
reverse contact arrangement.
• Series includes versions with an E-shape terminal struc-
ture, and models with a Y-shape terminal structure, allowing
greater freedom with PCB design.
• Models with 75-Ω impedance and models with
50-Ω impedance are also available.
• Surface mount relays available in tube packaging or tape-
and-reel packaging.
Ordering Information
■
Model Number Legend:
G6Z
-
-
1
2 3 4
-
5 6
-DC
7
1. Relay Function
None: Non-latching
U:
K:
1:
F:
P:
Single coil latching
Dual coil latching
SPDT
Surface mount terminals
PCB through-hole terminals
4. Terminal Structure
None: Y-shape terminal
E:
E-shape terminal
5. Characteristic Impedance
None: 75
Ω
A:
50
Ω
6. Contact Arrangement
None: Standard contact arrangement
R:
Reverse contact arrangement
7. Rated Coil Voltage
3, 4.5, 5, 9, 12, 24
2. Contact Form
3. Terminal Shape
High-frequency Relay
G6Z
1
■
Standard Models with PCB Through-hole Terminals
Classification
Non-latching
Structure
Fully
sealed
Contact
form
SPDT
Terminal
arrangement
E-shape
Y-shape
Single coil
latching
E-shape
Y-shape
Dual coil
latching
E-shape
Y-shape
Characteristic
impedance
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
Rated coil voltage
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
Model
G6Z-1PE
G6Z-1PE-A
G6Z-1P
G6Z-1P-A
G6ZU-1PE
G6ZU-1PE-A
G6ZU-1P
G6ZU-1P-A
G6ZK-1PE
G6ZK-1PE-A
G6ZK-1P
G6ZK-1P-A
■
Standard Models with Surface-mounting Terminals
Classification
Non-latching
Structure
Fully
sealed
Contact
form
SPDT
Terminal
arrangement
E-shape
Y-shape
Single coil
latching
E-shape
Y-shape
Dual coil
latching
E-shape
Y-shape
Characteristic
impedance
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
Rated coil voltage
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
G6Z-1FE
G6Z-1FE-A
G6Z-1F
G6Z-1F-A
G6ZU-1FE
G6ZU-1FE-A
G6ZU-1F
G6ZU-1F-A
G6ZK-1FE
G6ZK-1FE-A
G6ZK-1F
G6ZK-1F-A
Model
Note:
When ordering tape and reel packaging (surface-mount models), add “-TR” to the model number, (example: G6Z-1FE“TR”-DC12) “-TR” does
not appear on the relay itself.
Application Examples
These Relays can be used for switching signals in media equipment.
• Wire communications:
Cable TV (STB and broadcasting infrastructure), cable modems, and VRS (video response systems)
• Wireless communications:
Transceivers, ham radios, car telephones, ETC, ITS, high-level TV, satellite broadcasting, text multiplex broadcasting, pay TV, mobile phone sta-
tions, TV broadcasting facilities, and community antenna systems
• Public equipment:
TVs, TV games, satellite radio units, car navigation systems
• Industrial equipment:
Measuring equipment, test equipment, and multiplex transmission devices
2
High-frequency Relay
G6Z
■
Characteristics
Item
Non-latching
models
G6Z-1P(E), G6Z-1F(E)
Contact resistance (See note 2)
Operating (set) time (See note 3)
Release (reset) time (See note 3)
Set/reset time
Insulation resistance (See note 4)
Dielectric strength
Coil and contacts
Coil and ground,
contacts and ground
100 mΩ max.
10 ms max. (approx. 3.5 ms) 10 ms max. (approx. 2.5 ms)
10 ms max. (approx 2.5 ms)
---
100 MΩ min. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 min.
500 VAC, 50/60 Hz for 1 min.
12 ms
Single coil latching
models
G6ZU-1P(E), G6ZU-1F(E)
Dual coil latching
models
G6ZK-1P(E), G6ZK-1F(E)
Contacts of same polar-
500 VAC, 50/60 Hz for 1 min.
ity
Vibration resistance
Shock resistance
Service life
Mechanical durability
Malfunction durability
Mechanical durability
Malfunction durability
Mechanical
Electrical
Ambient temperature
Ambient humidity
Weight
Note: 1.
2.
3.
4.
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
1,000 m/s
2
500 m/s
2
1,000,000 operations min. (at 36,000 operations/hour)
300,000 operations min. (30 VAC, 10 mA/30 VDC, 10 mA), 100,000 operations min.
(900 MHz, 10 W) at a switching frequency of 1,800 operations/hour
Operating: -40° C to 70° C (-40° F to 158° F) (with no icing or condensation)
Operating: 5% to 85% RH
Approx. 2.8 g
The above values are initial values.
The contact resistance was measured with 10 mA at 1 VDC with a voltage drop method.
Values in parentheses are actual values.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those used for checking the
dielectric strength.
Engineering Data
Ambient Temperature vs.
Maximum Voltage
Maximum voltage (%)
250
Ambient Temperature vs. Must
Operate or Must Release Voltage
On the basis of rated voltage (%)
100
Sample: G6Z-1P 5 VDC
90 Number of relays: 5
80
70
60
50
40
30
max.
avg.
min.
Must operate voltage
Must release voltage
Shock Malfunction
Y
1,000
800
max.
avg.
min.
X
1,000
600 Not
energized
400
200
Z
1,000
Energized
Max. estimated value
200
G6Z
G6ZU
150
200
1,000
Z'
Shock direction
X'
X
Y
Z
Z'
Y'
400
600
800
1,000
m/s
2
G6Z-1P-A 50
Ω
5 VDC
Number of relays: 5
Unit:
Sample:
1,000
X'
G6ZK
100
50
20
10
Y'
0
−40
−20
0
20
40
60
80
100
0
−60
−40
−20
0
20
40
60
80 100
Ambient temperature (°C)
Ambient temperature (°C)
Conditions: Shock is applied in
±X, ±Y,
and
±Z
directions three times each with and
without energizing the Relays to check
for contact malfunctions.
High-frequency Relay
G6Z
5
FPGA/CPLD
